VC.692

Lobe knobs with solid section

Technopolymer, easy cleaning

Enquire Now

VC.692-B

Lobe knobs with solid section

Brass boss, threaded hole

VC.692-SST

Lobe knobs with solid section

Stainless steel boss, threaded hole

VC.692-p

Lobe knobs with solid section

Zinc-plated steel threaded stud

VC.692-SST-p

Lobe knobs with solid section

Stainless steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

VC.692-B: brass boss, threaded blind hole.
VC.692-SST: AISI 303 stainless steel boss, threaded blind hole.
VC.692-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
VC.692-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

The exclusive five-lobe shape (ELESA original design) offers the operator's fingers a proper grip and prevents unhealthy residues from depositing thanks to its solid shape without cavities.

The metal insert in AISI 303 stainless steel can be used in sectors where corrosion resistant materials are required.

VC.692-SST

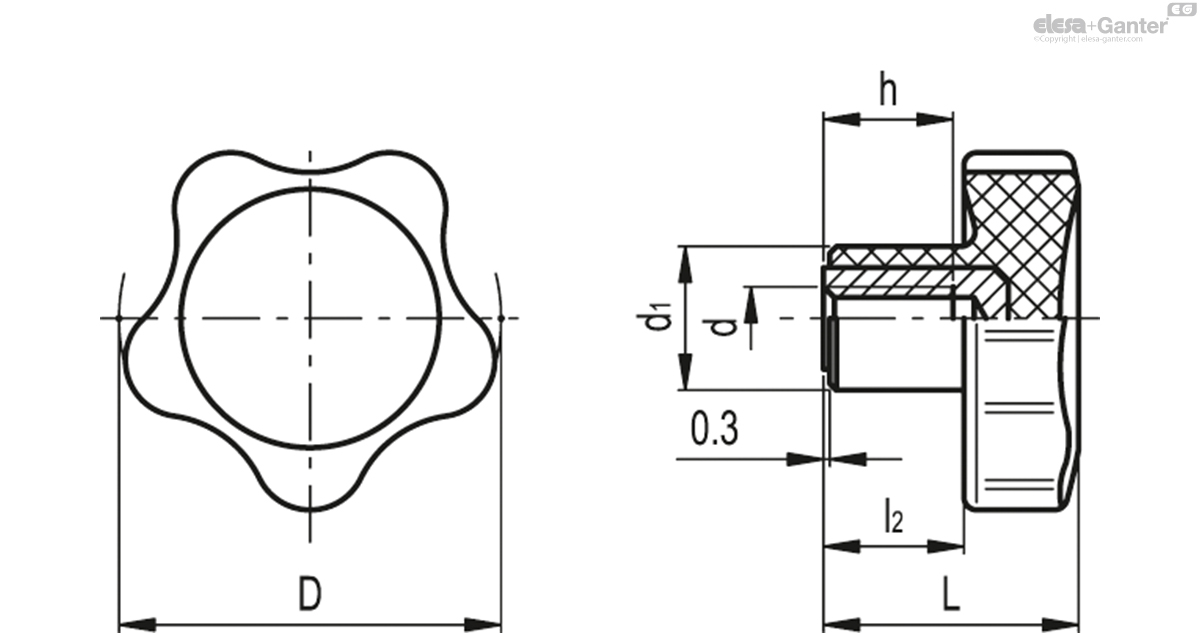

		D	d_6H	L	d₁	l₂	h
Code	Description								Actions
166116	VC.692/25-SST-M5	25	M5	20	12	10	10	8
166117	VC.692/25-SST-M6	25	M6	20	12	10	10	10
166225	VC.692/32 SST-M5	32	M5	22.5	14	12.5	10	14
166226	VC.692/32-SST-M6	32	M6	22.5	14	12.5	10	15
166345	VC.692/40 SST-M6	40	M6	26	15	14	12	24
166346	VC.692/40-SST-M8	40	M8	26	15	14	13	26
166475	VC.692/50 SST-M8	50	M8	31	18	17	15	45
166476	VC.692/50-SST-M10	50	M10	31	18	17	17	42
166555	VC.692/60 SST-M10	60	M10	36.5	21	21	17	65
166556	VC.692/60-SST-M12	60	M12	36.5	21	21	20	66
