ZCL

Spur Gears

Technopolymer, pressure angle 20°

Enquire Now

Module 1.0, drilled hub with keyway

ZCL-1.5-K

Spur Gears

Module 1.5, drilled hub with keyway

ZCL-2.0-K

Spur Gears

Module 2.0, drilled hub with keyway

ZCL-2.5-K

Spur Gears

Module 2.5, drilled hub with keyway

ZCL-3.0-K

Spur Gears

Module 3.0, drilled hub with keyway

Description

Main specifications

Material

Glass-fibre reinforced polyamide-based (PA) technopolymer, grey colour.

Standard executions

ZCL-0.5: module 0.5 solid hub (number of teeth Z ≤ 50) or pre-drilled pass-through hole (number of teeth Z ≥ 55).
ZCL-1.0: module 1.0 solid hub (number of teeth Z = 10) or pre-drilled pass-through hole.
ZCL-1.5: module 1.5, pre-drilled pass-through hole
ZCL-2.0: module 2.0, pre-drilled pass-through hole
ZCL-2.5: module 2.5, pre-drilled pass-through hole
ZCL-3.0: module 3.0, pre-drilled pass-through hole
ZCL-1.0-K: module 1.0, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-1.5-K: module 1.5, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-2.0-K: module 2.0, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-2.5-K: module 2.5, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-3.0-K: module 3.0, drilled hub with keyway UNI 6604, D10 tolerance.

For the executions with the pre-drilled pass-through hole, in the tables the size “d” of the hole represents the minimum diameter of the hole that can be obtained through machining.

For the -K versions, the keyway machining does not necessarily result in phasing with the gearing.

General information

Features

The torques indicated in the tables are granted with rpm included between 0 and 150. Torque values can vary depending on lubrication, temperature, pairing with different materials and continuous operating hours.

Maximum tolerance on plain pass-through hole: IT 9.

Technical data

See: Transmission elements.

Other executions

Special executions on request

Assembly by means of a transversal grub screw.
Various non-standard gears with hub with keyway according to UNI 6604 tolerance D10.

Instructions of use

Mounting

To pair two spur gears, a positive backlash must be considered. For modules 0.5 - 1.0 - 1.5 is recommended the tolerance (+0.03 +0.1). For modules 2.0 - 2.5 - 3.0 is recommended the tolerance (+0.08 +0.3).

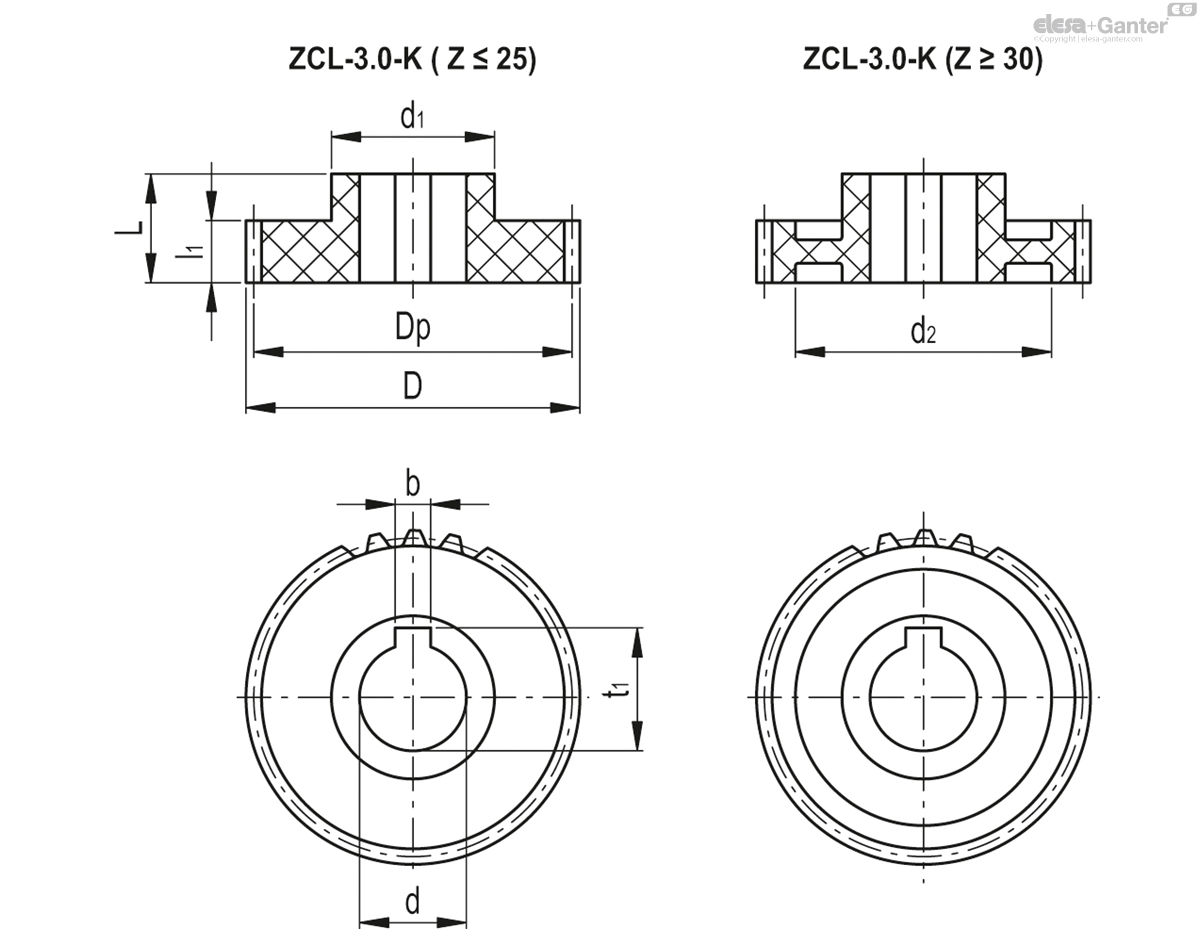

ZCL-3.0-K

		Module M	No. of teeth Z	Dp*	D	L	d_H9	b_D10	t₁	d₁	d₂	l₁	Max. torque [Nm]
Code	Description														Actions
550801-K	ZCL-3.0-12-A12-K	3.0	12	36	42	45	12	4	13.8 +0.1	25	-	30	62.7	43
550807-K	ZCL-3.0-15-A12-K	3.0	15	45	51	45	12	4	13.8 +0.1	30	-	30	78.4	70
550809-K	ZCL-3.0-16-A15-K	3.0	16	48	54	45	15	5	17.3 +0.1	35	-	30	83.7	79
550817-K	ZCL-3.0-20-A20-K	3.0	20	60	66	45	20	6	22.8 +0.1	45	-	30	104.6	121
550827-K	ZCL-3.0-25-A20-K	3.0	25	75	81	45	20	6	22.8 +0.1	45	-	30	130.7	186
550837-K	ZCL-3.0-30-A20-K	3.0	30	90	96	45	20	6	22.8 +0.1	50	65	30	156.9	233
550855-K	ZCL-3.0-40-A25-K	3.0	40	120	126	45	25	8	28.3 +0.2	60	85	30	209.1	406
550875-K	ZCL-3.0-50-A25-K	3.0	50	150	156	45	25	8	28.3 +0.2	60	127	30	261.4	423
