Spur Gears

Technopolymer, pressure angle 20°

Enquire Now

Module 1.0, drilled hub with keyway

ZCL-1.5-K

Spur Gears

Module 1.5, drilled hub with keyway

ZCL-2.0-K

Spur Gears

Module 2.0, drilled hub with keyway

ZCL-2.5-K

Spur Gears

Module 2.5, drilled hub with keyway

ZCL-3.0-K

Spur Gears

Module 3.0, drilled hub with keyway

Description

Main specifications

Material

Glass-fibre reinforced polyamide-based (PA) technopolymer, grey colour.

Standard executions

ZCL-0.5: module 0.5 solid hub (number of teeth Z ≤ 50) or pre-drilled pass-through hole (number of teeth Z ≥ 55).
ZCL-1.0: module 1.0 solid hub (number of teeth Z = 10) or pre-drilled pass-through hole.
ZCL-1.5: module 1.5, pre-drilled pass-through hole
ZCL-2.0: module 2.0, pre-drilled pass-through hole
ZCL-2.5: module 2.5, pre-drilled pass-through hole
ZCL-3.0: module 3.0, pre-drilled pass-through hole
ZCL-1.0-K: module 1.0, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-1.5-K: module 1.5, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-2.0-K: module 2.0, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-2.5-K: module 2.5, drilled hub with keyway UNI 6604, D10 tolerance.
ZCL-3.0-K: module 3.0, drilled hub with keyway UNI 6604, D10 tolerance.

For the executions with the pre-drilled pass-through hole, in the tables the size “d” of the hole represents the minimum diameter of the hole that can be obtained through machining.

For the -K versions, the keyway machining does not necessarily result in phasing with the gearing.

General information

Features

The torques indicated in the tables are granted with rpm included between 0 and 150. Torque values can vary depending on lubrication, temperature, pairing with different materials and continuous operating hours.

Maximum tolerance on plain pass-through hole: IT 9.

Technical data

See: Transmission elements.

Other executions

Special executions on request

Assembly by means of a transversal grub screw.
Various non-standard gears with hub with keyway according to UNI 6604 tolerance D10.

Instructions of use

Mounting

To pair two spur gears, a positive backlash must be considered. For modules 0.5 - 1.0 - 1.5 is recommended the tolerance (+0.03 +0.1). For modules 2.0 - 2.5 - 3.0 is recommended the tolerance (+0.08 +0.3).

ZCL-3.0

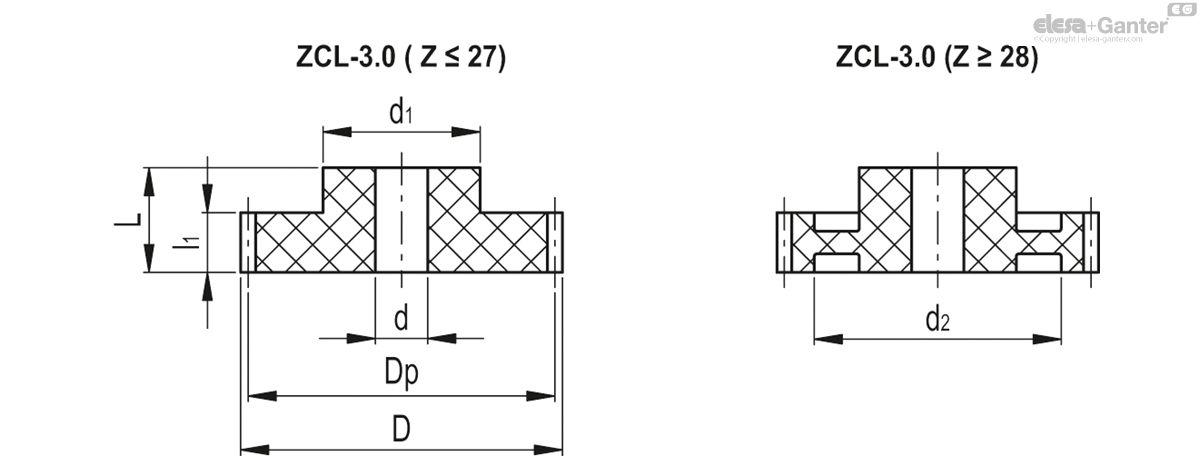

		Module M	No. of teeth Z	Dp*	D	L	d _min	d₁	d₂	l₁	Max. torque [Nm]
Code	Description												Actions
550801	ZCL-3.0-12	3.0	12	36	42	45	12	25	-	30	62.7	45
550805	ZCL-3.0-14	3.0	14	42	48	45	12	30	-	30	73.2	62
550807	ZCL-3.0-15	3.0	15	45	51	45	12	30	-	30	78.4	72
550809	ZCL-3.0-16	3.0	16	48	54	45	12	35	-	30	83.7	85
550813	ZCL-3.0-18	3.0	18	54	60	45	12	40	-	30	94.1	108
550817	ZCL-3.0-20	3.0	20	60	66	45	12	45	-	30	104.6	135
550821	ZCL-3.0-22	3.0	22	66	72	45	16	45	-	30	115.0	156
550823	ZCL-3.0-23	3.0	23	69	75	45	16	45	-	30	120.3	167
550825	ZCL-3.0-24	3.0	24	72	78	45	16	45	-	30	125.5	180
550827	ZCL-3.0-25	3.0	25	75	81	45	16	45	-	30	130.7	195
550829	ZCL-3.0-26	3.0	26	78	84	45	16	45	-	30	135.9	208
550831	ZCL-3.0-27	3.0	27	81	87	45	16	45	-	30	141.2	224
550833	ZCL-3.0-28	3.0	28	84	90	45	16	50	65	30	146.4	207
550835	ZCL-3.0-29	3.0	29	87	93	45	16	50	65	30	151.6	220
550837	ZCL-3.0-30	3.0	30	90	96	45	16	50	65	30	156.9	236
550841	ZCL-3.0-32	3.0	32	96	102	45	16	50	73	30	167.3	243
550845	ZCL-3.0-35	3.0	35	105	111	45	20	60	80	30	183.0	336
550855	ZCL-3.0-40	3.0	40	120	126	45	20	60	85	30	209.1	416
550865	ZCL-3.0-45	3.0	45	135	141	45	20	60	101	30	235.3	434
550875	ZCL-3.0-50	3.0	50	150	156	45	20	60	127	30	261.4	438
