ZCL
Spur Gears
Technopolymer, pressure angle 20°
ZCL-0.5
Spur Gears
Module 0.5
ZCL-1.0
Spur Gears
Module 1.0
ZCL-1.5
Spur Gears
Module 1.5
ZCL-2.0
Spur Gears
Module 2.0
ZCL-2.5
Spur Gears
Module 2.5
ZCL-3.0
Spur Gears
Module 3.0
ZCL-1.0-K
Spur Gears
Module 1.0, drilled hub with keyway
ZCL-1.5-K
Spur Gears
Module 1.5, drilled hub with keyway
ZCL-2.0-K
Spur Gears
Module 2.0, drilled hub with keyway
ZCL-2.5-K
Spur Gears
Module 2.5, drilled hub with keyway
ZCL-3.0-K
Spur Gears
Module 3.0, drilled hub with keyway
Description
Main specifications
Material
Glass-fibre reinforced polyamide-based (PA) technopolymer, grey colour.
Standard executions
- ZCL-0.5: module 0.5 solid hub (number of teeth Z ≤ 50) or pre-drilled pass-through hole (number of teeth Z ≥ 55).
- ZCL-1.0: module 1.0 solid hub (number of teeth Z = 10) or pre-drilled pass-through hole.
- ZCL-1.5: module 1.5, pre-drilled pass-through hole
- ZCL-2.0: module 2.0, pre-drilled pass-through hole
- ZCL-2.5: module 2.5, pre-drilled pass-through hole
- ZCL-3.0: module 3.0, pre-drilled pass-through hole
- ZCL-1.0-K: module 1.0, drilled hub with keyway UNI 6604, D10 tolerance.
- ZCL-1.5-K: module 1.5, drilled hub with keyway UNI 6604, D10 tolerance.
- ZCL-2.0-K: module 2.0, drilled hub with keyway UNI 6604, D10 tolerance.
- ZCL-2.5-K: module 2.5, drilled hub with keyway UNI 6604, D10 tolerance.
- ZCL-3.0-K: module 3.0, drilled hub with keyway UNI 6604, D10 tolerance.
For the executions with the pre-drilled pass-through hole, in the tables the size “d” of the hole represents the minimum diameter of the hole that can be obtained through machining.
For the -K versions, the keyway machining does not necessarily result in phasing with the gearing.
General information
Features
The torques indicated in the tables are granted with rpm included between 0 and 150. Torque values can vary depending on lubrication, temperature, pairing with different materials and continuous operating hours.
Maximum tolerance on plain pass-through hole: IT 9.
Technical data
See: Transmission elements.
Other executions
Special executions on request
- Assembly by means of a transversal grub screw.
- Various non-standard gears with hub with keyway according to UNI 6604 tolerance D10.
Instructions of use
Mounting
To pair two spur gears, a positive backlash must be considered. For modules 0.5 - 1.0 - 1.5 is recommended the tolerance (+0.03 +0.1). For modules 2.0 - 2.5 - 3.0 is recommended the tolerance (+0.08 +0.3).

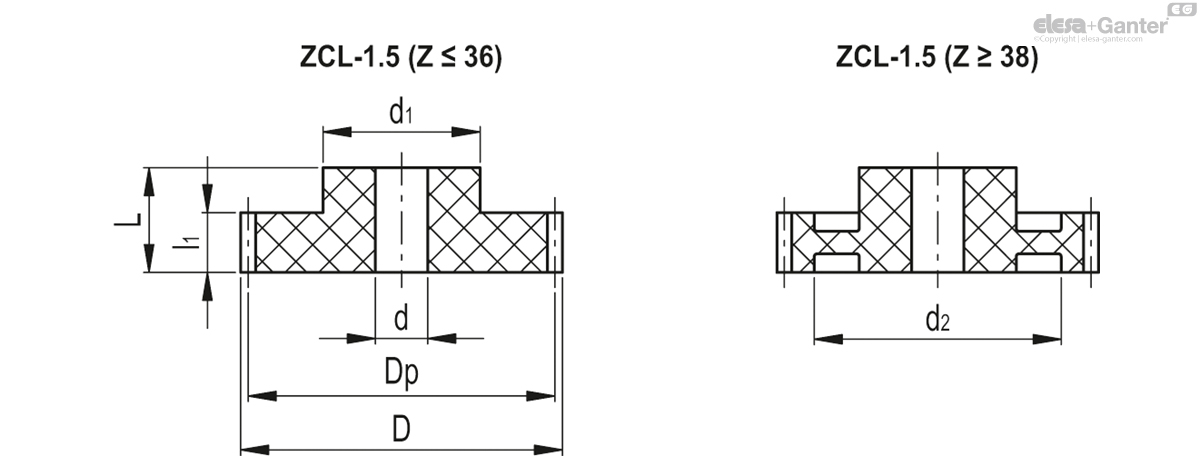

ZCL-1.5
| Module M | No. of teeth Z |
Dp* | D | L | d min | d1 | d2 | l1 | Max. torque [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||
| 550301 | ZCL-1.5-12 | 1.5 | 12 | 18 | 21 | 30 | 5 | 14 | - | 17 | 8.2 | 8 |
|
| 550305 | ZCL-1.5-14 | 1.5 | 14 | 21 | 24 | 30 | 5 | 16 | - | 17 | 9.6 | 10 |
|
| 550307 | ZCL-1.5-15 | 1.5 | 15 | 22.5 | 25.5 | 30 | 5 | 18 | - | 17 | 10.3 | 13 |
|
| 550309 | ZCL-1.5-16 | 1.5 | 16 | 24 | 27 | 30 | 5 | 18 | - | 17 | 10.9 | 14 |
|
| 550313 | ZCL-1.5-18 | 1.5 | 18 | 27 | 30 | 30 | 6 | 20 | - | 17 | 12.3 | 18 |
|
| 550317 | ZCL-1.5-20 | 1.5 | 20 | 30 | 33 | 30 | 8 | 25 | - | 17 | 13.7 | 23 |
|
| 550319 | ZCL-1.5-21 | 1.5 | 21 | 31.5 | 34.5 | 30 | 8 | 25 | - | 17 | 14.4 | 24 |
|
| 550321 | ZCL-1.5-22 | 1.5 | 22 | 33 | 36 | 30 | 8 | 28 | - | 17 | 15.0 | 28 |
|
| 550325 | ZCL-1.5-24 | 1.5 | 24 | 36 | 39 | 30 | 8 | 28 | - | 17 | 16.4 | 32 |
|
| 550327 | ZCL-1.5-25 | 1.5 | 25 | 37.5 | 40.5 | 30 | 8 | 30 | - | 17 | 17.1 | 34 |
|
| 550329 | ZCL-1.5-26 | 1.5 | 26 | 39 | 42 | 30 | 8 | 30 | - | 17 | 17.8 | 35 |
|
| 550333 | ZCL-1.5-28 | 1.5 | 28 | 42 | 45 | 30 | 8 | 30 | - | 17 | 19.1 | 41 |
|
| 550337 | ZCL-1.5-30 | 1.5 | 30 | 45 | 48 | 30 | 12 | 35 | - | 17 | 20.5 | 50 |
|
| 550341 | ZCL-1.5-32 | 1.5 | 32 | 48 | 51 | 30 | 12 | 35 | - | 17 | 21.9 | 49 |
|
| 550343 | ZCL-1.5-33 | 1.5 | 33 | 49.5 | 52.5 | 30 | 12 | 35 | - | 17 | 22.6 | 55 |
|
| 550345 | ZCL-1.5-34 | 1.5 | 34 | 51 | 54 | 30 | 12 | 35 | - | 17 | 23.2 | 54 |
|
| 550347 | ZCL-1.5-35 | 1.5 | 35 | 52.5 | 55.5 | 30 | 12 | 35 | - | 17 | 23.9 | 61 |
|
| 550349 | ZCL-1.5-36 | 1.5 | 36 | 54 | 57 | 30 | 12 | 35 | - | 17 | 24.6 | 48 |
|
| 550353 | ZCL-1.5-38 | 1.5 | 38 | 57 | 60 | 30 | 16 | 35 | 42 | 17 | 26.0 | 53 |
|
| 550355 | ZCL-1.5-39 | 1.5 | 39 | 58.5 | 61.5 | 30 | 16 | 35 | 42 | 17 | 26.7 | 61 |
|
| 550357 | ZCL-1.5-40 | 1.5 | 40 | 60 | 63 | 30 | 16 | 40 | 48 | 17 | 27.4 | 63 |
|
| 550359 | ZCL-1.5-42 | 1.5 | 42 | 63 | 66 | 30 | 16 | 45 | 53 | 17 | 28.7 | 72 |
|
| 550363 | ZCL-1.5-44 | 1.5 | 44 | 66 | 69 | 30 | 16 | 45 | 53 | 17 | 30.1 | 84 |
|
| 550365 | ZCL-1.5-45 | 1.5 | 45 | 67.5 | 70.5 | 30 | 16 | 45 | 53 | 17 | 30.8 | 85 |
|
| 550367 | ZCL-1.5-46 | 1.5 | 46 | 69 | 72 | 30 | 16 | 45 | 53 | 17 | 31.5 | 86 |
|
| 550371 | ZCL-1.5-48 | 1.5 | 48 | 75 | 75 | 30 | 16 | 45 | 53 | 17 | 32.8 | 99 |
|
| 550373 | ZCL-1.5-50 | 1.5 | 50 | 75 | 78 | 30 | 16 | 45 | 53 | 17 | 34.2 | 112 |
|
| 550375 | ZCL-1.5-51 | 1.5 | 51 | 76.5 | 79.5 | 30 | 20 | 50 | 63 | 17 | 34.9 | 110 |
|
| 550377 | ZCL-1.5-52 | 1.5 | 52 | 78 | 81 | 30 | 20 | 50 | 63 | 17 | 35.6 | 113 |
|
| 550381 | ZCL-1.5-54 | 1.5 | 54 | 81 | 84 | 30 | 20 | 50 | 63 | 17 | 36.9 | 122 |
|
| 550383 | ZCL-1.5-55 | 1.5 | 55 | 82.5 | 85.5 | 30 | 20 | 50 | 63 | 17 | 37.6 | 126 |
|
| 550385 | ZCL-1.5-60 | 1.5 | 60 | 90 | 93 | 30 | 20 | 55 | 73 | 17 | 41.0 | 147 |
|
| 550389 | ZCL-1.5-65 | 1.5 | 65 | 97.5 | 100.5 | 30 | 20 | 60 | 81 | 17 | 44.4 | 175 |
|
| 550391 | ZCL-1.5-70 | 1.5 | 70 | 105 | 108 | 30 | 20 | 60 | 93 | 17 | 47.9 | 167 |
|
| 550393 | ZCL-1.5-75 | 1.5 | 75 | 112.5 | 115.5 | 30 | 20 | 60 | 93 | 17 | 51.3 | 155 |
|
| 550395 | ZCL-1.5-80 | 1.5 | 80 | 120 | 123 | 30 | 20 | 60 | 109 | 17 | 54.7 | 208 |
|
