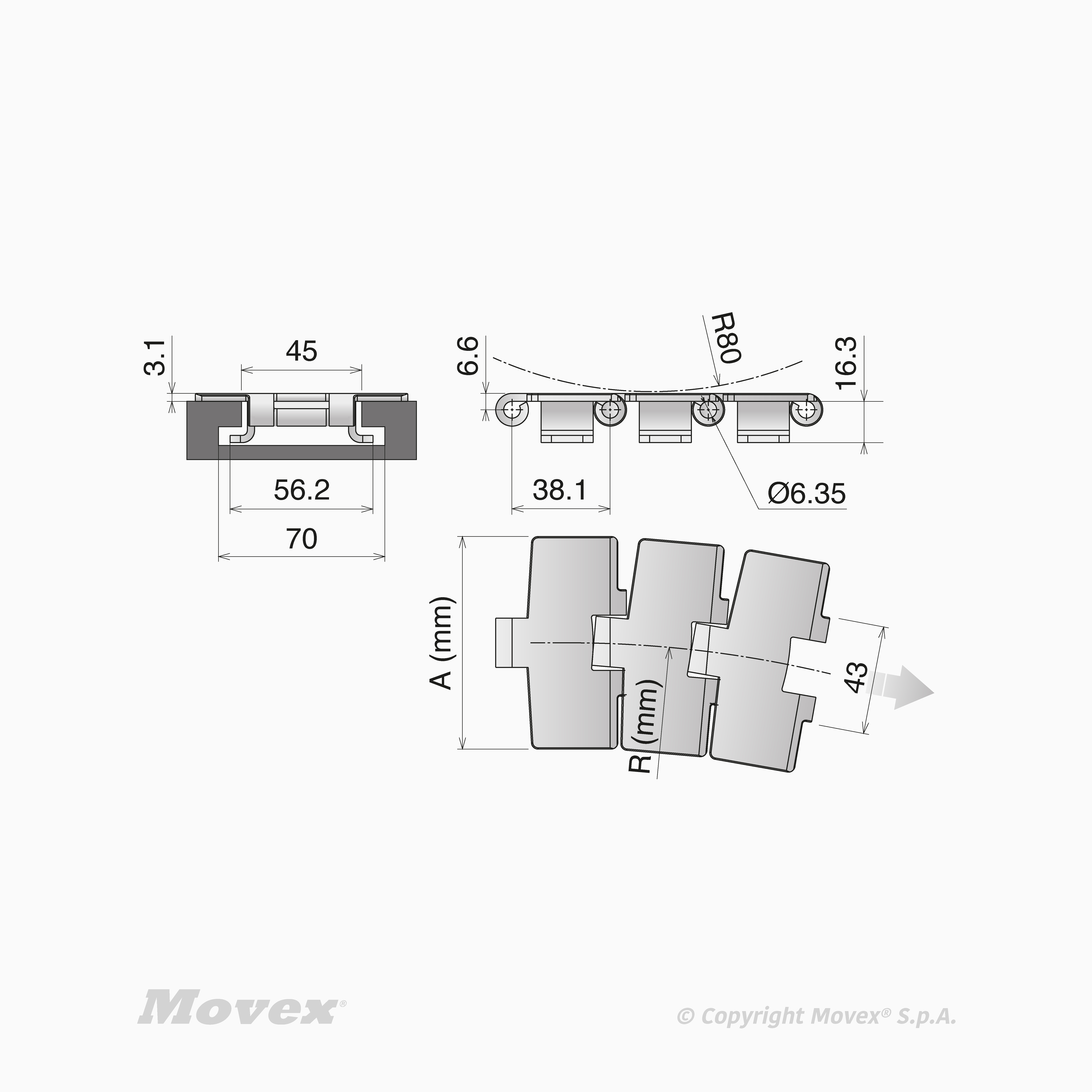

881 TAB Flat Top

881 TAB Flat Top

	Width	Material	Part	Back flex radius	Sideflexing radius min	Mass	Surface finish	Pin material	Box	Max working load
Code	All K 325 - 82,5 mm K 450 - 114,3 mm K 750 - 190,5 mm	All SS - Ferritic Stainless Steel 1.4016 SSA - Austenitic Stainless Steel AISI 304 SSE - Specially treated Ferritic Stainless Steel 1.4589	All P1010	All 80 mm	All 457 mm 500 mm	All 3 kg/m 3.69 kg/m 5.5 kg/m	All 0.3 mm	All Martensitic 1,4057	All 10 ft - 3,048 m	All 4500 N 5400 N 6000 N	Actions
P10100102	K 325 - 82,5 mm	SSE - Specially treated Ferritic Stainless Steel 1.4589	P1010	80 mm	457 mm	3 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	6000 N
P10100105	K 450 - 114,3 mm	SSE - Specially treated Ferritic Stainless Steel 1.4589	P1010	80 mm	500 mm	3.69 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	6000 N
P10100107	K 750 - 190,5 mm	SSE - Specially treated Ferritic Stainless Steel 1.4589	P1010	80 mm	500 mm	5.5 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	6000 N
P10100202	K 325 - 82,5 mm	SS - Ferritic Stainless Steel 1.4016	P1010	80 mm	457 mm	3 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	5400 N
P10100402	K 325 - 82,5 mm	SSA - Austenitic Stainless Steel AISI 304	P1010	80 mm	457 mm	3 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	4500 N
P10100405	K 450 - 114,3 mm	SSA - Austenitic Stainless Steel AISI 304	P1010	80 mm	500 mm	3.69 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	4500 N
P10100407	K 750 - 190,5 mm	SSA - Austenitic Stainless Steel AISI 304	P1010	80 mm	500 mm	5.5 kg/m	0.3 mm	Martensitic 1,4057	10 ft - 3,048 m	4500 N

•
