Home Sprockets & Turning disks Idler wheels 881 split machined idler wheel

881 split machined idler wheel

Idler wheels

Enquire Now

Description

Basic features

Series:	881 TAB
Pitch:	38.1 mm
Unit of measure:	Ea

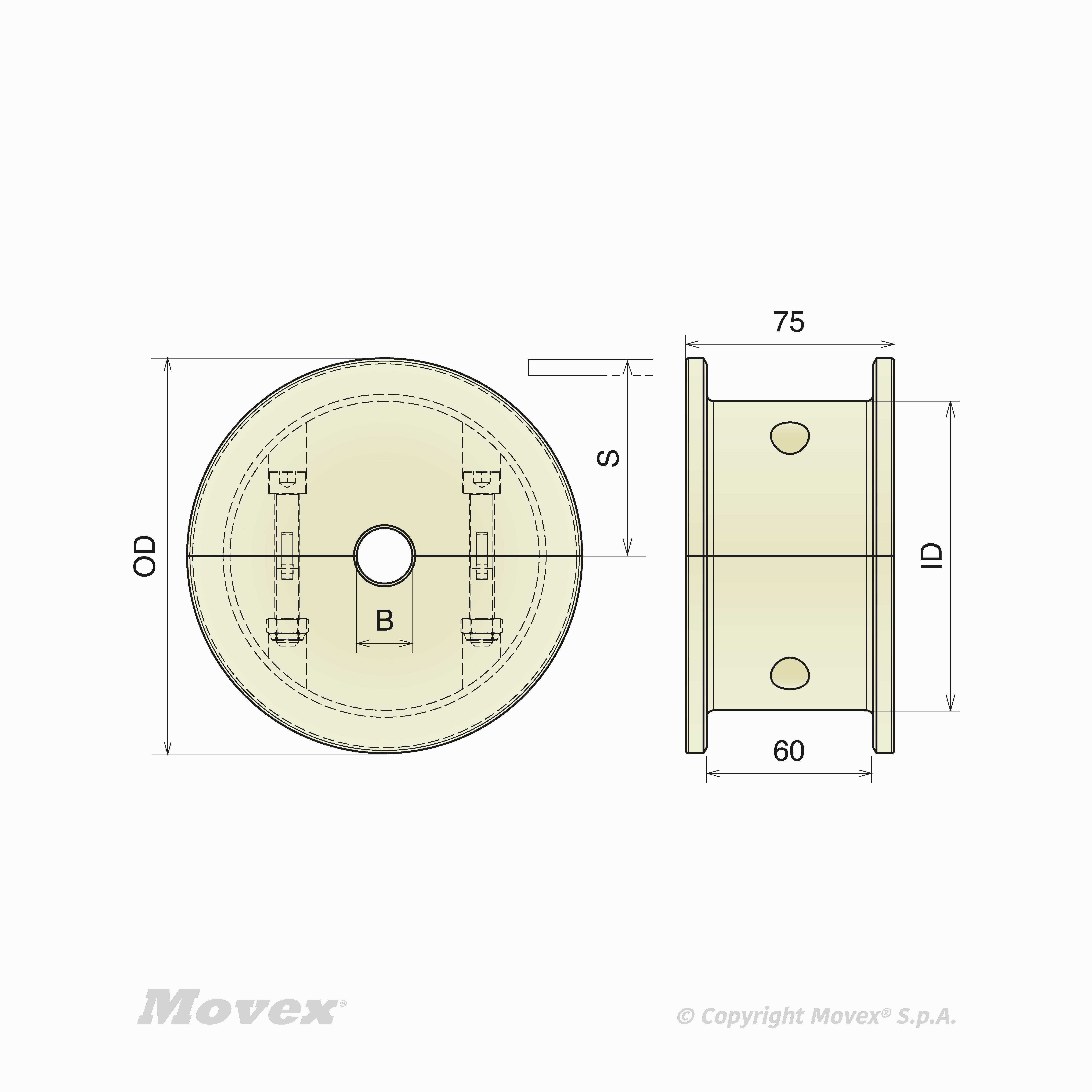

881 split machined idler wheel

	Z-	Bore	Version	Box	Type	Execution	Outer diameter	Inner diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions
P61800	17	○ 20 mm	Idler wheel	2	Split	Machined	104 mm	69 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61801	17	○ 25 mm	Idler wheel	2	Split	Machined	104 mm	69 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61802	17	○ 30 mm	Idler wheel	2	Split	Machined	104 mm	69 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61803	17	○ 35 mm	Idler wheel	2	Split	Machined	104 mm	69 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61804	17	○ 40 mm	Idler wheel	2	Split	Machined	104 mm	69 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61900	19	○ 20 mm	Idler wheel	2	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61901	19	○ 25 mm	Idler wheel	2	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61902	19	○ 30 mm	Idler wheel	2	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61903	19	○ 35 mm	Idler wheel	2	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P61904	19	○ 40 mm	Idler wheel	2	Split	Machined	117 mm	75 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62000	21	○ 20 mm	Idler wheel	2	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62001	21	○ 25 mm	Idler wheel	2	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62002	21	○ 30 mm	Idler wheel	2	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62003	21	○ 35 mm	Idler wheel	2	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62004	21	○ 40 mm	Idler wheel	2	Split	Machined	129.8 mm	95 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62100	23	○ 20 mm	Idler wheel	2	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62101	23	○ 25 mm	Idler wheel	2	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62102	23	○ 30 mm	Idler wheel	2	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62103	23	○ 35 mm	Idler wheel	2	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62104	23	○ 40 mm	Idler wheel	2	Split	Machined	142.2 mm	108 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62200	25	○ 20 mm	Idler wheel	2	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62201	25	○ 25 mm	Idler wheel	2	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62202	25	○ 30 mm	Idler wheel	2	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62203	25	○ 35 mm	Idler wheel	2	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62204	25	○ 40 mm	Idler wheel	2	Split	Machined	154.7 mm	112 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62300	27	○ 20 mm	Idler wheel	2	Split	Machined	167.2 mm	120 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62301	27	○ 25 mm	Idler wheel	2	Split	Machined	167.2 mm	120 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62302	27	○ 30 mm	Idler wheel	2	Split	Machined	167.2 mm	120 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62303	27	○ 35 mm	Idler wheel	2	Split	Machined	167.2 mm	120 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62304	27	○ 40 mm	Idler wheel	2	Split	Machined	167.2 mm	120 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62400	29	○ 20 mm	Idler wheel	2	Split	Machined	179.3 mm	130 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62401	29	○ 25 mm	Idler wheel	2	Split	Machined	179.3 mm	130 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62402	29	○ 30 mm	Idler wheel	2	Split	Machined	179.3 mm	130 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62403	29	○ 35 mm	Idler wheel	2	Split	Machined	179.3 mm	130 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P62404	29	○ 40 mm	Idler wheel	2	Split	Machined	179.3 mm	130 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
