881 split machined sprocket

Chain sprockets

Enquire Now

Description

Suitable for all 881-8811

Basic features

Series:	881
Pitch:	38.1 mm
Unit of measure:	Ea

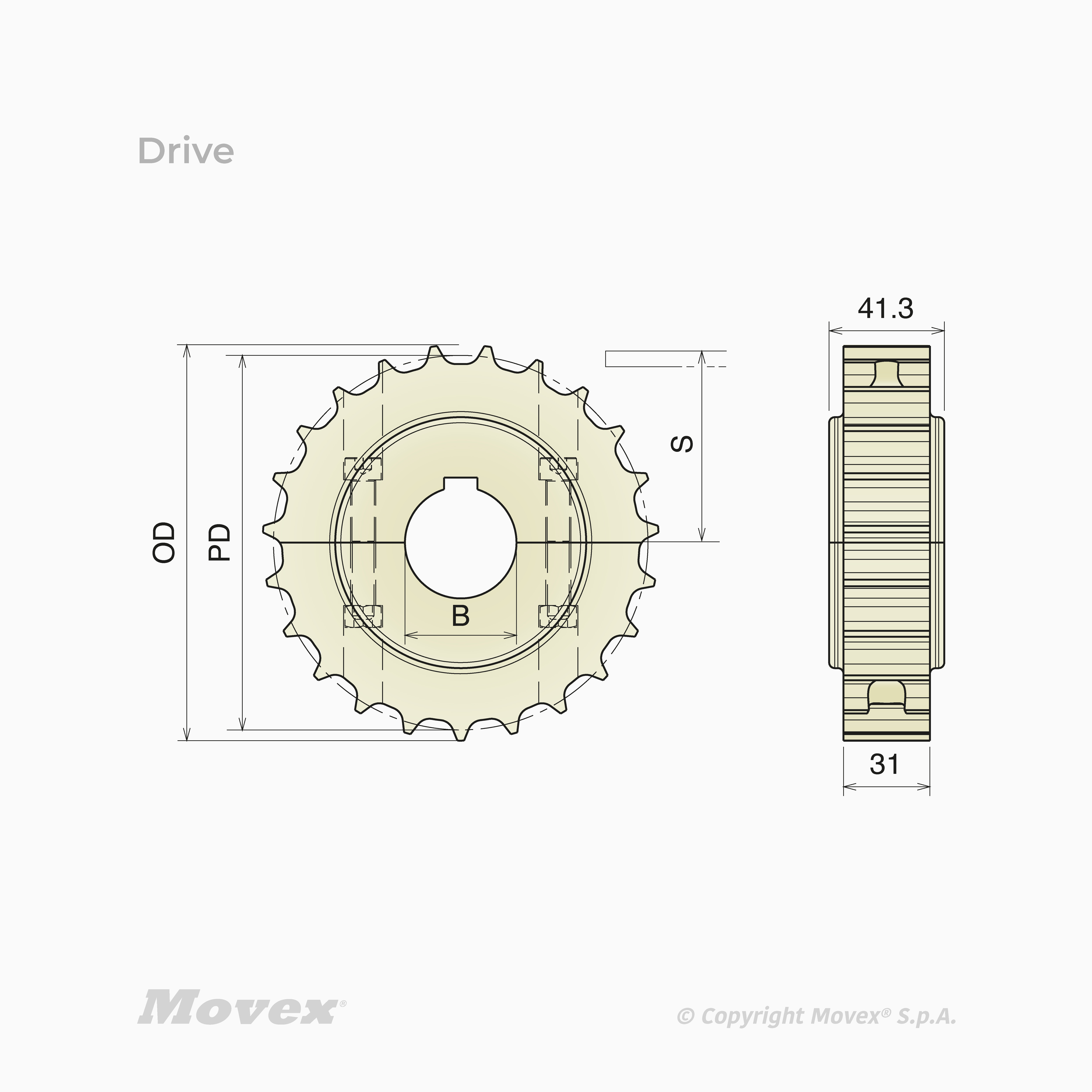

881 split machined sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet	Supplementary informations
Code														Actions
P51101	17	○ 25 mm	Drive	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51102	17	○ 30 mm	Drive	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51103	17	○ 35 mm	Drive	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51104	17	○ 40 mm	Drive	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51150	17	○ 18 mm	Idler	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51151	17	○ 25 mm	Idler	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51152	17	○ 30 mm	Idler	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51153	17	○ 35 mm	Idler	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51154	17	○ 40 mm	Idler	4	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51201	19	○ 25 mm	Drive	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51202	19	○ 30 mm	Drive	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51203	19	○ 35 mm	Drive	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51204	19	○ 40 mm	Drive	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51250	19	○ 18 mm	Idler	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51251	19	○ 25 mm	Idler	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51252	19	○ 30 mm	Idler	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51253	19	○ 35 mm	Idler	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51254	19	○ 40 mm	Idler	4	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51301	21	○ 25 mm	Drive	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51302	21	○ 30 mm	Drive	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51303	21	○ 35 mm	Drive	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51304	21	○ 40 mm	Drive	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51350	21	○ 18 mm	Idler	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51351	21	○ 25 mm	Idler	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51352	21	○ 30 mm	Idler	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51353	21	○ 35 mm	Idler	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51354	21	○ 40 mm	Idler	4	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P51401	23	○ 25 mm	Drive	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51402	23	○ 30 mm	Drive	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51403	23	○ 35 mm	Drive	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51404	23	○ 40 mm	Drive	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51450	23	○ 18 mm	Idler	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P51451	23	○ 25 mm	Idler	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51452	23	○ 30 mm	Idler	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51453	23	○ 35 mm	Idler	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51454	23	○ 40 mm	Idler	4	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51501	25	○ 25 mm	Drive	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51502	25	○ 30 mm	Drive	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51503	25	○ 35 mm	Drive	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51504	25	○ 40 mm	Drive	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51550	25	○ 18 mm	Idler	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51551	25	○ 25 mm	Idler	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51552	25	○ 30 mm	Idler	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51553	25	○ 35 mm	Idler	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51554	25	○ 40 mm	Idler	4	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51601	27	○ 25 mm	Drive	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51602	27	○ 30 mm	Drive	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51603	27	○ 35 mm	Drive	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51604	27	○ 40 mm	Drive	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51650	27	○ 18 mm	Idler	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51651	27	○ 25 mm	Idler	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51652	27	○ 30 mm	Idler	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51653	27	○ 35 mm	Idler	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P51654	27	○ 40 mm	Idler	4	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	a MOQ may be applied
P51701	29	○ 25 mm	Drive	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51702	29	○ 30 mm	Drive	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51703	29	○ 35 mm	Drive	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51704	29	○ 40 mm	Drive	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51750	29	○ 18 mm	Idler	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51751	29	○ 25 mm	Idler	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51752	29	○ 30 mm	Idler	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51753	29	○ 35 mm	Idler	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
P51754	29	○ 40 mm	Idler	4	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C	-
