881 split molded sprocket

Chain sprockets

Enquire Now

Description

Suitable for all 881-8811

Basic features

Series:	881
Pitch:	38.1 mm
Unit of measure:	Ea

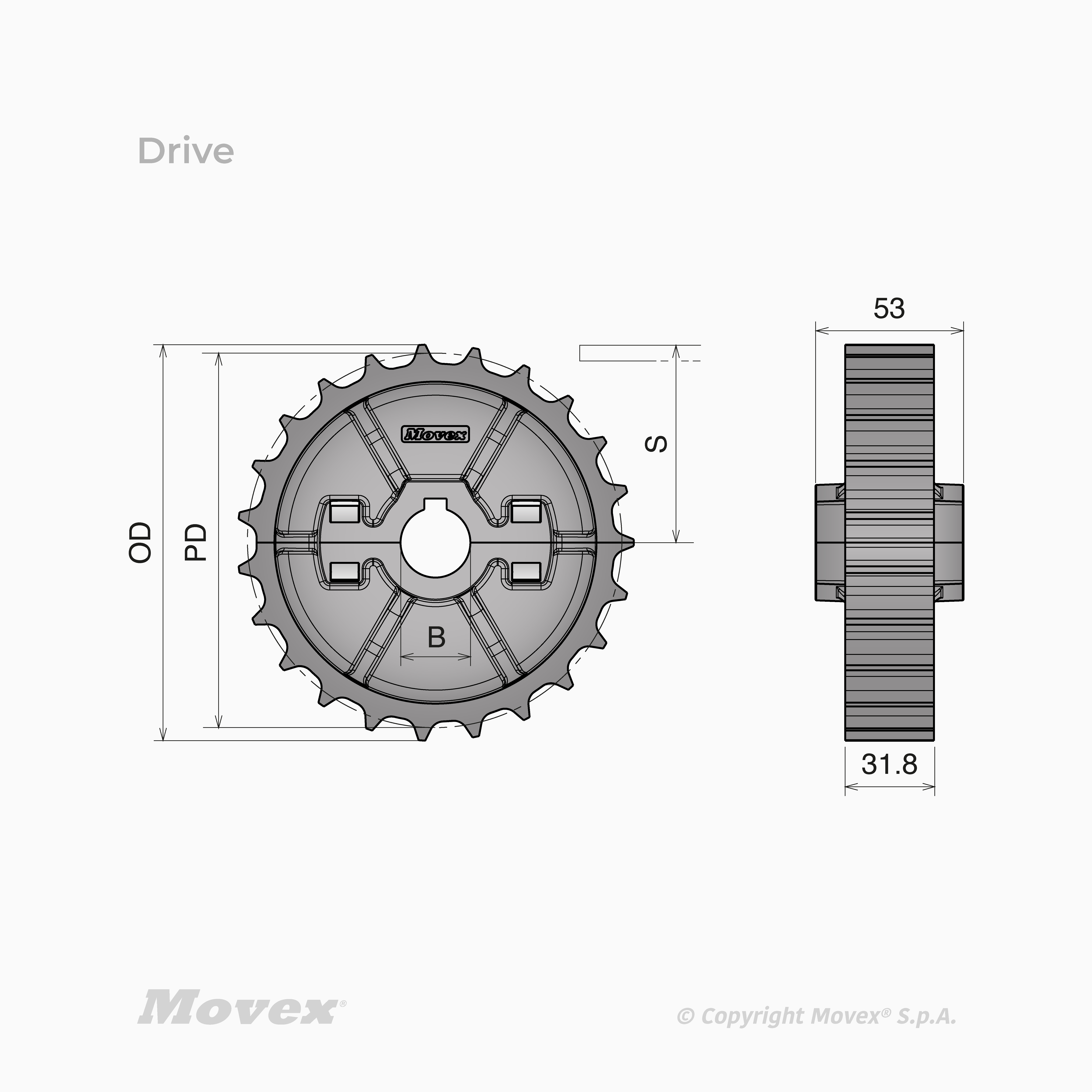

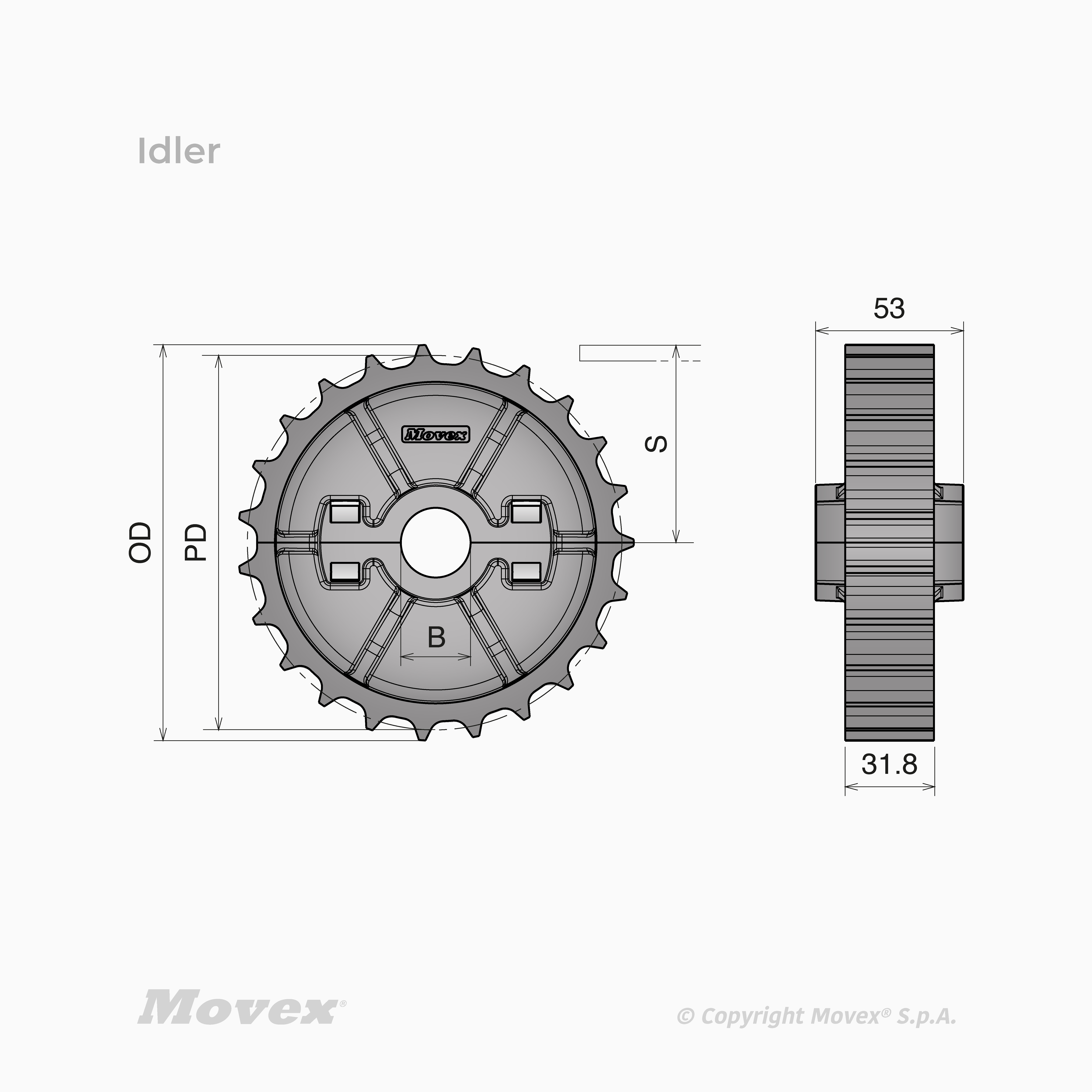

881 split molded sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions
P51801	21	○ 25 mm	Drive	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51802	21	○ 30 mm	Drive	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51803	21	○ 35 mm	Drive	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51804	21	○ 40 mm	Drive	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51851	21	○ 25 mm	Idler	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51852	21	○ 30 mm	Idler	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51853	21	○ 35 mm	Idler	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51854	21	○ 40 mm	Idler	4	Split	Molded	129.3 mm	129 mm	67.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51901	23	○ 25 mm	Drive	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51902	23	○ 30 mm	Drive	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51903	23	○ 35 mm	Drive	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51904	23	○ 40 mm	Drive	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51951	23	○ 25 mm	Idler	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51952	23	○ 30 mm	Idler	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51953	23	○ 35 mm	Idler	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P51954	23	○ 40 mm	Idler	4	Split	Molded	141.2 mm	142 mm	73.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52001	25	○ 25 mm	Drive	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52002	25	○ 30 mm	Drive	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52003	25	○ 35 mm	Drive	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52004	25	○ 40 mm	Drive	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52051	25	○ 25 mm	Idler	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52052	25	○ 30 mm	Idler	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52053	25	○ 35 mm	Idler	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P52054	25	○ 40 mm	Idler	4	Split	Molded	153.2 mm	154 mm	79.8 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
