43-63-83-103 MF PRO
Plastic chains
Description
Description
The NEW MF PRO chains offer the following advantages: Market compatibility, Optimized shape, Increased max working load +15%, Coefficient of friction optimization and Short elongation (MX Pivot).
Basic features
| Series: | 43-63-83-103 MF PRO |
|---|---|
| Pitch: | 35.5 mm |
| Thickness: | 4.3 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex |
| Unit of measure: | Meter |
43-63-83-103 MF PRO
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||

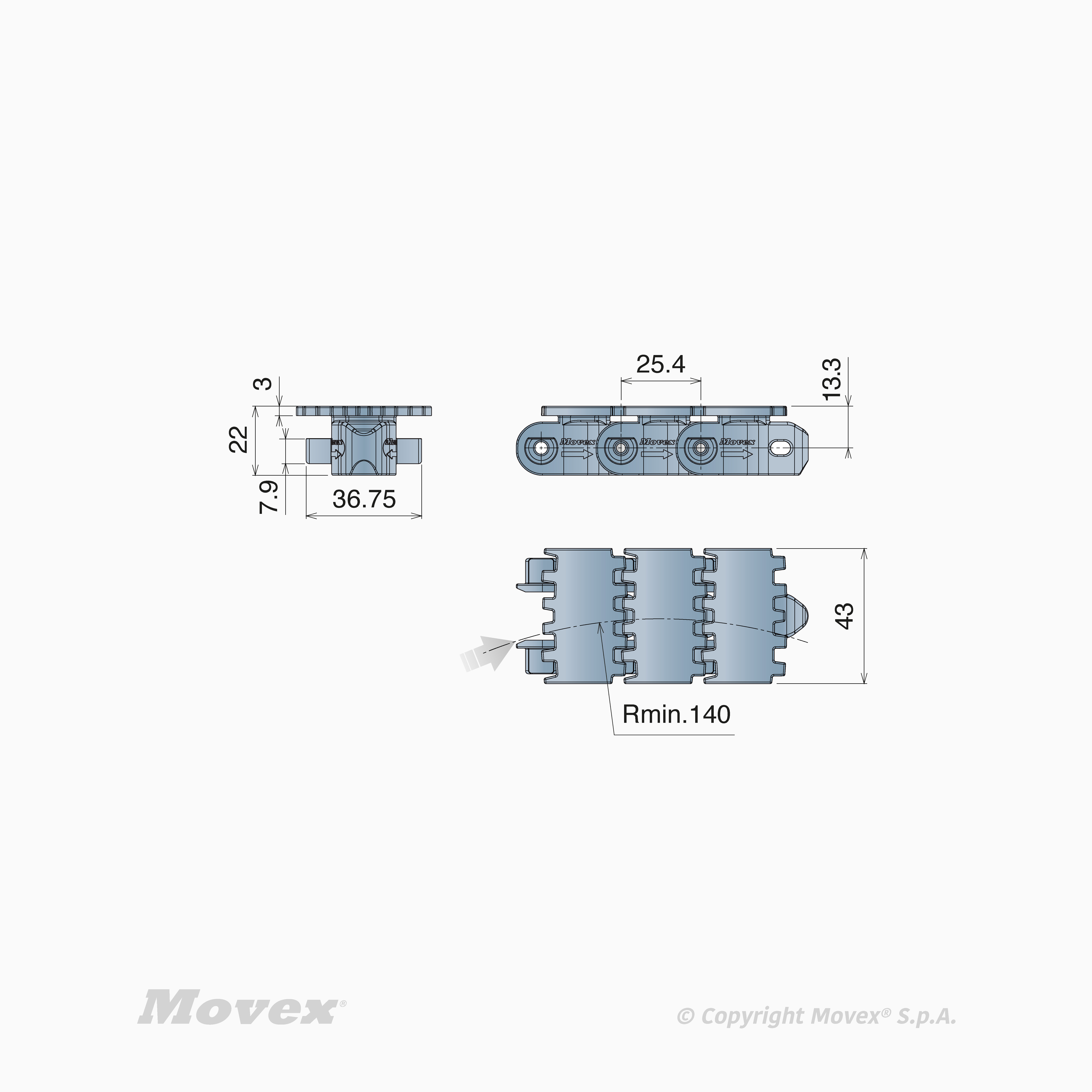

| P11460000 | K 169 - 43,0 mm | LFN - Low Friction Acetal (04) | P1146 | 130 mm | 140 mm | 0.51 kg/m | Stainless steel | 16 ft - 5,004 m | 2300 N |
|

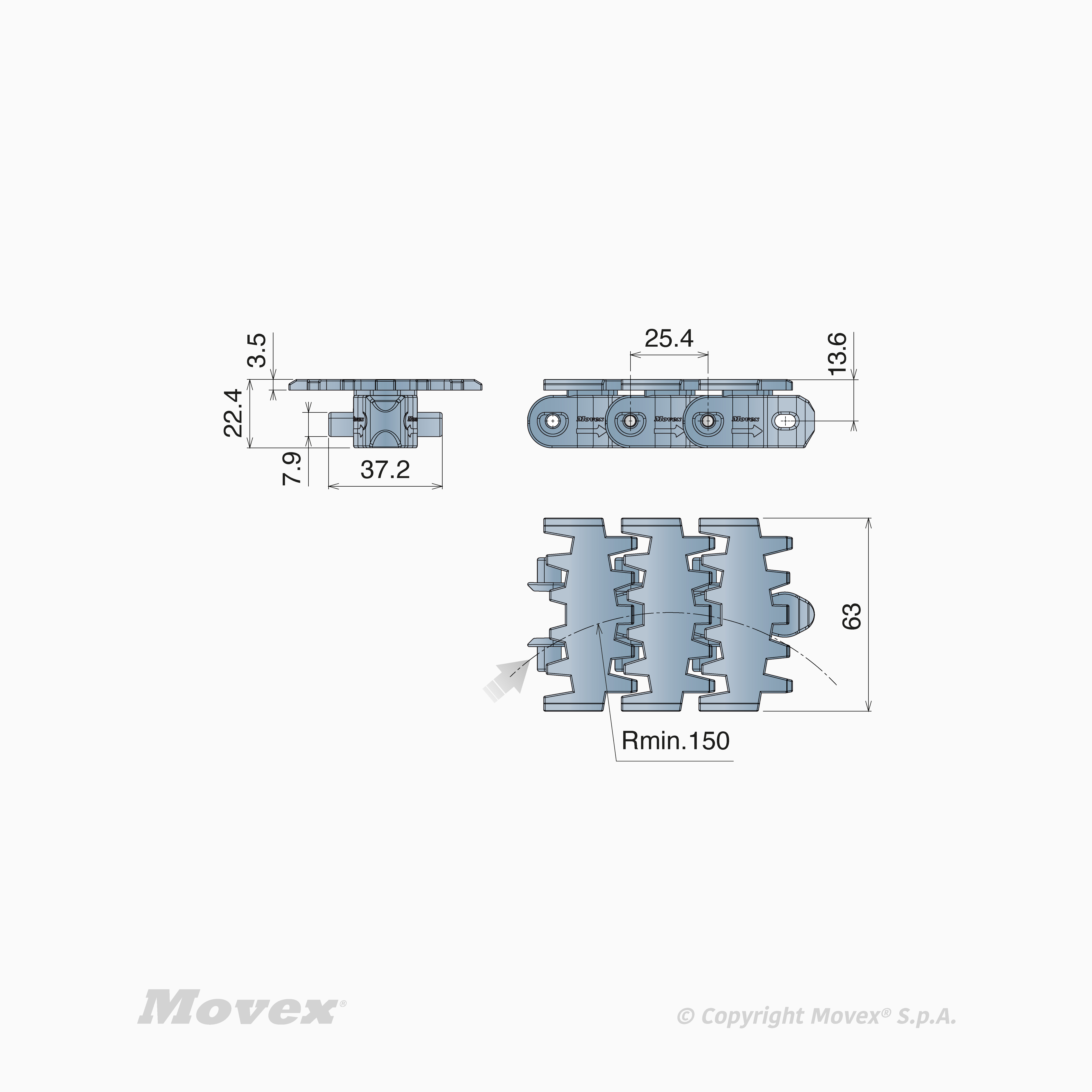

| P11460001 | K 248 - 63,0 mm | LFN - Low Friction Acetal (04) | P1146 | 110 mm | 150 mm | 0.73 kg/m | Stainless steel | 16 ft - 5,004 m | 2400 N |
|

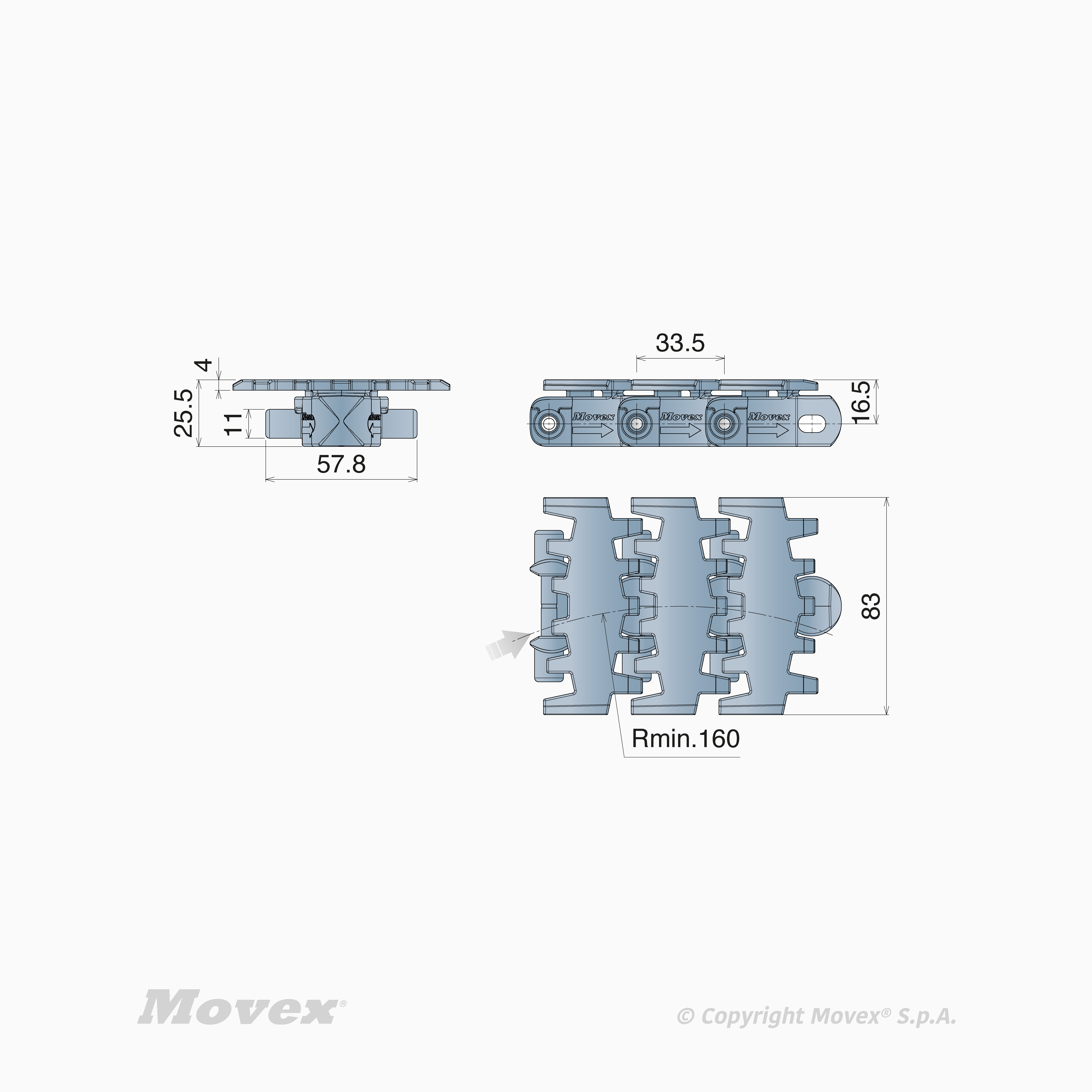

| P11460002 | K 327 - 83,0 mm | LFN - Low Friction Acetal (04) | P1146 | 75 mm | 160 mm | 0.95 kg/m | Stainless steel | 16,5 ft - 5,025 m | 2400 N |
|

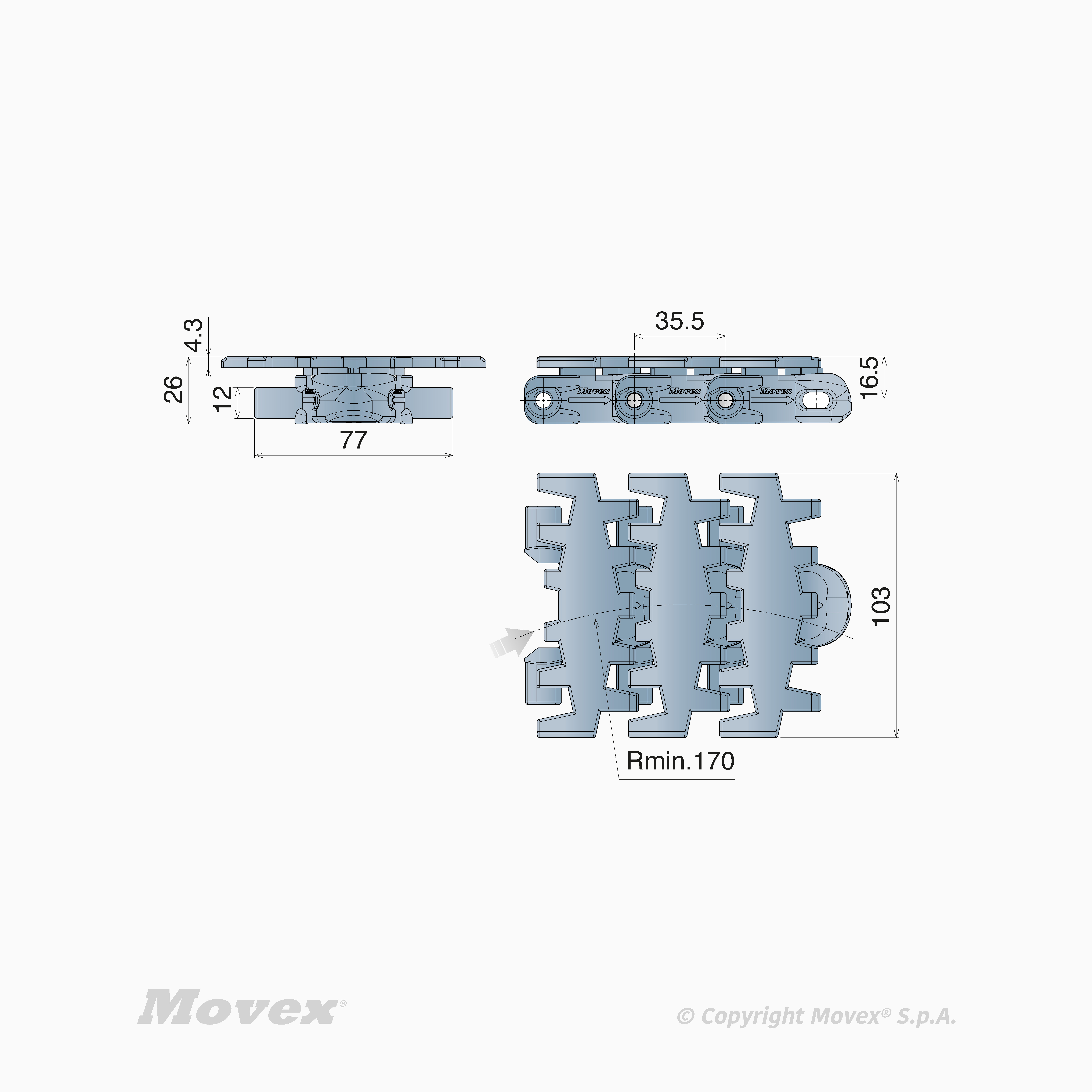

| P11460003 | K 405 - 103,0 mm | LFN - Low Friction Acetal (04) | P1146 | 100 mm | 170 mm | 1.6 kg/m | Stainless steel | 16,5 ft - 5,025 m | 2400 N |
|
| P11460400 | K 169 - 43,0 mm | LFA - Low Friction Acetal (01) | P1146 | 130 mm | 140 mm | 0.51 kg/m | Stainless steel | 16 ft - 5,004 m | 2300 N |
|
| P11460401 | K 248 - 63,0 mm | LFA - Low Friction Acetal (01) | P1146 | 110 mm | 150 mm | 0.73 kg/m | Stainless steel | 16 ft - 5,004 m | 2400 N |
|
| P11460402 | K 327 - 83,0 mm | LFA - Low Friction Acetal (01) | P1146 | 75 mm | 160 mm | 0.95 kg/m | Stainless steel | 16,5 ft - 5,025 m | 2400 N |
|
| P11460403 | K 405 - 103,0 mm | LFA - Low Friction Acetal (01) | P1146 | 100 mm | 170 mm | 1.6 kg/m | Stainless steel | 16,5 ft - 5,025 m | 2400 N |
|
