83 MF PRO one-piece machined sprocket
Chain sprockets
Description
Basic features
| Series: | 43-63-83-103 MF PRO |
|---|---|
| Pitch: | 33.5 mm |
| Unit of measure: | Ea |

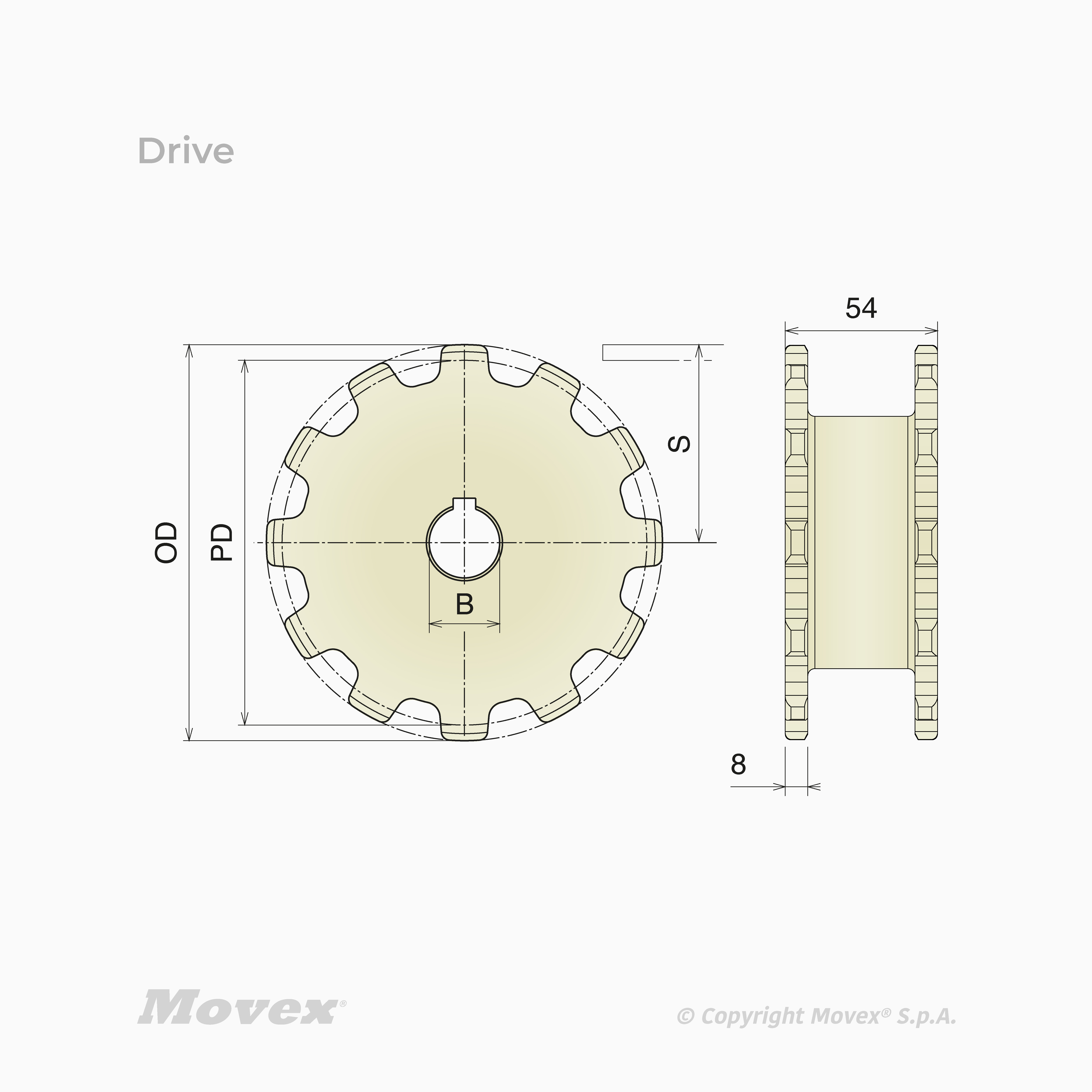

83 MF PRO one-piece machined sprocket
| Z- | Bore |
Version | Box | Type | Execution | Pitch diameter | Outer diameter | S dimension | Material | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P58801 | 12 | ○ 25 mm | Drive | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58802 | 12 | ○ 30 mm | Drive | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58803 | 12 | ○ 35 mm | Drive | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58804 | 12 | ○ 40 mm | Drive | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58850 | 12 | ○ 18 mm | Idler | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58851 | 12 | ○ 25 mm | Idler | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58852 | 12 | ○ 30 mm | Idler | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58853 | 12 | ○ 35 mm | Idler | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58854 | 12 | ○ 40 mm | Idler | 4 | One-piece | Machined | 129.4 mm | 140 mm | 77.7 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58901 | 9 | ○ 25 mm | Drive | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58902 | 9 | ○ 30 mm | Drive | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58903 | 9 | ○ 35 mm | Drive | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58904 | 9 | ○ 40 mm | Drive | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58950 | 9 | ○ 18 mm | Idler | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58951 | 9 | ○ 25 mm | Idler | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58952 | 9 | ○ 30 mm | Idler | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58953 | 9 | ○ 35 mm | Idler | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P58954 | 9 | ○ 40 mm | Idler | 4 | One-piece | Machined | 97.9 mm | 108.5 mm | 62 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
