Home Sprockets & Turning disks Chain sprockets 43-63 MF PRO one-piece machined sprocket

43-63 MF PRO one-piece machined sprocket

Chain sprockets

Enquire Now

Description

Basic features

Series:	43-63-83-103 MF PRO
Pitch:	25.4 mm
Unit of measure:	Ea

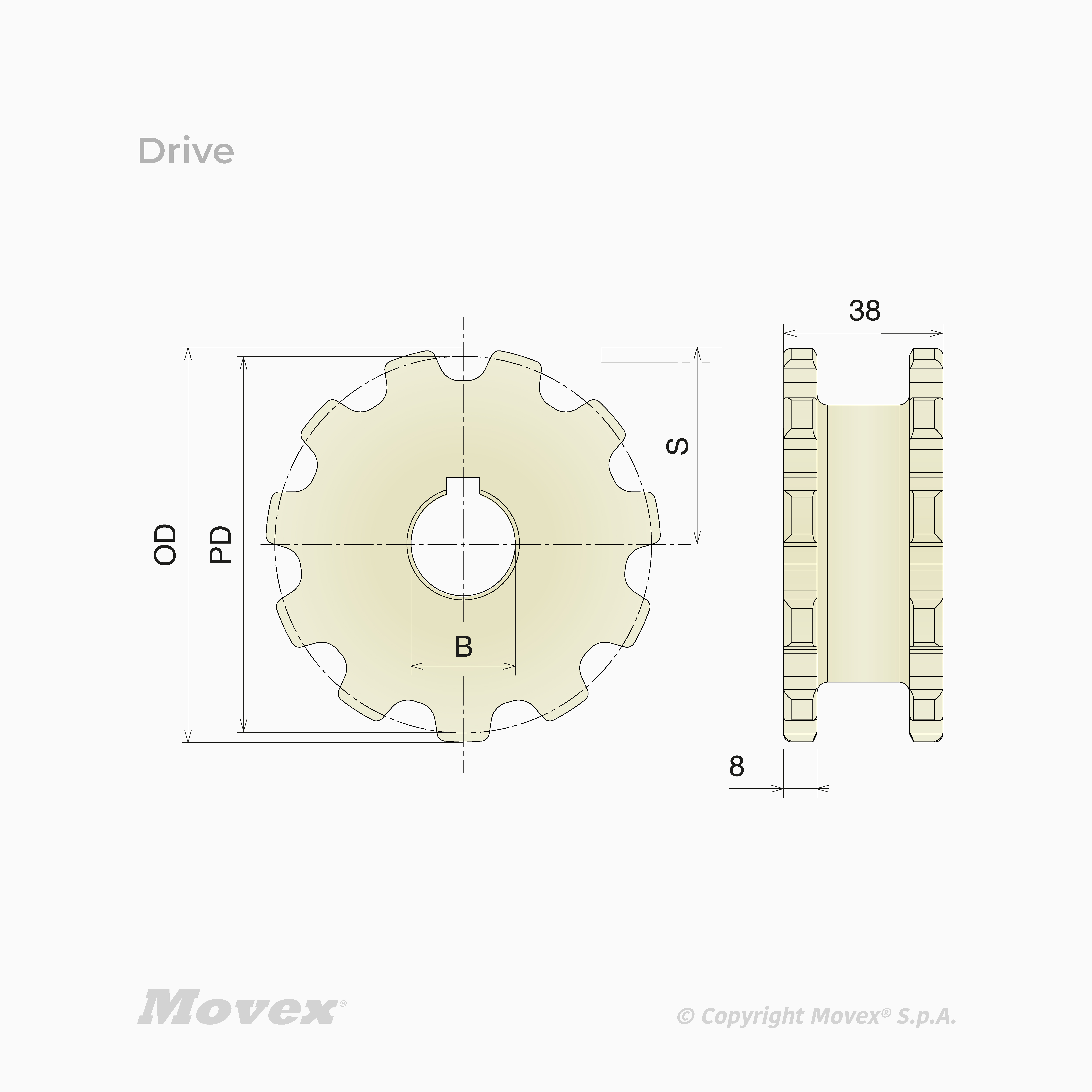

43-63 MF PRO one-piece machined sprocket

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions
P57700	11	○ 20 mm	Drive	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57701	11	○ 25 mm	Drive	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57702	11	○ 30 mm	Drive	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57703	11	○ 35 mm	Drive	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57704	11	○ 40 mm	Drive	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57750	11	○ 20 mm	Idler	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57751	11	○ 25 mm	Idler	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57752	11	○ 30 mm	Idler	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57753	11	○ 35 mm	Idler	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P57754	11	○ 40 mm	Idler	4	One-piece	Machined	90.2 mm	94.5 mm	56.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
