103 MF PRO one-piece machined sprocket
Chain sprockets
Description
Basic features
| Series: | 43-63-83-103 MF PRO |
|---|---|
| Pitch: | 35.5 mm |
| Unit of measure: | Ea |

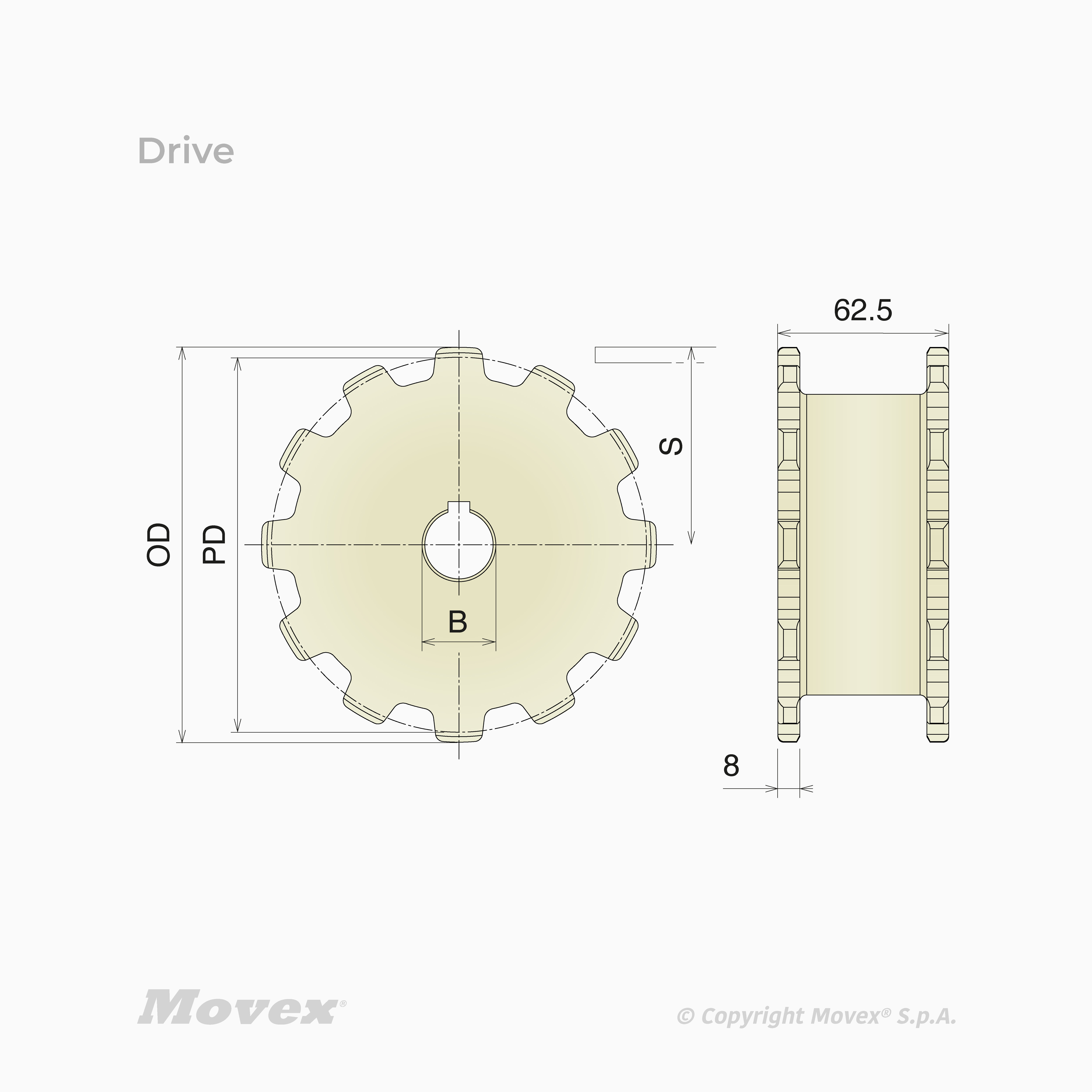

103 MF PRO one-piece machined sprocket
| Z- | Bore |
Version | Box | Type | Execution | Pitch diameter | Outer diameter | S dimension | Material | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P57801 | 12 | ○ 25 mm | Drive | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57802 | 12 | ○ 30 mm | Drive | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57803 | 12 | ○ 35 mm | Drive | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57804 | 12 | ○ 40 mm | Drive | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57851 | 12 | ○ 25 mm | Idler | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57852 | 12 | ○ 30 mm | Idler | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57853 | 12 | ○ 35 mm | Idler | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P57854 | 12 | ○ 40 mm | Idler | 2 | One-piece | Machined | 137.2 mm | 144.5 mm | 82.5 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
