VTT

Solid knobs

Technopolymer, easy cleaning

Enquire Now

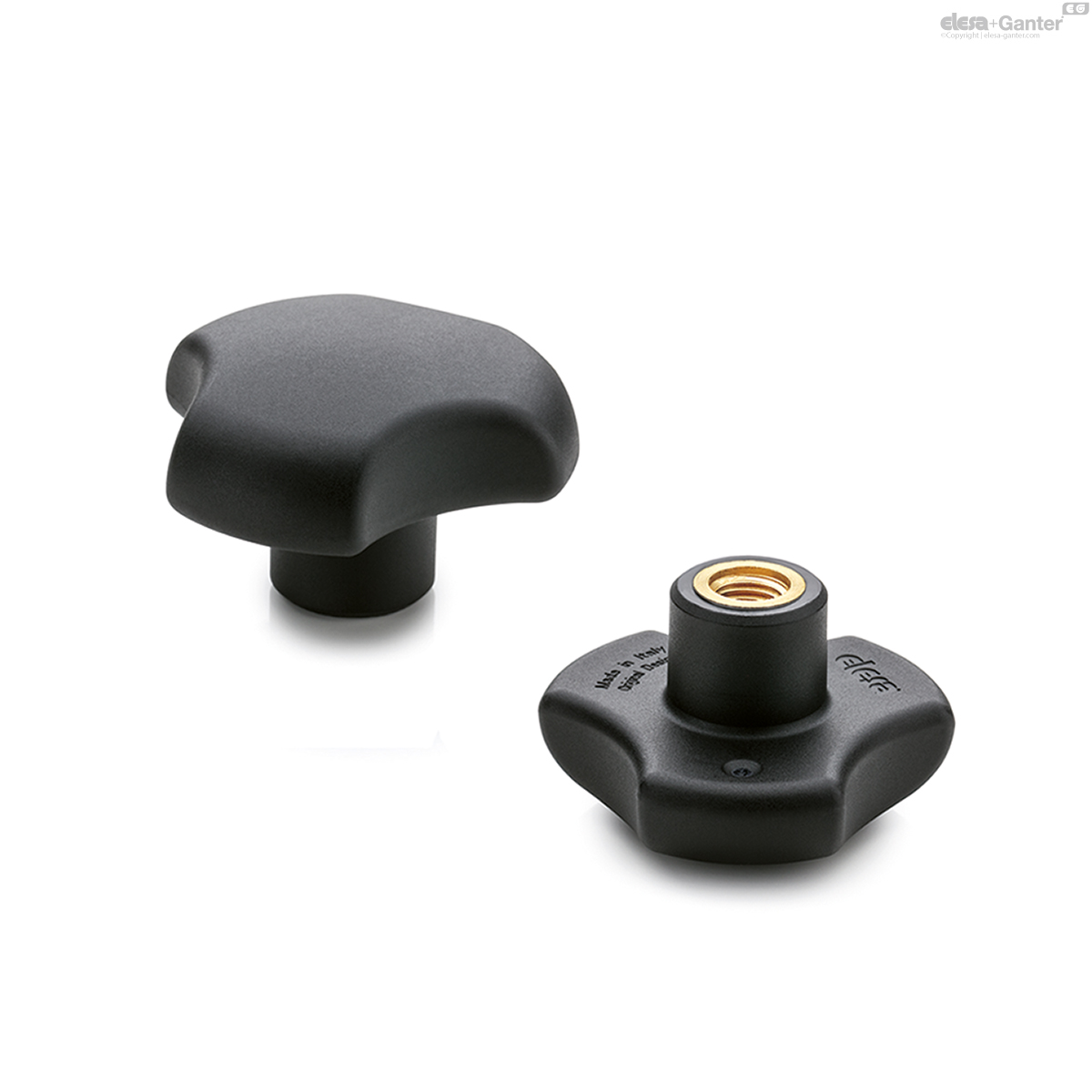

VTT

Solid knobs

Brass boss, threaded hole

VTT-SST

Solid knobs

AISI 304 stainless steel boss, threaded hole

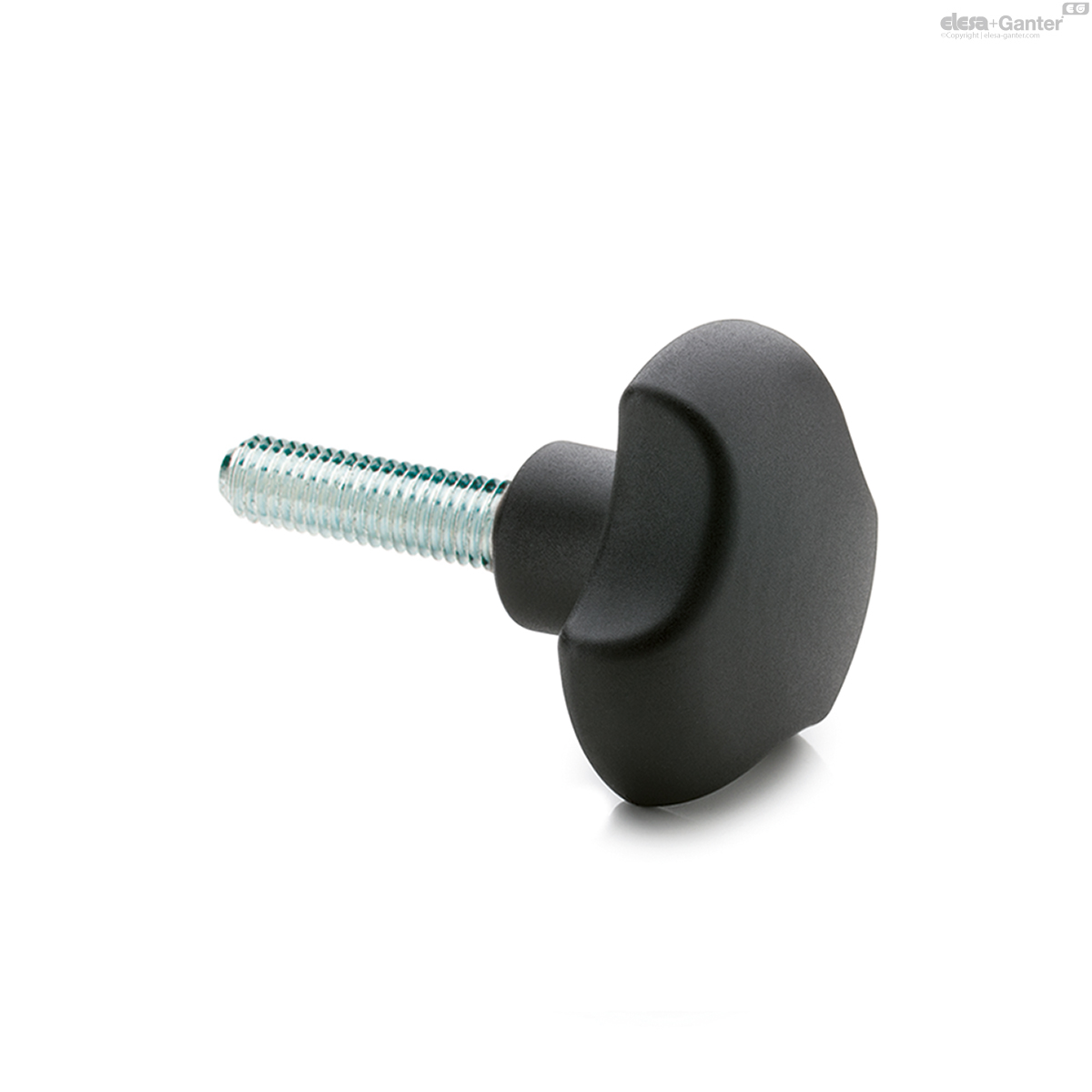

VTT-p

Solid knobs

Zinc-plated steel threaded stud

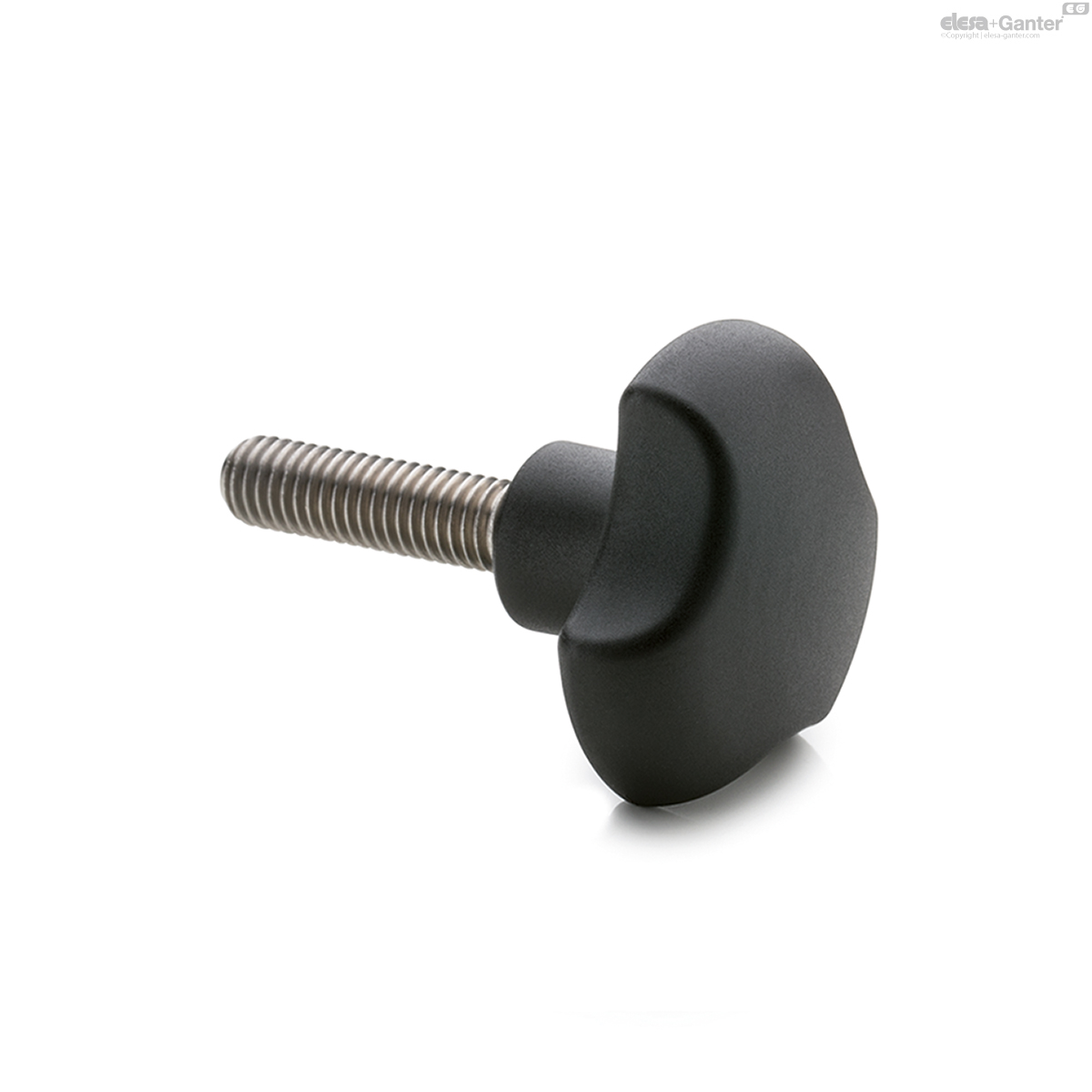

VTT-SST-p

Solid knobs

AISI 304 stainless steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

VTT: brass boss, threaded blind hole.
VTT-SST: AISI 304 stainless steel boss, threaded blind hole.
VTT-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
VTT-SST-p: AISI 304 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

The three-lobe shape with large recesses is particularly ergonomic also for smaller knobs, ensuring an effective grip even with work gloves. The design without rear cavities, generally suitable for reducing thickness, prevents unhealthy residues from depositing, ensuring easy cleaning. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.

VTT

		D	d_6H	L	d₁	l₂	h
Code	Description								Actions
167105	VTT.25-B-M4	25	M4	20	12	10	10	8
167106	VTT.25-B-M5	25	M5	20	12	10	10	9
167107	VTT.25-B-M6	25	M6	20	12	10	10	6
167215	VTT.32-B-M5	32	M5	23	14	11.5	10	15
167216	VTT.32-B-M6	32	M6	23	14	11.5	10	14
167217	VTT.32-B-M8	32	M8	23	14	11.5	13	15
167335	VTT.40-B-M6	40	M6	27	16	13.5	12	24
167336	VTT.40-B-M8	40	M8	27	16	13.5	13	27
167465	VTT.50-B-M8	50	M8	30	19	15	15	43
167466	VTT.50-B-M10	50	M10	30	19	15	17	41
167501	VTT.60-B-M10	60	M10	34	22.5	18	20	65
167502	VTT.60-B-M12	60	M12	34	22.5	18	20	68
