VTR.
Knobs
Technopolymer
VTR-B
Knobs
Threaded pass-through hole, with cap
VTR-FP
Knobs
Threaded pass-through hole, without cap
VTR-N
Knobs
Square hole, without cap
VTR-p
Knobs
Threaded stud
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black, orange colour, glossy finish.
Boss cap
Polyamide based (PA) technopolymer, RAL 7035 light grey colour (C3), matte finish.
Standard executions
- VTR-B:Â brass boss, threaded pass-through hole, with cap.
- VTR-FP:Â brass boss, threaded pass-through hole, without cap.
- VTR-N:Â square hole, without cap.
- VTR-p:zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
Other executions
Special executions on request
Knobs with cap in standard colours: black (C9), orange (C2), yellow (C4), light-blue (C5), red (C6).

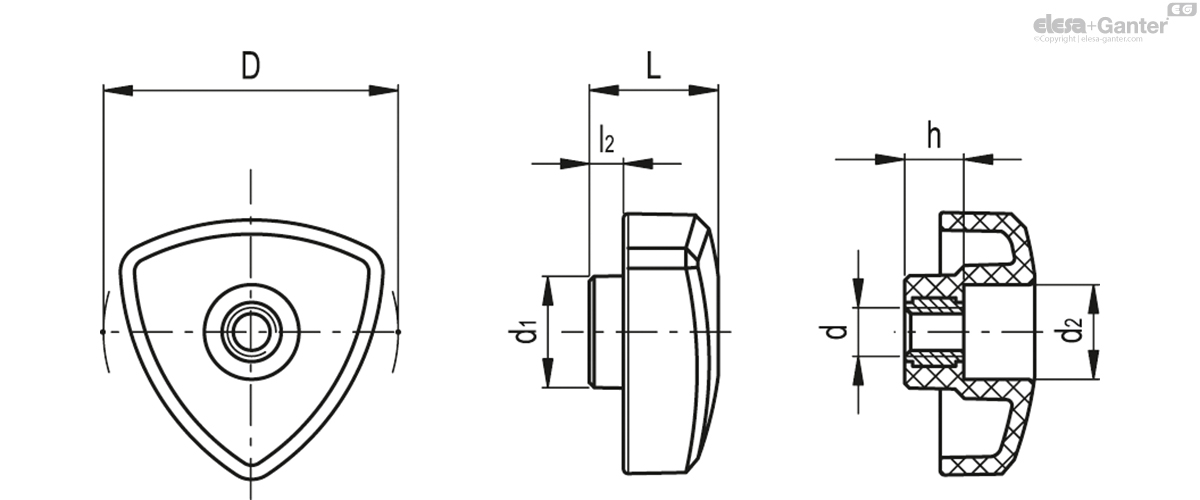

VTR-FP
| D | d6H | L | d1 | d2 | l2 | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 83021 | VTR.32 FP-M5 | 32 | M5 | 14 | 14 | 10 | 4 | 6 | 5 |
|
| 83421 | VTR.40 FP-M6 | 40 | M6 | 18 | 16 | 12 | 5 | 8 | 9 |
|
| 83821 | VTR.50 FP-M8 | 50 | M8 | 22 | 19 | 16 | 6 | 10 | 17 |
|
| 84221 | VTR.60 FP-M10 | 60 | M10 | 26 | 22 | 19 | 7 | 12 | 24 |
|
