VTR.

Knobs

Technopolymer

Enquire Now

Description

Main specifications

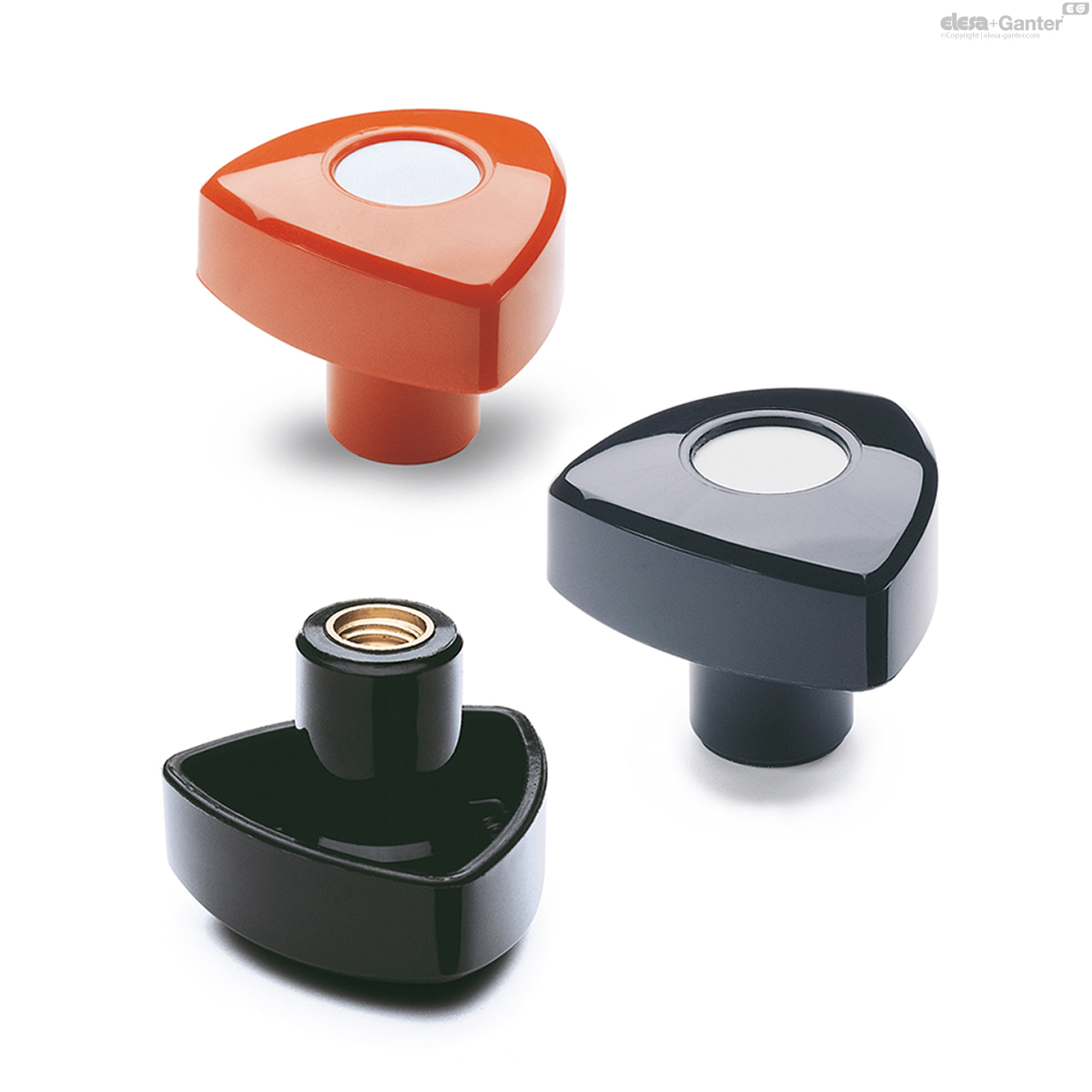

Polyamide based (PA) technopolymer, black, orange colour, glossy finish.

Polyamide based (PA) technopolymer, RAL 7035 light grey colour (C3), matte finish.

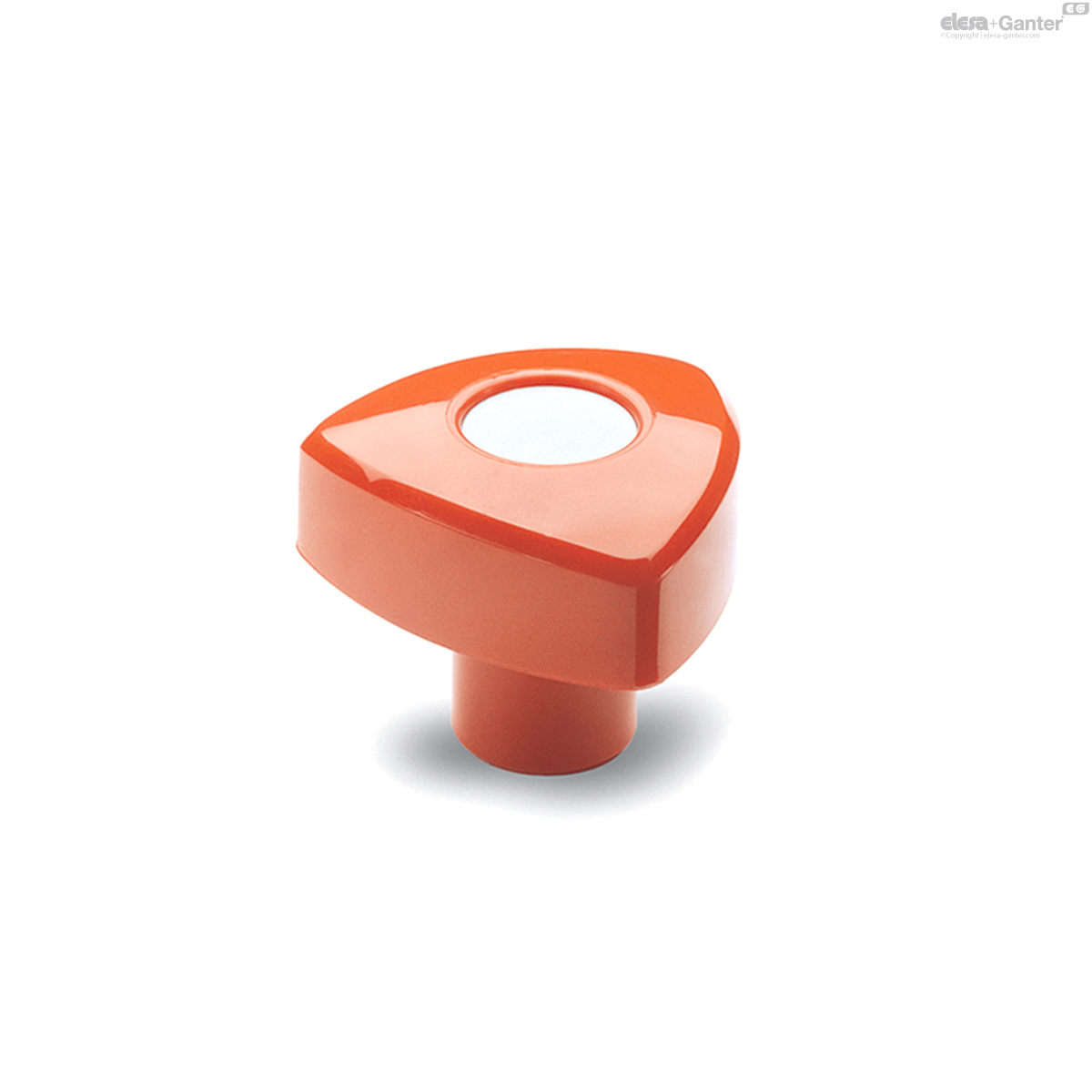

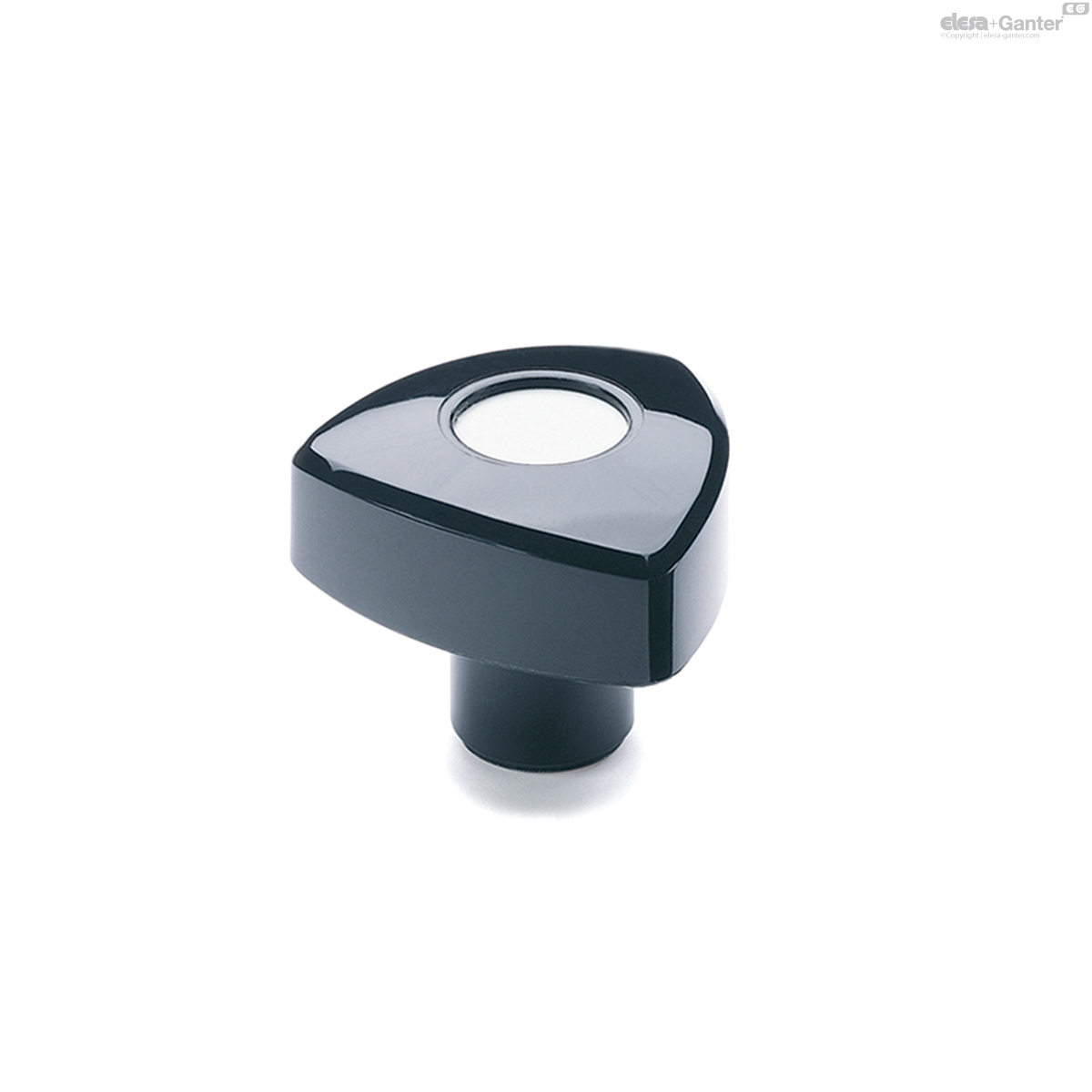

VTR-B: brass boss, threaded pass-through hole, with cap.

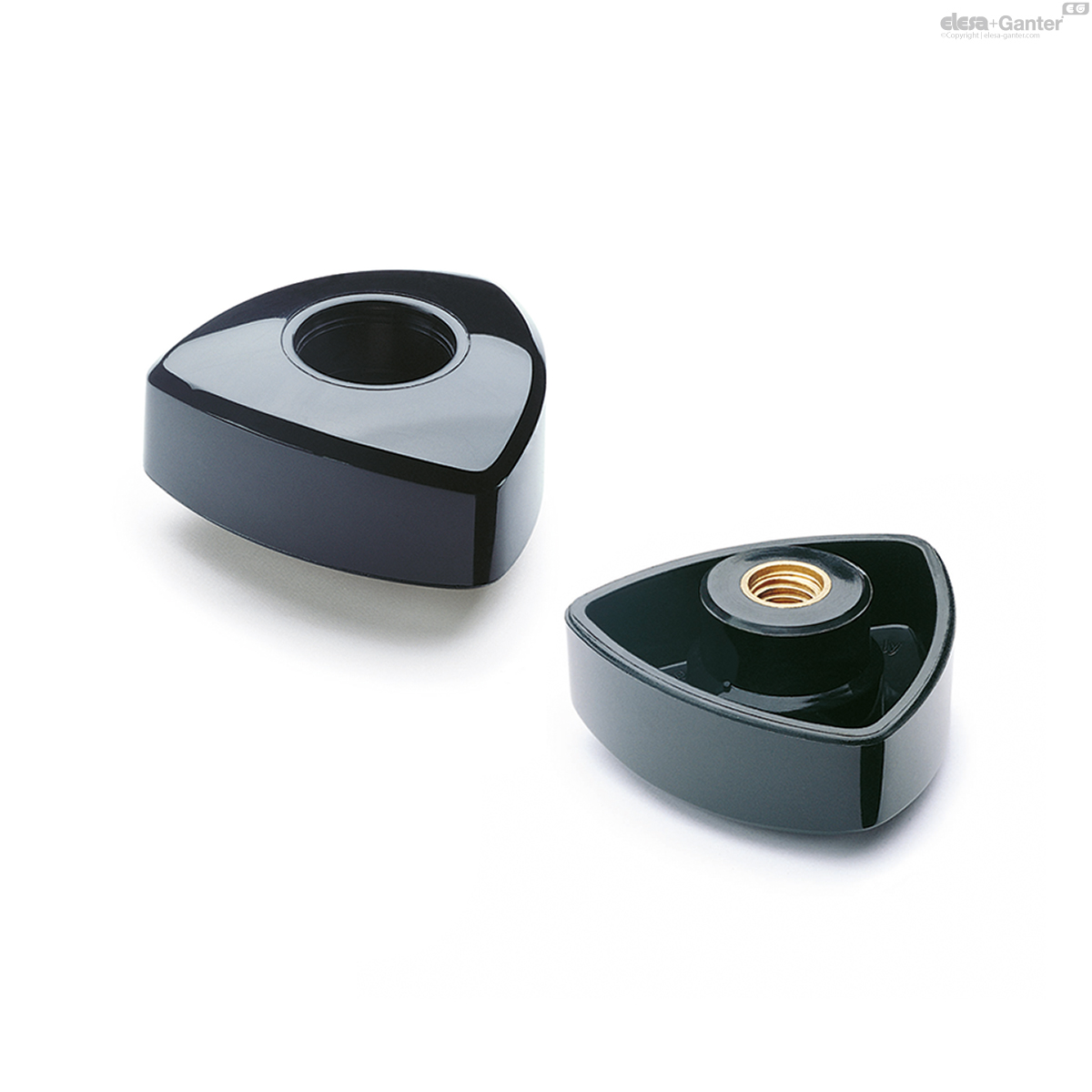

VTR-FP: brass boss, threaded pass-through hole, without cap.

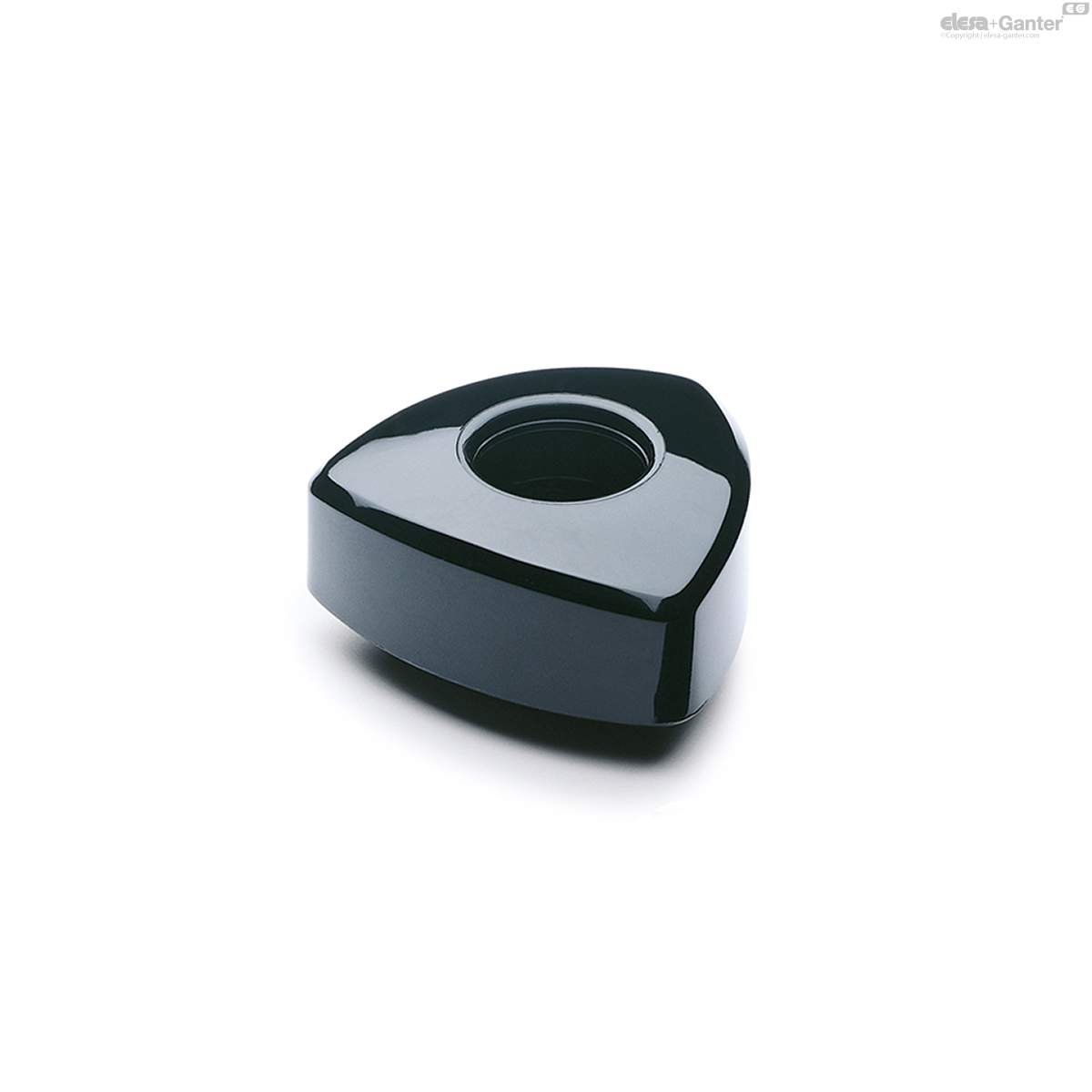

VTR-N: square hole, without cap.

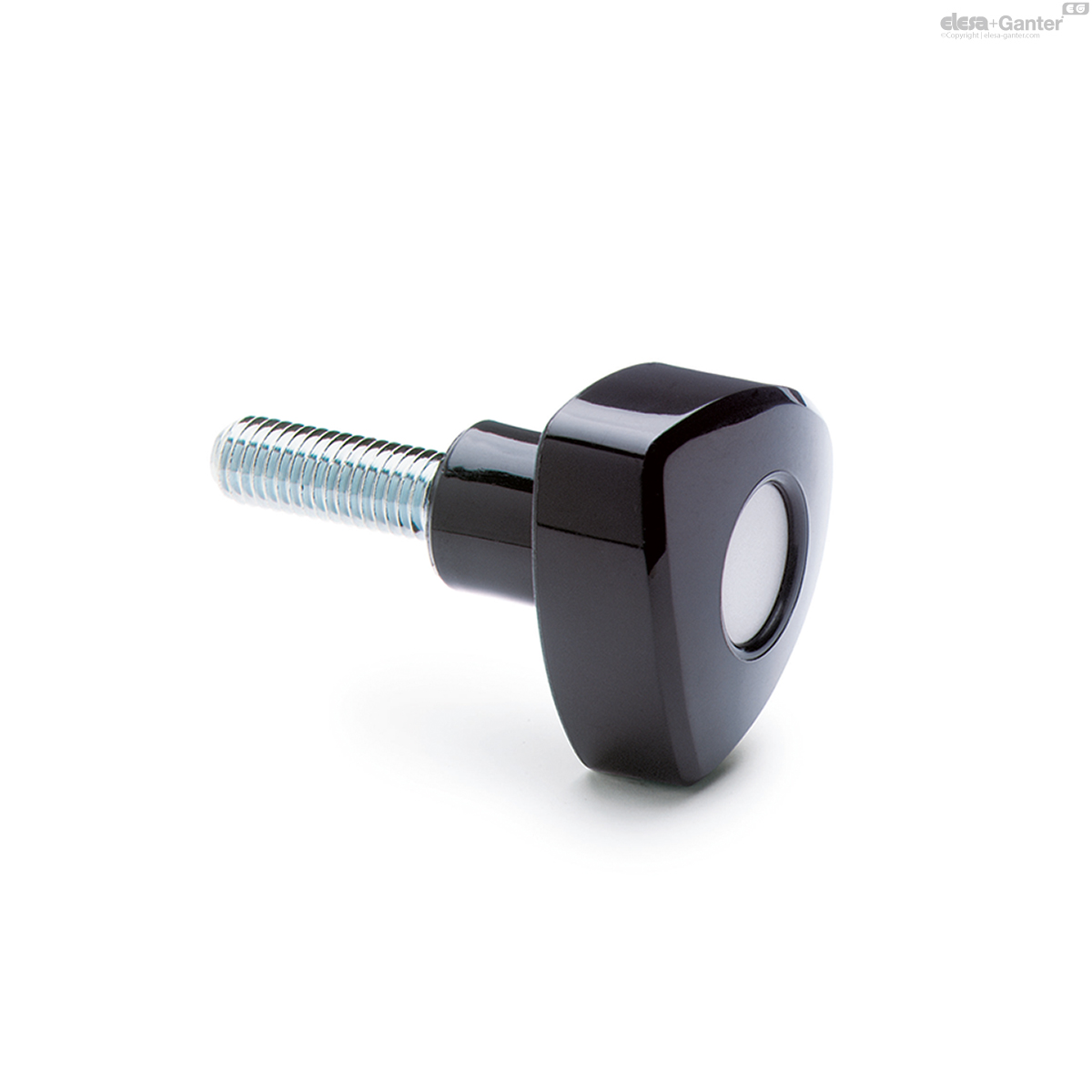

VTR-p:zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Other executions

Knobs with cap in standard colours: black (C9), orange (C2), yellow (C4), light-blue (C5), red (C6).

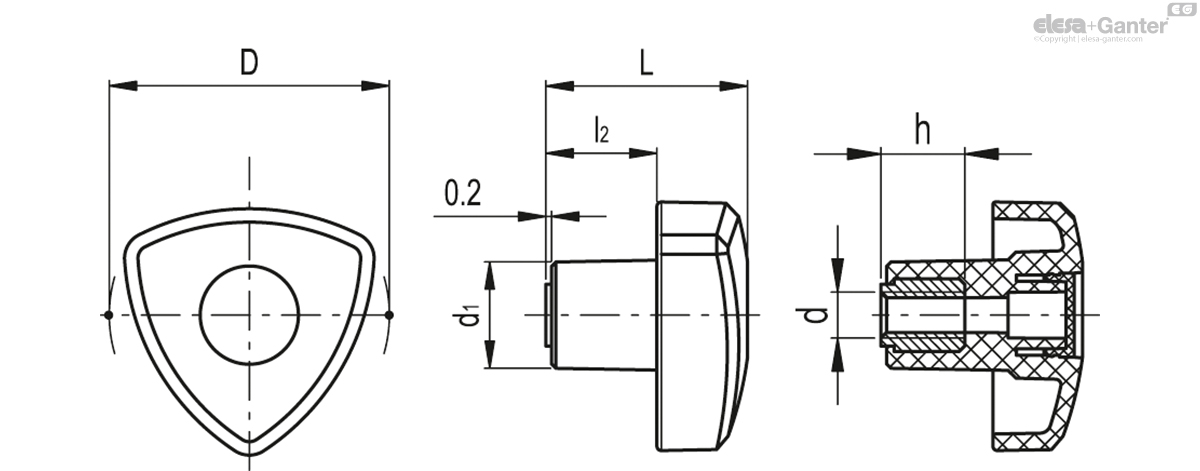

		Color	D	d_6H	L	d₁	l₂	h
Code	Description									Actions
83001-R-C3	VTR.32-C9-B-M5-C3	C9 - RAL 9005	32	M5	26	14	16	10	9
83002-R-C3	VTR.32-C2-B-M5-C3	C2 - RAL 2004	32	M5	26	14	16	10	8
83011-R-C3	VTR.32-C9-B-M6-C3	C9 - RAL 9005	32	M6	26	14	16	12	10
83012-R-C3	VTR.32-C2-B-M6-C3	C2 - RAL 2004	32	M6	26	14	16	12	9
83401-R-C3	VTR.40-C9-B-M6-C3	C9 - RAL 9005	40	M6	30	16	17	12	13
83402-R-C3	VTR.40-C2-B-M6-C3	C2 - RAL 2004	40	M6	30	16	17	12	12
83411-R-C3	VTR.40-C9-B-M8-C3	C9 - RAL 9005	40	M8	30	16	17	14	13
83412-R-C3	VTR.40-C2-B-M8-C3	C2 - RAL 2004	40	M8	30	16	17	14	13
83801-R-C3	VTR.50-C9-B-M8-C3	C9 - RAL 9005	50	M8	35	19	19	14	20
83802-R-C3	VTR.50-C2-B-M8-C3	C2 - RAL 2004	50	M8	35	19	19	14	20
83811-R-C3	VTR.50-C9-B-M10-C3	C9 - RAL 9005	50	M10	35	19	19	16	22
83812-R-C3	VTR.50-C2-B-M10-C3	C2 - RAL 2004	50	M10	35	19	19	16	22
84201-R-C3	VTR.60-C9-B-M10-C3	C9 - RAL 9005	60	M10	41	22	22	16	33
84202-R-C3	VTR.60-C2-B-M10-C3	C2 - RAL 2004	60	M10	41	22	22	16	34
84211-R-C3	VTR.60-C9-B-M12-C3	C9 - RAL 9005	60	M12	41	22	22	18	35
84212-R-C3	VTR.60-C2-B-M12-C3	C2 - RAL 2004	60	M12	41	22	22	18	36
