Home Clamping Knobs Star and lobe knobs VL.640-FP

VL.640-FP

Lobe knobs

Technopolymer

__logo__RoHS__

__logo__ELE_OD__

__logo__PA__

__logo__g12030__

Enquire Now

product image

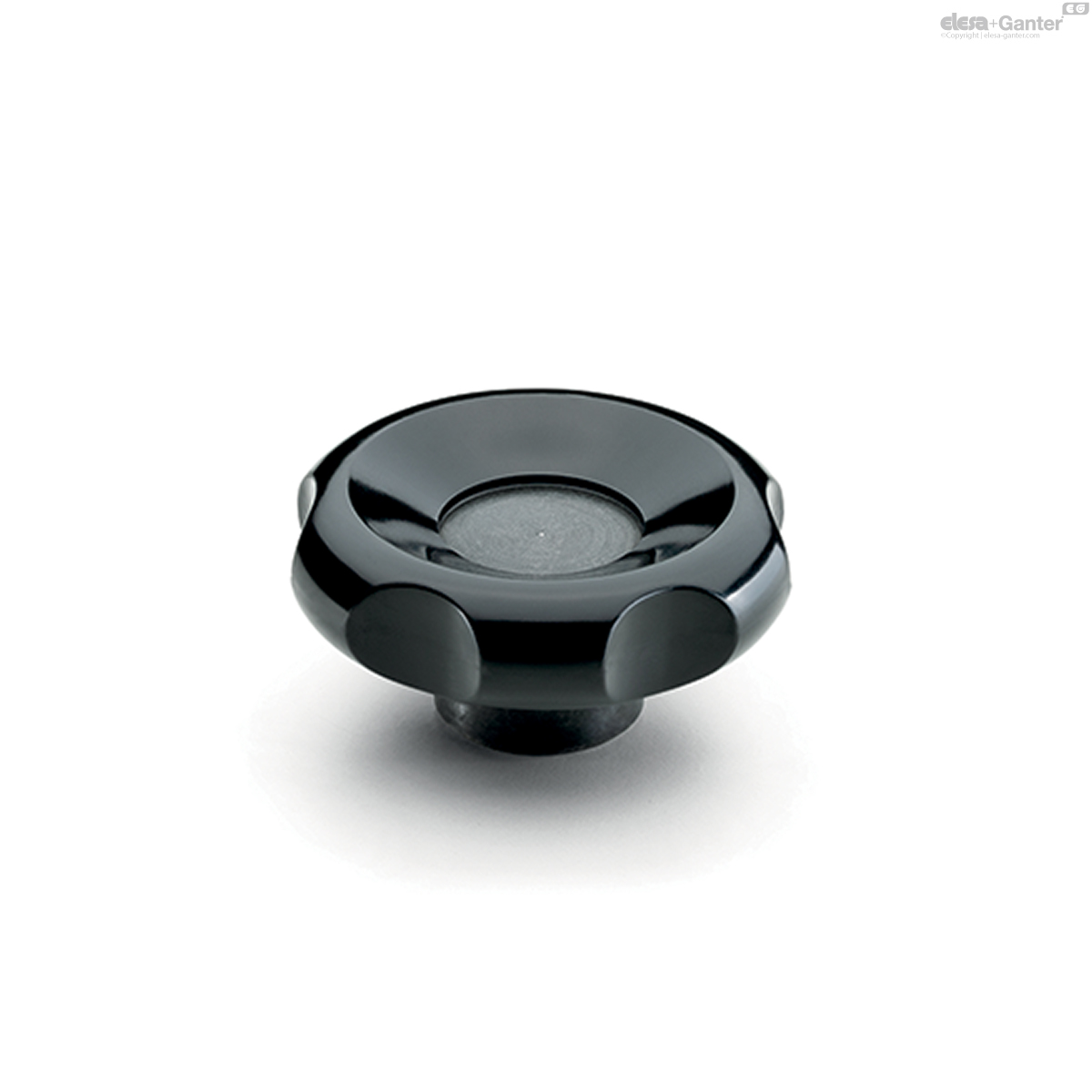

Black-oxide steel hub, not drilled

product image

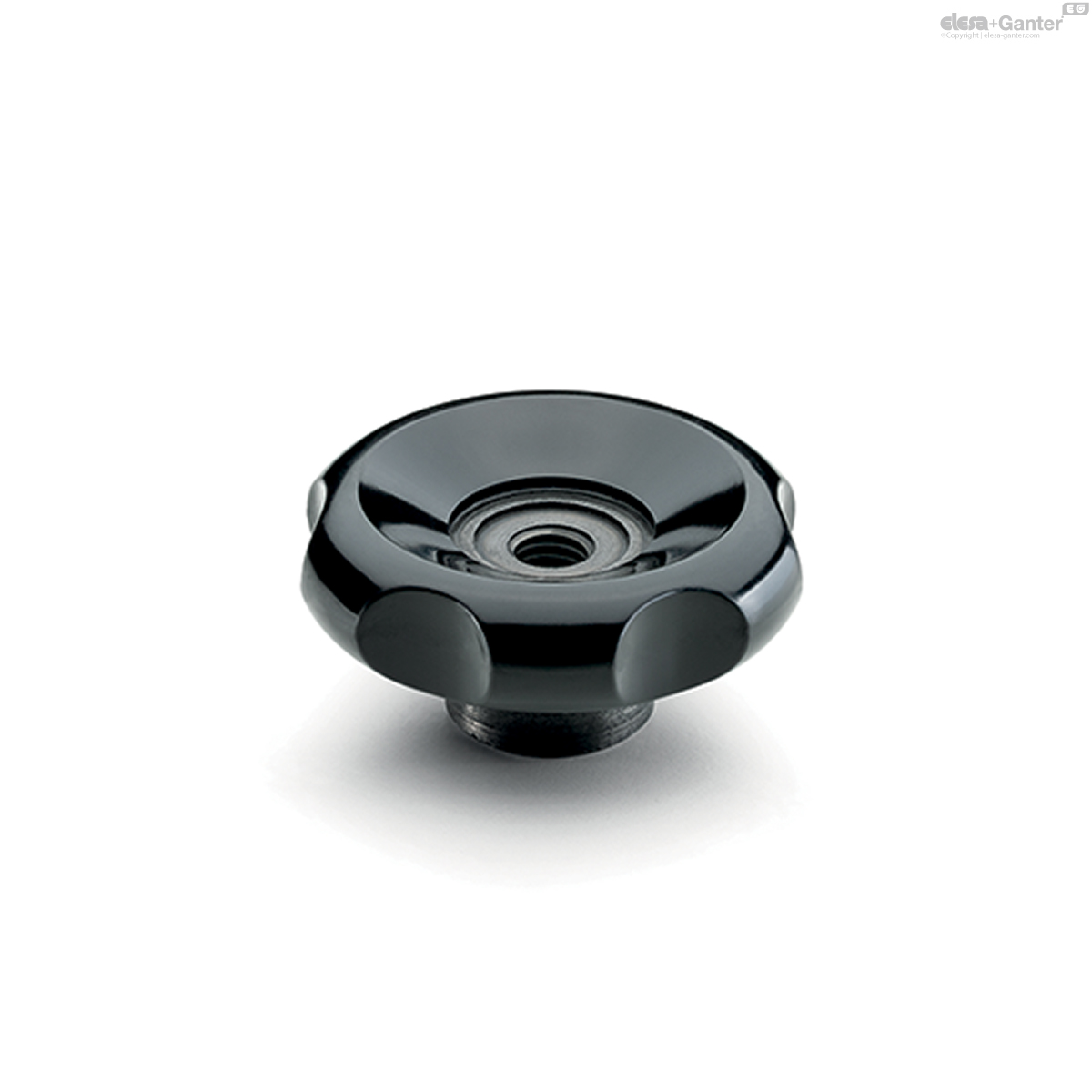

Black-oxide steel hub with threaded pass-through hole

product image

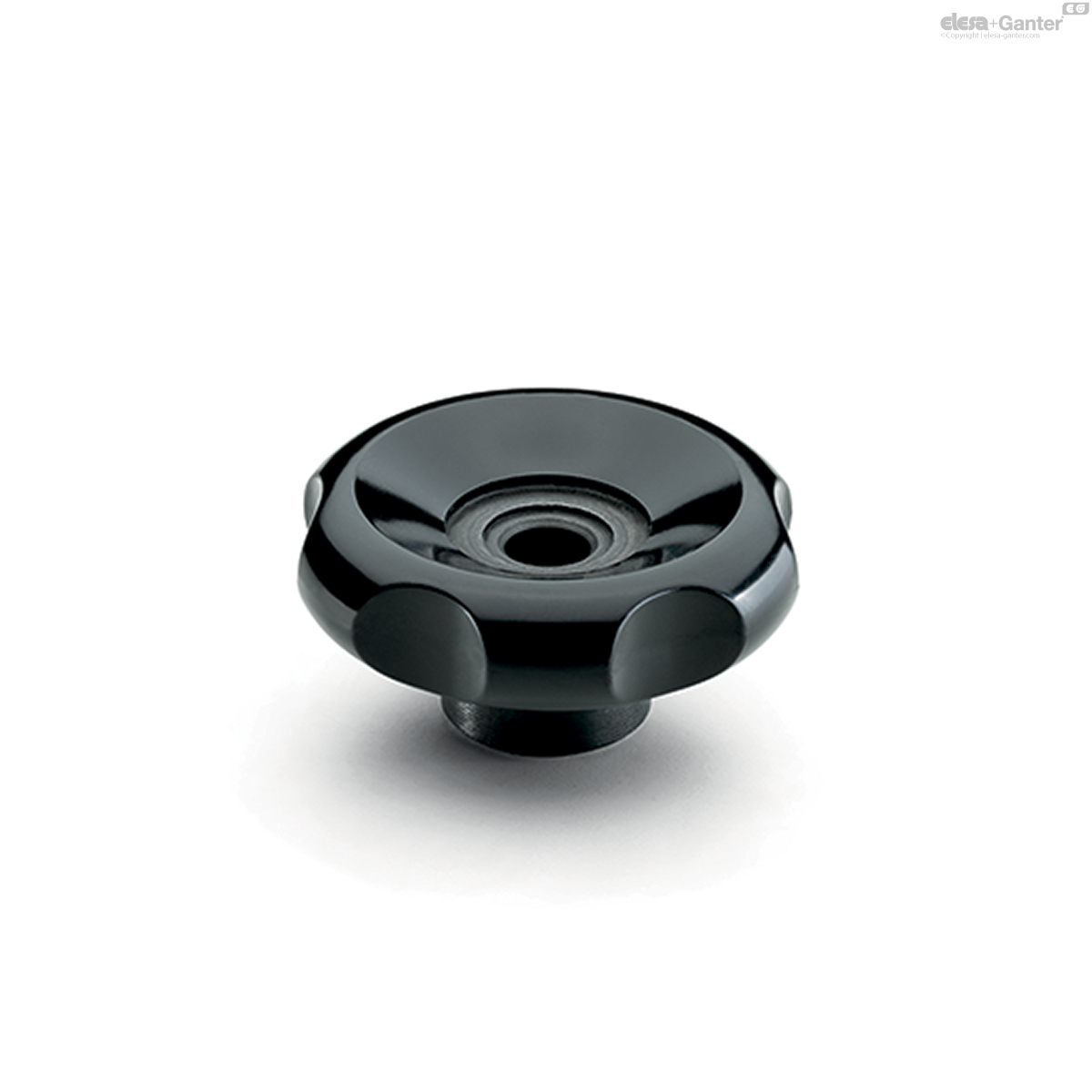

Black-oxide steel hub with reamed pass-through hole

product image

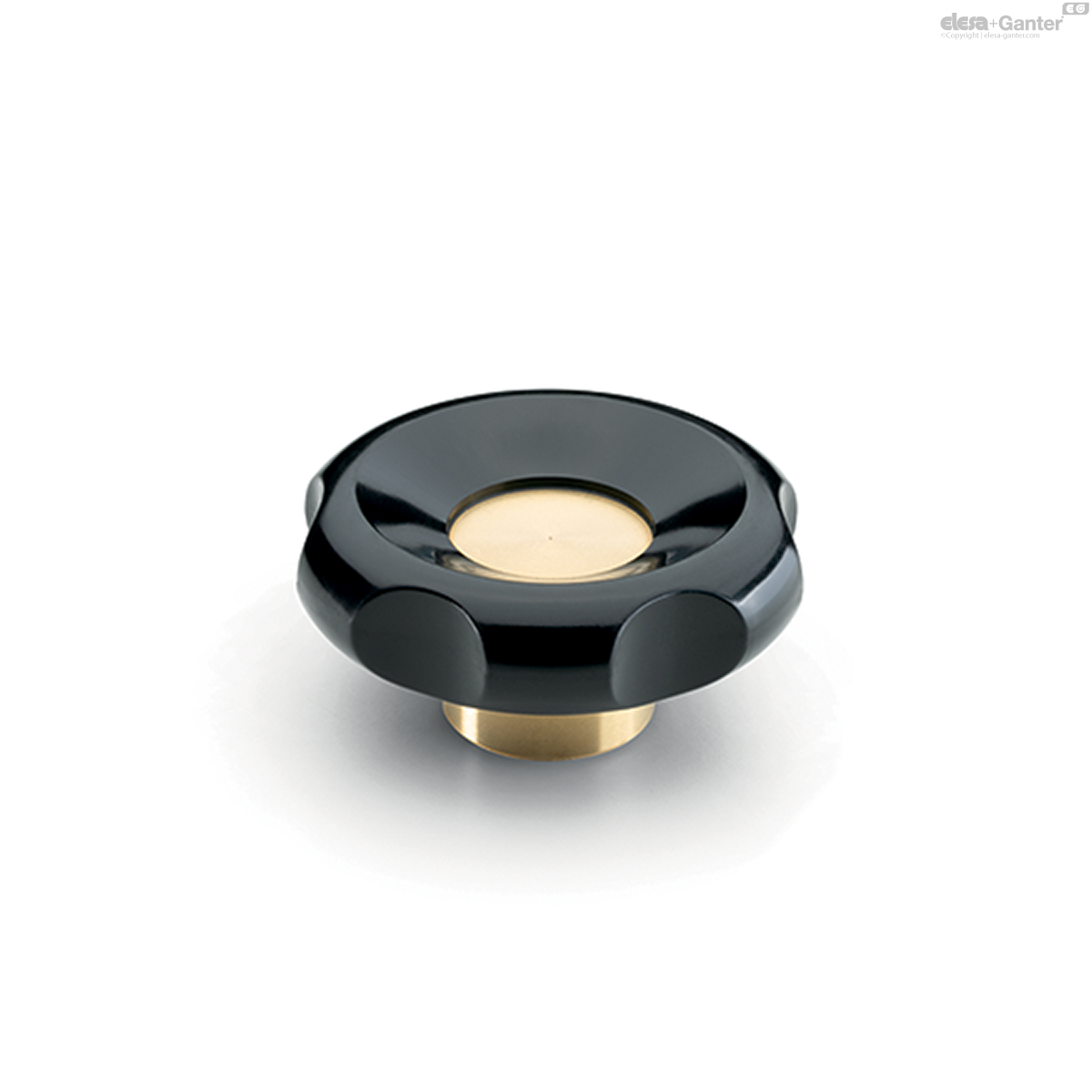

Brass hub, not drilled

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Standard executions

VL.640-FP: black-oxide steel hub, not drilled.

VL.640-FP-A-M: black-oxide steel hub with threaded pass-through hole.

VL.640-FP-A: black-oxide steel hub with H7 reamed pass-through hole.

VL.640-FP-B: brass hub, not drilled.

Special executions on request

Special executions on request

Different RAL colours with zinc-plated steel hub.

VL.640-FP

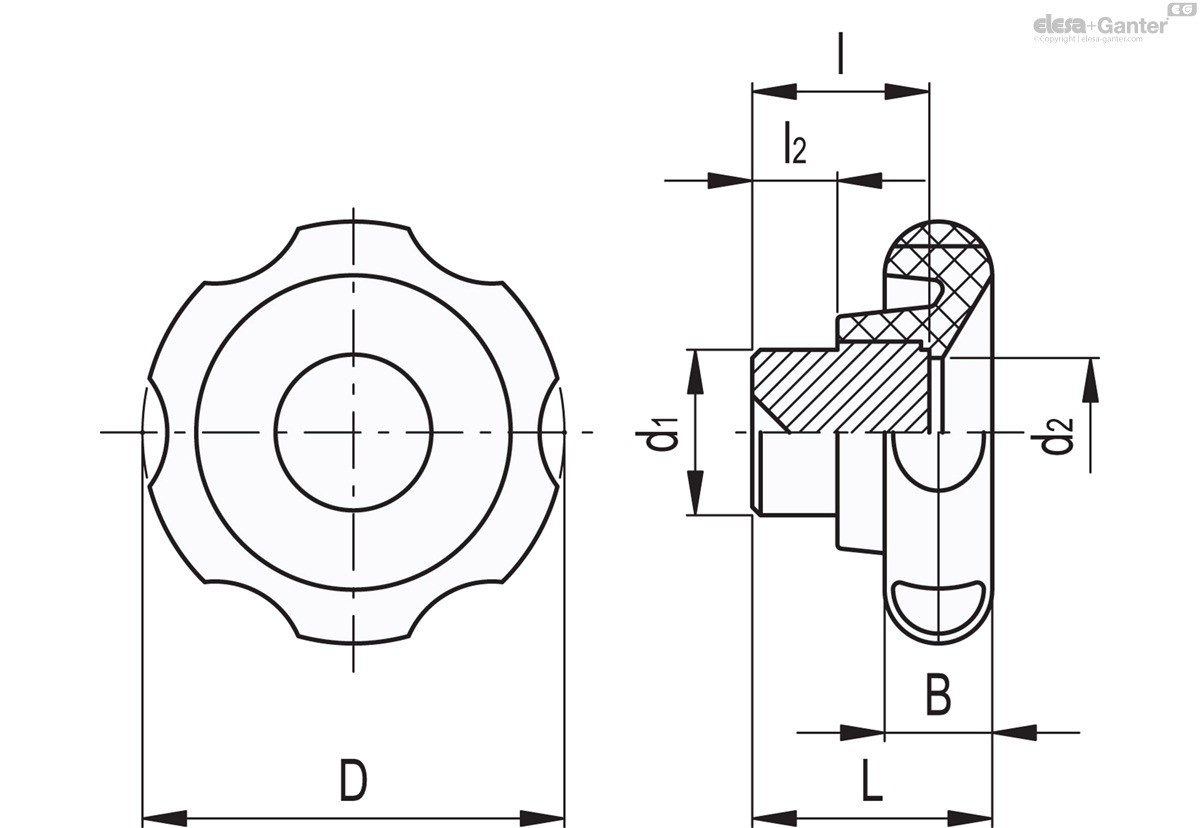

		D	L	B	d₁	d₂	l	l₂
Code	Description									Actions
174111	VL.640/50 FP-A	50	29	13	20	18	21	10	78
174211	VL.640/60 FP-A	61	30	16	25	24	23	11	126
174311	VL.640/70 FP-A	70	33	18	30	30	25	12	195
174411	VL.640/80 FP-A	80	40	19	35	34	30	15	290
