VL.155

Lobe knobs

Duroplast

__logo__ELE_OD__

__logo__RoHS__

__logo__PF__

__logo__g11020__

Enquire Now

product image

Black-oxide steel boss, plain hole

product image

Brass boss, plain or threaded hole

product image

Zinc-plated steel threaded stud

Description

Main specifications

Material

Phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

VL.155-A: black-oxide steel boss, plain blind hole.
VL.155-B: brass boss, plain or threaded blind hole.
VL.155-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

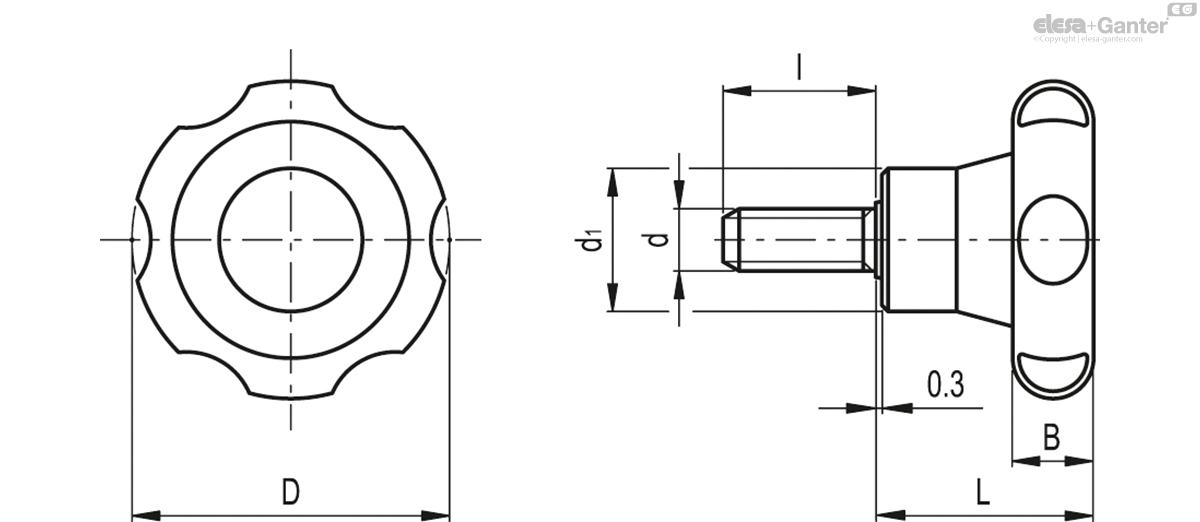

VL.155-p

		D	d_6g	L	B	d₁	l
Code	Description								Actions
75031	VL.155/50 p-M8x25	51	M8	34	12	23	25	52
75032	VL.155/50 p-M8x40	51	M8	34	12	23	40	56
75041	VL.155/50 p-M10x30	51	M10	34	12	23	30	61
75042	VL.155/50 p-M10x50	51	M10	34	12	23	50	70
75141	VL.155/60 p-M8x30	61	M8	38	16	25	30	75
75151	VL.155/60 p-M10x30	61	M10	38	16	25	30	84
75261	VL.155/70 p-M10x30	69	M10	42	18	27	30	105
75262	VL.155/70 p-M10x50	69	M10	42	18	27	50	112
75271	VL.155/70 p-M12x25	69	M12	42	18	27	25	111
75272	VL.155/70 p-M12x50	69	M12	42	18	27	50	129
75341	VL.155/80 p-M12x30	82	M12	48	19	33	30	160
75342	VL.155/80 p-M12x50	82	M12	48	19	33	50	167
