VDN.FP

Solid handwheels

Duroplast, steel hub

Enquire Now

VDN.FP

Solid handwheels

Without handle, plain hub

VDN.FP-A

Solid handwheels

Without handle, drilled hub

VDN.FP+I-A

Solid handwheels

Revolving handle, drilled hub

VDN.FP+IR-A

Solid handwheels

Fold-away handle, drilled hub

VDN.FP+IRS-A

Solid handwheels

Safety fold-away handle, drilled hub

VDN.FP+I

Solid handwheels

Revolving handle, plain hub

VDN.FP+IR

Solid handwheels

Fold-away handle, plain hub

VDN.FP+IRS

Solid handwheels

Safety fold-away handle, solid hub

Description

Main specifications

Material

High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.

Ring

Matte anodised aluminium.

(ELESA Original design - Reg. U.S. Pat. & TM Off.)

Standard executions

Black-oxide steel hub with H7 reamed hole.

H9 reamed hole for executions with keyway.

VDN.FP-A: without handle.
VDN.FP+I-A: with revolving handle I.301+x in Duroplast.
VDN.FP+IR-A: with fold-away handle IR.407 in Duroplast.
VDN.FP+IRS-A: with automatic fold-away safety handle 'Fold-O-matic'® type IRS.820 in technopolymer.
K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

73650-10-K VDN.50 FP-A10-K

Black-oxide steel hub not drilled in order to make holes different from the standard:

VDN.FP: without handle.
VDN.FP+I: with revolving handle I.301+x in Duroplast.
VDN.FP+IR: with fold-away handle IR.407 in Duroplast.
VDN.FP+IRS: with automatic fold-away safety handle 'Fold-O-matic'® IRS.820 in technopolymer.

Special executions on request

Handlwheels with incorporated balancing counterweights.

Accessories on request

Axial retaining washer in black-oxide steel GN 184.

General information

Ergonomy

The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.

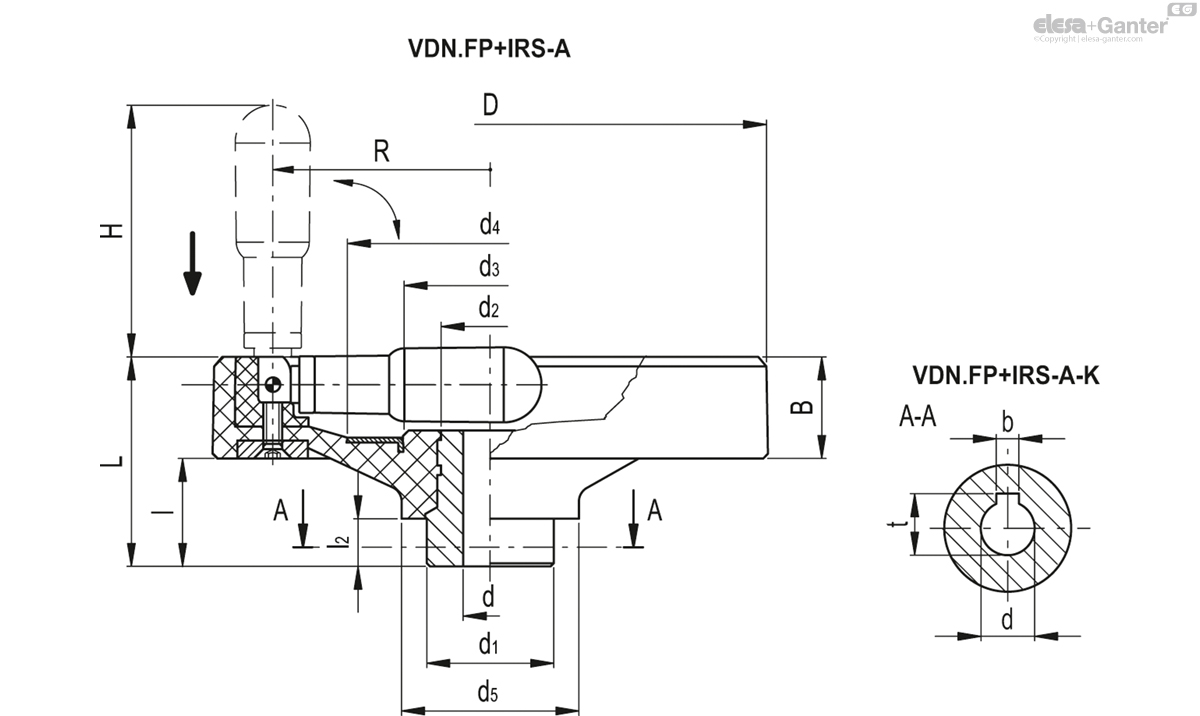

VDN.FP+IRS-A

		D	d_H7	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	d'	d''	H	R	C# [Nm]	L# [J]
Code	Description																			Actions
73732-14	VDN.150 FP+IRS-A14	150	14	61	30	32	26.5	50	80	48	38	15	20	16	65	57	400	14	652
73742-16	VDN.175 FP+IRS-A16	175	16	66	32	40	33	55	90	56	43	15	26	22	80	68	500	16	938
73752-20	VDN.200 FP+IRS-A20	200	20	68	32	40	33	55	90	60	43	15	26	22	90	74.5	600	18	1303
73762-20	VDN.225 FP+IRS-A20	225	20	71	33	49	40	66	110	66	44.5	15	34	27	90	86	900	25	1694
73772-22	VDN.250 FP+IRS-A22	249	22	76	36	49	40	66	110	70	44.5	15	35	27	90	98	1000	28	1852

VDN.FP+IRS-A-K

		D	d_H9	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	H	R	t	b	C# [Nm]	L# [J]
Code	Description																			Actions
73732-14-K	VDN.150 FP+IRS-A14-K	150	14	61	30	32	26.5	50	80	48	38	15	65	57	16.3	5	400	14	652
73742-16-K	VDN.175 FP+IRS-A16-K	175	16	66	32	40	33	55	90	56	43	15	80	68	18.3	5	500	16	973
73752-20-K	VDN.200 FP+IRS-A20-K	200	20	68	32	40	33	55	90	60	43	15	90	74.5	22.8	6	600	18	1430
73762-20-K	VDN.225 FP+IRS-A20-K	225	20	71	33	49	40	66	110	66	44.5	15	90	86	22.8	6	900	25	1680
73772-22-K	VDN.250 FP+IRS-A22-K	249	22	76	36	49	40	66	110	70	44.5	15	90	98	24.8	6	1000	28	1852
