Home Operating Elements Solid handwheels VDN.FP

VDN.FP

Solid handwheels

Duroplast, steel hub

Enquire Now

VDN.FP

Solid handwheels

Without handle, plain hub

VDN.FP-A

Solid handwheels

Without handle, drilled hub

VDN.FP+I-A

Solid handwheels

Revolving handle, drilled hub

VDN.FP+IR-A

Solid handwheels

Fold-away handle, drilled hub

VDN.FP+IRS-A

Solid handwheels

Safety fold-away handle, drilled hub

VDN.FP+I

Solid handwheels

Revolving handle, plain hub

VDN.FP+IR

Solid handwheels

Fold-away handle, plain hub

VDN.FP+IRS

Solid handwheels

Safety fold-away handle, solid hub

Description

Main specifications

Material

High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.

Ring

Matte anodised aluminium.

(ELESA Original design - Reg. U.S. Pat. & TM Off.)

Standard executions

Black-oxide steel hub with H7 reamed hole.

H9 reamed hole for executions with keyway.

VDN.FP-A: without handle.
VDN.FP+I-A: with revolving handle I.301+x in Duroplast.
VDN.FP+IR-A: with fold-away handle IR.407 in Duroplast.
VDN.FP+IRS-A: with automatic fold-away safety handle 'Fold-O-matic'® type IRS.820 in technopolymer.
K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

73650-10-K VDN.50 FP-A10-K

Black-oxide steel hub not drilled in order to make holes different from the standard:

VDN.FP: without handle.
VDN.FP+I: with revolving handle I.301+x in Duroplast.
VDN.FP+IR: with fold-away handle IR.407 in Duroplast.
VDN.FP+IRS: with automatic fold-away safety handle 'Fold-O-matic'® IRS.820 in technopolymer.

Special executions on request

Handlwheels with incorporated balancing counterweights.

Accessories on request

Axial retaining washer in black-oxide steel GN 184.

General information

Ergonomy

The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.

VDN.FP+IRS

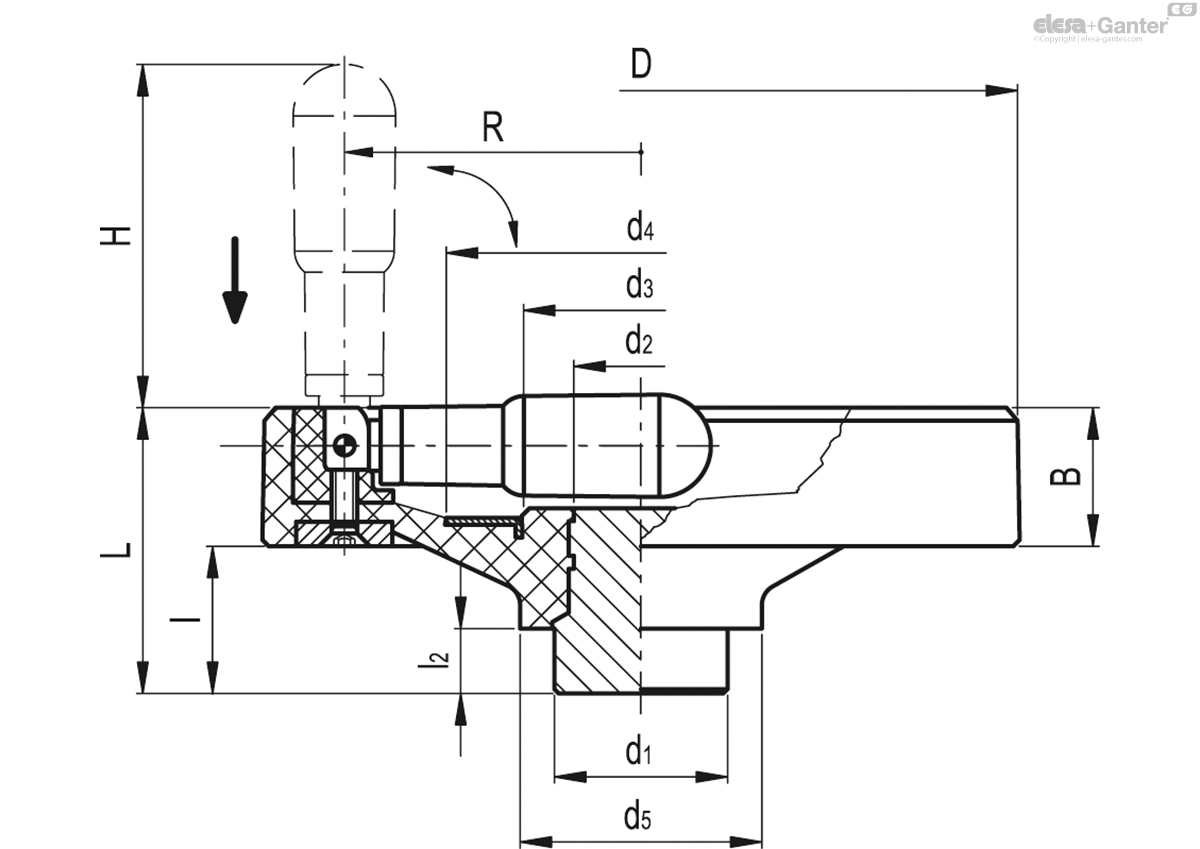

		D	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	H	R	d'	d''	C# [Nm]	L# [J]
Code	Description																		Actions
73732	VDN.150 FP+IRS	150	61	30	32	26.5	50	80	48	38	15	65	57	20	16	400	14	702
73742	VDN.175 FP+IRS	175	66	32	40	33	55	90	56	43	15	80	68	26	22	500	16	1004
73752	VDN.200 FP+IRS	200	68	32	40	33	55	90	60	43	15	90	74.5	26	22	600	18	1396
73762	VDN.225 FP+IRS	225	71	33	49	40	66	110	66	44.5	15	90	86	34	27	900	25	1808
73772	VDN.250 FP+IRS	249	76	36	49	40	66	110	70	44.5	15	90	98	35	27	1000	28	2096
