Home Operating Elements Solid handwheels VDN.FP

VDN.FP

Solid handwheels

Duroplast, steel hub

Enquire Now

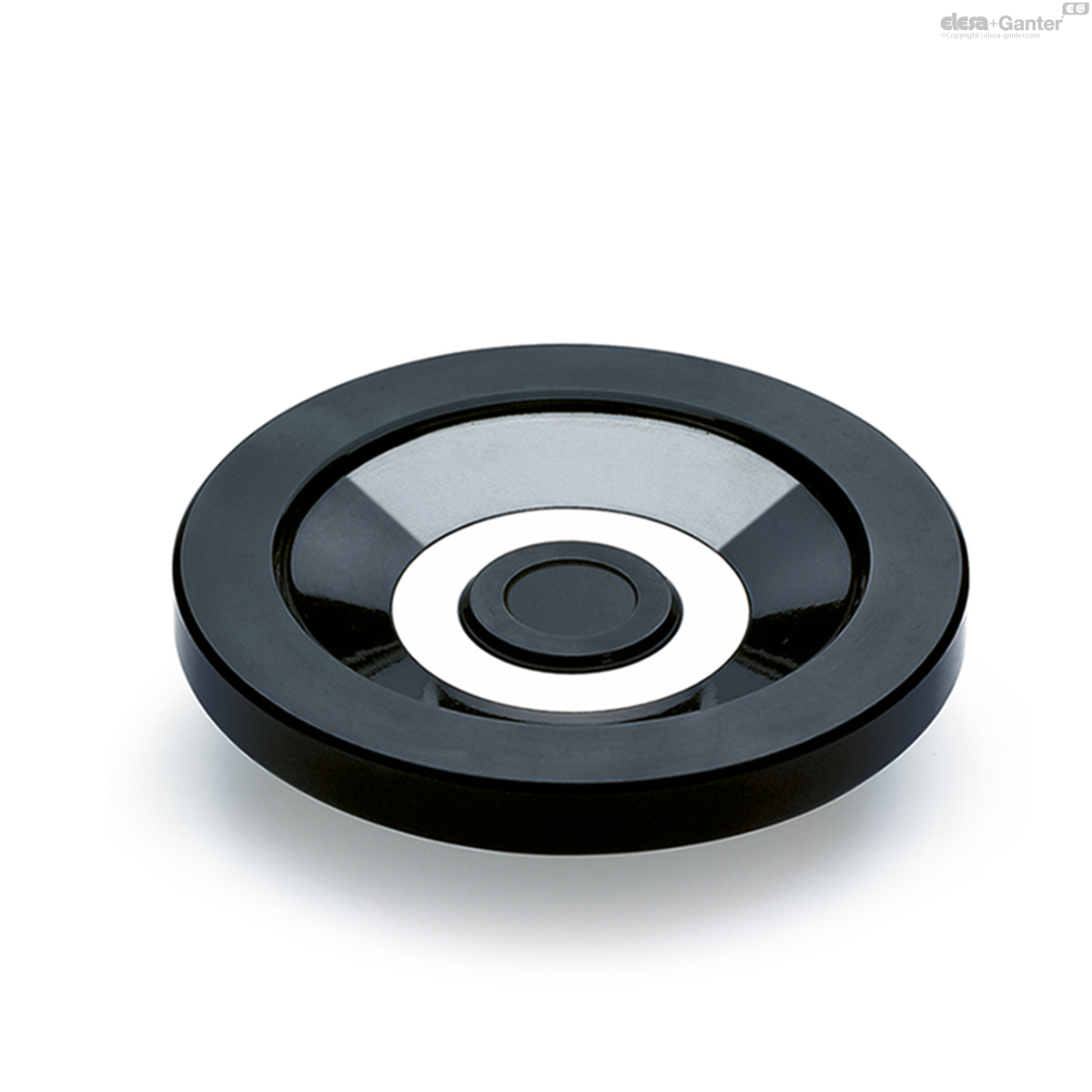

VDN.FP

Solid handwheels

Without handle, plain hub

VDN.FP-A

Solid handwheels

Without handle, drilled hub

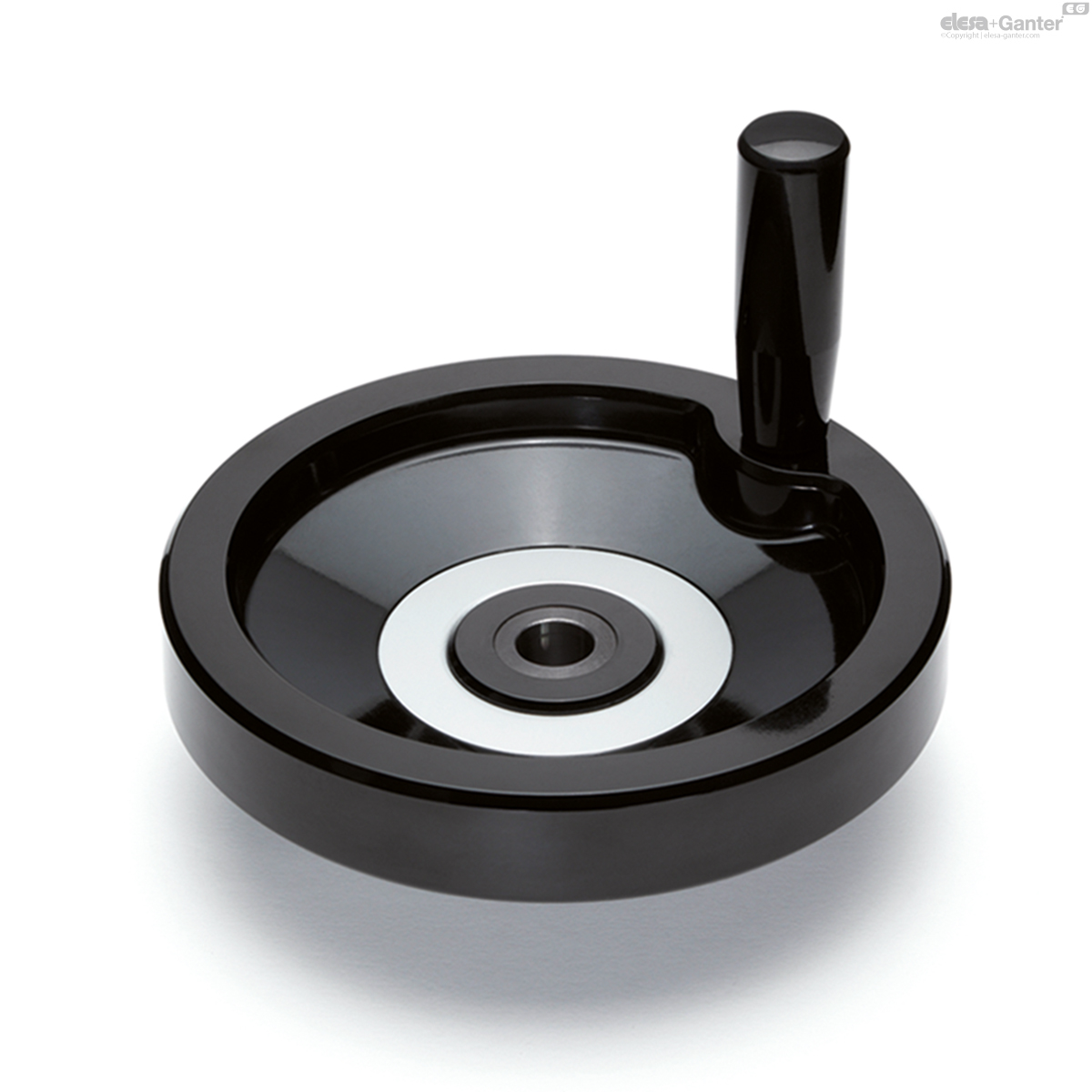

VDN.FP+I-A

Solid handwheels

Revolving handle, drilled hub

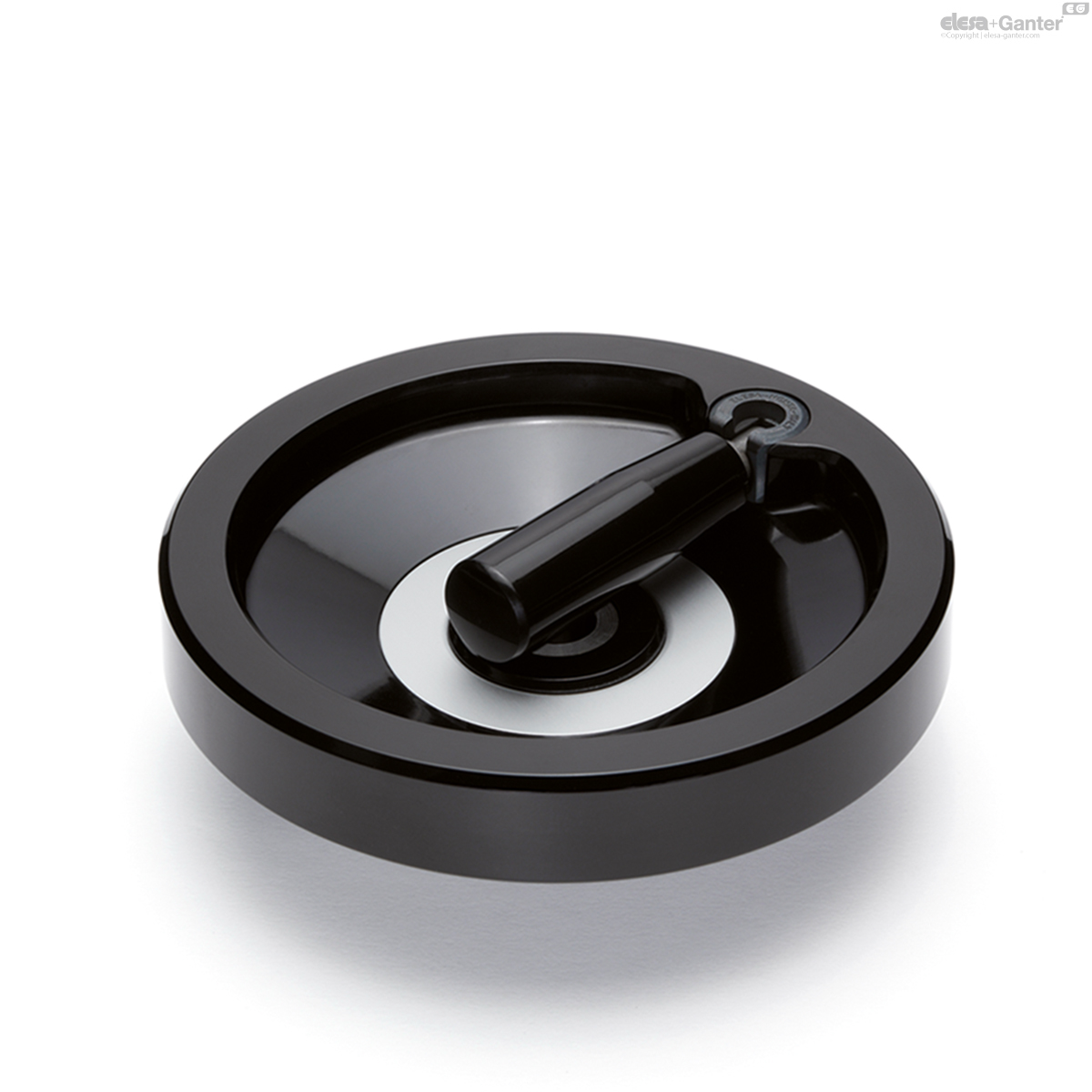

VDN.FP+IR-A

Solid handwheels

Fold-away handle, drilled hub

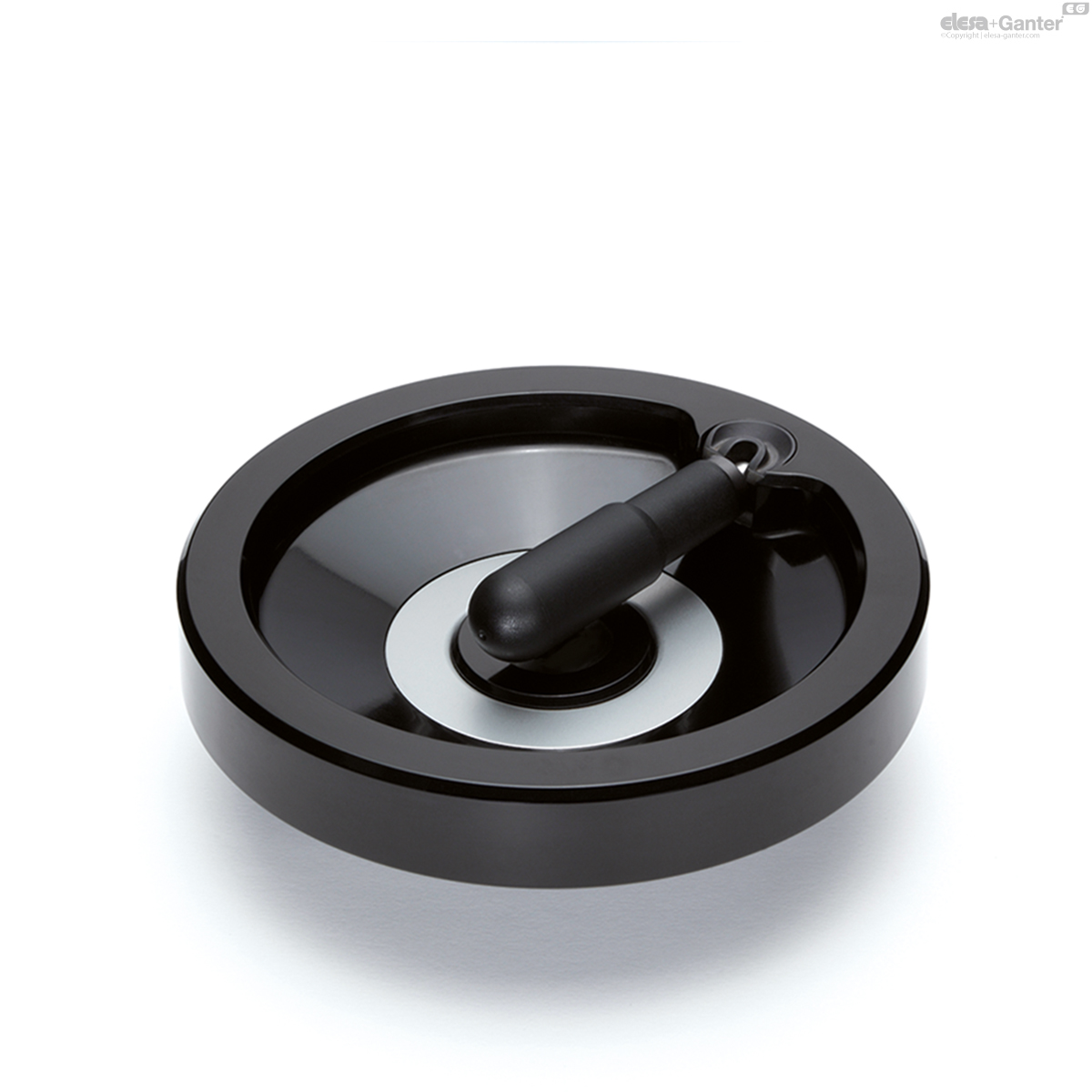

VDN.FP+IRS-A

Solid handwheels

Safety fold-away handle, drilled hub

VDN.FP+I

Solid handwheels

Revolving handle, plain hub

VDN.FP+IR

Solid handwheels

Fold-away handle, plain hub

VDN.FP+IRS

Solid handwheels

Safety fold-away handle, solid hub

Description

Main specifications

Material

High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.

Ring

Matte anodised aluminium.

(ELESA Original design - Reg. U.S. Pat. & TM Off.)

Standard executions

Black-oxide steel hub with H7 reamed hole.

H9 reamed hole for executions with keyway.

VDN.FP-A: without handle.
VDN.FP+I-A: with revolving handle I.301+x in Duroplast.
VDN.FP+IR-A: with fold-away handle IR.407 in Duroplast.
VDN.FP+IRS-A: with automatic fold-away safety handle 'Fold-O-matic'® type IRS.820 in technopolymer.
K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

73650-10-K VDN.50 FP-A10-K

Black-oxide steel hub not drilled in order to make holes different from the standard:

VDN.FP: without handle.
VDN.FP+I: with revolving handle I.301+x in Duroplast.
VDN.FP+IR: with fold-away handle IR.407 in Duroplast.
VDN.FP+IRS: with automatic fold-away safety handle 'Fold-O-matic'® IRS.820 in technopolymer.

Special executions on request

Handlwheels with incorporated balancing counterweights.

Accessories on request

Axial retaining washer in black-oxide steel GN 184.

General information

Ergonomy

The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.

VDN.FP-A

		D	d_H7	L	B	d₁	d₂	d₃	d₄	d₅	l	d'	d''	l₂	C# [Nm]	L# [J]
Code	Description																	Actions
73650-10	VDN.50 FP-A10	50	10	22	12	16	16	-	25	26	19	12	10	9	55	3	51
73670-10	VDN.63 FP-A10	63	10	28	13	20	20	-	31	28	24	13	11	10	75	4	99
73690-10	VDN.80 FP-A10	80	10	31	14	20	18	28	43	30	28	13	11	10	120	5	130
73690-12	VDN.80 FP-A12	80	12	31	14	20	18	28	43	30	28	13	12	10	120	5	125
73709-10	VDN.100 FP-A10	100	10	40	15	24	22	35	54	39	36	16	13	12	150	6	240
73709-12	VDN.100 FP-A12	100	12	40	15	24	22	35	54	39	36	16	13	12	150	6	227
73719-12	VDN.125 FP-A12	125	12	44	15	32	26.5	44	70	46	38	20	16	15	300	8	363
73719-14	VDN.125 FP-A14	125	14	44	15	32	26.5	44	70	46	38	20	16	15	300	8	355
73723-14	VDN.140 FP-A14	140	14	46	19	32	26.5	44	70	48	38	20	16	15	350	10	504
73729-14	VDN.150 FP-A14	150	14	49	18	32	26.5	44	70	48	38	20	16	15	400	14	479
73729-16	VDN.150 FP-A16	150	16	49	18	32	26.5	44	70	48	38	20	16	15	400	14	460
73739-16	VDN.175 FP-A16	175	16	54	19	40	33	55	90	56	43	26	22	15	500	16	720
73739-18	VDN.175 FP-A18	175	18	54	19	40	33	55	90	56	43	26	22	15	500	16	776
73749-18	VDN.200 FP-A18	200	18	58	22	40	33	55	90	60	43	26	22	15	600	18	1097
73749-20	VDN.200 FP-A20	200	20	58	22	40	33	55	90	60	43	26	22	15	600	18	1060
73769-22	VDN.250 FP-A22	249	22	65	25	49	40	66	110	70	44	35	27	15	1000	28	1597
73780-26	VDN.300 FP-A26	301	26	75	25	58	58	94	148	82	56	42	38	18	1100	35	2756

VDN.FP-A-K

		D	d_H9	L	B	d₁	d₂	d₃	d₄	d₅	l	l₂	t	b	C# [Nm]	L# [J]
Code	Description																	Actions
73650-10-K	VDN.50 FP-A10-K	50	10	22	12	16	16	-	25	26	19	9	11.4	3	55	3	49
73670-10-K	VDN.63 FP-A10-K	63	10	28	13	20	20	-	31	28	24	10	11.4	3	75	4	97
73690-10-K	VDN.80 FP-A10-K	80	10	31	14	20	18	28	43	30	28	10	11.4	3	120	5	136
73690-12-K	VDN.80 FP-A12-K	80	12	31	14	20	18	28	43	30	28	10	13.8	4	120	5	158
73709-10-K	VDN.100 FP-A10-K	100	10	40	15	24	22	35	54	39	36	12	11.4	3	150	6	320
73709-12-K	VDN.100 FP-A12-K	100	12	40	15	24	22	35	54	39	36	12	13.8	4	150	6	219
73719-12-K	VDN.125 FP-A12-K	125	12	44	15	32	26.5	44	70	46	38	15	13.8	4	300	8	374
73719-14-K	VDN.125 FP-A14-K	125	14	44	15	32	26.5	44	70	46	38	15	16.3	5	300	8	374
73723-14-K	VDN.140 FP-A14-K	140	14	46	19	32	26.5	44	70	48	38	15	16.3	5	350	10	504
73729-14-K	VDN.150 FP-A14-K	150	14	49	18	32	26.5	44	70	48	38	15	16.3	5	400	14	465
73729-16-K	VDN.150 FP-A16-K	150	16	49	18	32	26.5	44	70	48	38	15	18.3	5	400	14	554
73739-16-K	VDN.175 FP-A16-K	175	16	54	19	40	33	55	90	56	43	15	18.3	5	500	16	715
73739-18-K	VDN.175 FP-A18-K	175	18	54	19	40	33	55	90	56	43	15	20.8	6	500	16	837
73749-18-K	VDN.200 FP-A18-K	200	18	58	22	40	33	55	90	60	43	15	20.8	6	600	18	950
73749-20-K	VDN.200 FP-A20-K	200	20	58	22	40	33	55	90	60	43	15	22.8	6	600	18	1317
73769-22-K	VDN.250 FP-A22-K	249	22	65	25	49	40	66	110	70	44	15	24.8	6	1000	28	1892
73780-26-K	VDN.300 FP-A26-K	301	26	75	25	58	58	94	148	82	56	18	29.3	8	1100	35	2550
