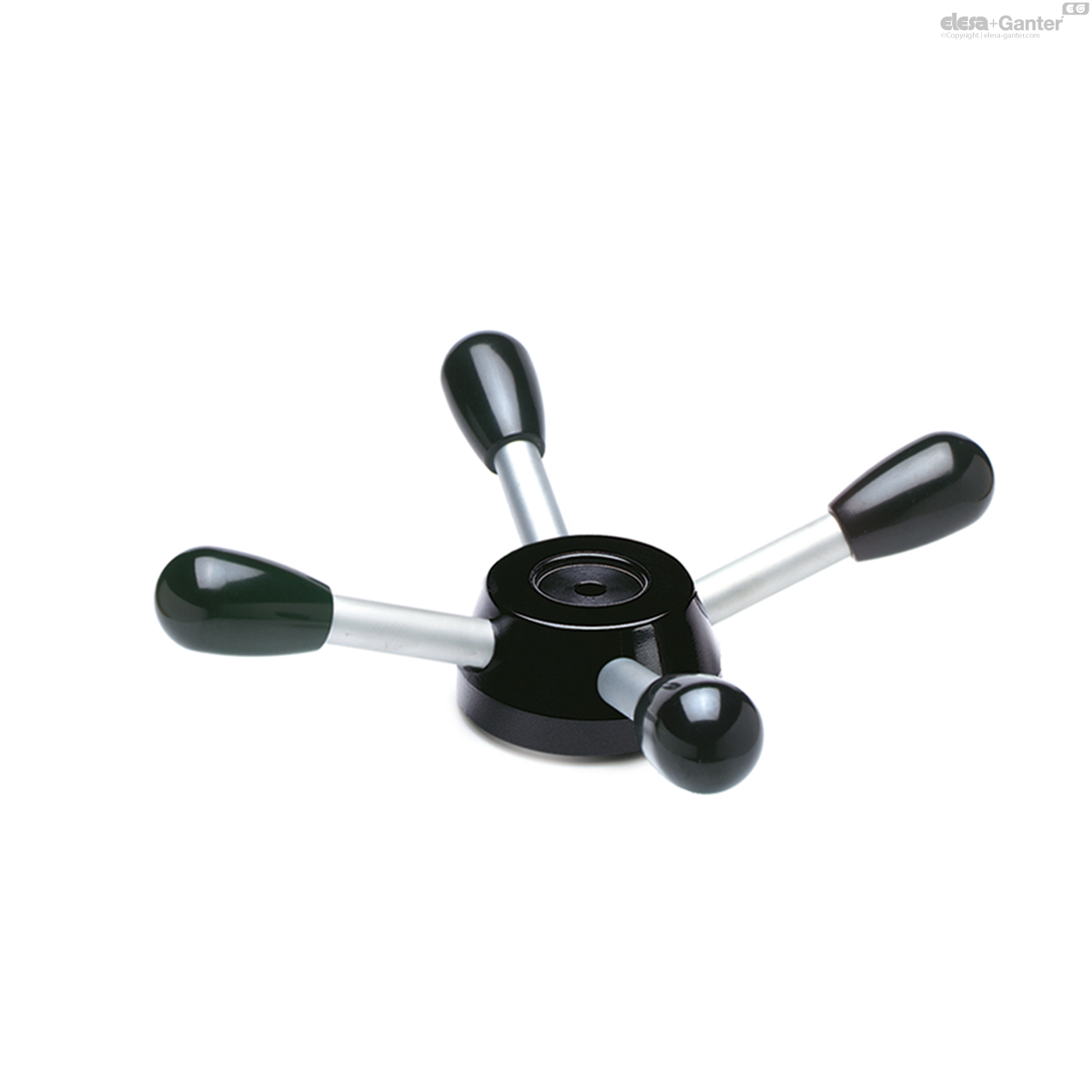

VBR.4
Four-arm handwheels
Technopolymer and steel
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.
Arms
Matte chrome-plated steel complete with handles type I.622 in technopolymer.
Standard execution
Black-oxide steel boss, uncovered front end with pre-drilled pass-through hole.
Accessories on request
Accessories on request
Axial retaining washer GN 184.

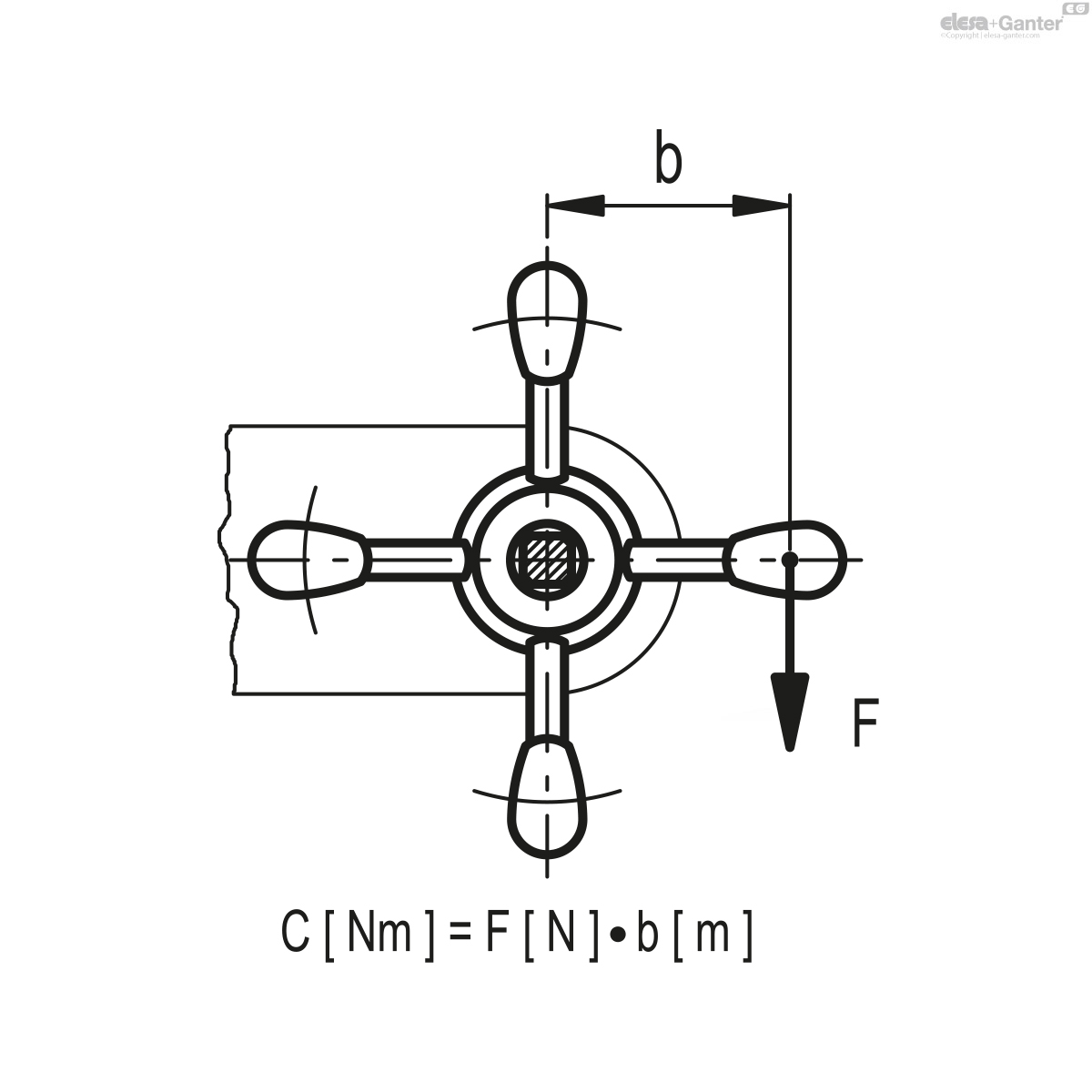

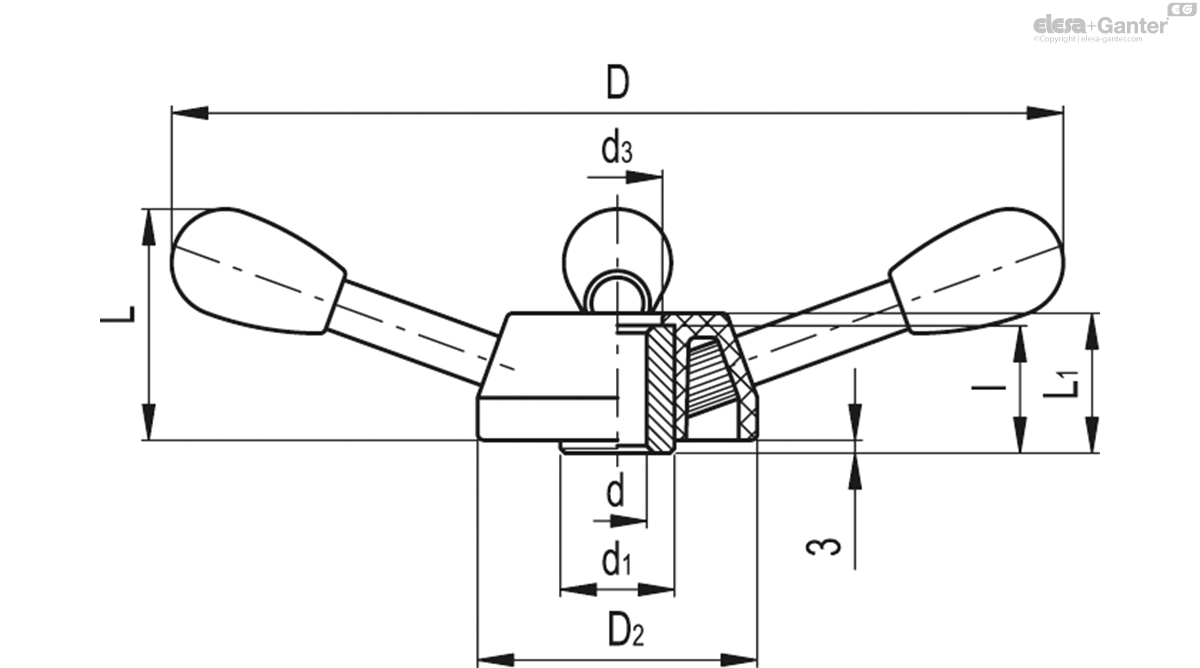

| D | dH9 | L | L1 | D2 | d1 | d3 | l | C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| 65901 | VBR.4/200 | 200 | 10 | 60 | 42 | 86 | 35 | 34 | 38 | 195 | 816 |
|
| 65911 | VBR.4/280 | 274 | 10 | 74 | 42 | 86 | 35 | 34 | 38 | 195 | 1050 |
|
| 65921 | VBR.4/320 | 312 | 10 | 80 | 42 | 86 | 35 | 34 | 38 | 195 | 1254 |
|
| 65931 | VBR.4/370 | 363 | 10 | 90 | 42 | 86 | 35 | 34 | 38 | 195 | 1356 |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
