VB.839 SOFT
Three-arm knobs
Soft-touch technopolymer
VB.839-B-SOFT
Three-arm knobs
Brass boss, threaded blind hole
VB.839-SST-SOFT
Three-arm knobs
Stainless steel boss, threaded blind hole
VB.839-p-SOFT
Three-arm knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, coated 'soft-touch' thermoplastic elastomer (TPE) chemically bonded, hardness 70 Shore A, black colour, matte finish.
Coloured centre cap
Polyamide based (PA) technopolymer, in the standard colours, semi-glossy finish.
Standard executions
- VB.839-B-SOFT:Â brass boss, threaded blind hole.
- VB.839-SST-SOFT:Â AISI 303 stainless steel boss, threaded blind hole.
- VB.839-p-SOFT: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
General information
Features
The soft coating makes it more comfortable to use even in the presence of humidity and is particularly useful in the case of prolonged use or in the presence of disabilities as well as allowing greater tightening torque.
The three-arm shape is particularly ergonomic.
Product Design: The product design associated with the soft coating gives the machinery to which it is applied an air of quality and refinement.
Other executions
Special executions on request
- Three-arm knobs with AISI 304 stainless steel metal parts.
- Cap in other colours or with customised graphic symbols, marks or writings.
VB.839-SST-SOFT
| Color | D | d | L | d1 | l2 | h | C# [Nm] |
L** [J] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| 64808-C2 | VB.839/63 SST-M8-SOFT-C2 | C2 - RAL 2004 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|
| 64808-C3 | VB.839/63 SST-M8-SOFT-C3 | C3 - RAL 7035 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|

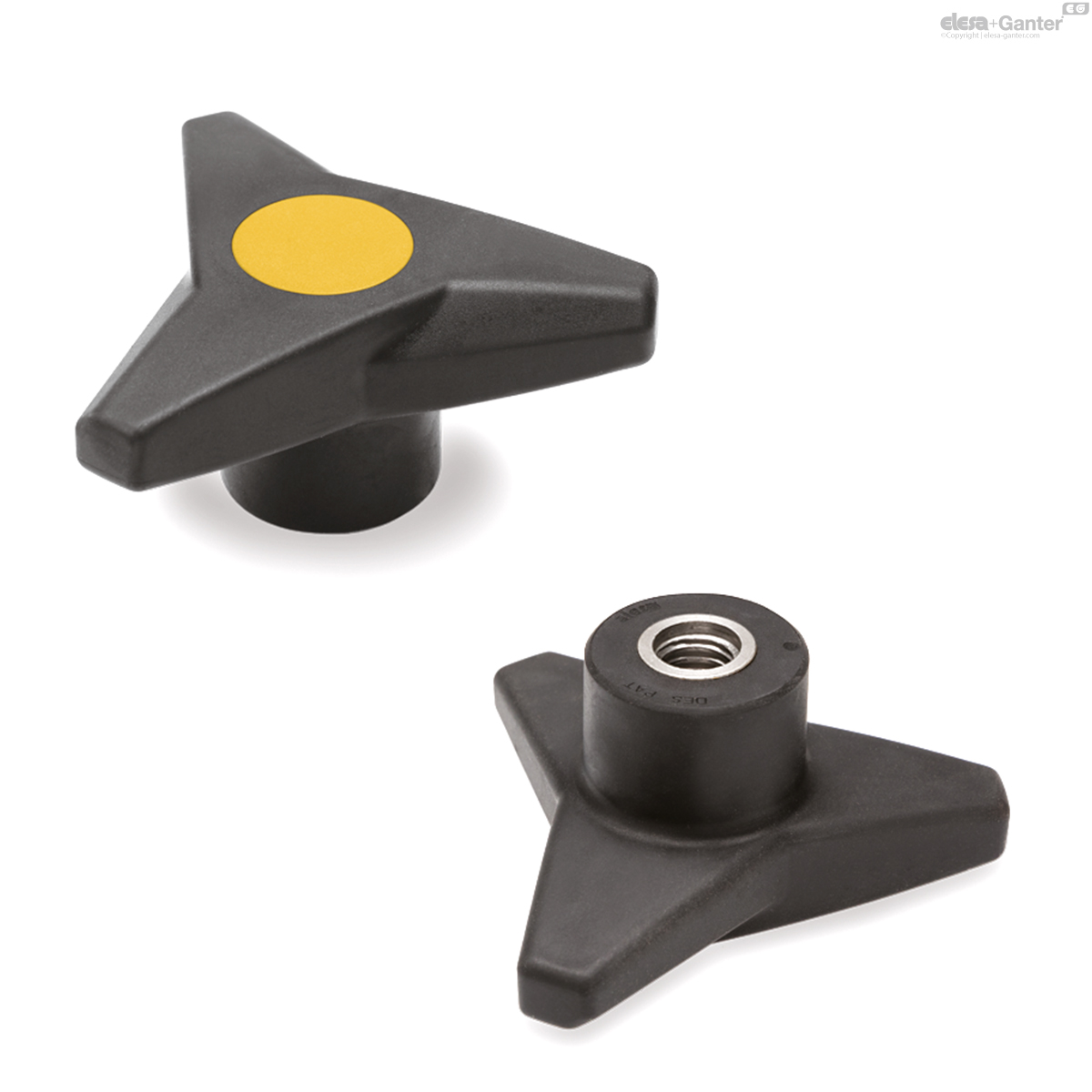

| 64808-C4 | VB.839/63 SST-M8-SOFT-C4 | C4 - RAL 1021 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|

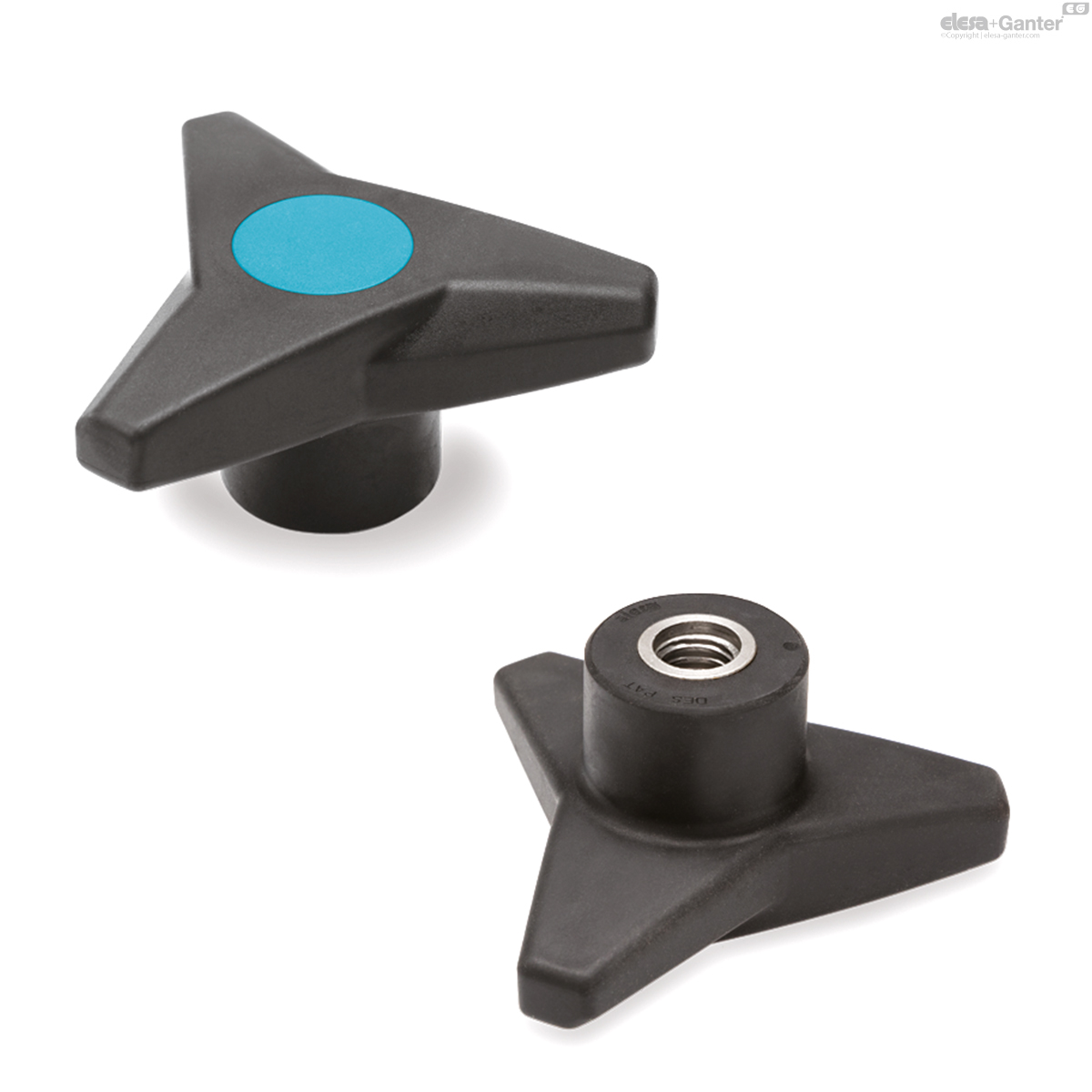

| 64808-C5 | VB.839/63 SST-M8-SOFT-C5 | C5 - RAL 5024 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|

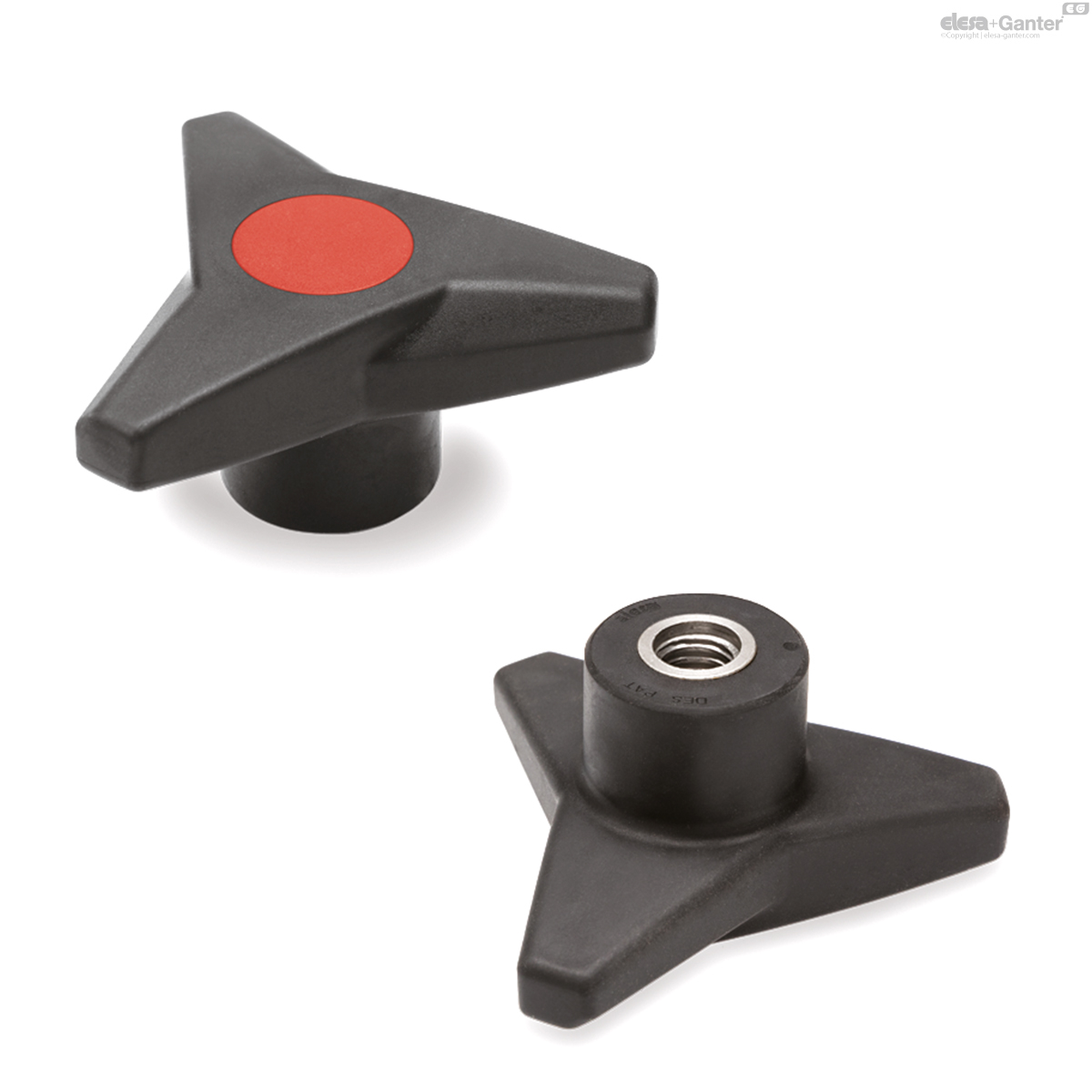

| 64808-C6 | VB.839/63 SST-M8-SOFT-C6 | C6 - RAL 3000 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|

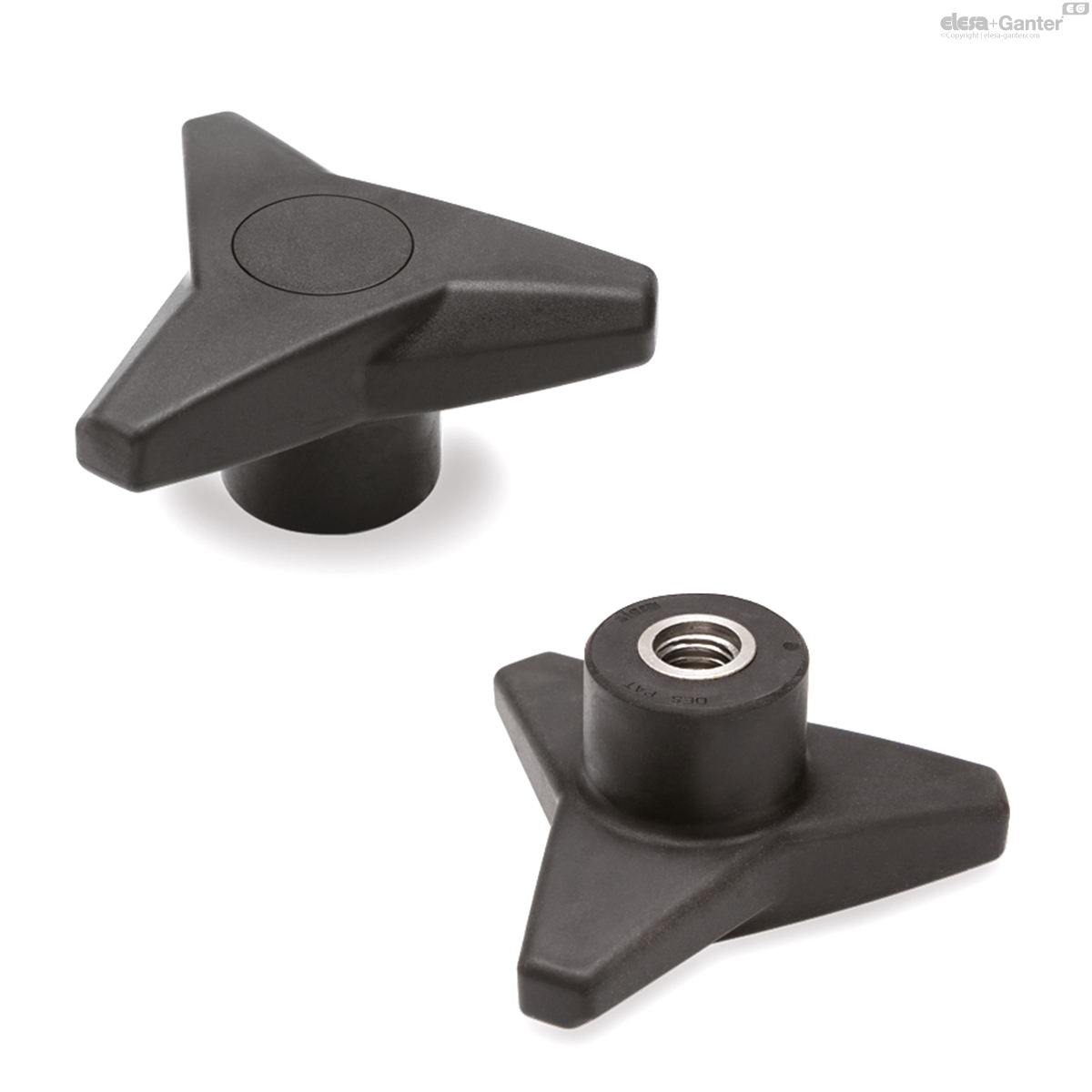

| 64808-C9 | VB.839/63 SST-M8-SOFT-C9 | C9 - RAL 9005 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|
| 64808-C17 | VB.839/63 SST-M8-SOFT-C17 | C17 - RAL 6017 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 6 | 39 |
|
| 64848-C2 | VB.839/80 SST-M10-SOFT-C2 | C2 - RAL 2004 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64848-C3 | VB.839/80 SST-M10-SOFT-C3 | C3 - RAL 7035 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64848-C4 | VB.839/80 SST-M10-SOFT-C4 | C4 - RAL 1021 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64848-C5 | VB.839/80 SST-M10-SOFT-C5 | C5 - RAL 5024 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64848-C6 | VB.839/80 SST-M10-SOFT-C6 | C6 - RAL 3000 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64848-C9 | VB.839/80 SST-M10-SOFT-C9 | C9 - RAL 9005 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64848-C17 | VB.839/80 SST-M10-SOFT-C17 | C17 - RAL 6017 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 68 |
|
| 64878-C2 | VB.839/100 SST-M12-SOFT-C2 | C2 - RAL 2004 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
| 64878-C3 | VB.839/100 SST-M12-SOFT-C3 | C3 - RAL 7035 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
| 64878-C4 | VB.839/100 SST-M12-SOFT-C4 | C4 - RAL 1021 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
| 64878-C5 | VB.839/100 SST-M12-SOFT-C5 | C5 - RAL 5024 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
| 64878-C6 | VB.839/100 SST-M12-SOFT-C6 | C6 - RAL 3000 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
| 64878-C9 | VB.839/100 SST-M12-SOFT-C9 | C9 - RAL 9005 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
| 64878-C17 | VB.839/100 SST-M12-SOFT-C17 | C17 - RAL 6017 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 12 | 104 |
|
