VB.839
Three-arm knobs
Technopolymer

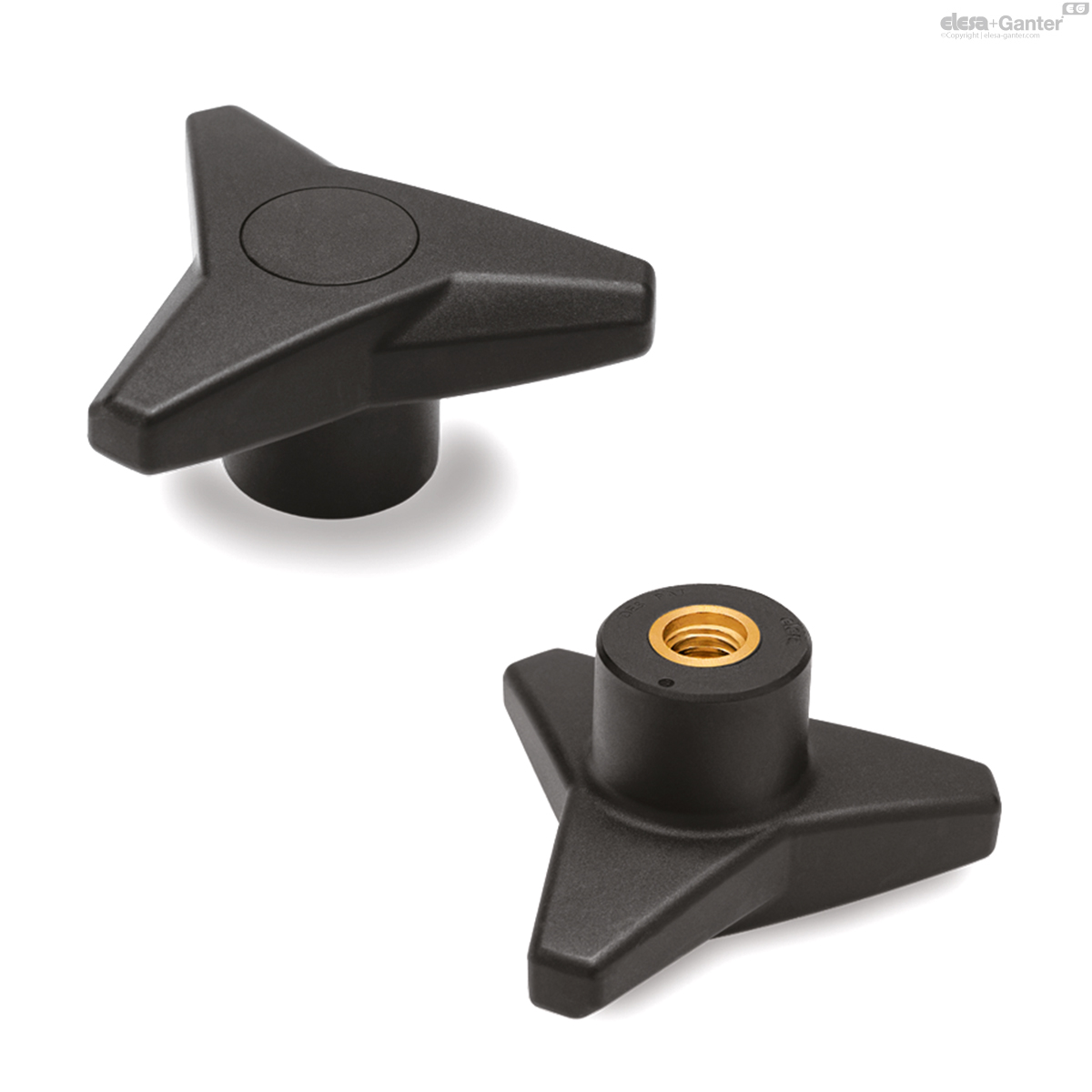

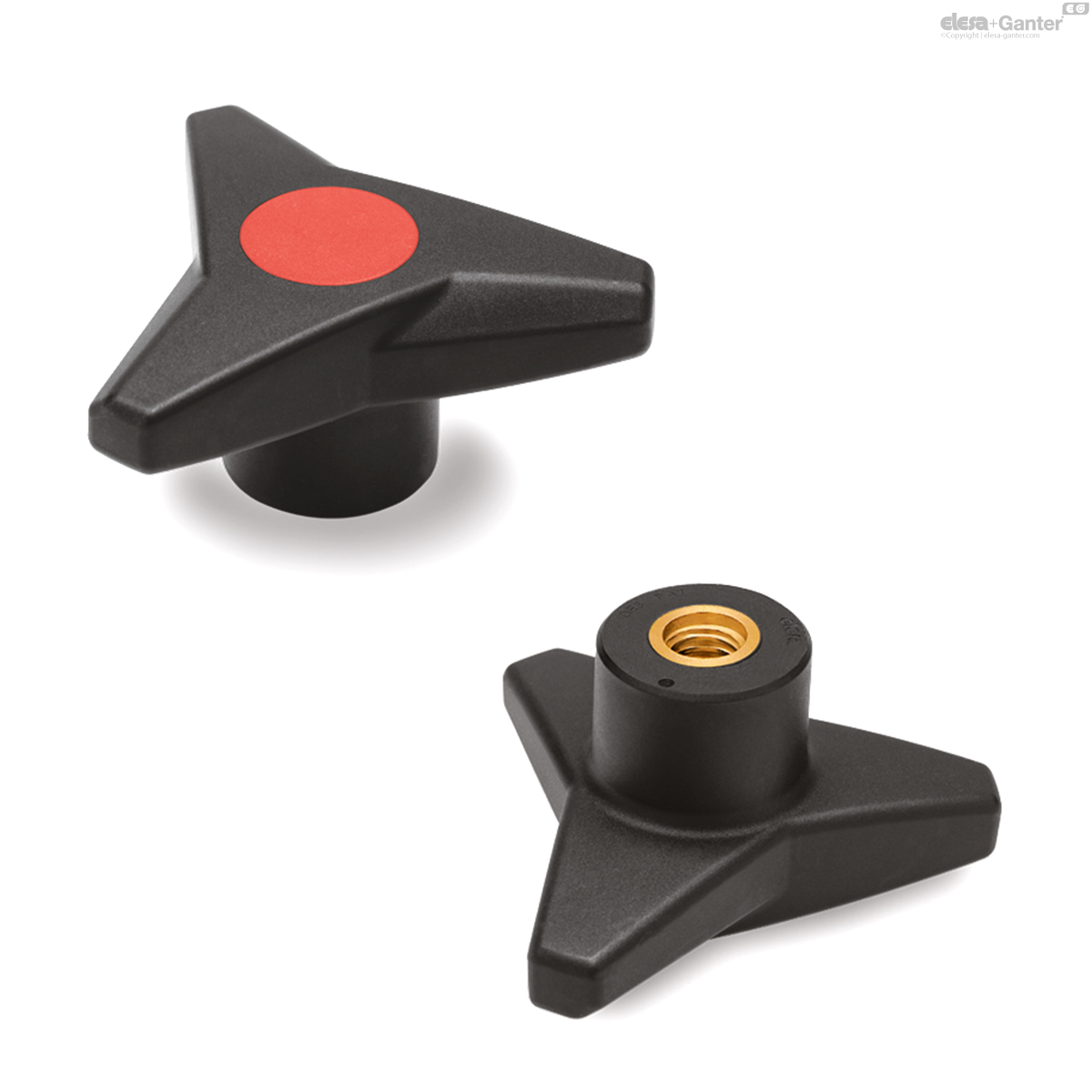

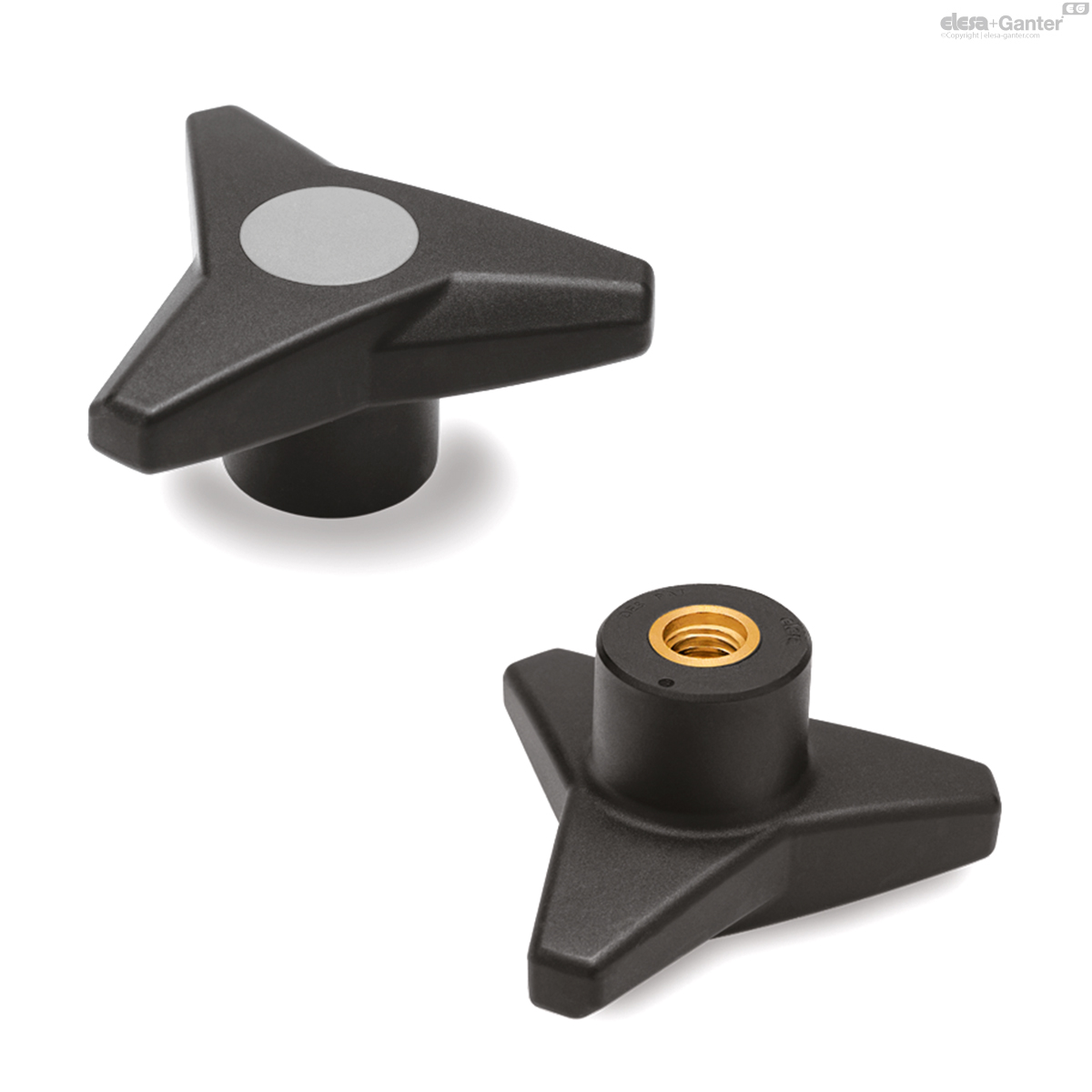

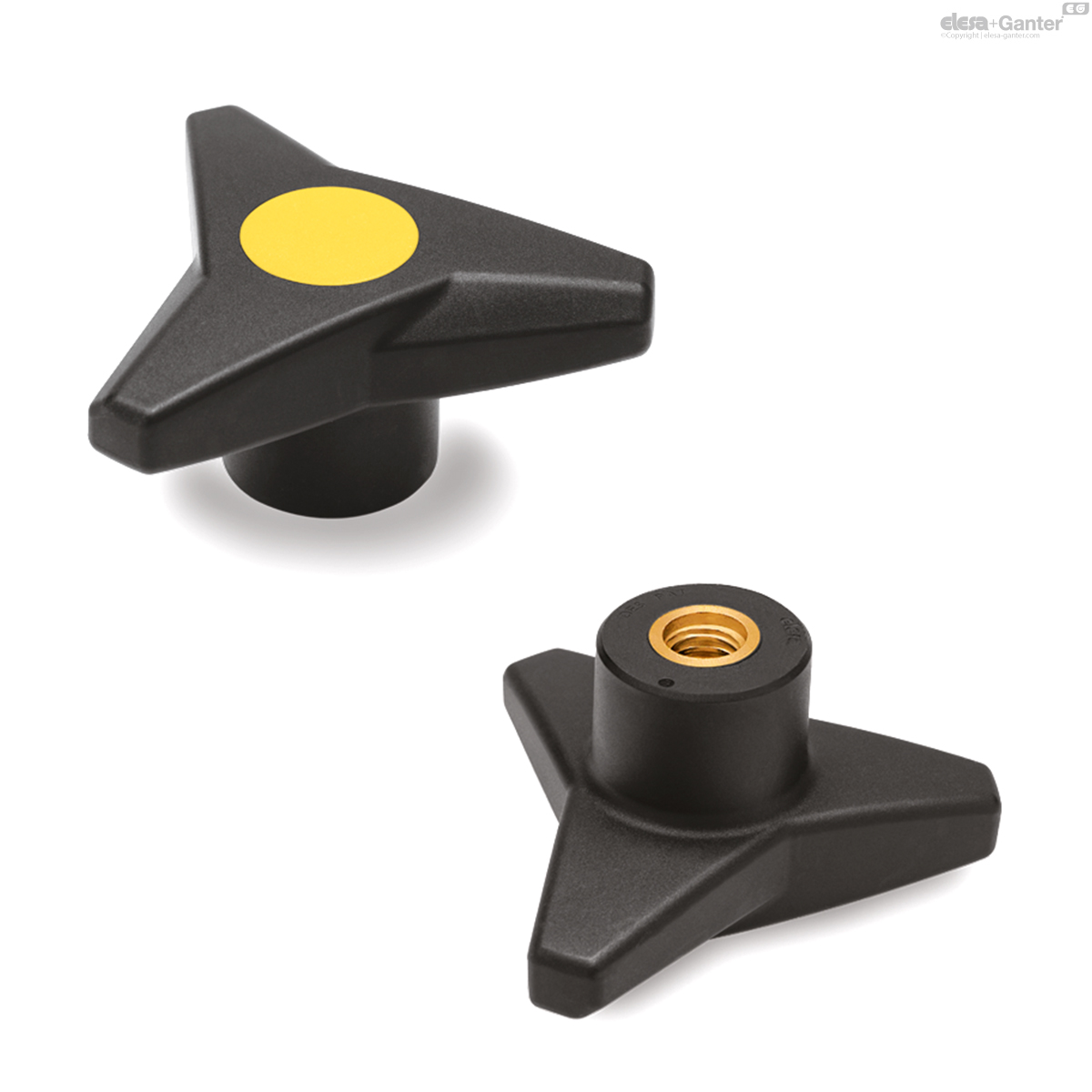

VB.839-B
Three-arm knobs
Brass boss, threaded blind hole

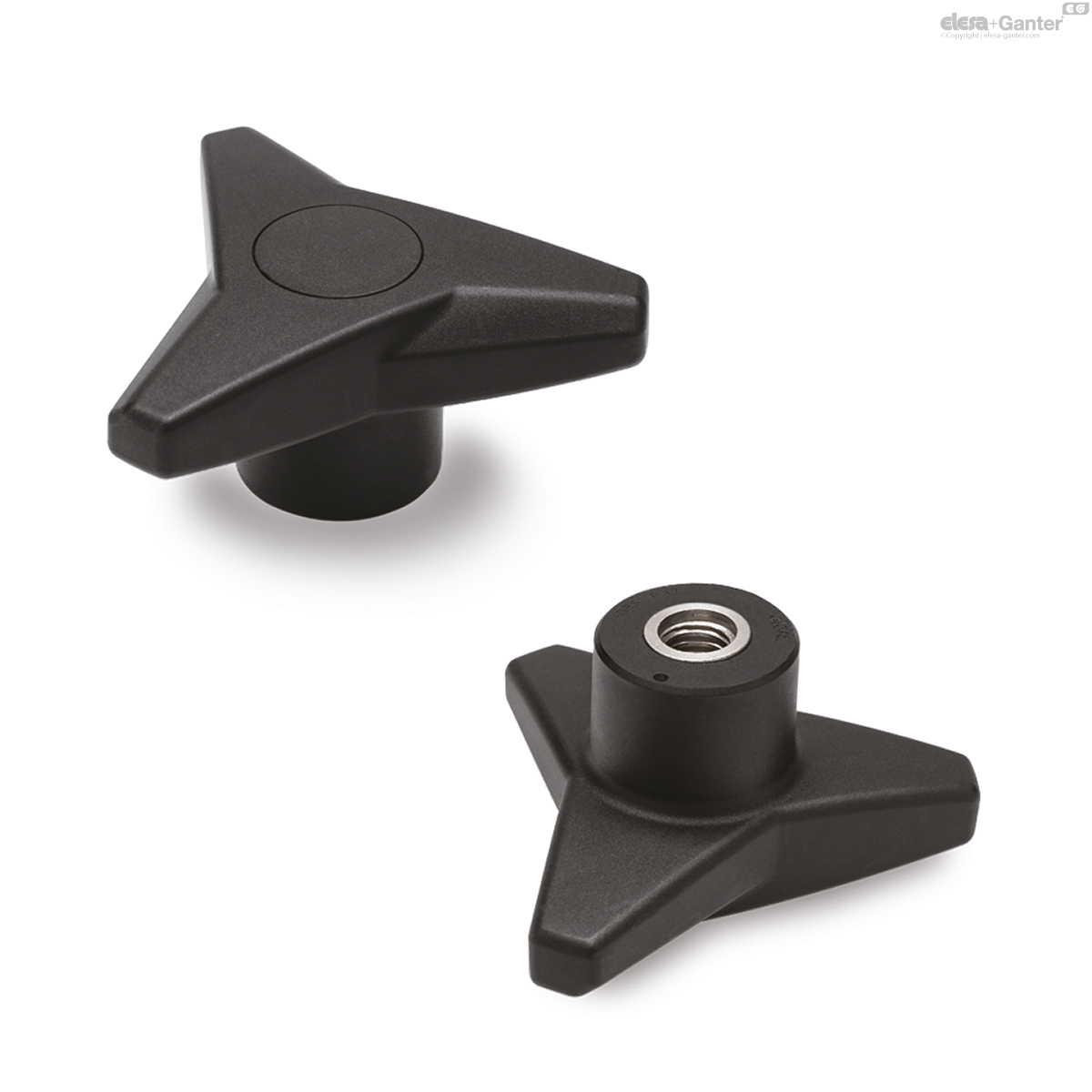

VB.839-SST
Three-arm knobs
Stainless steel boss, threaded blind hole

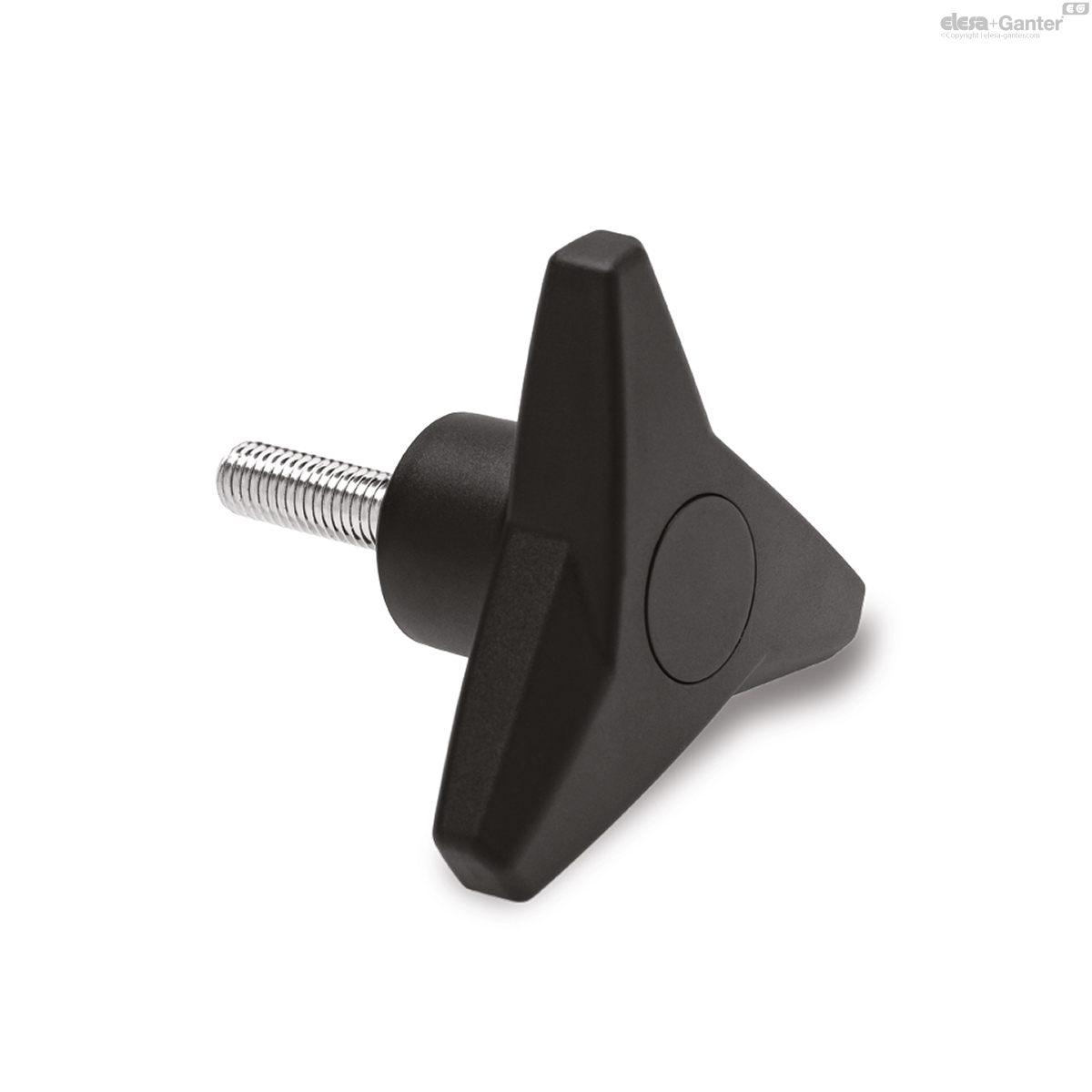

VB.839-p
Three-arm knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, polyamide based (PA) technopolymer coating, chemically bonded with semi-glossy finish, black colour.
Coloured centre cap
Polyamide based (PA) technopolymer, in the standard colours, semi-glossy finish.
Standard executions
- VB.839-B:Â brass boss, threaded blind hole.
- VB.839-SST:Â AISI 303 stainless steel boss, threaded blind hole.
- VB.839-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
General information
Features
The three-arm shape is particularly ergonomic, ensuring an excellent grip.
Other executions
Special executions on request
- Three-arm knobs with AISI 304 stainless steel metal parts.
- Cap in other colours or with customised graphic symbols, marks or writings.
VB.839-B
| Color | D | d | L | d1 | l2 | h | C# [Nm] |
L** [J] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| 64635-C2 | VB.839/63 B-M8-C2 | C2 - RAL 2004 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64635-C3 | VB.839/63 B-M8-C3 | C3 - RAL 7035 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64635-C4 | VB.839/63 B-M8-C4 | C4 - RAL 1021 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64635-C5 | VB.839/63 B-M8-C5 | C5 - RAL 5024 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64635-C6 | VB.839/63 B-M8-C6 | C6 - RAL 3000 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64635-C9 | VB.839/63 B-M8-C9 | C9 - RAL 9005 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64635-C17 | VB.839/63 B-M8-C17 | C17 - RAL 6017 | 63 | M8 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C2 | VB.839/63 B-M10-C2 | C2 - RAL 2004 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C3 | VB.839/63 B-M10-C3 | C3 - RAL 7035 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C4 | VB.839/63 B-M10-C4 | C4 - RAL 1021 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C5 | VB.839/63 B-M10-C5 | C5 - RAL 5024 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C6 | VB.839/63 B-M10-C6 | C6 - RAL 3000 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C9 | VB.839/63 B-M10-C9 | C9 - RAL 9005 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64636-C17 | VB.839/63 B-M10-C17 | C17 - RAL 6017 | 63 | M10 | 30.5 | 23 | 16 | 13 | 30 | 9 | 39 |
|
| 64675-C2 | VB.839/80 B-M10-C2 | C2 - RAL 2004 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64675-C3 | VB.839/80 B-M10-C3 | C3 - RAL 7035 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64675-C4 | VB.839/80 B-M10-C4 | C4 - RAL 1021 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64675-C5 | VB.839/80 B-M10-C5 | C5 - RAL 5024 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64675-C6 | VB.839/80 B-M10-C6 | C6 - RAL 3000 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64675-C9 | VB.839/80 B-M10-C9 | C9 - RAL 9005 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64675-C17 | VB.839/80 B-M10-C17 | C17 - RAL 6017 | 80 | M10 | 37 | 30.5 | 20 | 17 | 80 | 10 | 71 |
|
| 64676-C2 | VB.839/80 B-M12-C2 | C2 - RAL 2004 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 75 |
|
| 64676-C3 | VB.839/80 B-M12-C3 | C3 - RAL 7035 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 75 |
|
| 64676-C4 | VB.839/80 B-M12-C4 | C4 - RAL 1021 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 75 |
|
| 64676-C5 | VB.839/80 B-M12-C5 | C5 - RAL 5024 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 75 |
|
| 64676-C6 | VB.839/80 B-M12-C6 | C6 - RAL 3000 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 75 |
|
| 64676-C9 | VB.839/80 B-M12-C9 | C9 - RAL 9005 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 69 |
|
| 64676-C17 | VB.839/80 B-M12-C17 | C17 - RAL 6017 | 80 | M12 | 37 | 30.5 | 20 | 17 | 80 | 10 | 75 |
|
| 64705-C2 | VB.839/100 B-M12-C2 | C2 - RAL 2004 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 110 |
|
| 64705-C3 | VB.839/100 B-M12-C3 | C3 - RAL 7035 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 110 |
|
| 64705-C4 | VB.839/100 B-M12-C4 | C4 - RAL 1021 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 110 |
|
| 64705-C5 | VB.839/100 B-M12-C5 | C5 - RAL 5024 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 110 |
|
| 64705-C6 | VB.839/100 B-M12-C6 | C6 - RAL 3000 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 110 |
|
| 64705-C9 | VB.839/100 B-M12-C9 | C9 - RAL 9005 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 117 |
|
| 64705-C17 | VB.839/100 B-M12-C17 | C17 - RAL 6017 | 100 | M12 | 43 | 35 | 23 | 20 | 110 | 11 | 110 |
|
| 64706-C2 | VB.839/100 B-M14-C2 | C2 - RAL 2004 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
| 64706-C3 | VB.839/100 B-M14-C3 | C3 - RAL 7035 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
| 64706-C4 | VB.839/100 B-M14-C4 | C4 - RAL 1021 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
| 64706-C5 | VB.839/100 B-M14-C5 | C5 - RAL 5024 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
| 64706-C6 | VB.839/100 B-M14-C6 | C6 - RAL 3000 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
| 64706-C9 | VB.839/100 B-M14-C9 | C9 - RAL 9005 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
| 64706-C17 | VB.839/100 B-M14-C17 | C17 - RAL 6017 | 100 | M14 | 43 | 35 | 23 | 20 | 110 | 11 | 121 |
|
