Home Accessories for Hydraulic Systems Plugs TNR.

TNR.

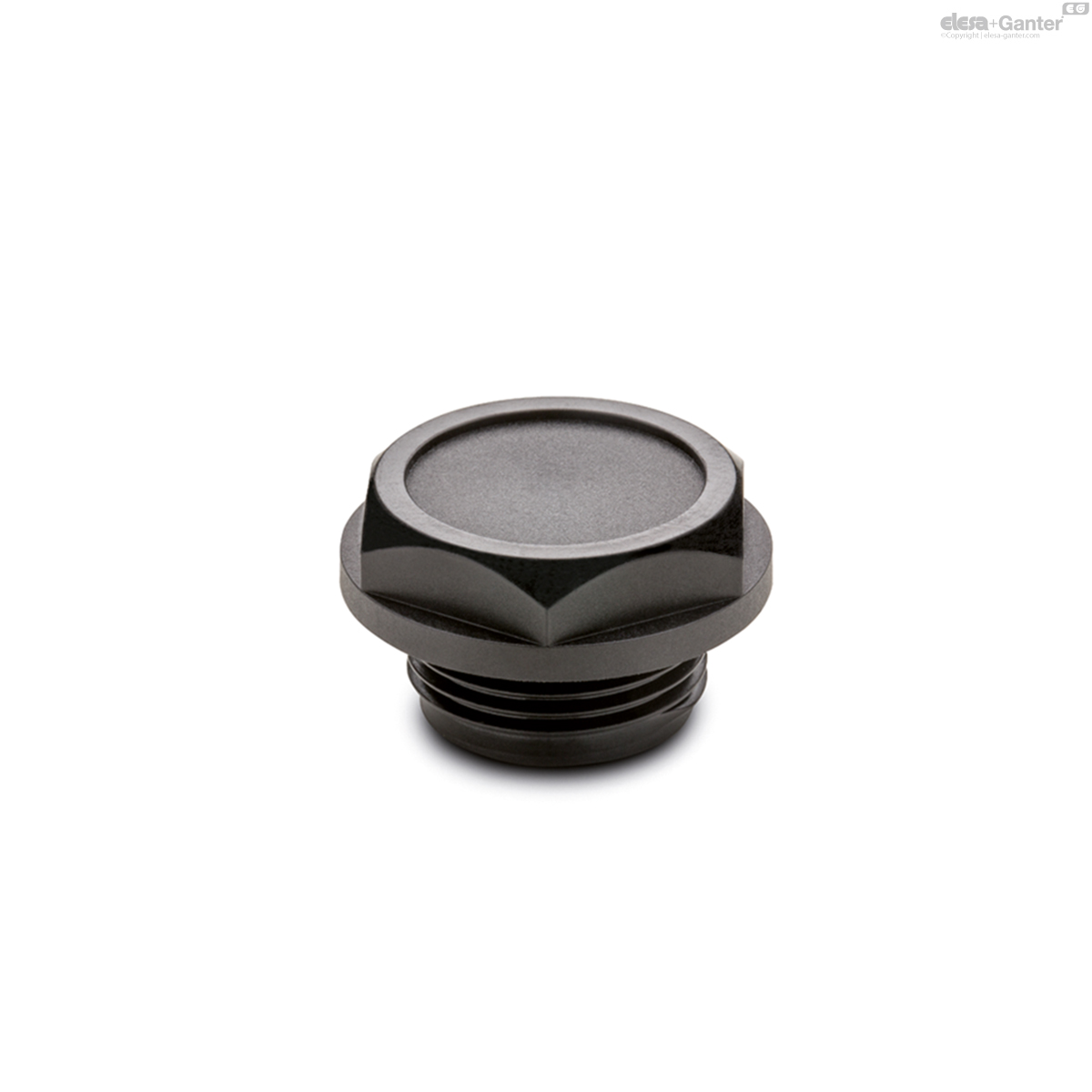

Plugs

Technopolymer up to 100°C

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Packing ring

NBR synthetic rubber O-Ring.

In addition to guaranteeing the OR-ring retention, the seat for the housing allows an optimal seal even with minimum tightening torques.

Maximum continuous working temperature

100°C.

General information

Technical data

In laboratory tests carried out with mineral oil type CB68 (according to ISO 3498) at 23°C for a limited period of time, the values of pressure resistance were much higher than 100 bar.

In any case, we suggest to check the suitability of the product with regard to the fluid nature, operating temperature and application type under the actual working conditions.

Accessories

Accessories on request

TNR. plugs are suitable for mounting aluminium plates with graphic symbols type MH.MH--.

		d	h	s	D	L	M
Code	Description								Actions
158285	TNR.14x1.5	M14x1.5	9	19	22	17	15	23
158286	TNR.16x1.5	M16x1.5	10	22	25.5	18	17	17
158287	TNR.20x1.5	M20x1.5	11	27	32	20	20.5	11
158288	TNR.26x1.5	M26x1.5	12	32	37	22	25	18
158289	TNR.27x1.5	M27x1.5	12	32	37	22	25	18
158290	TNR.33x1.5	M33x1.5	13	38	44	23	31	24
158291	TNR.40x1.5	M40x1.5	14	46	53.5	26	38	32
158292	TNR.42x2	M42x2	15	46	53.5	26	38	50
158295	TNR.1/4	G 1/4	9	19	22	17	15	5
158296	TNR.3/8	G 3/8	9	22	25.5	18	17	7
158297	TNR.1/2	G 1/2	11	27	32	20	20.5	12
158298	TNR.3/4	G 3/4	12	32	37	22	25	17
158299	TNR.1	G 1	13	38	44	23	31	23
158411	TNR.1 ¼	G1 1/4	14	46	53.5	26	38	35
158413	TNR.1 ½	G1 1/2	15	55	63.5	28	46	53
