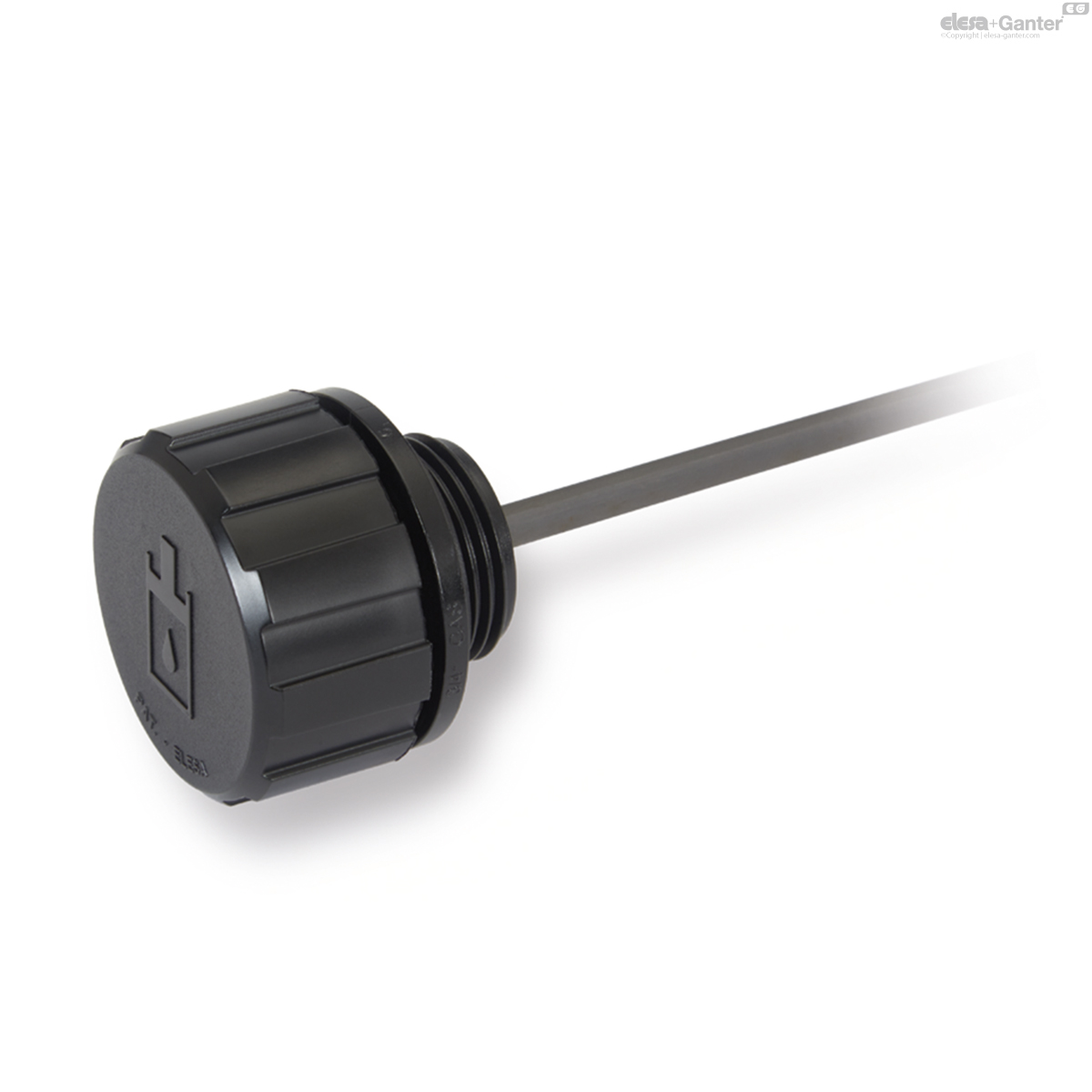

SFX+a

Breather caps

with splash guard, external anti-splash semi-discs and dipstick, technopolymer

Enquire Now

With anti-splash semi-discs, without air filter

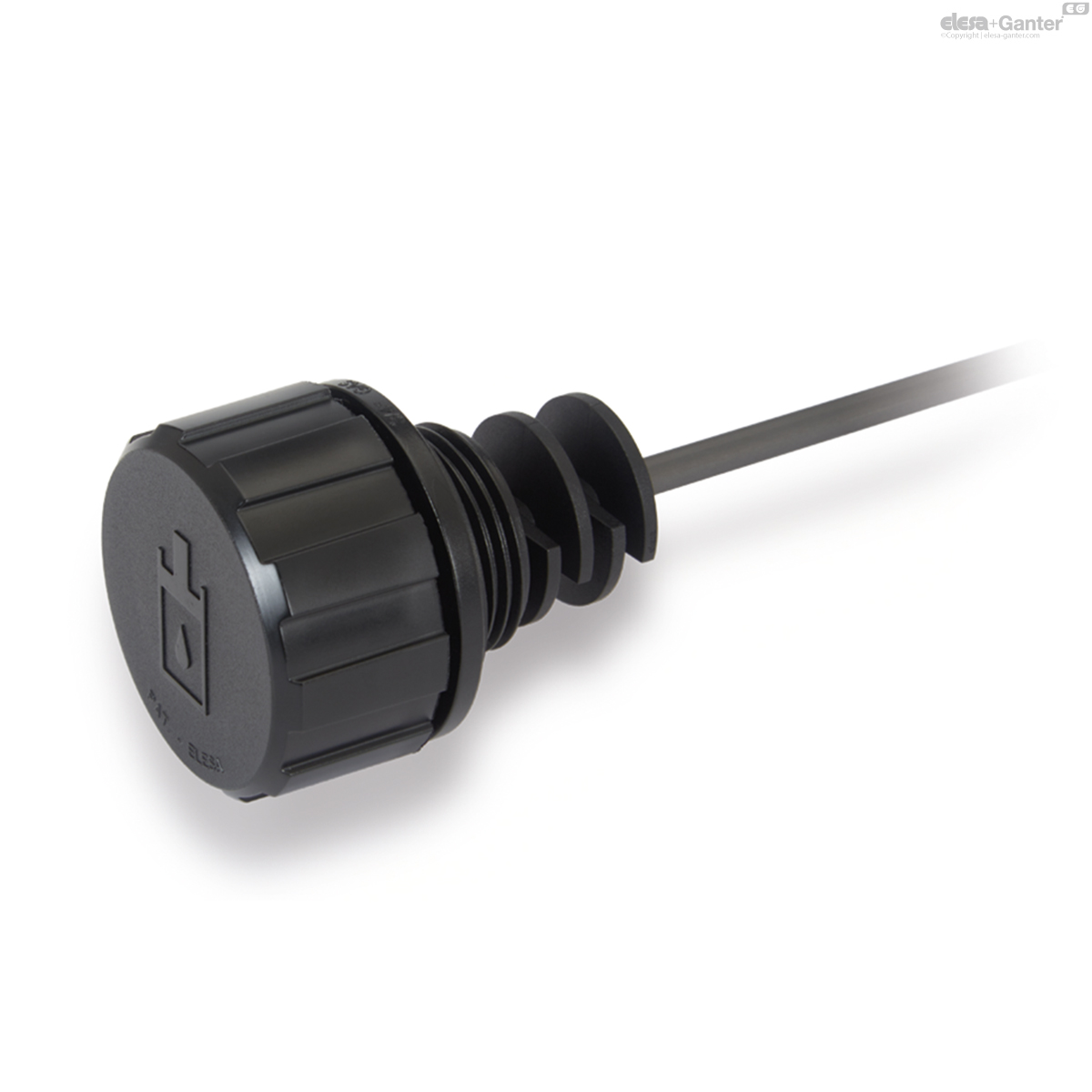

SFX+P+F+a

Breather caps

With anti-splash semi-discs and air filter

Description

Main specifications

Material

Polyamide based (PA) technopolymer.

Cap: semi-matte finish, black colour, with “fill” symbol.

Threaded connector and external anti-splash semi-discs, black colour.

Packing rings

NBR synthetic rubber.

Flat dipstick

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

Standard executions

SFX+a: with splash guard, without air filter.

SFX+F+a: with splash guard, 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.

SFX+P+a: with anti-splash semi-discs, without air filter.

SFX+P+F+a: with anti-splash semi-discs and “tech-foam” air filter in polyurethane foam mesh (polyester base), air filtration 40 µ.

Maximum continuous working temperature

100°C.

General information

Features and applications

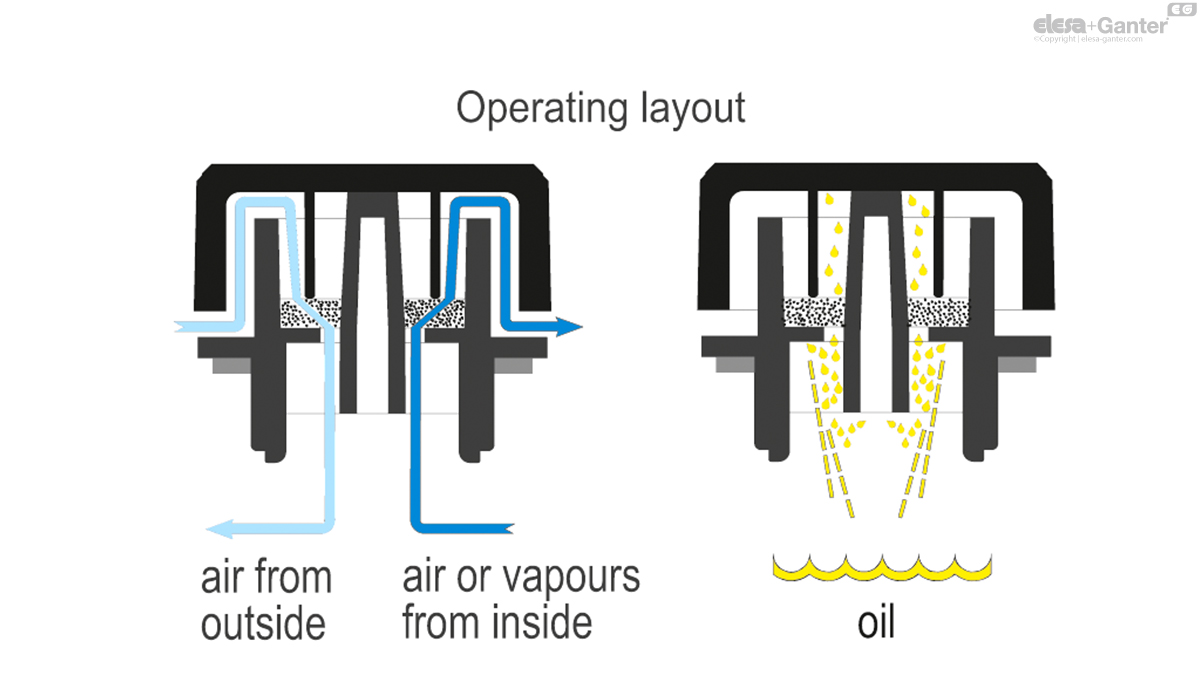

The SFX+a breather caps are made with a special internal geometry (Elesa patent) that prevents the leakage of fluids through a linear labyrinth (splash guard effect) and promotes condensation of the outgoing vapours.

The external snap-on anti-splash discs (execution+P) located at the mouth of the threaded fitting hole, are made up of fins offset from each other so as to constitute an additional labyrinth in the most critical cases of strong fluid projections.

Technical data

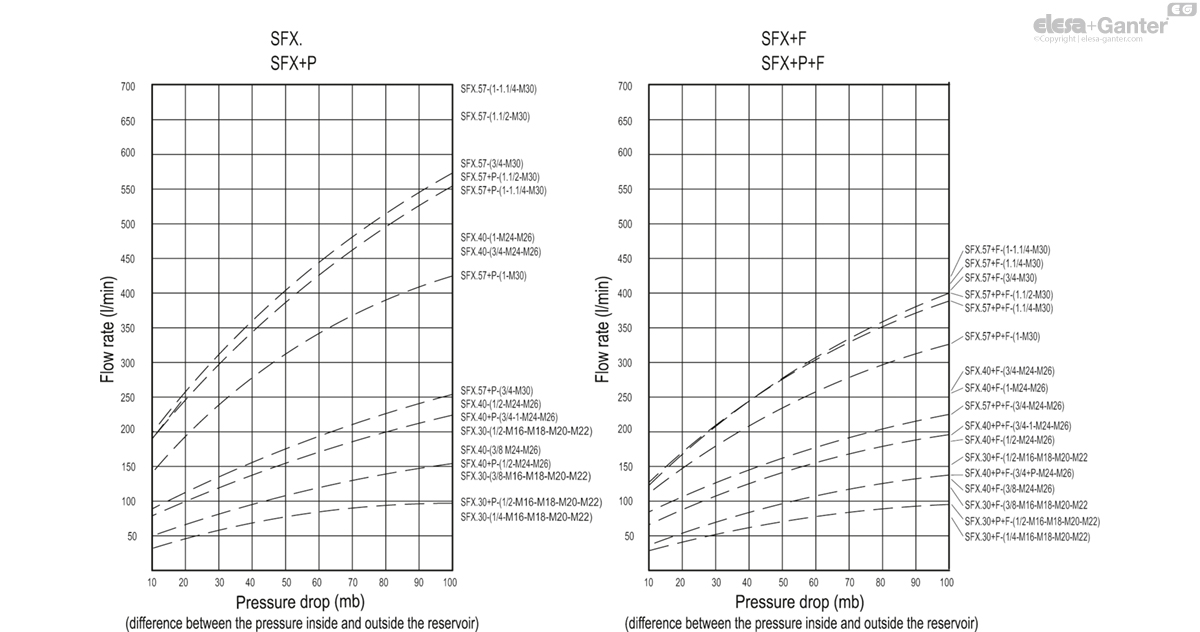

Air flow rate for each model can be determined from the graph here below by calculating the difference between the pressure inside and outside the reservoir.

Other executions

Special executions on request

Neutral cap without symbols.

Cap in RAL 3000 red colour.

Threaded fitting also with American conical gas threading NPT - ANSI-ASME B1-20 for the descriptions marked in the table with #.

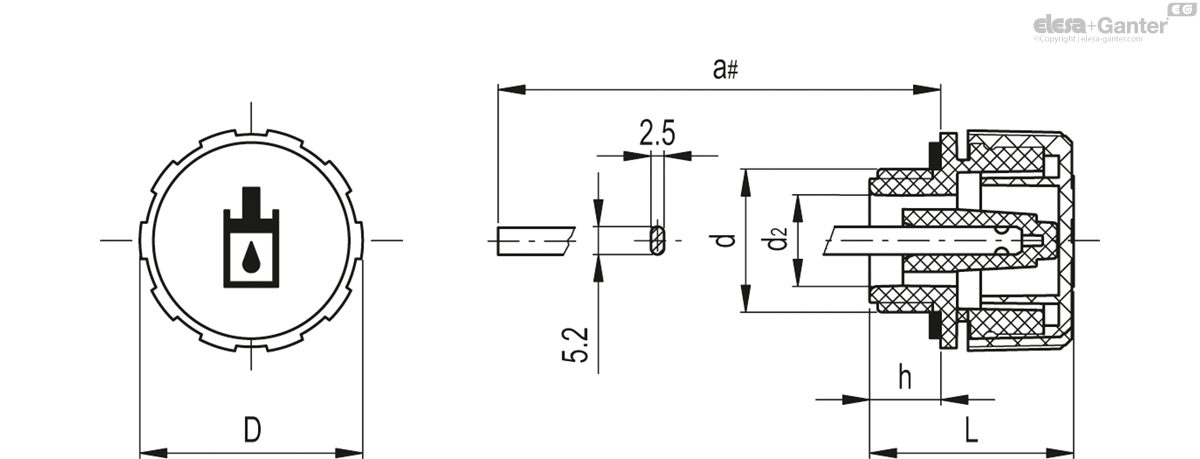

SFX+a

		D	d	a#	L	d₂	h
Code	Description								Actions
53006	SFX.30-M16x1.5+a	31	M16x1.5	188	29.5	10	9.5	26
53026	SFX.30-M18x1.5+a	31	M18x1.5	188	29.5	10	9.5	26
53046	SFX.30-M20x1.5+a	31	M20x1.5	188	29.5	12	9.5	26
53066	SFX.30-M22x1.5+a	31	M22x1.5	188	29.5	12	9.5	26
53086	SFX.40-M24x1.5+a	42	M24x1.5	184	36.5	18	11.5	35
53106	SFX.40-M26x1.5+a	42	M26x1.5	184	36.5	18	11.5	35
53126	SFX.57-M30x1.5+a	57	M30x1.5	184	42	23	14	49
53362	SFX.30-1/4+a	31	G1/4	188	29.5	8	9.5	26
53402	SFX.30-3/8+a	31	G3/8	188	29.5	10	9.5	26
53442	SFX.30-1/2+a	31	G1/2	188	29.5	12	9.5	26
53482	SFX.40-3/8+a	31	G3/8	184	29.5	10	11.5	35
53522	SFX.40-1/2+a	42	G1/2	184	36.5	12	11.5	35
53562	SFX.40-3/4+a	42	G3/4	184	36.5	17	11.5	35
53602	SFX.40-1+a	57	G1	184	42	23	11.5	35
53642	SFX.57-3/4+a	57	G3/4	184	42	18	14	49
53682	SFX.57-1+a	57	G1	184	42	23	14	49
53722	SFX.57-1¼+a	57	G1 1/4	184	44	32	16	49
53762	SFX.57-1½+a	57	G1 1/2	184	44	38	16	49
