Breather caps

with splash guard and flat dipstick, technopolymer

Enquire Now

SFP+a

Breather caps

Without air filter, marked 'OIL'

SFP+a-N

Breather caps

Without air filter, without 'OIL' mark

SFP+F+a

Breather caps

With air filter, marked 'OIL'

SFP+F+a-N

Breather caps

With air filter, without 'OIL' mark

SFP-BA+F+a

Breather caps

With air filter, bayonet connection, with the wording “OIL”

SFP-BA+F+a-N

Breather caps

With air filter, bayonet connection, without the wording “OIL”

Description

Main specifications

Cover

Polyamide based (PA) technopolymer, semi-matte finish.

SFP+a.: RAL 2004 orange, marked 'OIL'.

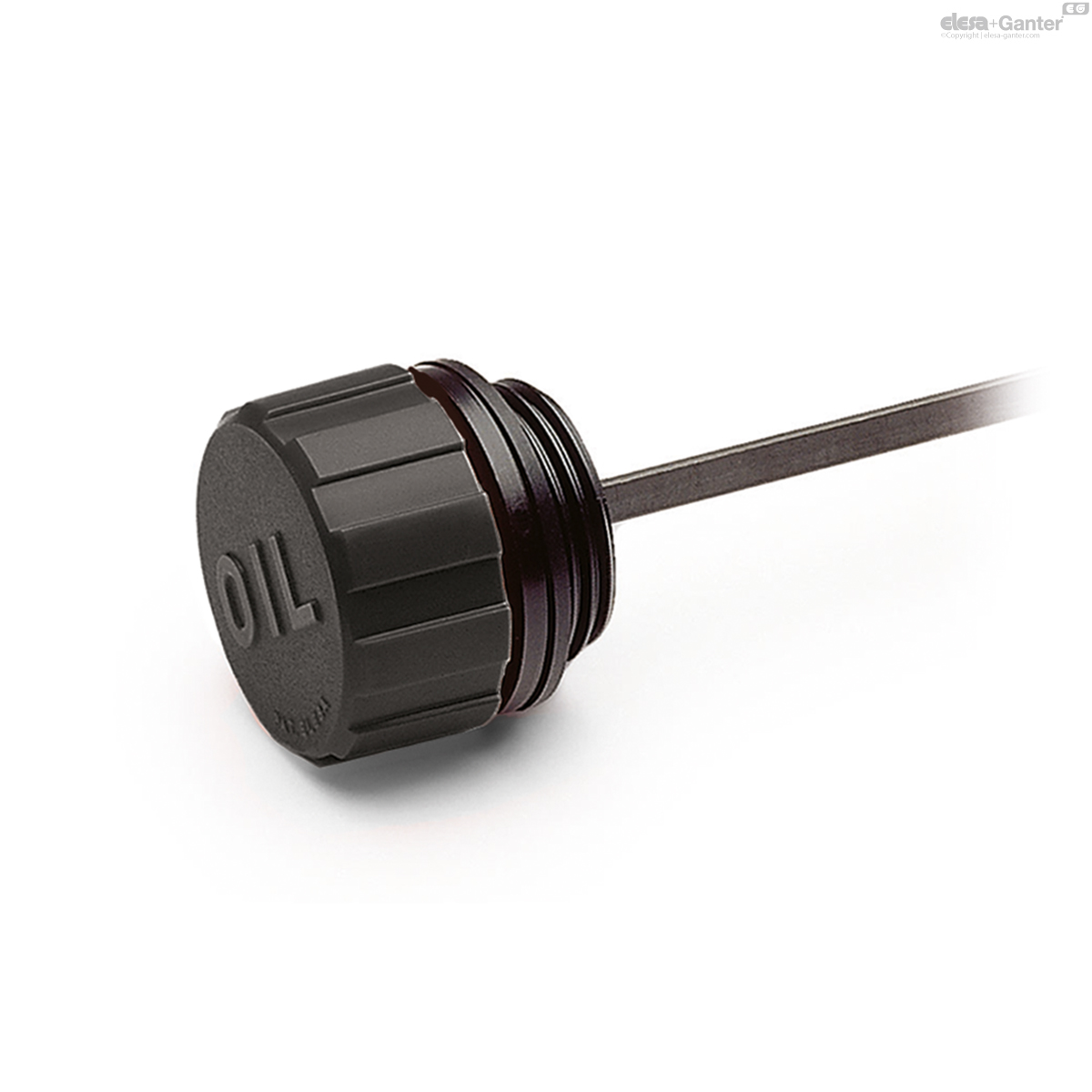

SFP+a.....-C9: RAL 9005 black colour, marked 'OIL'.

SFP+a.....-C2-N: RAL 2004 orange, without 'OIL' mark.

SFP+a.....-C9-N: RAL 9005 black colour, without 'OIL' mark.

Threaded fitting

Polyamide based (PA) technopolymer, black colour, semi-matte finish.

Packing ring

NBR synthetic rubber.

Flat dipstick

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

Splash guard

Technopolymer.

Standard executions

SFP+a: without air filter (black splash guard).

SFP+F+a: D = 31, 42 and 57 with 'tech-fil' air filter in zinc-plated steel wire (orange splash guard); D = 70 with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).

SFP-BA+F+a: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).

Zinc-plated steel sheet bayonet.

Maximum continuous working temperature

100°C.

General information

Features and applications

SFP+a breather caps come complete with splash guard device (ELESA originale design) that prevents oil loss and are particularly suitable for use where oil is violently agitated and could be splashed against the breather cap.

Technical data

Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir.

Other executions

Special execution on request

Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.

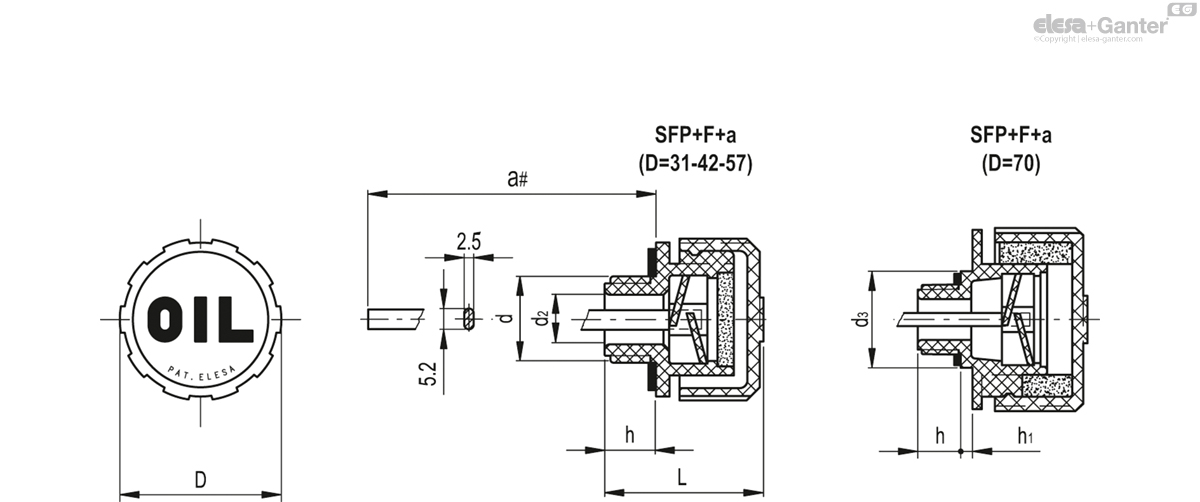

SFP+F+a

		Color	d	D	L	d₂	d₃	h	h₁	a		a#
Code	Description												Actions
53939	SFP.30-1/4+F+a	C2 - RAL 2004	G1/4	31	29.5	8	-	9.5	-	188	39	188
53939-C9	SFP.30-1/4+F+a-C9	C9 - RAL 9005	G1/4	31	29.5	8	-	9.5	-	-	38	188
53956	SFP.30-16x1.5+F+a	C2 - RAL 2004	M16x1.5	31	29.5	10	-	9.5	-	188	34	188
53956-C9	SFP.30-16x1.5+F+a-C9	C9 - RAL 9005	M16x1.5	31	29.5	10	-	9.5	-	-	34	188
53976	SFP.30-18x1.5+F+a	C2 - RAL 2004	M18x1.5	31	29.5	10	-	9.5	-	188	39	188
53976-C9	SFP.30-18x1.5+F+a-C9	C9 - RAL 9005	M18x1.5	31	29.5	10	-	9.5	-	-	39	188
53989	SFP.30-20x1.5+F+a	C2 - RAL 2004	M20x1.5	31	29.5	12	-	9.5	-	188	38	188
53989-C9	SFP.30-20x1.5+F+a-C9	C9 - RAL 9005	M20x1.5	31	29.5	12	-	9.5	-	-	38	188
53999	SFP.30-22x1.5+F+a	C2 - RAL 2004	M22x1.5	31	29.5	12	-	9.5	-	188	40	188
53999-C9	SFP.30-22x1.5+F+a-C9	C9 - RAL 9005	M22x1.5	31	29.5	12	-	9.5	-	-	40	188
54031	SFP.30-3/8+F+a	C2 - RAL 2004	G3/8	31	29.5	10	-	9.5	-	188	38	188
54031-C9	SFP.30-3/8+F+a-C9	C9 - RAL 9005	G3/8	31	29.5	10	-	9.5	-	-	38	188
54131	SFP.30-1/2+F+a	C2 - RAL 2004	G1/2	31	29.5	12	-	9.5	-	188	36	188
54131-C9	SFP.30-1/2+F+a-C9	C9 - RAL 9005	G1/2	31	29.5	12	-	9.5	-	-	39	188
54156	SFP.30-12x1.5+F FIL+a	C2 - RAL 2004	M12x1.5	31	29.5	6	-	9.5	-	-	34	188
54156-C9	SFP.30-12x1.5+F FIL+a-C9	C9 - RAL 9005	M12x1.5	31	29.5	6	-	9.5	-	-	34	188
54176	SFP.30-14x1.5+F FIL+a	C2 - RAL 2004	M14x1.5	31	29.5	8	-	9.5	-	-	34	188
54176-C9	SFP.30-14x1.5+F FIL+a-C9	C9 - RAL 9005	M14x1.5	31	29.5	8	-	9.5	-	-	34	188
54231	SFP.40-3/4+F+a	C2 - RAL 2004	G3/4	42	36.5	18	-	11.5	-	184	55	184
54231-C9	SFP.40-3/4+F+a-C9	C9 - RAL 9005	G3/4	42	36.5	18	-	11.5	-	-	55	184
54331	SFP.40-1+F+a	C2 - RAL 2004	G1	42	36.5	18	-	11.5	-	184	54	184
54331-C9	SFP.40-1+F+a-C9	C9 - RAL 9005	G1	42	36.5	18	-	11.5	-	-	54	184
54431	SFP.57-1¼+F+a	C2 - RAL 2004	G1 1/4	57	44	28	-	16	-	184	80	184
54431-C9	SFP.57-1¼+F+a-C9	C9 - RAL 9005	G1 1/4	57	44	28	-	16	-	-	74	184
54531	SFP.57-1½+F+a	C2 - RAL 2004	G1 1/2	57	44	28	-	16	-	184	79	184
54531-C9	SFP.57-1½+F+a-C9	C9 - RAL 9005	G1 1/2	57	44	28	-	16	-	-	79	184
54853	SFP.70-3/4+F+a	C2 - RAL 2004	G3/4	70	63	16	35	15	6	173	107	173
54853-C9	SFP.70-3/4+F+a-C9	C9 - RAL 9005	G3/4	70	63	16	35	15	6	-	107	173
54863	SFP.70-1¼+F+a	C2 - RAL 2004	G1 1/4	70	59	23	-	17	-	179	105	179
54863-C9	SFP.70-1¼+F+a-C9	C9 - RAL 9005	G1 1/4	70	59	23	-	17	-	-	105	179
54879	SFP.70-2+F+a	C2 - RAL 2004	G2	70	59	23	-	17	-	179	106	179
54879-C9	SFP.70-2+F+a-C9	C9 - RAL 9005	G2	70	59	23	-	17	-	-	106	179
