Home Accessories for Hydraulic Systems Breather caps SFP+a

SFP+a

Breather caps

with splash guard and flat dipstick, technopolymer

Enquire Now

SFP+a

Breather caps

Without air filter, marked 'OIL'

SFP+a-N

Breather caps

Without air filter, without 'OIL' mark

SFP+F+a

Breather caps

With air filter, marked 'OIL'

SFP+F+a-N

Breather caps

With air filter, without 'OIL' mark

SFP-BA+F+a

Breather caps

With air filter, bayonet connection, with the wording “OIL”

SFP-BA+F+a-N

Breather caps

With air filter, bayonet connection, without the wording “OIL”

Description

Main specifications

Cover

Polyamide based (PA) technopolymer, semi-matte finish.

SFP+a.: RAL 2004 orange, marked 'OIL'.

SFP+a.....-C9: RAL 9005 black colour, marked 'OIL'.

SFP+a.....-C2-N: RAL 2004 orange, without 'OIL' mark.

SFP+a.....-C9-N: RAL 9005 black colour, without 'OIL' mark.

Threaded fitting

Polyamide based (PA) technopolymer, black colour, semi-matte finish.

Packing ring

NBR synthetic rubber.

Flat dipstick

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

Splash guard

Technopolymer.

Standard executions

SFP+a: without air filter (black splash guard).

SFP+F+a: D = 31, 42 and 57 with 'tech-fil' air filter in zinc-plated steel wire (orange splash guard); D = 70 with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).

SFP-BA+F+a: with 'tech-foam' air filter in polyurethane foam mesh (polyester base), air filtration 40 µ (grey splash guard).

Zinc-plated steel sheet bayonet.

Maximum continuous working temperature

100°C.

General information

Features and applications

SFP+a breather caps come complete with splash guard device (ELESA originale design) that prevents oil loss and are particularly suitable for use where oil is violently agitated and could be splashed against the breather cap.

Technical data

Air flow rate for each model can be determined from the graph calculating the difference between the pressure inside and outside the reservoir.

Other executions

Special execution on request

Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20) for the codes marked with # in the table.

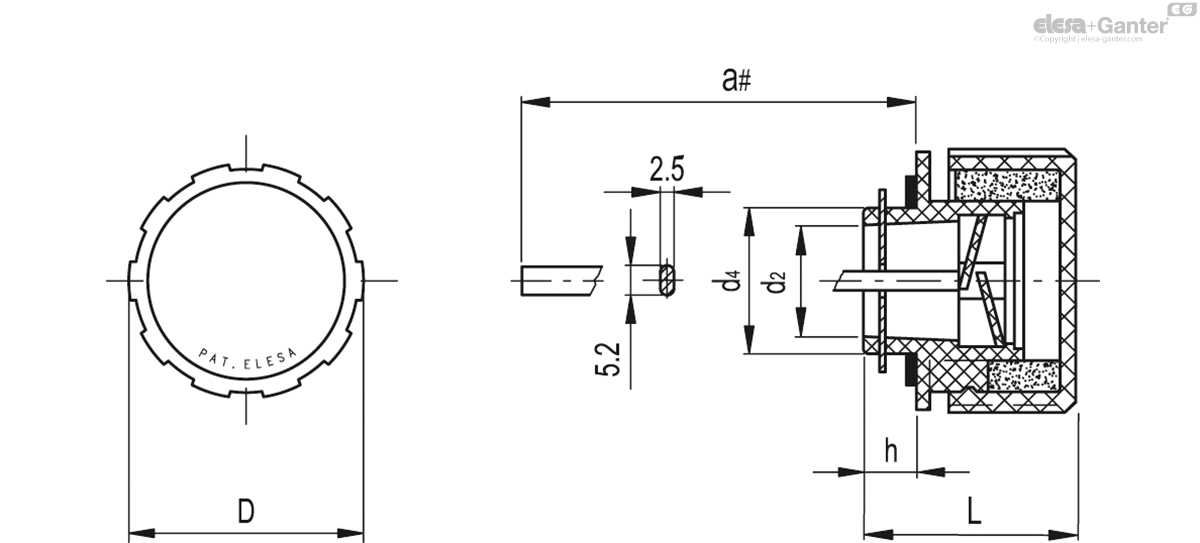

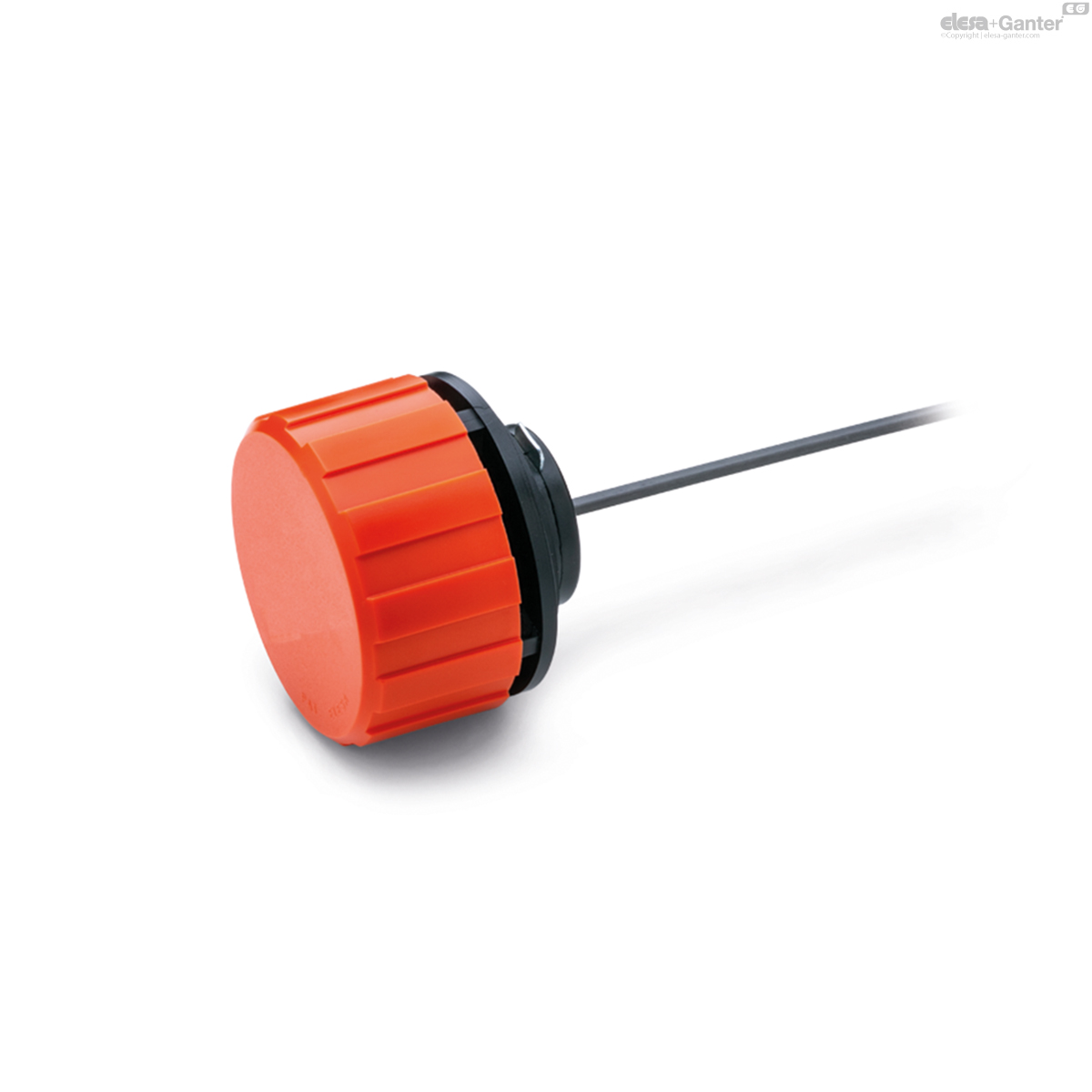

SFP-BA+F+a-N

		Color	D	L	d₂	d₄	h		a#
Code	Description									Actions
54883-C2-N	SFP.70-BA+F+a-C2-N	C2 - RAL 2004	70	56	30	39	14	100	179
54883-C9-N	SFP.70-BA+F+a-C9-N	C9 - RAL 9005	70	56	30	39	14	100	179
