Home Leveling feet S400B S400B Ø80 Heavy Anti-Slip

S400B Ø80 Heavy Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	80 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400B Ø80 Heavy Anti-Slip

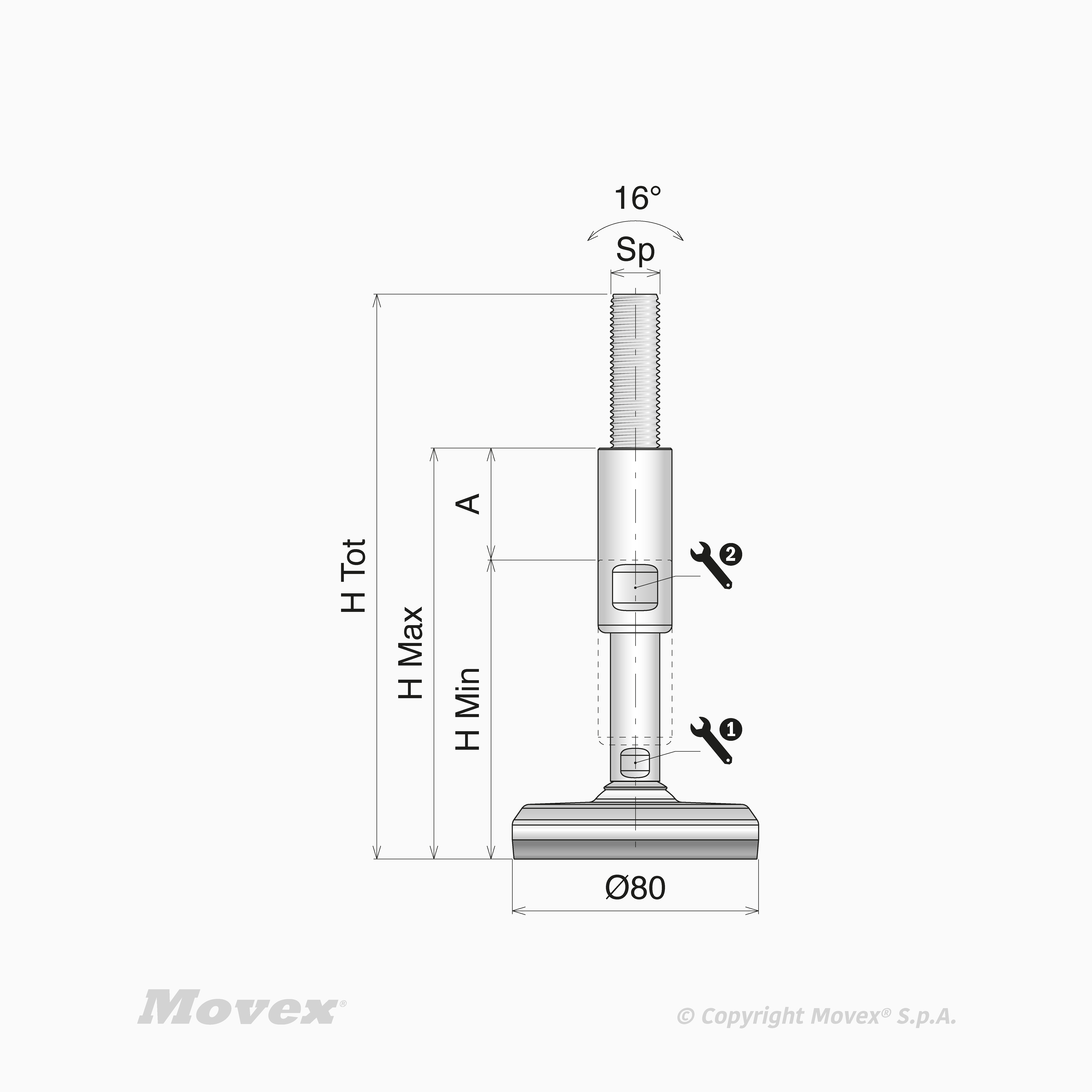

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902487	45 mm	Standard	Stainless steel	M12	183.5	Heavy	103.5 mm	148.5 mm	10 mm	17 mm Max Load 12000 N	-25÷100 °C
P902488	65 mm	Standard	Stainless steel	M12	233.5	Heavy	133.5 mm	198.5 mm	10 mm	17 mm	-25÷100 °C
P902489	45 mm	Standard	Stainless steel	M16	183.5	Heavy	103.5 mm	148.5 mm	13 mm	19 mm	-25÷100 °C
P902490	65 mm	Standard	Stainless steel	M16	233.5	Heavy	133.5 mm	198.5 mm	13 mm	19 mm	-25÷100 °C
P902491	45 mm	Standard	Stainless steel	M20	183.5	Heavy	103.5 mm	148.5 mm	17 mm	24 mm	-25÷100 °C
P902492	65 mm	Standard	Stainless steel	M20	233.5	Heavy	133.5 mm	198.5 mm	17 mm	24 mm	-25÷100 °C
P902493	45 mm	Standard	Stainless steel	M24	183.5	Heavy	103.5 mm	148.5 mm	19 mm	30 mm	-25÷100 °C
P902494	65 mm	Standard	Stainless steel	M24	233.5	Heavy	133.5 mm	198.5 mm	19 mm	30 mm	-25÷100 °C
P902495	45 mm	Standard	Stainless steel	M30	183.5	Heavy	103.5 mm	148.5 mm	24 mm	36 mm	-25÷100 °C
P902496	65 mm	Standard	Stainless steel	M30	233.5	Heavy	133.5 mm	198.5 mm	24 mm	36 mm	-25÷100 °C
P902497	65 mm	Standard	Stainless steel	M30	293.5	Heavy	193.5 mm	258.5 mm	24 mm	36 mm	-25÷100 °C
P902498	45 mm	Standard	Stainless steel	M36	183.5	Heavy	103.5 mm	148.5 mm	30 mm	42 mm	-25÷100 °C
P902499	65 mm	Standard	Stainless steel	M36	233.5	Heavy	133.5 mm	198.5 mm	30 mm	42 mm	-25÷100 °C
P902500	65 mm	Standard	Stainless steel	M36	293.5	Heavy	193.5 mm	258.5 mm	30 mm	42 mm	-25÷100 °C
