GN 52.3

Retaining magnets

rod-shaped, with female thread

Enquire Now

Description

Specification

Housing

Steel

Material of the magnet

AlNiCo AN

Aluminium, nickel, cobalt

Finish

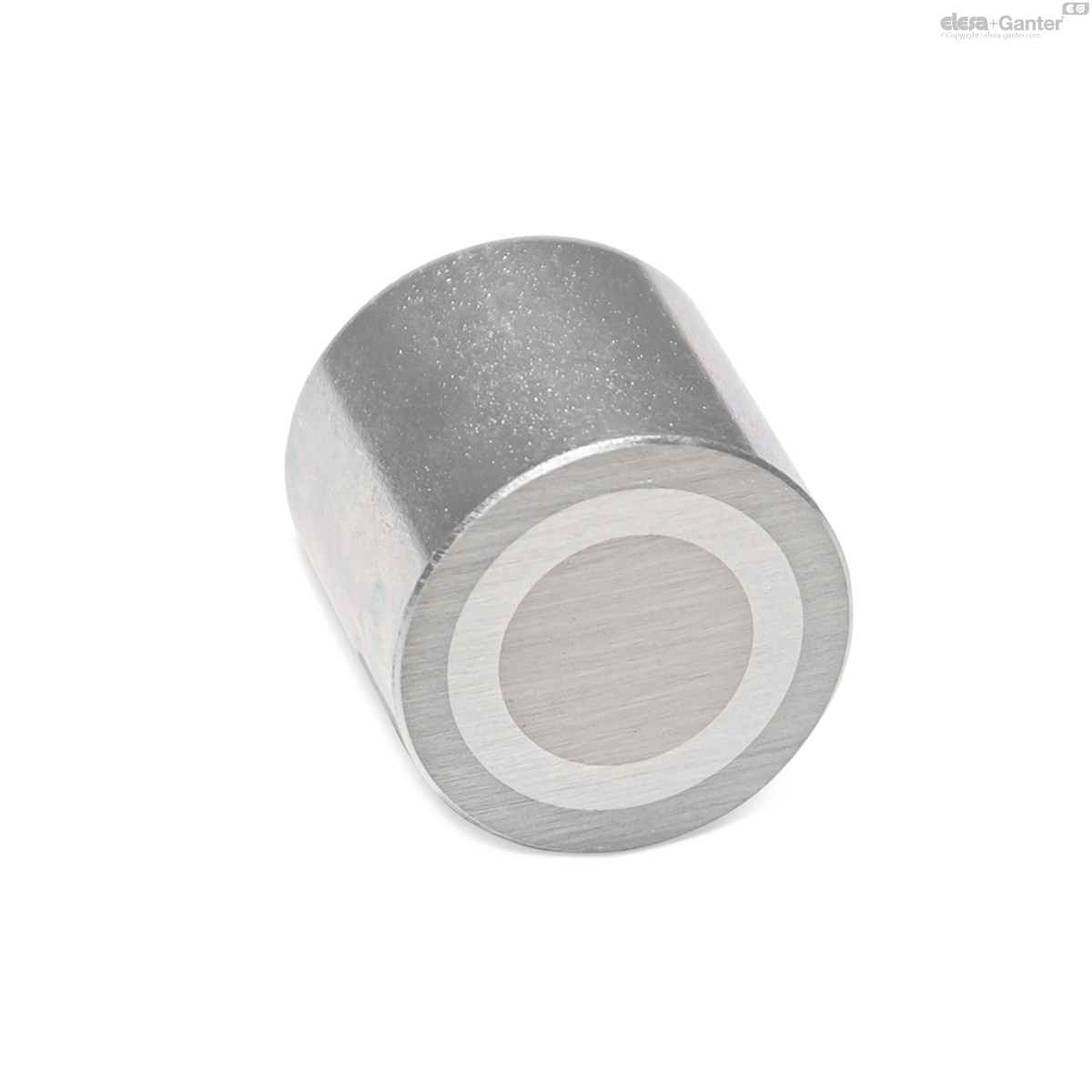

zinc plated ZB

temperature resistant up to 200 °C

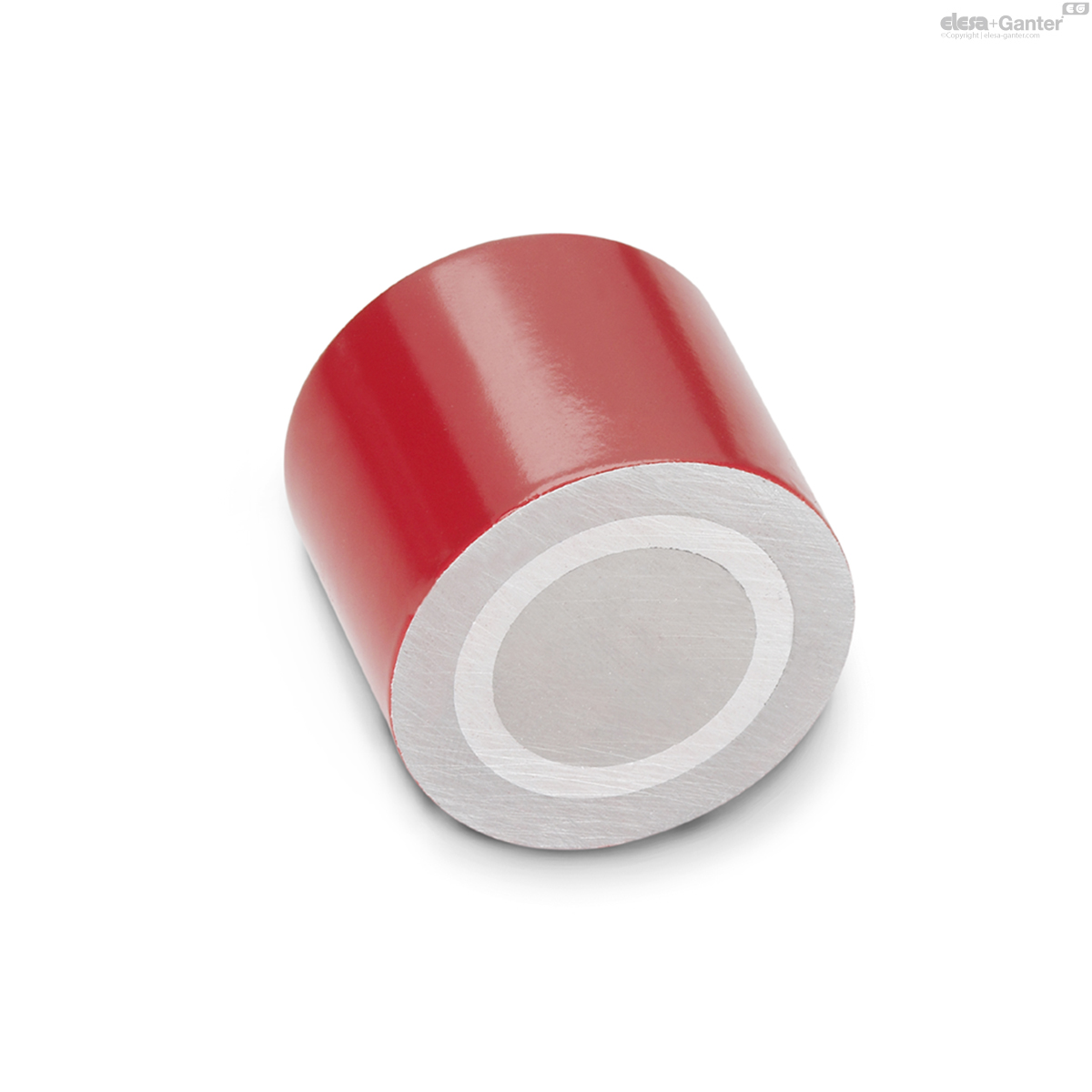

red, lacquered RT

temperature resistant up to 180 °C

Information

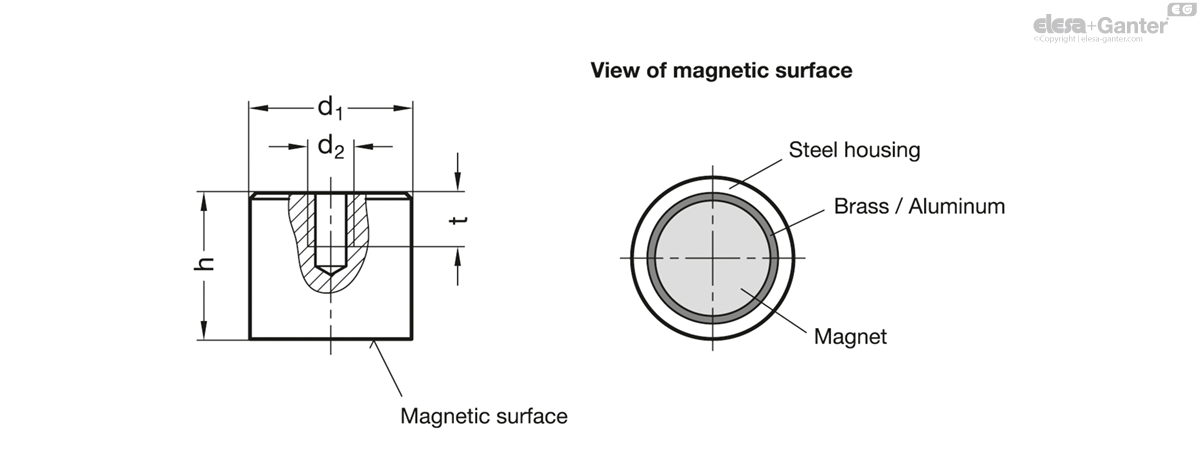

Retaining magnets GN 52.3, are combined with the zinc-plated or red-painted steel housing and insulation of brass/aluminum into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

More information to retaining magnets

Accessory

Holding discs GN 70

Adhesive discs GN 70.1

GN 52.3-ZB

	d₁	d₂	h ±0.2	t	Nominal adhesive forces in N
Code							Actions
GN 52.3-AN-12,5-ZB	12.5 ±0.1	M 4	16	7	20	12
GN 52.3-AN-17-ZB	17 ±0.1	M 6	16	5	26	29
GN 52.3-AN-21-ZB	21 ±0.1	M 6	19	7	40	42
GN 52.3-AN-27-ZB	27 ±0.1	M 6	25	9	65	89
GN 52.3-AN-35-ZB	35 ±0.1	M 6	30	9	150	205
