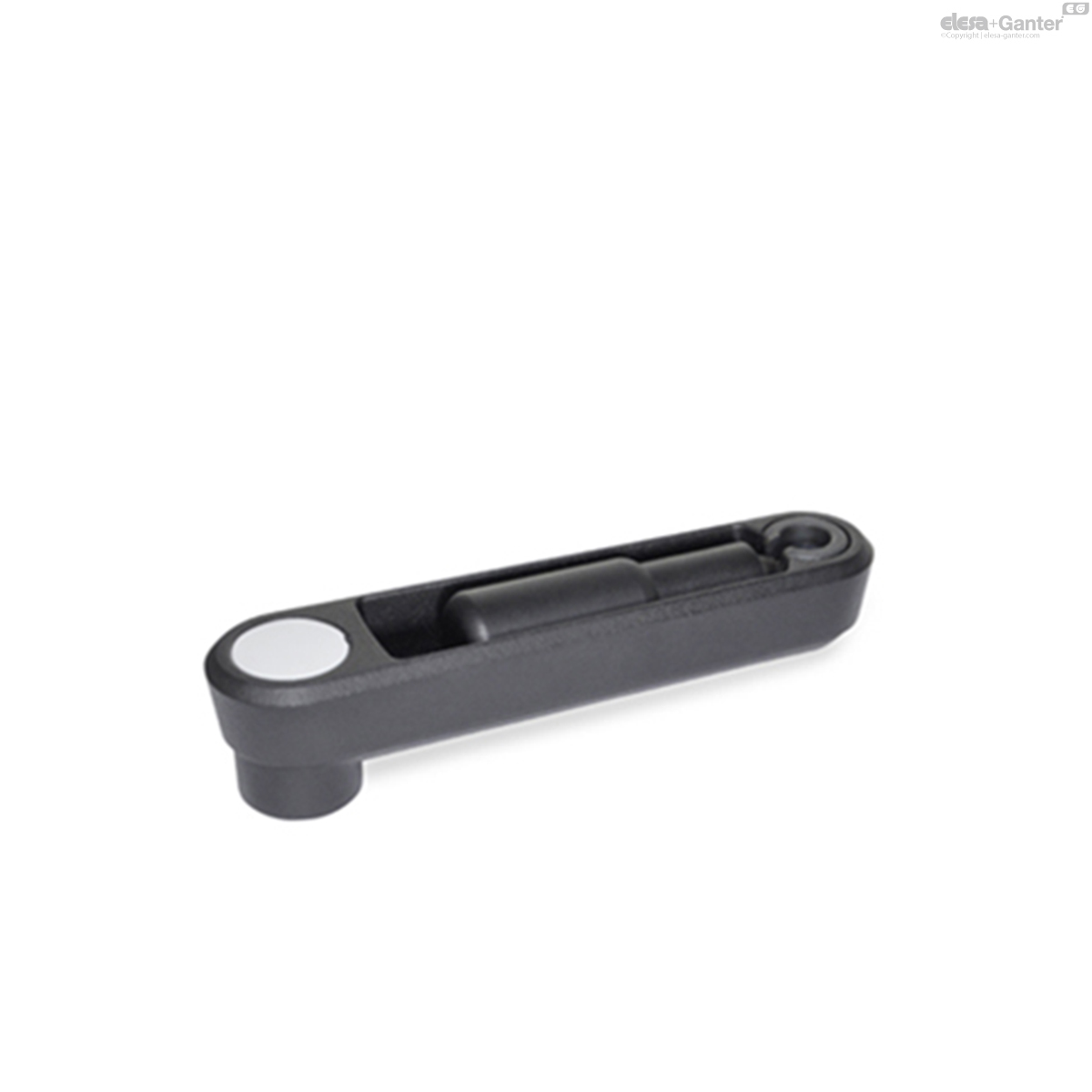

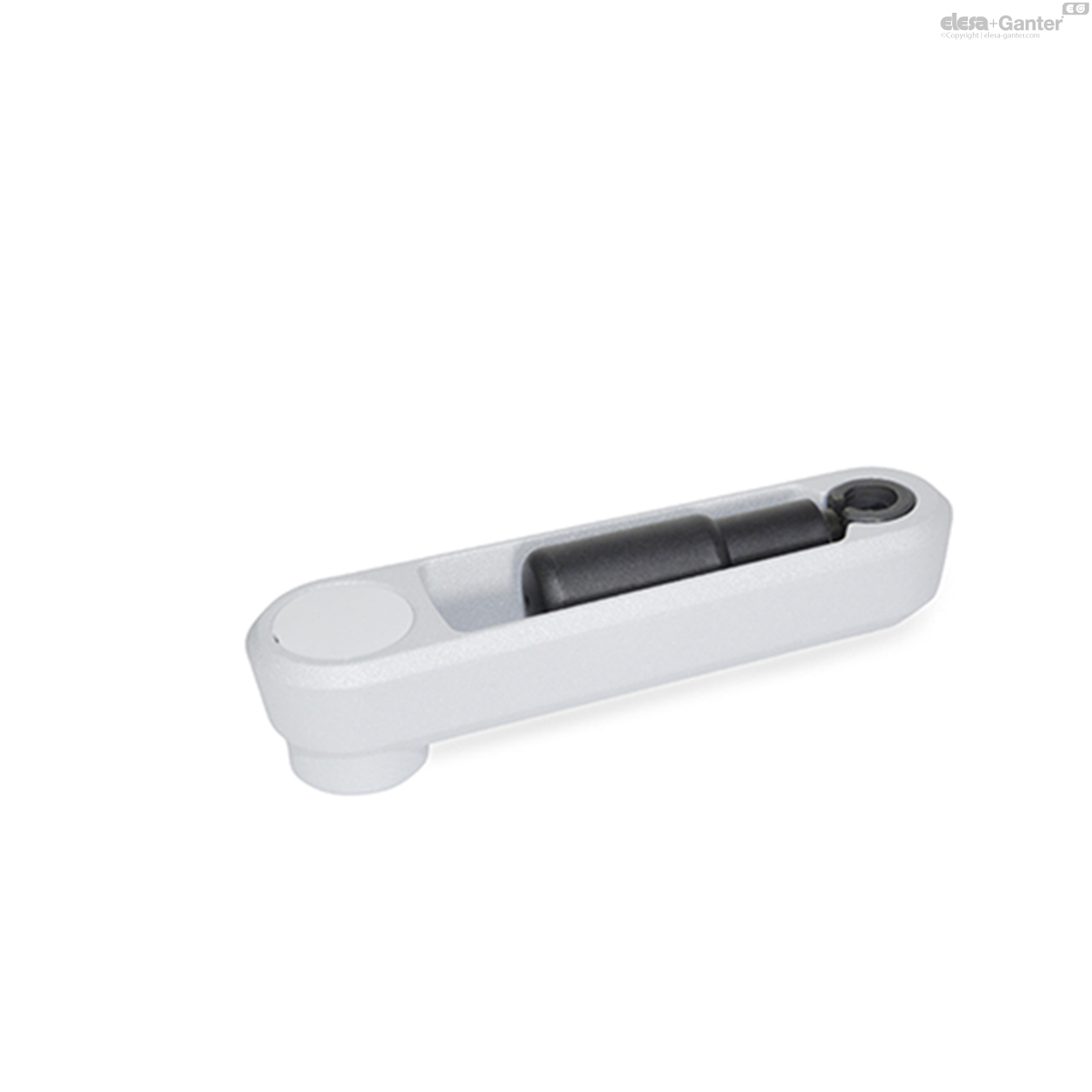

GN 472.3

Cranked handles with retractable handle

Aluminium

Enquire Now

Description

Specification

Body

Aluminium

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

hub machined

Hub cover

light grey

Retractable handles GN 798.3 -

Plastic, Technopolymer

black, matt finish

Retractable mechanism

Steel, blackened

Information

The handpiece of cranked handles GN 472.3 is locked in a tapered bore in the operating position.

For tilting, the handle must first be pulled out of the taper in axial direction.

A compression spring holds the handle in both end positions. When folded out, it automatically re-engages.

On request

Technical information

	Color	l	d₁ H7	s H11	d₂	d₃	h₁	h₂	h₃	h₄	h₅ ≈	Ø Handle
Code														Actions
GN 472.3-80-B10-SR	SR - RAL 9006	80	B 10	-	23	30	19.5	4	25.5	4.3	43	16	113
GN 472.3-80-B10-SW	SW - RAL 9004	80	B 10	-	23	30	19.5	4	25.5	4.3	43	16	131
GN 472.3-80-V10-SR	SR - RAL 9006	80	-	V 10	23	30	19.5	4	25.5	4.3	43	16	131
GN 472.3-80-V10-SW	SW - RAL 9004	80	-	V 10	23	30	19.5	4	25.5	4.3	43	16	110
GN 472.3-100-B12-SR	SR - RAL 9006	100	B 12	-	26.7	35	23.5	5.5	29.5	4.2	57.5	18	180
GN 472.3-100-B12-SW	SW - RAL 9004	100	B 12	-	26.7	35	23.5	5.5	29.5	4.2	57.5	18	180
GN 472.3-100-V12-SR	SR - RAL 9006	100	-	V 12	26.7	35	23.5	5.5	29.5	4.2	57.5	18	180
GN 472.3-100-V12-SW	SW - RAL 9004	100	-	V 12	26.7	35	23.5	5.5	29.5	4.2	57.5	18	180
GN 472.3-125-B14-SR	SR - RAL 9006	125	B 14	-	28	37	30.5	10.5	36.5	4.2	76.5	24	305
GN 472.3-125-B14-SW	SW - RAL 9004	125	B 14	-	28	37	30.5	10.5	36.5	4.2	76.5	24	260
GN 472.3-125-V14-SR	SR - RAL 9006	125	-	V 14	28	37	30.5	10.5	36.5	4.2	76.5	24	280
GN 472.3-125-V14-SW	SW - RAL 9004	125	-	V 14	28	37	30.5	10.5	36.5	4.2	76.5	24	250
