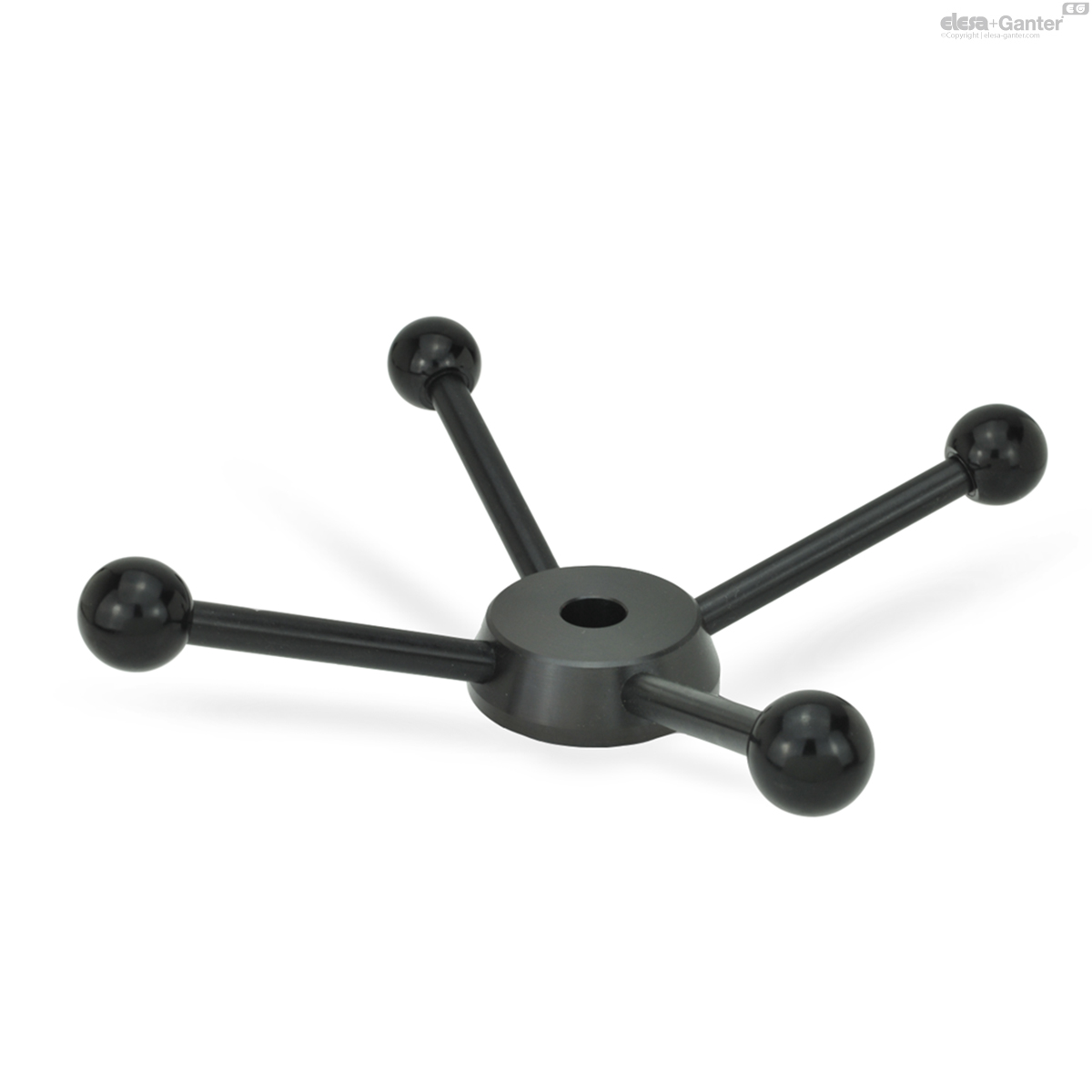

GN 213

Turret levers

Steel, blackened

Enquire Now

Description

Specification

Steel

blackened

Ball knobs DIN 319

Plastic, Duroplast

black, shiny finish

Information

Turret levers GN 213 can also be supplied as standard with:

Square DIN 79 V + Bore-Ø

Keyway DIN 6885 K + Bore-Ø

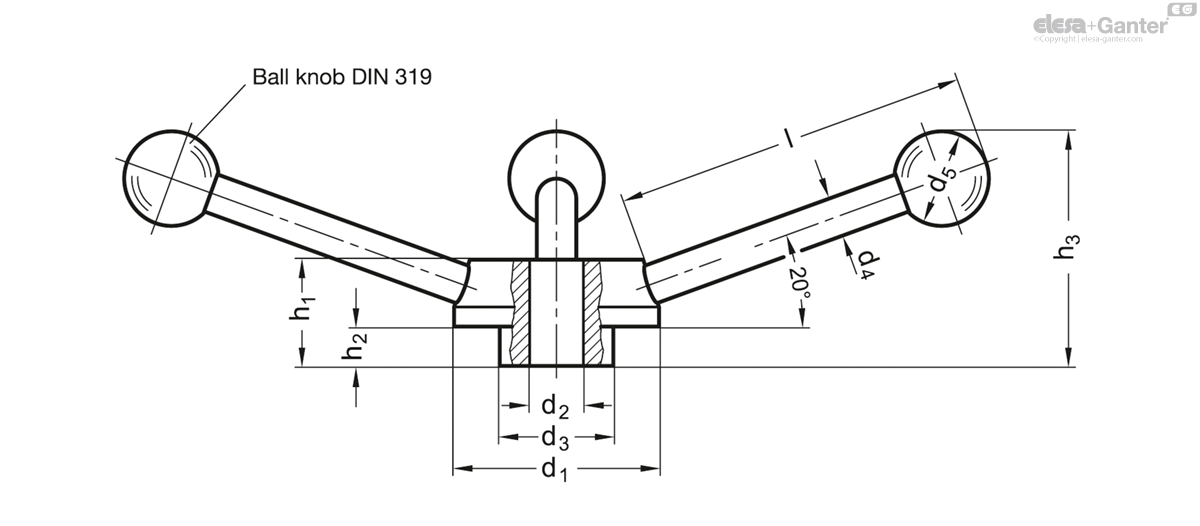

Technical information

	d₁	d₂ H7	d₃	d₄	d₅	h₁	h₂	h₃ ≈	l ≈
Code											Actions
GN 213-50-B12	50	B 12	28	8	20	26	9	53	82	382
GN 213-50-K12	50	K 12	28	8	20	26	9	53	82	380
GN 213-50-V12	50	V 12	28	8	20	26	9	53	82	375
GN 213-55-B14	55	B 14	30	10	25	28	10	61	96	544
GN 213-55-K14	55	K 14	30	10	25	28	10	61	96	541
GN 213-55-V14	55	V 14	30	10	25	28	10	61	96	536
GN 213-60-B15	60	B 15	32	10	25	30	11	64	96	633
GN 213-60-K15	60	K 15	32	10	25	30	11	64	96	630
GN 213-60-V15	60	V 15	32	10	25	30	11	64	96	586
GN 213-65-B16	65	B 16	35	12	30	32	12	71	110	900
GN 213-65-K16	65	K 16	35	12	30	32	12	71	110	860
GN 213-65-V16	65	V 16	35	12	30	32	12	71	110	833
GN 213-72-B18	72	B 18	40	12	32	36	14	80	124	1097
GN 213-72-K18	72	K 18	40	12	32	36	14	80	124	1092
GN 213-72-V18	72	V 18	40	12	32	36	14	80	124	1087
GN 213-80-B20	80	B 20	44	14	35	40	16	89	138	1531
GN 213-80-K20	80	K 20	44	14	35	40	16	89	138	1525
GN 213-80-V20	80	V 20	44	14	35	40	16	89	138	1517
GN 213-100-B24	100	B 24	54	16	40	52	24	113	170	2781
GN 213-100-K24	100	K 24	54	16	40	52	24	113	170	2775
GN 213-100-V24	100	V 24	54	16	40	52	24	113	170	2769
