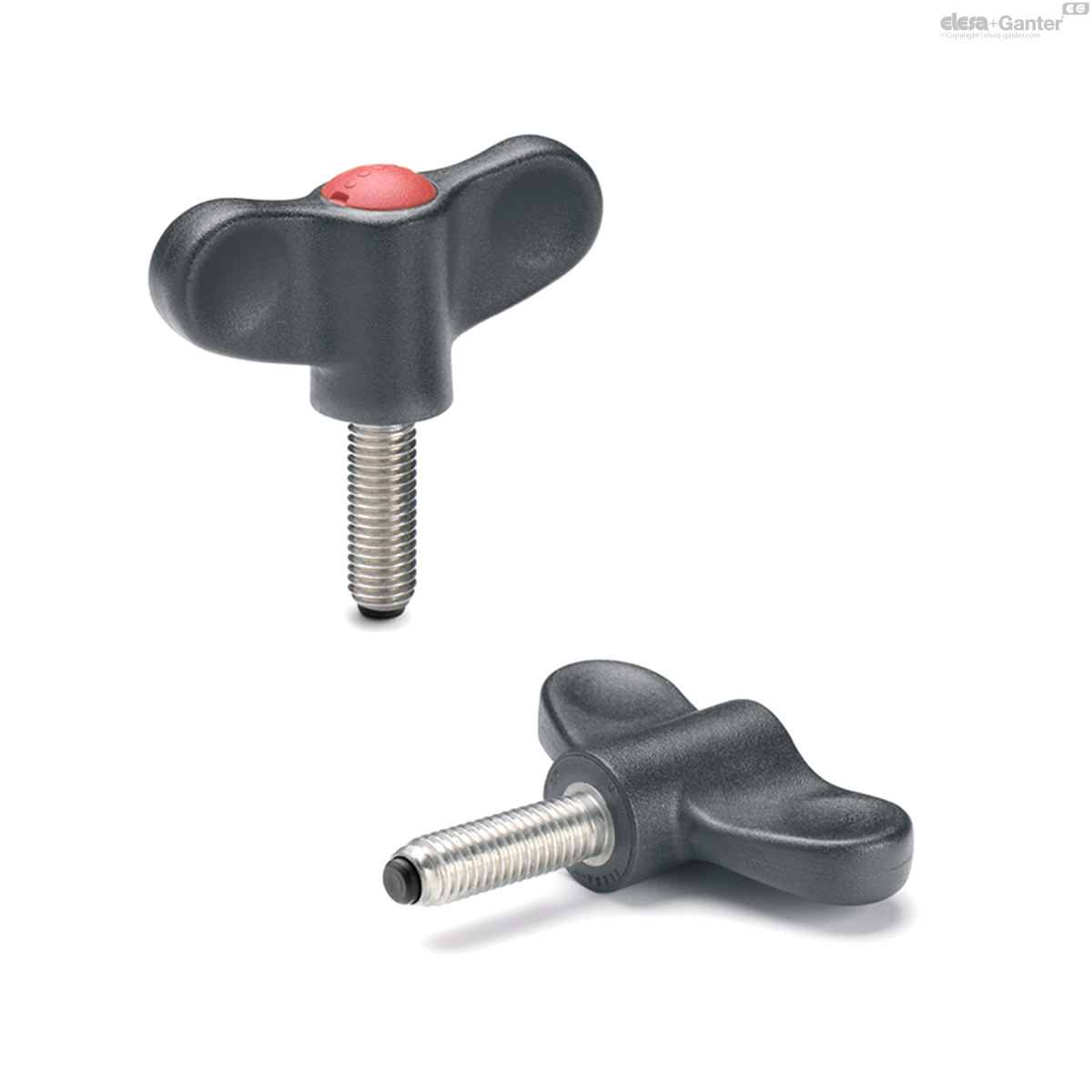

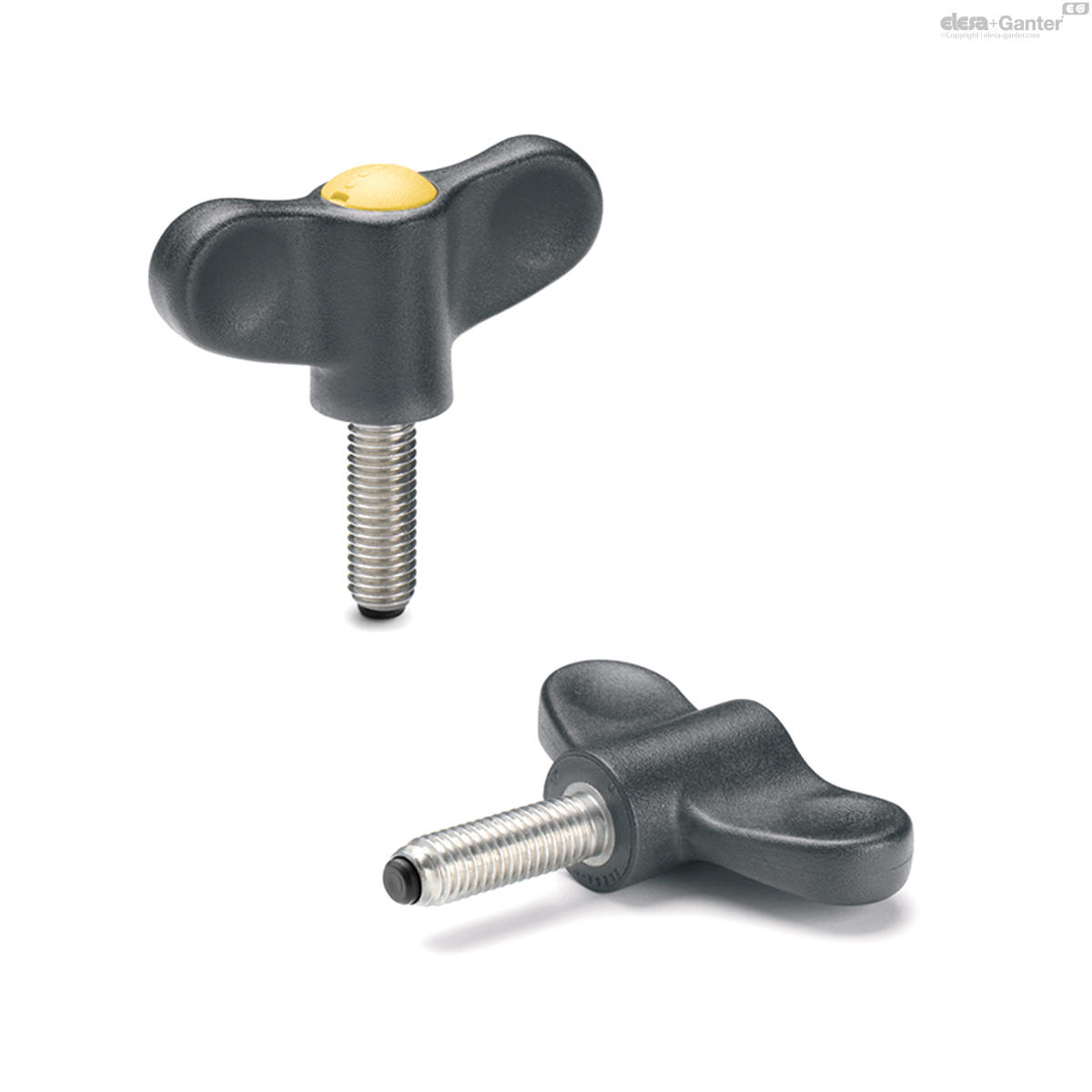

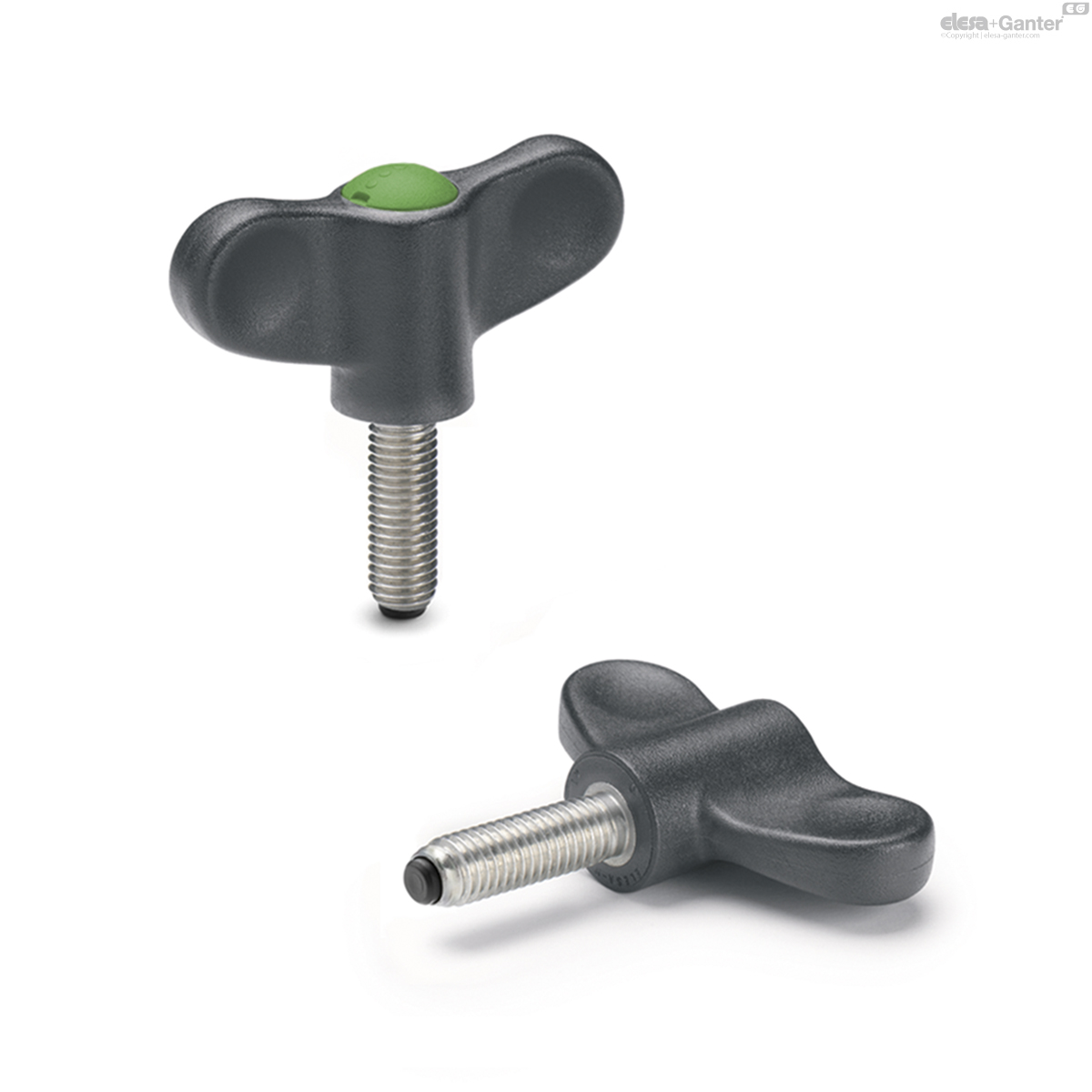

EWN-SST-p-P

Wing knobs

Technopolymer, pad

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Boss cap

ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table)

Standard executions

EWN-SST-p-PO: AISI 303 stainless steel threaded stud, acetal resin (POM) pad.
EWN-SST-p-PB: AISI 303 stainless steel threaded stud, brass pad.

General information

Features and applications

The chamfered end with bolt avoids to damage the surface of contact even in case of strong clamping.

Standard executions either with brass or acetal resin pad.

Ergonomy and design

The slightly concave marks on the wings help to position the fingers in order to apply the maximum force when tightening.

Accessories on request

ECA.W: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly (see table).

EWN-SST-p-PO

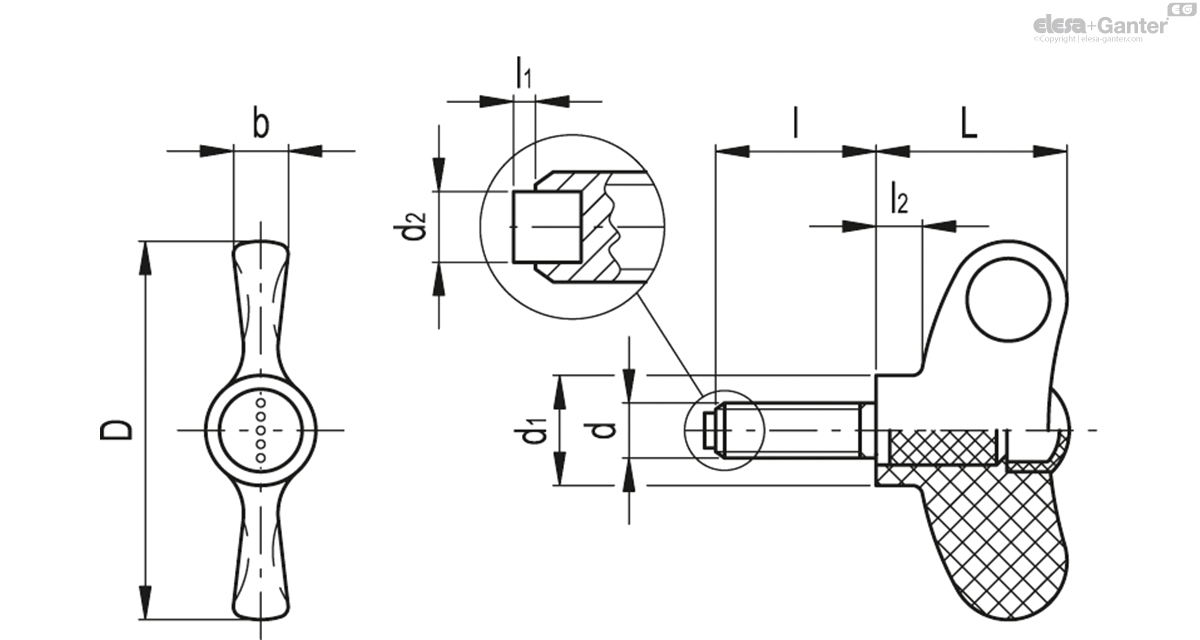

		Color	D	d_6g	L	d₁	d₂	l	l₁	l₂	b
Code	Description												Actions
224556-C1	EWN.48-SST-p-M6x20-PO-C1	C1 - RAL 7021	47	M6	24	13.5	4	20	1.5	5.5	7	16
224556-C2	EWN.48-SST-p-M6x20-PO-C2	C2 - RAL 2004	47	M6	24	13.5	4	20	1.5	5.5	7	16
224556-C3	EWN.48-SST-p-M6x20-PO-C3	C3 - RAL 7035	47	M6	24	13.5	4	20	1.5	5.5	7	16
224556-C4	EWN.48-SST-p-M6x20-PO-C4	C4 - RAL 1021	47	M6	24	13.5	4	20	1.5	5.5	7	16
224556-C5	EWN.48-SST-p-M6x20-PO-C5	C5 - RAL 5024	47	M6	24	13.5	4	20	1.5	5.5	7	16
224556-C6	EWN.48-SST-p-M6x20-PO-C6	C6 - RAL 3000	47	M6	24	13.5	4	20	1.5	5.5	7	16
224556-C17	EWN.48-SST-p-M6x20-PO-C17	C17 - RAL 6017	47	M6	24	13.5	4	20	1.5	5.5	7	16
224566-C1	EWN.48-SST-p-M6x30-PO-C1	C1 - RAL 7021	47	M6	24	13.5	4	30	1.5	5.5	7	17
224566-C2	EWN.48-SST-p-M6x30-PO-C2	C2 - RAL 2004	47	M6	24	13.5	4	30	1.5	5.5	7	17
224566-C3	EWN.48-SST-p-M6x30-PO-C3	C3 - RAL 7035	47	M6	24	13.5	4	30	1.5	5.5	7	17
224566-C4	EWN.48-SST-p-M6x30-PO-C4	C4 - RAL 1021	47	M6	24	13.5	4	30	1.5	5.5	7	17
224566-C5	EWN.48-SST-p-M6x30-PO-C5	C5 - RAL 5024	47	M6	24	13.5	4	30	1.5	5.5	7	17
224566-C6	EWN.48-SST-p-M6x30-PO-C6	C6 - RAL 3000	47	M6	24	13.5	4	30	1.5	5.5	7	17
224566-C17	EWN.48-SST-p-M6x30-PO-C17	C17 - RAL 6017	47	M6	24	13.5	4	30	1.5	5.5	7	17
224646-C1	EWN.55-SST-p-M8x20-PO-C1	C1 - RAL 7021	55	M8	28	16	5	20	1.8	6.5	8	26
224646-C2	EWN.55-SST-p-M8x20-PO-C2	C2 - RAL 2004	55	M8	28	16	5	20	1.8	6.5	8	26
224646-C3	EWN.55-SST-p-M8x20-PO-C3	C3 - RAL 7035	55	M8	28	16	5	20	1.8	6.5	8	26
224646-C4	EWN.55-SST-p-M8x20-PO-C4	C4 - RAL 1021	55	M8	28	16	5	20	1.8	6.5	8	26
224646-C5	EWN.55-SST-p-M8x20-PO-C5	C5 - RAL 5024	55	M8	28	16	5	20	1.8	6.5	8	26
224646-C6	EWN.55-SST-p-M8x20-PO-C6	C6 - RAL 3000	55	M8	28	16	5	20	1.8	6.5	8	26
224646-C17	EWN.55-SST-p-M8x20-PO-C17	C17 - RAL 6017	55	M8	28	16	5	20	1.8	6.5	8	26
224656-C1	EWN.55-SST-p-M8x30-PO-C1	C1 - RAL 7021	55	M8	28	16	5	30	1.8	6.5	8	27
224656-C2	EWN.55-SST-p-M8x30-PO-C2	C2 - RAL 2004	55	M8	28	16	5	30	1.8	6.5	8	27
224656-C3	EWN.55-SST-p-M8x30-PO-C3	C3 - RAL 7035	55	M8	28	16	5	30	1.8	6.5	8	27
224656-C4	EWN.55-SST-p-M8x30-PO-C4	C4 - RAL 1021	55	M8	28	16	5	30	1.8	6.5	8	27
224656-C5	EWN.55-SST-p-M8x30-PO-C5	C5 - RAL 5024	55	M8	28	16	5	30	1.8	6.5	8	27
224656-C6	EWN.55-SST-p-M8x30-PO-C6	C6 - RAL 3000	55	M8	28	16	5	30	1.8	6.5	8	27
224656-C17	EWN.55-SST-p-M8x30-PO-C17	C17 - RAL 6017	55	M8	28	16	5	30	1.8	6.5	8	27
224676-C1	EWN.70-SST-p-M10x20-PO-C1	C1 - RAL 7021	70	M10	36	20	6	20	2	8	10	44
224676-C2	EWN.70-SST-p-M10x20-PO-C2	C2 - RAL 2004	70	M10	36	20	6	20	2	8	10	44
224676-C3	EWN.70-SST-p-M10x20-PO-C3	C3 - RAL 7035	70	M10	36	20	6	20	2	8	10	44
224676-C4	EWN.70-SST-p-M10x20-PO-C4	C4 - RAL 1021	70	M10	36	20	6	20	2	8	10	44
224676-C5	EWN.70-SST-p-M10x20-PO-C5	C5 - RAL 5024	70	M10	36	20	6	20	2	8	10	44
224676-C6	EWN.70-SST-p-M10x20-PO-C6	C6 - RAL 3000	70	M10	36	20	6	20	2	8	10	44
224676-C17	EWN.70-SST-p-M10x20-PO-C17	C17 - RAL 6017	70	M10	36	20	6	20	2	8	10	44
224686-C1	EWN.70-SST-p-M10x30-PO-C1	C1 - RAL 7021	70	M10	36	20	6	30	2	8	10	52
224686-C2	EWN.70-SST-p-M10x30-PO-C2	C2 - RAL 2004	70	M10	36	20	6	30	2	8	10	52
224686-C3	EWN.70-SST-p-M10x30-PO-C3	C3 - RAL 7035	70	M10	36	20	6	30	2	8	10	52
224686-C4	EWN.70-SST-p-M10x30-PO-C4	C4 - RAL 1021	70	M10	36	20	6	30	2	8	10	52
224686-C5	EWN.70-SST-p-M10x30-PO-C5	C5 - RAL 5024	70	M10	36	20	6	30	2	8	10	52
224686-C6	EWN.70-SST-p-M10x30-PO-C6	C6 - RAL 3000	70	M10	36	20	6	30	2	8	10	52
224686-C17	EWN.70-SST-p-M10x30-PO-C17	C17 - RAL 6017	70	M10	36	20	6	30	2	8	10	52

EWN-SST-p-PB

		Color	D	d_6g	L	d₁	d₂	l	l₁	l₂	b
Code	Description												Actions
224576-C1	EWN.48-SST-p-M6x20-PB-C1	C1 - RAL 7021	47	M6	24	13.5	4	20	1.5	5.5	7	16
224576-C2	EWN.48-SST-p-M6x20-PB-C2	C2 - RAL 2004	47	M6	24	13.5	4	20	1.5	5.5	7	16
224576-C3	EWN.48-SST-p-M6x20-PB-C3	C3 - RAL 7035	47	M6	24	13.5	4	20	1.5	5.5	7	16
224576-C4	EWN.48-SST-p-M6x20-PB-C4	C4 - RAL 1021	47	M6	24	13.5	4	20	1.5	5.5	7	16
224576-C5	EWN.48-SST-p-M6x20-PB-C5	C5 - RAL 5024	47	M6	24	13.5	4	20	1.5	5.5	7	16
224576-C6	EWN.48-SST-p-M6x20-PB-C6	C6 - RAL 3000	47	M6	24	13.5	4	20	1.5	5.5	7	16
224576-C17	EWN.48-SST-p-M6x20-PB-C17	C17 - RAL 6017	47	M6	24	13.5	4	20	1.5	5.5	7	16
224586-C1	EWN.48-SST-p-M6x30-PB-C1	C1 - RAL 7021	47	M6	24	13.5	4	30	1.5	5.5	7	14
224586-C2	EWN.48-SST-p-M6x30-PB-C2	C2 - RAL 2004	47	M6	24	13.5	4	30	1.5	5.5	7	16
224586-C3	EWN.48-SST-p-M6x30-PB-C3	C3 - RAL 7035	47	M6	24	13.5	4	30	1.5	5.5	7	16
224586-C4	EWN.48-SST-p-M6x30-PB-C4	C4 - RAL 1021	47	M6	24	13.5	4	30	1.5	5.5	7	16
224586-C5	EWN.48-SST-p-M6x30-PB-C5	C5 - RAL 5024	47	M6	24	13.5	4	30	1.5	5.5	7	16
224586-C6	EWN.48-SST-p-M6x30-PB-C6	C6 - RAL 3000	47	M6	24	13.5	4	30	1.5	5.5	7	16
224586-C17	EWN.48-SST-p-M6x30-PB-C17	C17 - RAL 6017	47	M6	24	13.5	4	30	1.5	5.5	7	16
224661-C1	EWN.55-SST-p-M8x20-PB-C1	C1 - RAL 7021	55	M8	28	16	5	20	1.8	6.5	8	24
224661-C2	EWN.55-SST-p-M8x20-PB-C2	C2 - RAL 2004	55	M8	28	16	5	20	1.8	6.5	8	26
224661-C3	EWN.55-SST-p-M8x20-PB-C3	C3 - RAL 7035	55	M8	28	16	5	20	1.8	6.5	8	26
224661-C4	EWN.55-SST-p-M8x20-PB-C4	C4 - RAL 1021	55	M8	28	16	5	20	1.8	6.5	8	26
224661-C5	EWN.55-SST-p-M8x20-PB-C5	C5 - RAL 5024	55	M8	28	16	5	20	1.8	6.5	8	26
224661-C6	EWN.55-SST-p-M8x20-PB-C6	C6 - RAL 3000	55	M8	28	16	5	20	1.8	6.5	8	26
224661-C17	EWN.55-SST-p-M8x20-PB-C17	C17 - RAL 6017	55	M8	28	16	5	20	1.8	6.5	8	26
224666-C1	EWN.55-SST-p-M8x30-PB-C1	C1 - RAL 7021	55	M8	28	16	5	30	1.8	6.5	8	29
224666-C2	EWN.55-SST-p-M8x30-PB-C2	C2 - RAL 2004	55	M8	28	16	5	30	1.8	6.5	8	29
224666-C3	EWN.55-SST-p-M8x30-PB-C3	C3 - RAL 7035	55	M8	28	16	5	30	1.8	6.5	8	29
224666-C4	EWN.55-SST-p-M8x30-PB-C4	C4 - RAL 1021	55	M8	28	16	5	30	1.8	6.5	8	29
224666-C5	EWN.55-SST-p-M8x30-PB-C5	C5 - RAL 5024	55	M8	28	16	5	30	1.8	6.5	8	29
224666-C6	EWN.55-SST-p-M8x30-PB-C6	C6 - RAL 3000	55	M8	28	16	5	30	1.8	6.5	8	29
224666-C17	EWN.55-SST-p-M8x30-PB-C17	C17 - RAL 6017	55	M8	28	16	5	30	1.8	6.5	8	29
224691-C1	EWN.70-SST-p-M10x20-PB-C1	C1 - RAL 7021	70	M10	36	20	6	20	2	8	10	42
224691-C2	EWN.70-SST-p-M10x20-PB-C2	C2 - RAL 2004	70	M10	36	20	6	20	2	8	10	42
224691-C3	EWN.70-SST-p-M10x20-PB-C3	C3 - RAL 7035	70	M10	36	20	6	20	2	8	10	42
224691-C4	EWN.70-SST-p-M10x20-PB-C4	C4 - RAL 1021	70	M10	36	20	6	20	2	8	10	42
224691-C5	EWN.70-SST-p-M10x20-PB-C5	C5 - RAL 5024	70	M10	36	20	6	20	2	8	10	42
224691-C6	EWN.70-SST-p-M10x20-PB-C6	C6 - RAL 3000	70	M10	36	20	6	20	2	8	10	42
224691-C17	EWN.70-SST-p-M10x20-PB-C17	C17 - RAL 6017	70	M10	36	20	6	20	2	8	10	42
224696-C1	EWN.70-SST-p-M10x30-PB-C1	C1 - RAL 7021	70	M10	36	20	6	30	2	8	10	53
224696-C2	EWN.70-SST-p-M10x30-PB-C2	C2 - RAL 2004	70	M10	36	20	6	30	2	8	10	53
224696-C3	EWN.70-SST-p-M10x30-PB-C3	C3 - RAL 7035	70	M10	36	20	6	30	2	8	10	53
224696-C4	EWN.70-SST-p-M10x30-PB-C4	C4 - RAL 1021	70	M10	36	20	6	30	2	8	10	53
224696-C5	EWN.70-SST-p-M10x30-PB-C5	C5 - RAL 5024	70	M10	36	20	6	30	2	8	10	53
224696-C6	EWN.70-SST-p-M10x30-PB-C6	C6 - RAL 3000	70	M10	36	20	6	30	2	8	10	53
224696-C17	EWN.70-SST-p-M10x30-PB-C17	C17 - RAL 6017	70	M10	36	20	6	30	2	8	10	53
