ERFW.
Flat lever handles
Technopolymer
ERFW-B
Flat lever handles
Brass boss, threaded blind hole
ERFW-N
Flat lever handles
Cylindrical blind hole
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Standard executions
- ERFW-B: brass boss, threaded blind hole.
- ERFW-N: cylindrical blind hole, brass reinforcement and transversal semi-machined hole for pinning to shaft.

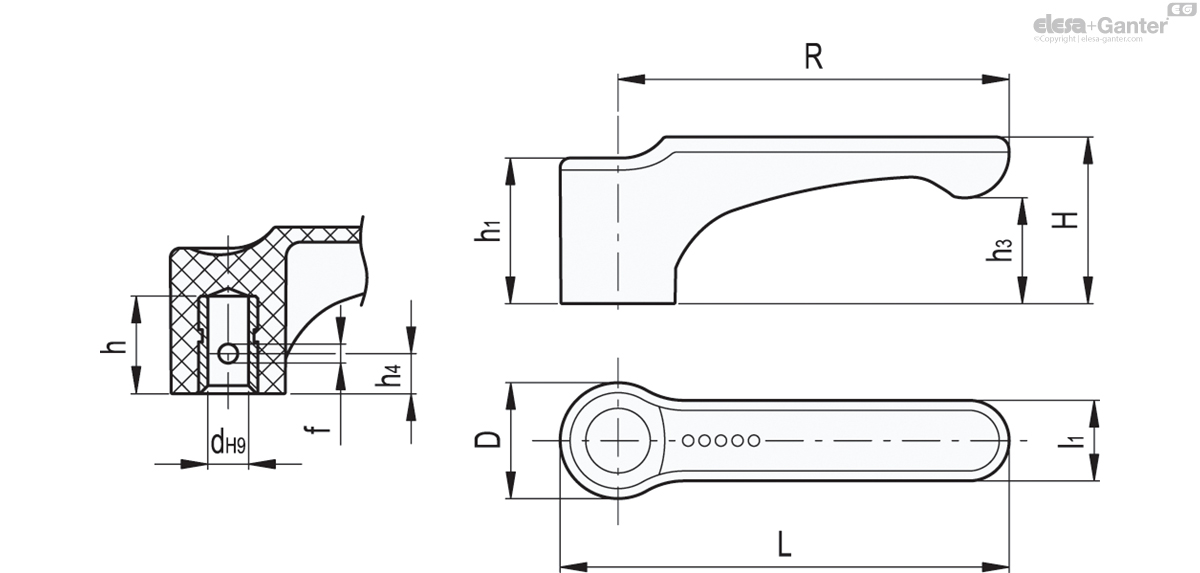

ERFW-N
| R | dH9 | L | D | H | h | h1 | h3 | h4 | l1 | f |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||
| 232311-C1 | ERFW.44 N-6-C1 | 44 | 6 | 52 | 15.5 | 21 | 15 | 19 | 13 | 7 | 11 | 3 | 10 |
|
| 232331-C1 | ERFW.63 N-8-C1 | 63 | 8 | 73 | 19 | 28 | 20 | 25 | 18 | 8 | 13.5 | 4 | 18 |
|
| 232351-C1 | ERFW.78 N-10-C1 | 78 | 10 | 90.5 | 23 | 33 | 25 | 30 | 21 | 9 | 16 | 4 | 34 |
|
