Home Clamping Levers Lever handles ERF.

ERF.

Lever handles

Technopolymer

__logo__ERGO__

__logo__RoHS__

__logo__PA__

__logo__g13030__

Enquire Now

erf-b

Brass boss, threaded hole

erf-n

Cylindrical or square hole

erf-p

Zinc-plated steel threaded stud

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Standard executions

ERF-B: brass boss, threaded blind hole.

ERF-N:

cylindrical blind hole, brass reinforcement and transversal semi-machined hole for pinning to shaft.

square blind hole with transversal set screw UNI 5929-85 (grub screws with hexagon socket and cup end).

ERF-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).

ERF-p

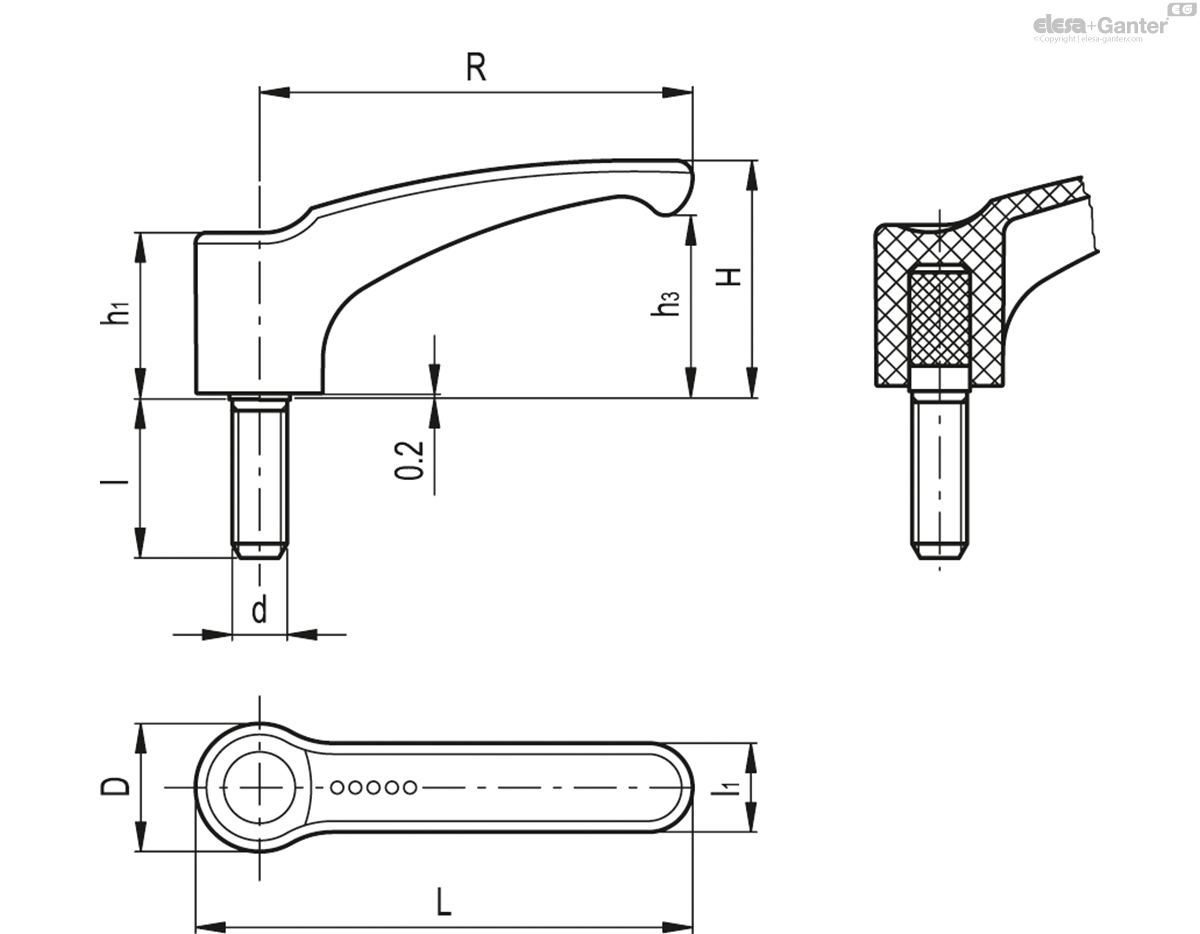

		R	d_6g	L	D	H	h₁	h₃	l	l₁
Code	Description											Actions
232116-C1	ERF.44 p-M6x16-C1	44	M6	52	15.5	26.5	19	19	16	11	13
232136-C1	ERF.63 p-M8x25-C1	63	M8	73.5	19	35	24.5	26.5	25	13.5	29
232137-C1	ERF.63 p-M8x35-C1	63	M8	73.5	19	35	24.5	26.5	35	13.5	33
232139-C1	ERF.63 p-M8x50-C1	63	M8	73.5	19	35	24.5	26.5	50	13.5	35
232140-C1	ERF.63 p-M8x45-C1	63	M8	73.5	19	35	24.5	26.5	45	13.5	36
232156-C1	ERF.78 p-M10x30-C1	78	M10	90.5	23	42	29.5	32	30	16	55
232176-C1	ERF.95 p-M12x50-C1	95	M12	109	26.5	51.5	34	40	50	18	94
