ELK.

Knobs with rear lobes

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Technopolymer in Ergostyle colours, matte finish. Ultrasonically welded to the body of the knob.

ELK-A: black-oxide steel boss, H9 reamed blind hole.
ELK-B: brass boss, threaded blind hole.

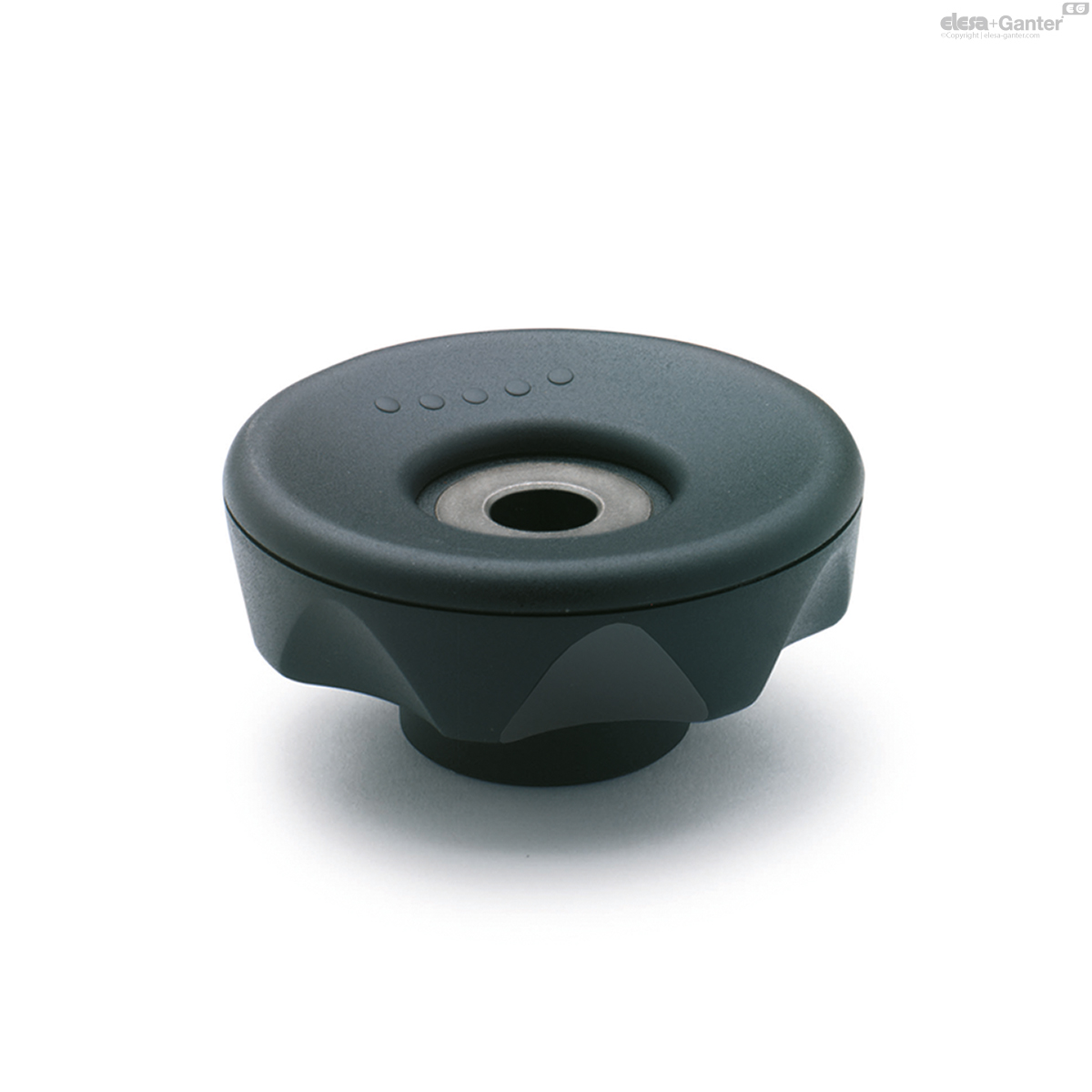

ELK-FP: black-oxide steel boss, H7 reamed pass-through hole.

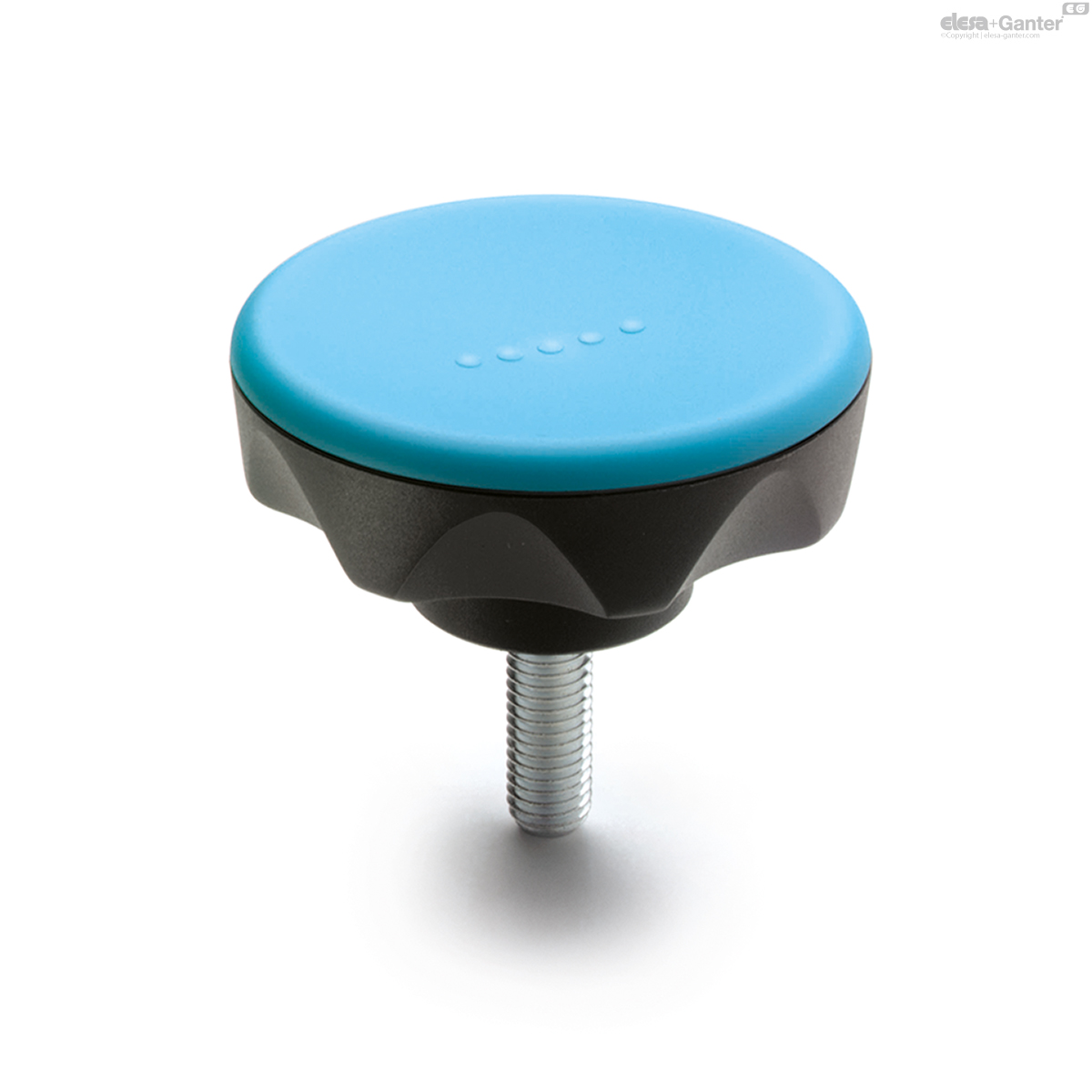

ELK-p: zinc-plated steel threaded stud with chamfered flat end as inUNI 947 : ISO 4753 (see Technical data).

		Color	D	d_H9	L	d₁	d₂	l₁	l₂	h
Code	Description											Actions

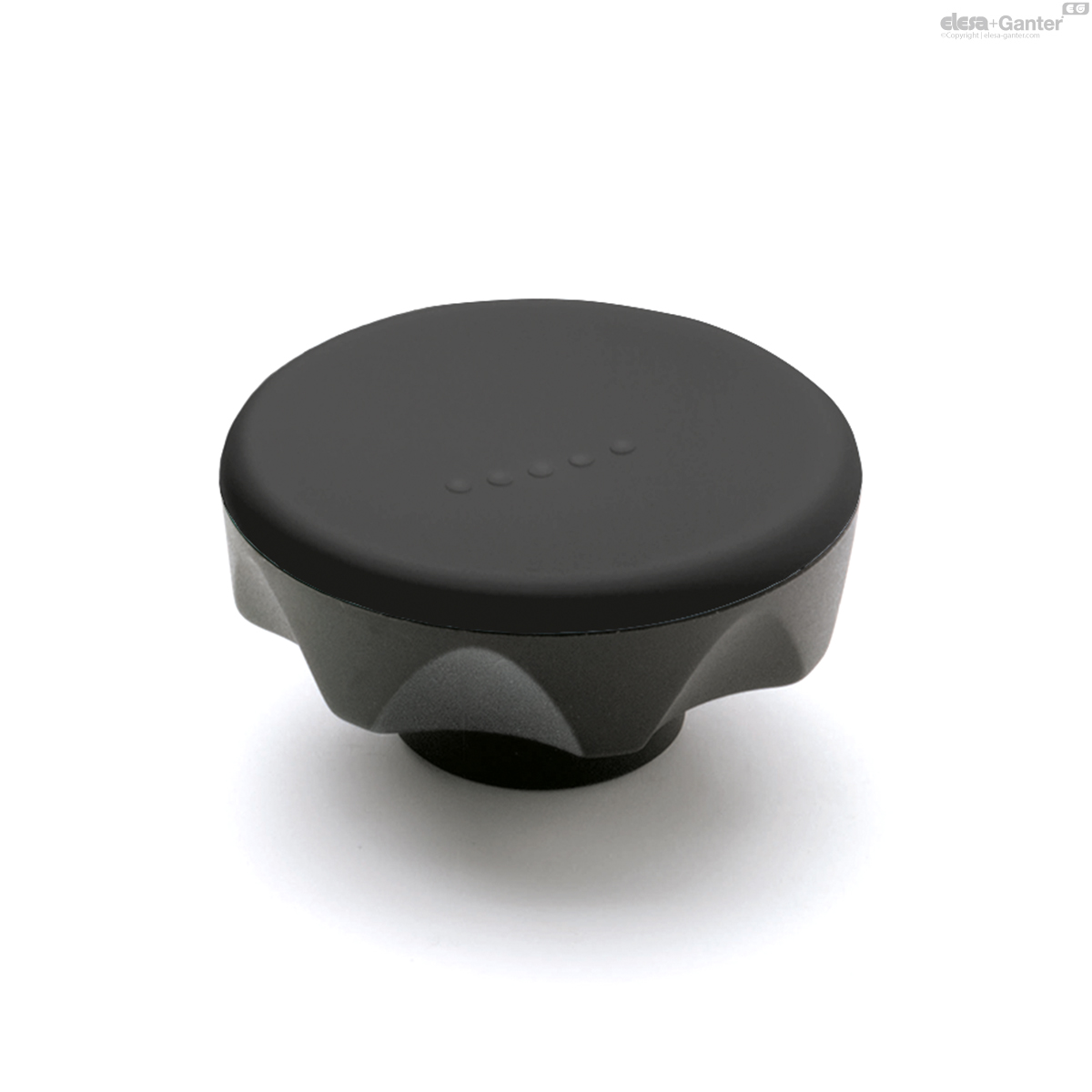

221206-C1	ELK.45 A-8 -C1	C1 - RAL 7021	45	8	26	21	14	19	10	14	38

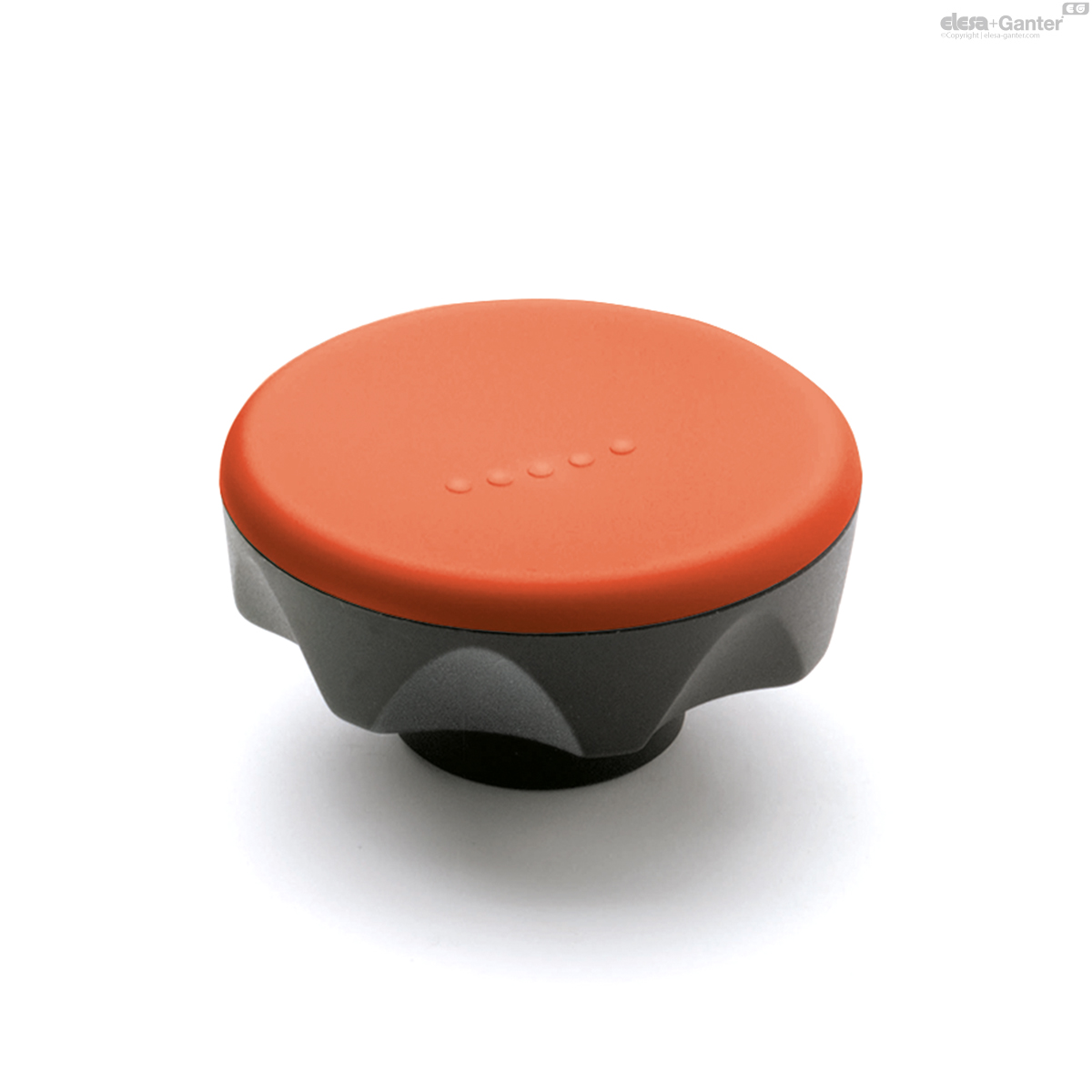

221206-C2	ELK.45 A-8 -C2	C2 - RAL 2004	45	8	26	21	14	19	10	14	38

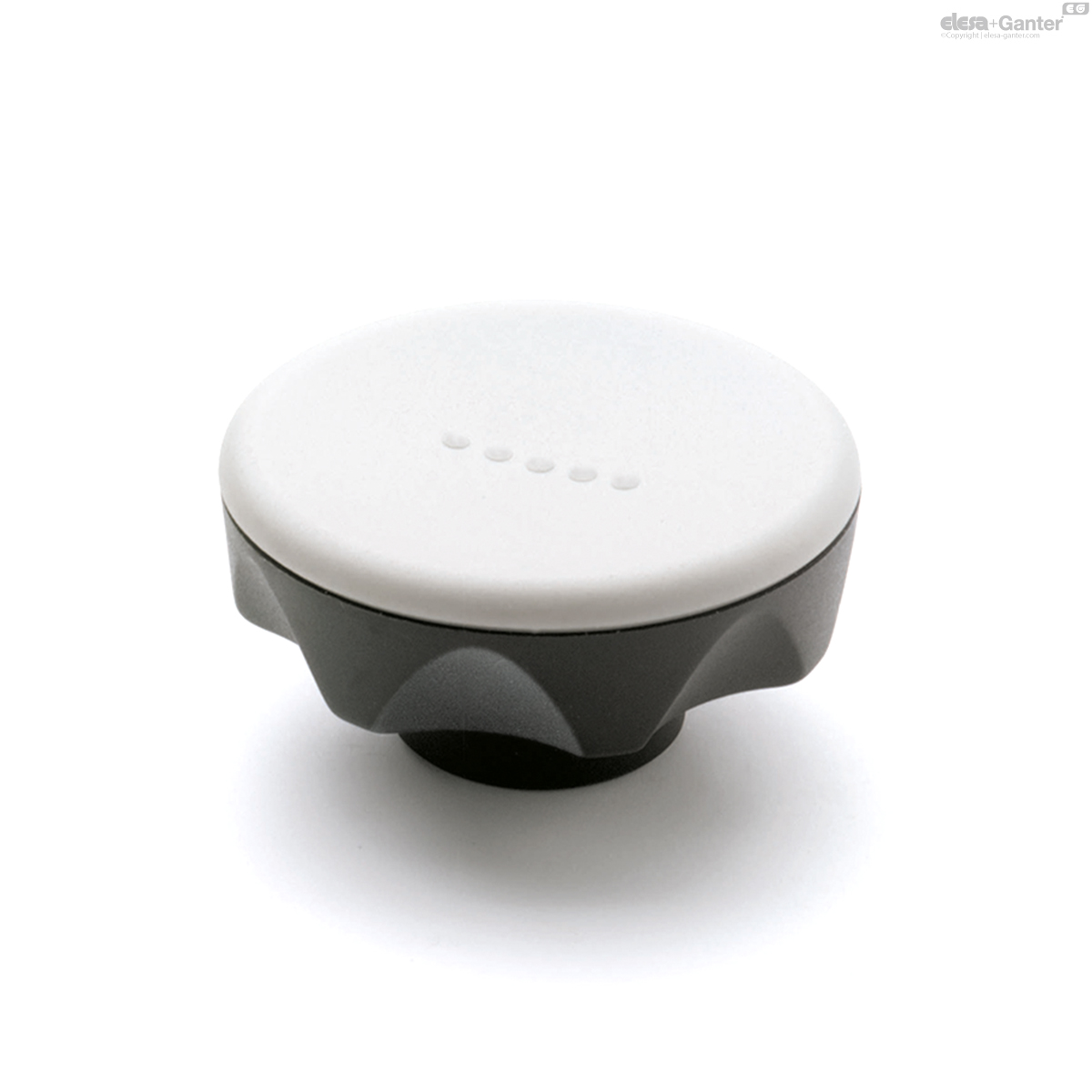

221206-C3	ELK.45 A-8 -C3	C3 - RAL 7035	45	8	26	21	14	19	10	14	38

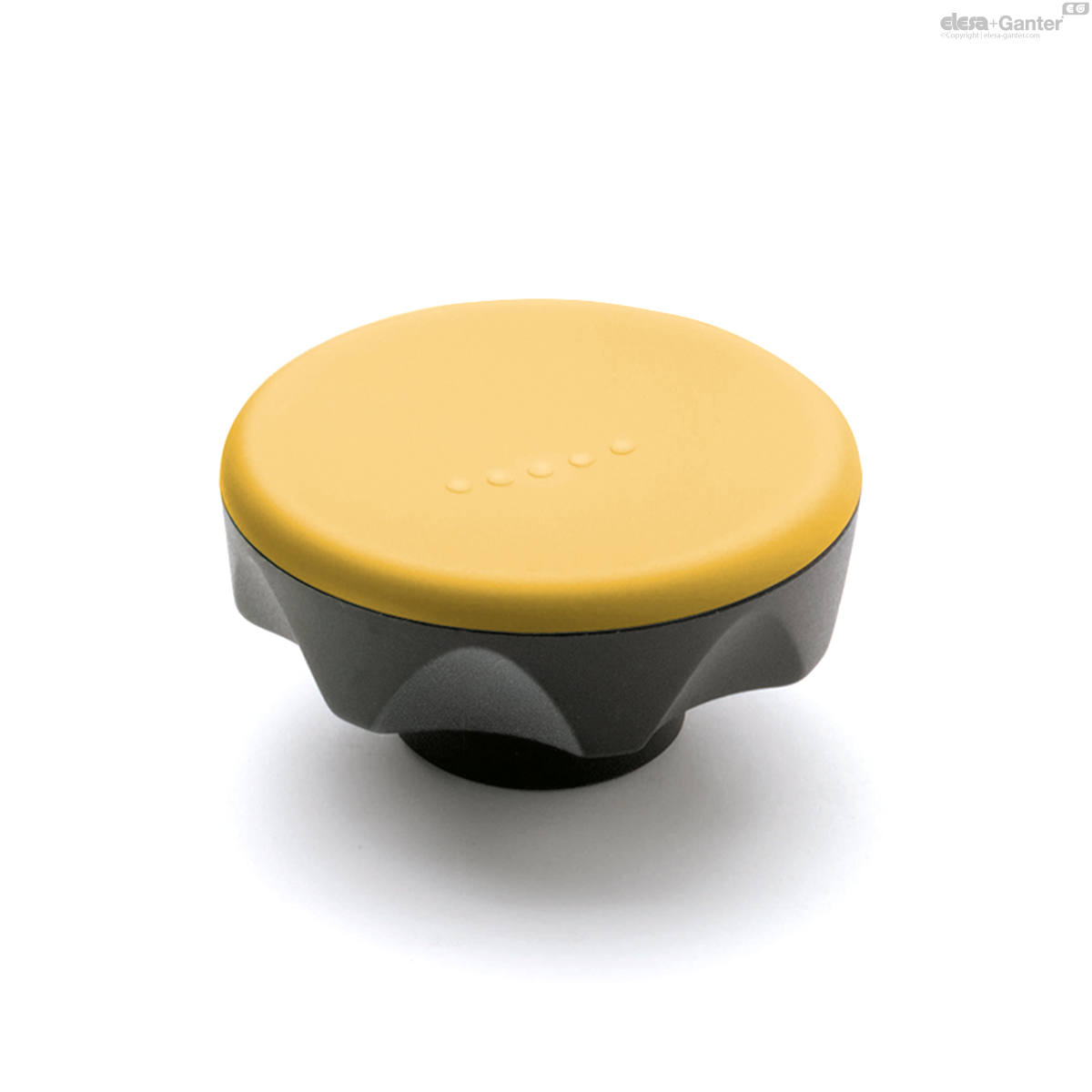

221206-C4	ELK.45 A-8 -C4	C4 - RAL 1021	45	8	26	21	14	19	10	14	38

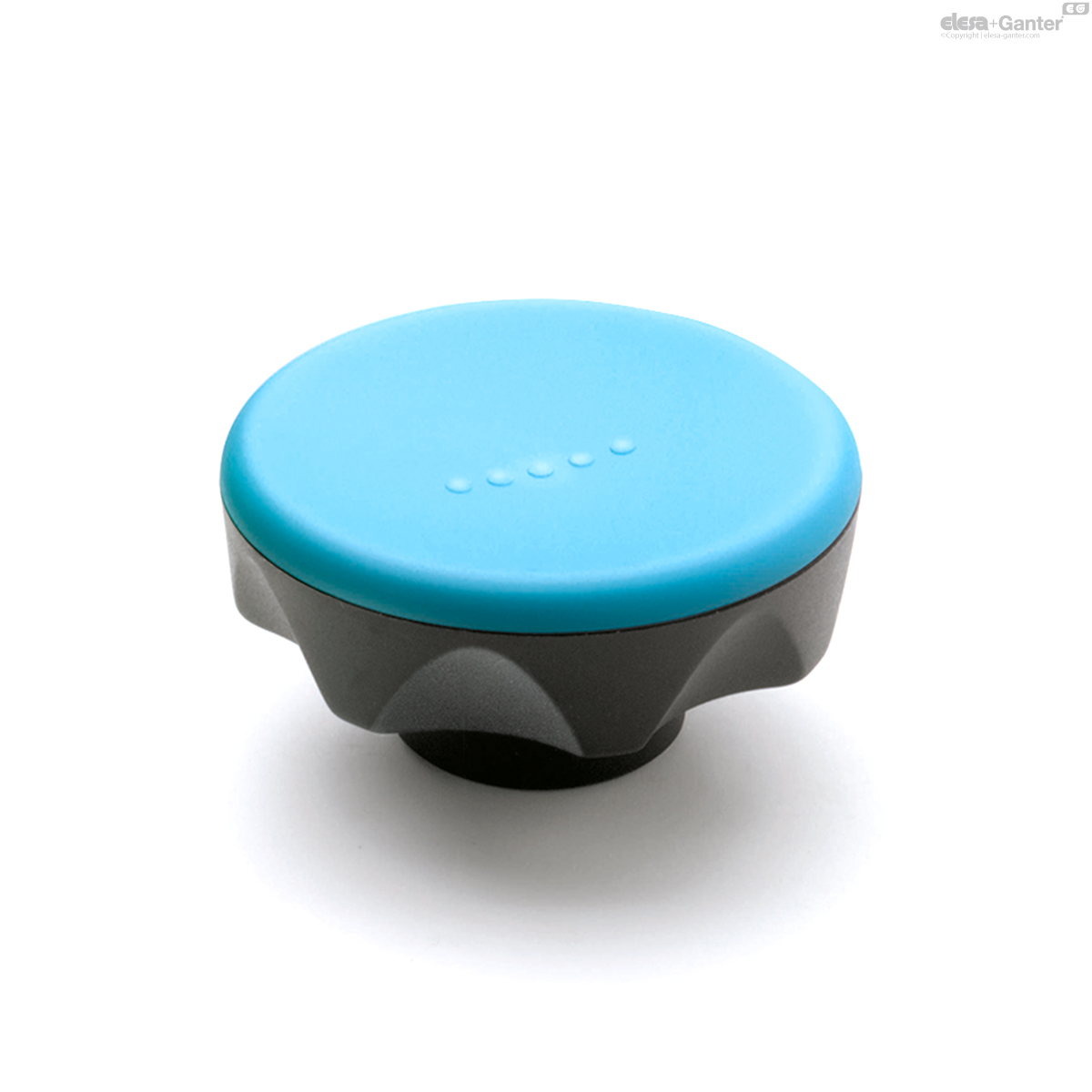

221206-C5	ELK.45 A-8 -C5	C5 - RAL 5024	45	8	26	21	14	19	10	14	38

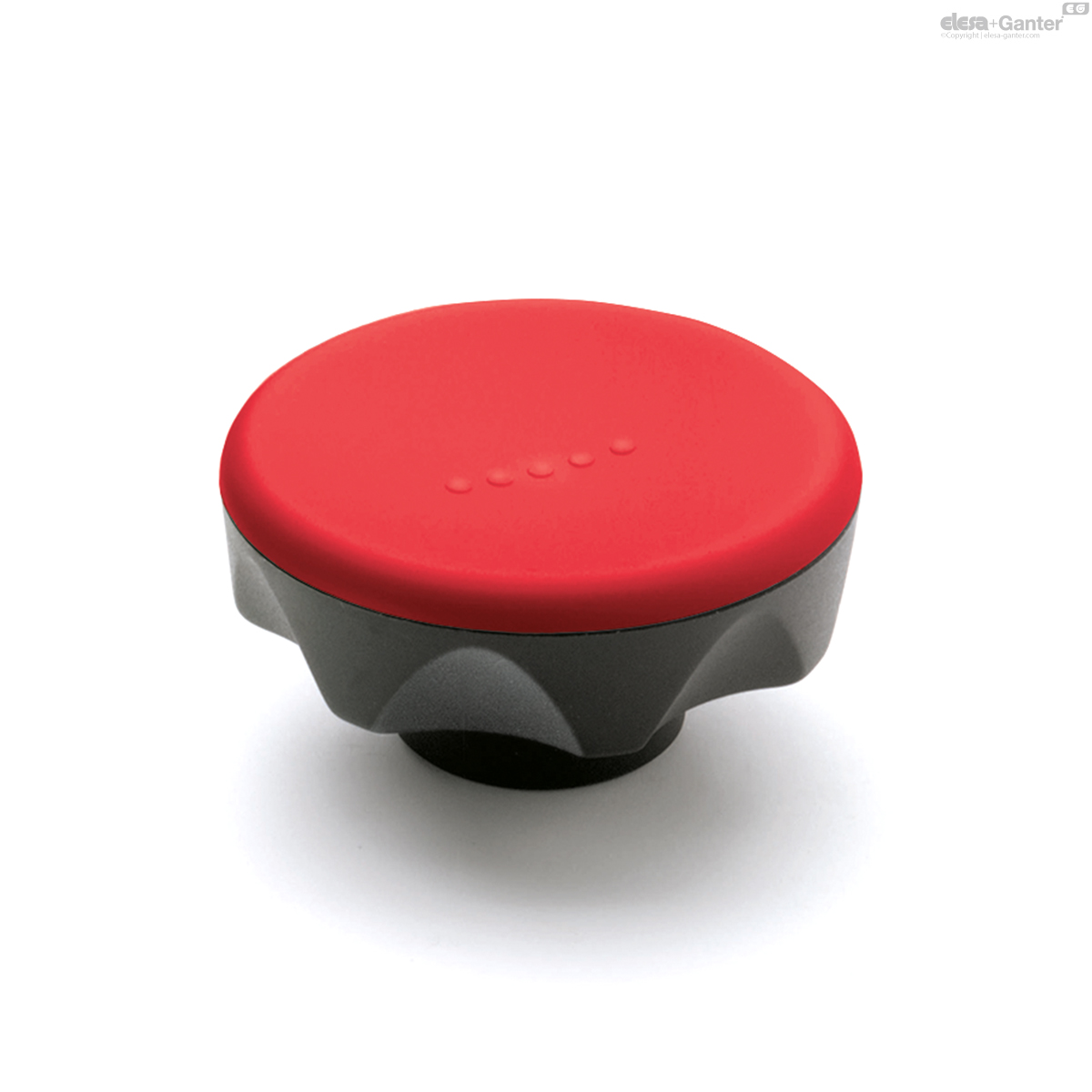

221206-C6	ELK.45 A-8 -C6	C6 - RAL 3000	45	8	26	21	14	19	10	14	38
221206-C17	ELK.45 A-8 -C17	C17 - RAL 6017	45	8	26	21	14	19	10	14	38
221406-C1	ELK.56 A-8 -C1	C1 - RAL 7021	56	8	29	26.5	14	18	11	14	55
221406-C2	ELK.56 A-8 -C2	C2 - RAL 2004	56	8	29	26.5	14	18	11	14	55
221406-C3	ELK.56 A-8 -C3	C3 - RAL 7035	56	8	29	26.5	14	18	11	14	55
221406-C4	ELK.56 A-8 -C4	C4 - RAL 1021	56	8	29	26.5	14	18	11	14	55
221406-C5	ELK.56 A-8 -C5	C5 - RAL 5024	56	8	29	26.5	14	18	11	14	55
221406-C6	ELK.56 A-8 -C6	C6 - RAL 3000	56	8	29	26.5	14	18	11	14	55
221406-C17	ELK.56 A-8 -C17	C17 - RAL 6017	56	8	29	26.5	14	18	11	14	55
221606-C1	ELK.70 A-10 -C1	C1 - RAL 7021	70	10	35	32.5	22	25	13	21	109
221606-C2	ELK.70 A-10 -C2	C2 - RAL 2004	70	10	35	32.5	22	25	13	21	109
221606-C3	ELK.70 A-10 -C3	C3 - RAL 7035	70	10	35	32.5	22	25	13	21	109
221606-C4	ELK.70 A-10 -C4	C4 - RAL 1021	70	10	35	32.5	22	25	13	21	109
221606-C5	ELK.70 A-10 -C5	C5 - RAL 5024	70	10	35	32.5	22	25	13	21	109
221606-C6	ELK.70 A-10 -C6	C6 - RAL 3000	70	10	35	32.5	22	25	13	21	109
221606-C17	ELK.70 A-10 -C17	C17 - RAL 6017	70	10	35	32.5	22	25	13	21	109
