Home Curves & straight tracks Curve Curve 600 Heavy Duty and Heavy Duty Small radius

Curve 600 Heavy Duty and Heavy Duty Small radius

Curve

Enquire Now

Description

TAB type corner tracks are a more economical solution compared to magnetic curves. In those applications where cleaning and product support are less important, they can perfectly be used.

Basic features

Series:	600
Type:	Tab
Box:	-

Curve 600 Heavy Duty and Heavy Duty Small radius

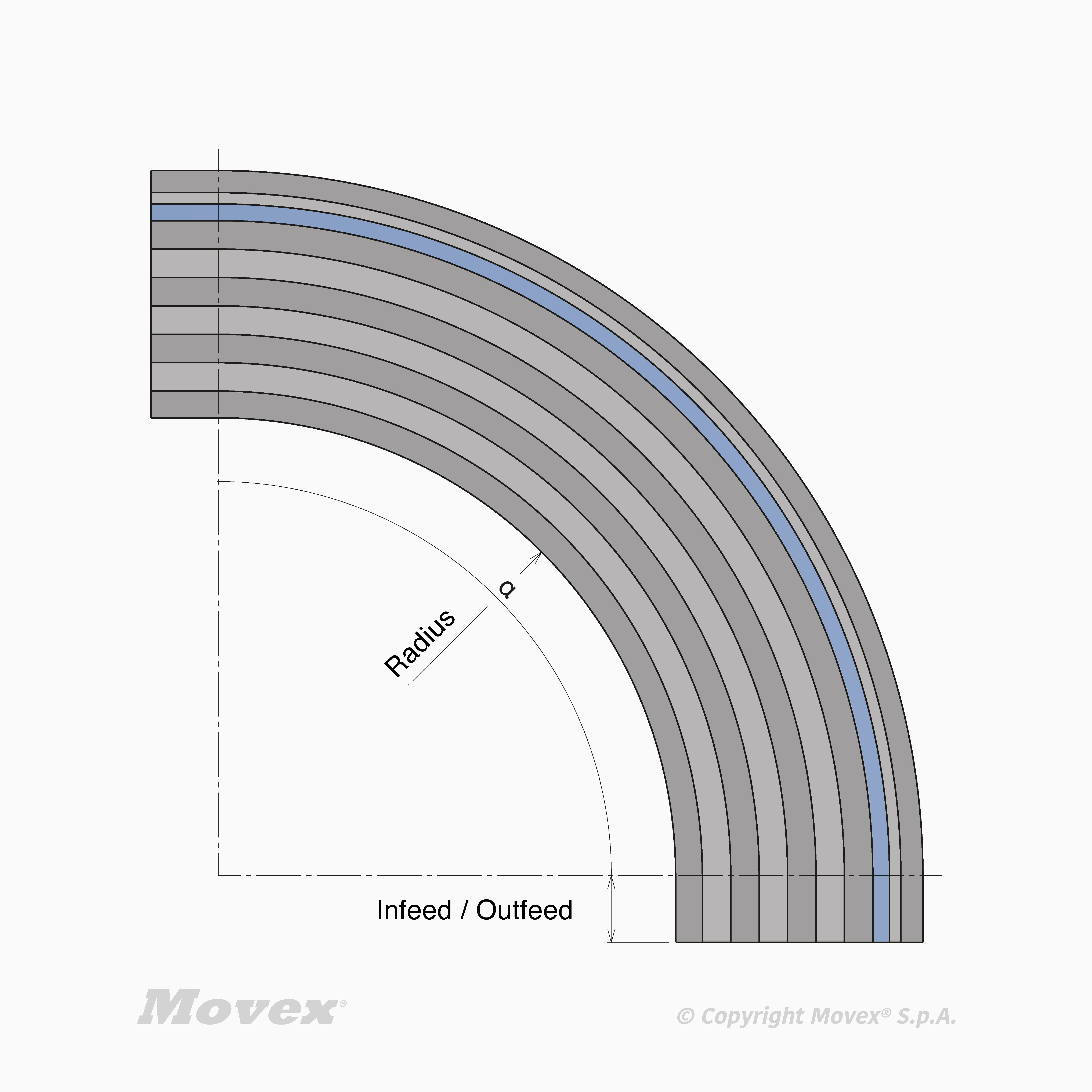

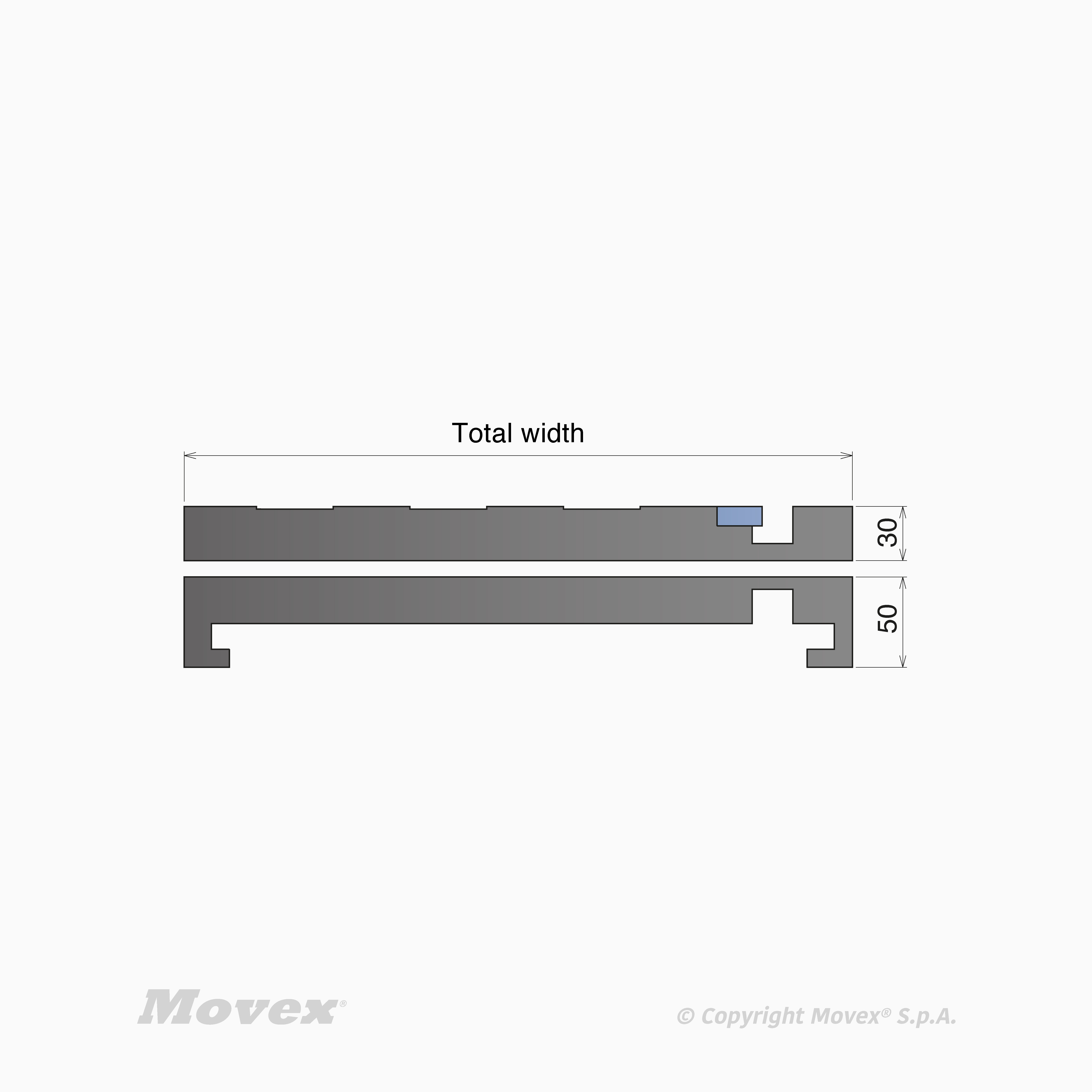

	Chain/Belt Width	Radius	Total Height	Angle	Version	Unit of measure	Total width	Infeed / Outfeed	Material UP	Material LW	UP Height	LW Height	Shoe	Temperature range dry	Supplementary informations
Code																Actions
P76241114	255 mm	515 mm	80 mm	15°	Heavy Duty	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76241214	255 mm	515 mm	80 mm	30°	Heavy Duty	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76241314	255 mm	515 mm	80 mm	45°	Heavy Duty	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76241414	255 mm	515 mm	80 mm	60°	Heavy Duty	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76241514	255 mm	515 mm	80 mm	75°	Heavy Duty	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76241614	255 mm	515 mm	80 mm	90°	Heavy Duty	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76242124	340 mm	685 mm	80 mm	15°	Heavy Duty	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76242224	340 mm	685 mm	80 mm	30°	Heavy Duty	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76242324	340 mm	685 mm	80 mm	45°	Heavy Duty	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76242424	340 mm	685 mm	80 mm	60°	Heavy Duty	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76242524	340 mm	685 mm	80 mm	75°	Heavy Duty	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76242624	340 mm	685 mm	80 mm	90°	Heavy Duty	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76243134	425 mm	855 mm	80 mm	15°	Heavy Duty	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76243234	425 mm	855 mm	80 mm	30°	Heavy Duty	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76243334	425 mm	855 mm	80 mm	45°	Heavy Duty	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76243434	425 mm	855 mm	80 mm	60°	Heavy Duty	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76243534	425 mm	855 mm	80 mm	75°	Heavy Duty	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76243634	425 mm	855 mm	80 mm	90°	Heavy Duty	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76244144	510 mm	1025 mm	80 mm	15°	Heavy Duty	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76244244	510 mm	1025 mm	80 mm	30°	Heavy Duty	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76244344	510 mm	1025 mm	80 mm	45°	Heavy Duty	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76244444	510 mm	1025 mm	80 mm	60°	Heavy Duty	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76244544	510 mm	1025 mm	80 mm	75°	Heavy Duty	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76244644	510 mm	1025 mm	80 mm	90°	Heavy Duty	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76245154	595 mm	1195 mm	80 mm	15°	Heavy Duty	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76245254	595 mm	1195 mm	80 mm	30°	Heavy Duty	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76245354	595 mm	1195 mm	80 mm	45°	Heavy Duty	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76245454	595 mm	1195 mm	80 mm	60°	Heavy Duty	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76245554	595 mm	1195 mm	80 mm	75°	Heavy Duty	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76245654	595 mm	1195 mm	80 mm	90°	Heavy Duty	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76246164	680 mm	1365 mm	80 mm	15°	Heavy Duty	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76246264	680 mm	1365 mm	80 mm	30°	Heavy Duty	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76246364	680 mm	1365 mm	80 mm	45°	Heavy Duty	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76246464	680 mm	1365 mm	80 mm	60°	Heavy Duty	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76246564	680 mm	1365 mm	80 mm	75°	Heavy Duty	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76246664	680 mm	1365 mm	80 mm	90°	Heavy Duty	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76247174	765 mm	1535 mm	80 mm	15°	Heavy Duty	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76247274	765 mm	1535 mm	80 mm	30°	Heavy Duty	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76247374	765 mm	1535 mm	80 mm	45°	Heavy Duty	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76247474	765 mm	1535 mm	80 mm	60°	Heavy Duty	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76247574	765 mm	1535 mm	80 mm	75°	Heavy Duty	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76247674	765 mm	1535 mm	80 mm	90°	Heavy Duty	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76248184	850 mm	1705 mm	80 mm	15°	Heavy Duty	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	-
P76248284	850 mm	1705 mm	80 mm	30°	Heavy Duty	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76248384	850 mm	1705 mm	80 mm	45°	Heavy Duty	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76248484	850 mm	1705 mm	80 mm	60°	Heavy Duty	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76248584	850 mm	1705 mm	80 mm	75°	Heavy Duty	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76248684	850 mm	1705 mm	80 mm	90°	Heavy Duty	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76250114	255 mm	395 mm	80 mm	15°	Heavy Duty - Small radius	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76250214	255 mm	395 mm	80 mm	30°	Heavy Duty - Small radius	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76250314	255 mm	395 mm	80 mm	45°	Heavy Duty - Small radius	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76250414	255 mm	395 mm	80 mm	60°	Heavy Duty - Small radius	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76250514	255 mm	395 mm	80 mm	75°	Heavy Duty - Small radius	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76250614	255 mm	395 mm	80 mm	90°	Heavy Duty - Small radius	Ea	285 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76251124	340 mm	425 mm	80 mm	15°	Heavy Duty - Small radius	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76251224	340 mm	425 mm	80 mm	30°	Heavy Duty - Small radius	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76251324	340 mm	425 mm	80 mm	45°	Heavy Duty - Small radius	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76251424	340 mm	425 mm	80 mm	60°	Heavy Duty - Small radius	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76251524	340 mm	425 mm	80 mm	75°	Heavy Duty - Small radius	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76251624	340 mm	425 mm	80 mm	90°	Heavy Duty - Small radius	Ea	370 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76252134	425 mm	505 mm	80 mm	15°	Heavy Duty - Small radius	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76252234	425 mm	505 mm	80 mm	30°	Heavy Duty - Small radius	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76252334	425 mm	505 mm	80 mm	45°	Heavy Duty - Small radius	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76252434	425 mm	505 mm	80 mm	60°	Heavy Duty - Small radius	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76252534	425 mm	505 mm	80 mm	75°	Heavy Duty - Small radius	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76252634	425 mm	505 mm	80 mm	90°	Heavy Duty - Small radius	Ea	455 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76253144	510 mm	605 mm	80 mm	15°	Heavy Duty - Small radius	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76253244	510 mm	605 mm	80 mm	30°	Heavy Duty - Small radius	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76253344	510 mm	605 mm	80 mm	45°	Heavy Duty - Small radius	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76253444	510 mm	605 mm	80 mm	60°	Heavy Duty - Small radius	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76253544	510 mm	605 mm	80 mm	75°	Heavy Duty - Small radius	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76253644	510 mm	605 mm	80 mm	90°	Heavy Duty - Small radius	Ea	540 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76254154	595 mm	725 mm	80 mm	15°	Heavy Duty - Small radius	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76254254	595 mm	725 mm	80 mm	30°	Heavy Duty - Small radius	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76254354	595 mm	725 mm	80 mm	45°	Heavy Duty - Small radius	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76254454	595 mm	725 mm	80 mm	60°	Heavy Duty - Small radius	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76254554	595 mm	725 mm	80 mm	75°	Heavy Duty - Small radius	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76254654	595 mm	725 mm	80 mm	90°	Heavy Duty - Small radius	Ea	625 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76255164	680 mm	885 mm	80 mm	15°	Heavy Duty - Small radius	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76255264	680 mm	885 mm	80 mm	30°	Heavy Duty - Small radius	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76255364	680 mm	885 mm	80 mm	45°	Heavy Duty - Small radius	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76255464	680 mm	885 mm	80 mm	60°	Heavy Duty - Small radius	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76255564	680 mm	885 mm	80 mm	75°	Heavy Duty - Small radius	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76255664	680 mm	885 mm	80 mm	90°	Heavy Duty - Small radius	Ea	710 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76256174	765 mm	1045 mm	80 mm	15°	Heavy Duty - Small radius	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76256274	765 mm	1045 mm	80 mm	30°	Heavy Duty - Small radius	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76256374	765 mm	1045 mm	80 mm	45°	Heavy Duty - Small radius	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76256474	765 mm	1045 mm	80 mm	60°	Heavy Duty - Small radius	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76256574	765 mm	1045 mm	80 mm	75°	Heavy Duty - Small radius	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76256674	765 mm	1045 mm	80 mm	90°	Heavy Duty - Small radius	Ea	795 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76257184	850 mm	1205 mm	80 mm	15°	Heavy Duty - Small radius	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76257284	850 mm	1205 mm	80 mm	30°	Heavy Duty - Small radius	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76257384	850 mm	1205 mm	80 mm	45°	Heavy Duty - Small radius	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76257484	850 mm	1205 mm	80 mm	60°	Heavy Duty - Small radius	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76257584	850 mm	1205 mm	80 mm	75°	Heavy Duty - Small radius	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
P76257684	850 mm	1205 mm	80 mm	90°	Heavy Duty - Small radius	Ea	880 mm	100	RS BluLub	UHMW-PE Black	30 mm	50 mm	Not included	-40÷50 °C	NEW standard RS design Supply: Set of 2 pieces (upper & return) Custom curves available, please see the special form
