600 Heavy Duty
Modular Belts
Description

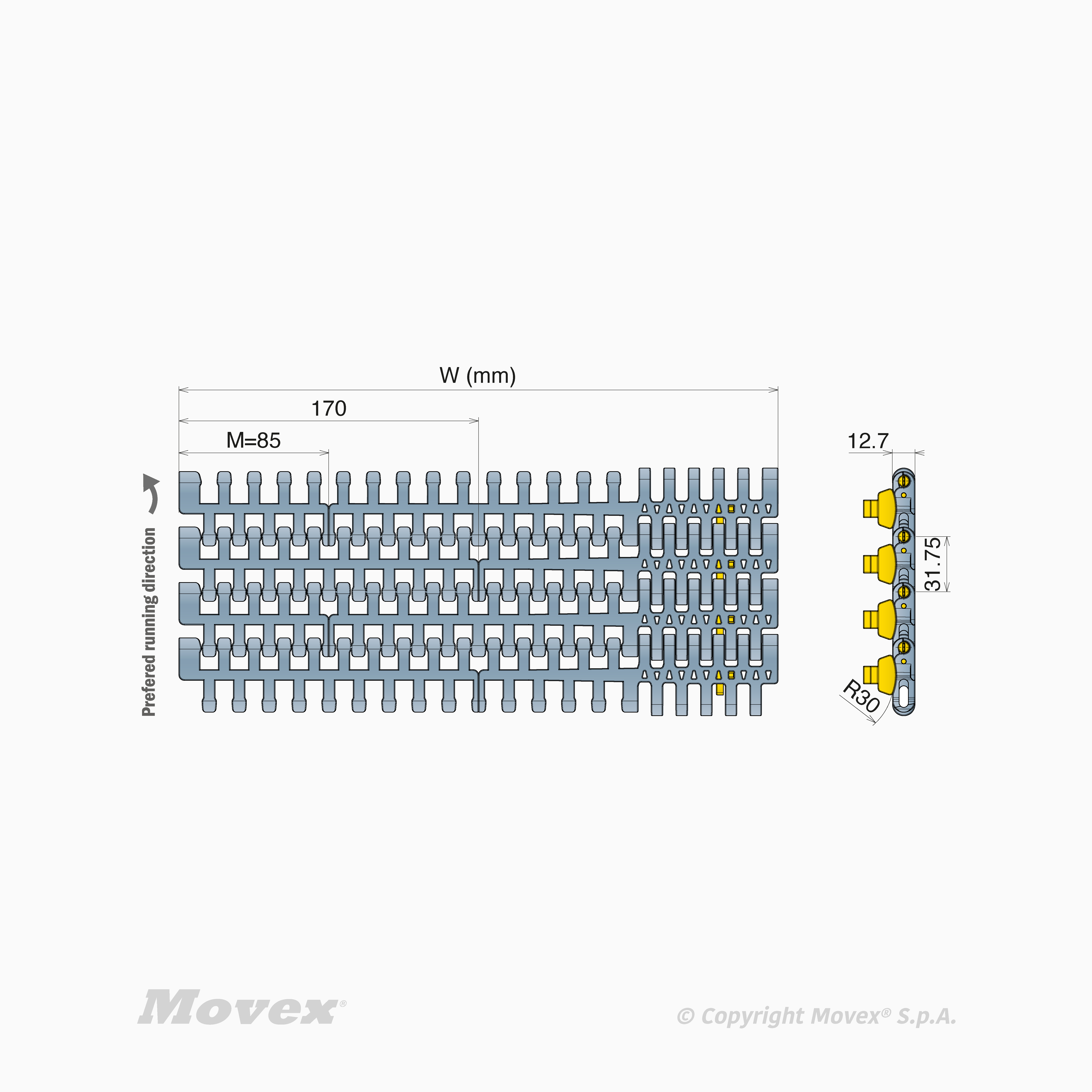

Basic features
| Series: | 600 |
|---|---|
| Pitch: | 31.75 mm |
| Thickness: | 12.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side-Flexing |
| Unit of measure: | Meter |
600 Heavy Duty
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Box | Min radius | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5422010255E | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 510 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010340E | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 680 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010425E | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 850 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010510E | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 1020 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010595E | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1190 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010680E | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1360 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010765E | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1530 mm | -40÷80 °C | -40÷65 °C |
|
| P5422010850E | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1700 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230255E | 255 mm (10,04") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 10 ft - 3,048 m | 510 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230340E | 340 mm (13,39") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 680 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230425E | 425 mm (16,73") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 850 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230510E | 510 mm (20,08") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 5 ft - 1,524 m | 1020 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230595E | 595 mm (23,43") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1190 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230680E | 680 mm (26,77") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1360 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230765E | 765 mm (30,12") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1530 mm | -40÷80 °C | -40÷65 °C |
|
| P5422230850E | 850 mm (33,46") | LFB - Low friction acetal (Blue) | PBT White | E - Heavy Duty | P5422 | 25 mm | 30000 N/m | 8.3 kg/m^2 | Snap-in Clip | 3,33 ft - 1,016 m | 1700 mm | -40÷80 °C | -40÷65 °C |
|
