Curve 1701-1706 TAB

Curve

Enquire Now

Description

TAB type corner tracks are a more economical solution compared to magnetic curves. In those applications where cleaning and product support are less important, they can perfectly be used.

Basic features

Series:	1701-1706 TAB
Type:	Tab
Box:	-

Curve 1701-1706 TAB

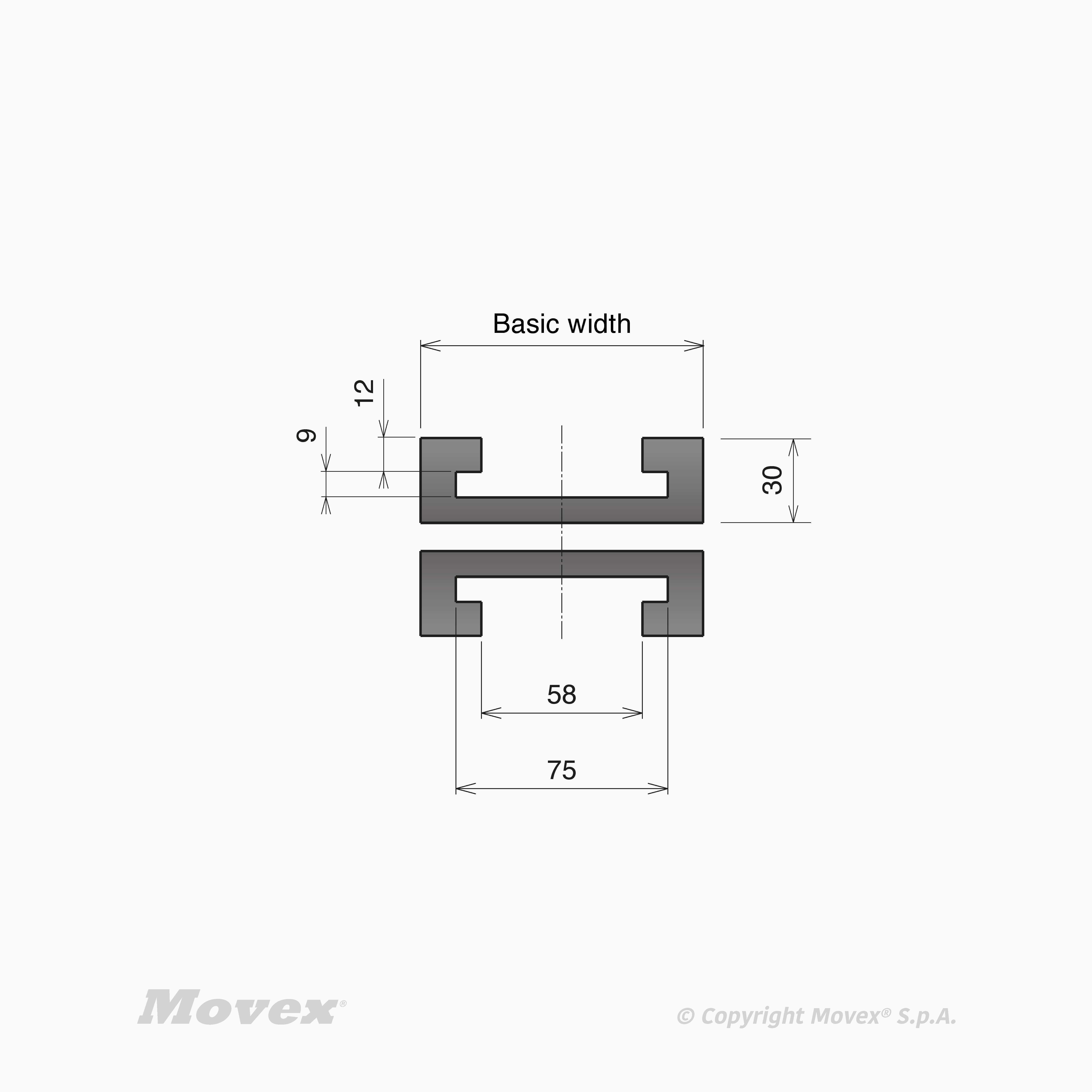

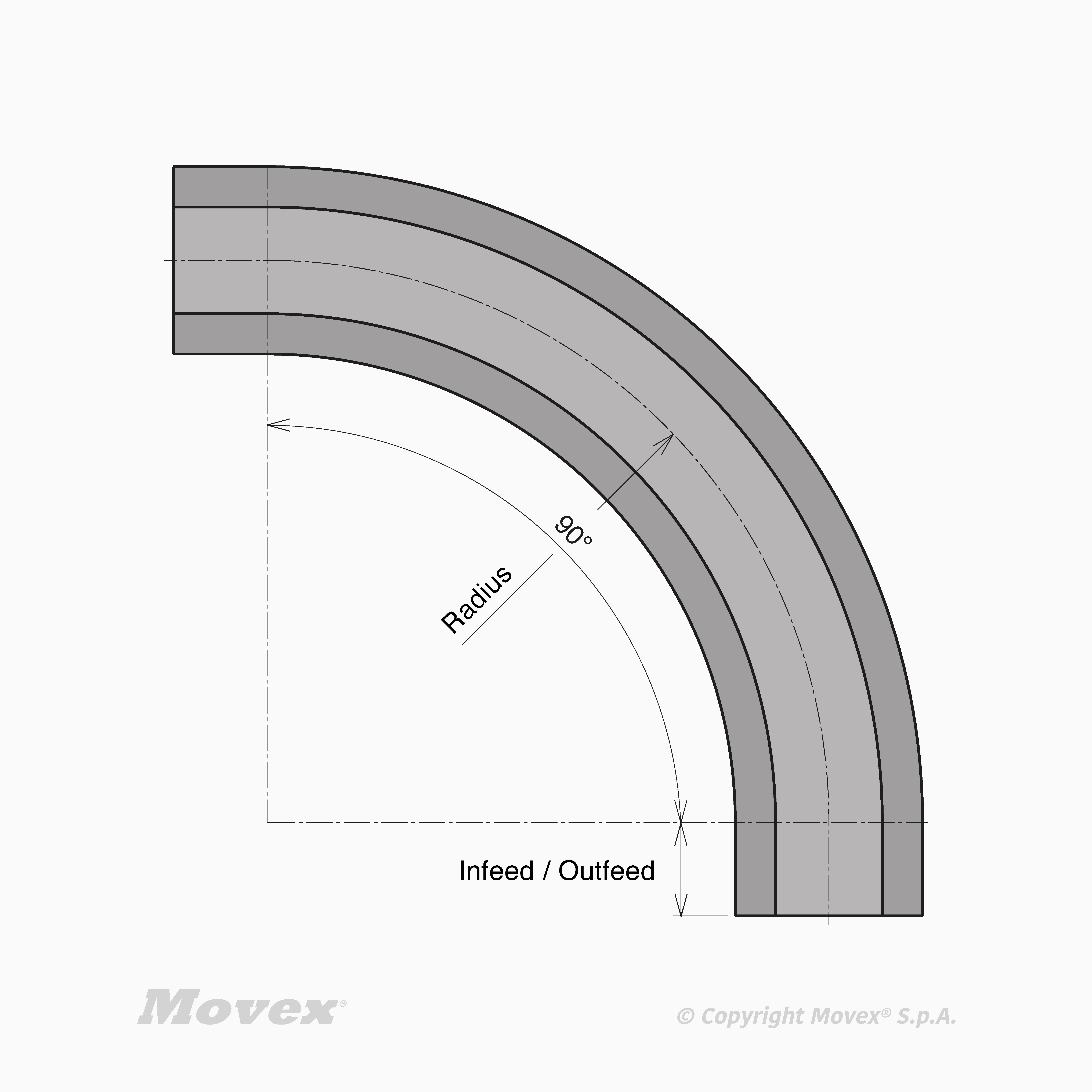

	Chain/Belt Width	Radius	Total Height	Angle	Unit of measure	Tracks	Basic width	Total width	Infeed / Outfeed	Material UP	Material LW	UP Height	LW Height	Shoe	Temperature range dry
Code																Actions
P74220612	K 55 (13,97 mm)	250 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	UHMW-PE Black	UHMW-PE Black	30 mm	30 mm	Not included	-40÷80 °C
P74220612B	K 55 (13,97 mm)	250 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	BluLub	UHMW-PE Black	30 mm	30 mm	Not included	-40÷50 °C
P74220612BB	K 55 (13,97 mm)	250 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	BluLub	BluLub	30 mm	30 mm	Not included	-40÷50 °C
P74220612C	K 55 (13,97 mm)	250 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	UHMW-PE Abrasive	UHMW-PE Black	30 mm	30 mm	Not included	-40÷80 °C
P74220612CC	K 55 (13,97 mm)	250 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	UHMW-PE Abrasive	UHMW-PE Abrasive	30 mm	30 mm	Not included	-40÷80 °C
P74221612	K 55 (13,97 mm)	500 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	UHMW-PE Black	UHMW-PE Black	30 mm	30 mm	Not included	-40÷80 °C
P74221612B	K 55 (13,97 mm)	500 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	BluLub	UHMW-PE Black	30 mm	30 mm	Not included	-40÷50 °C
P74221612BB	K 55 (13,97 mm)	500 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	BluLub	BluLub	30 mm	30 mm	Not included	-40÷50 °C
P74221612C	K 55 (13,97 mm)	500 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	UHMW-PE Abrasive	UHMW-PE Black	30 mm	30 mm	Not included	-40÷80 °C
P74221612CC	K 55 (13,97 mm)	500 mm	60 mm	90°	Ea	1	100 mm	100 mm	50	UHMW-PE Abrasive	UHMW-PE Abrasive	30 mm	30 mm	Not included	-40÷80 °C
