CFGY
Lift-off hinges
For profiles, SUPER-Technopolymer

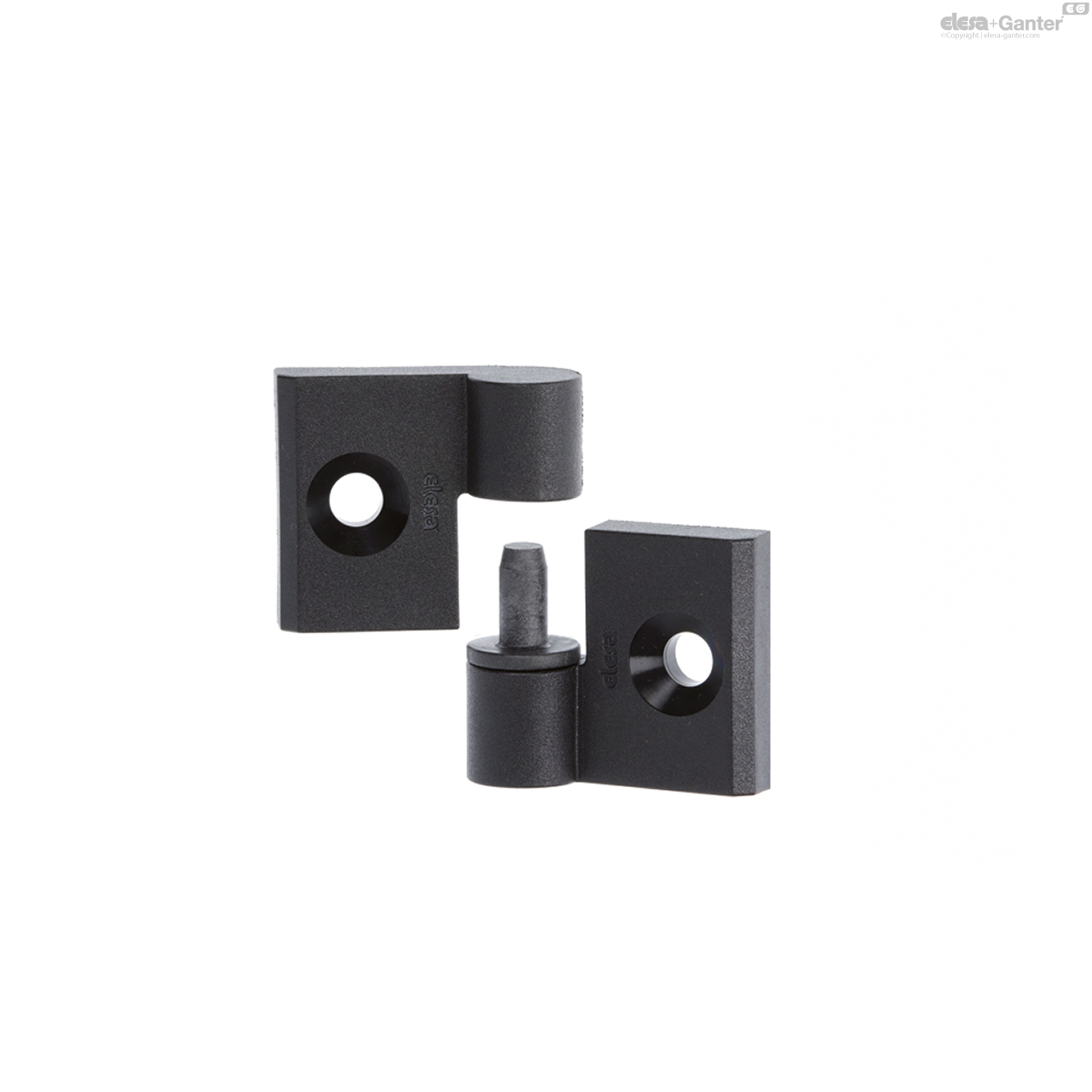

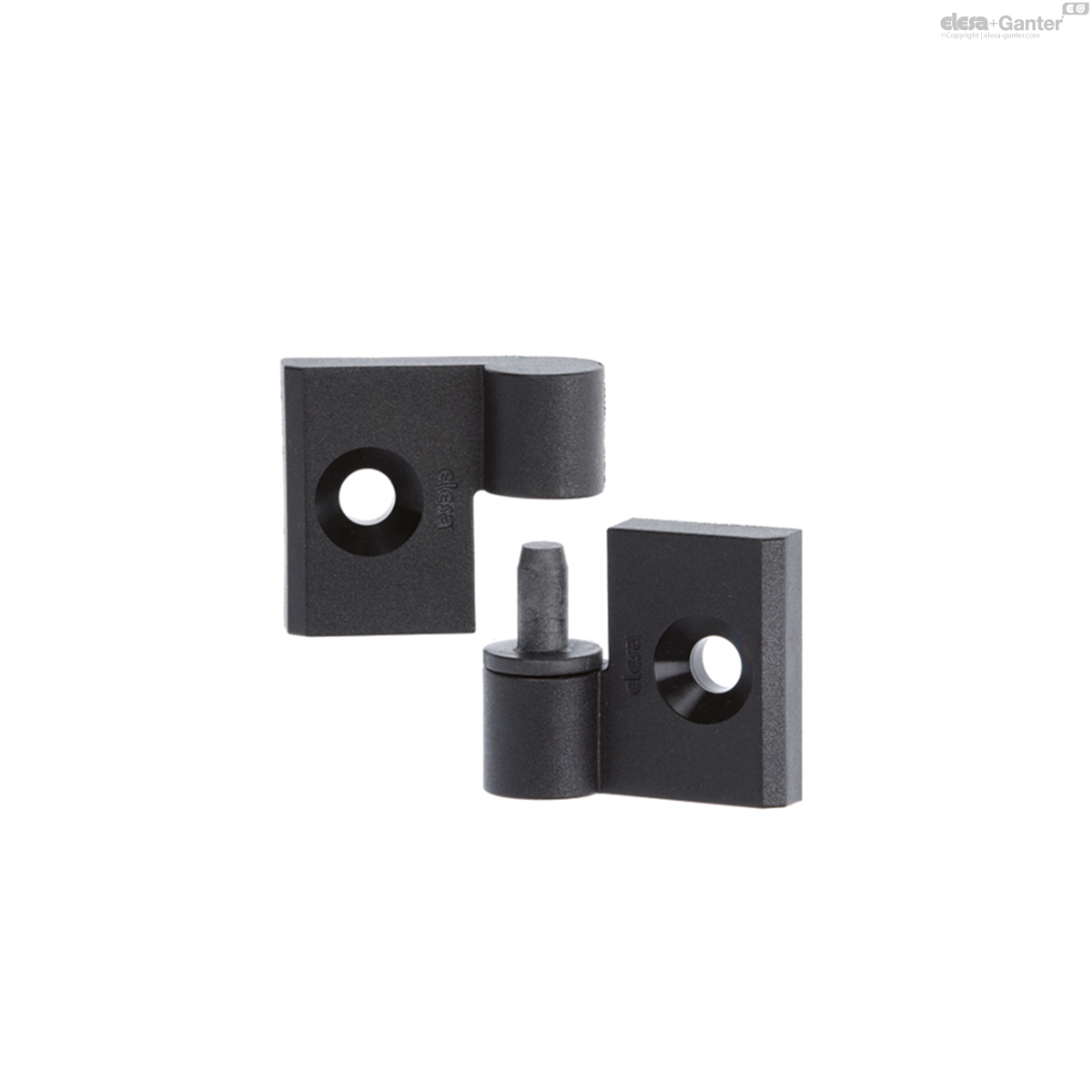

CFGY-D
Lift-off hinges
Pin fixed to the right body

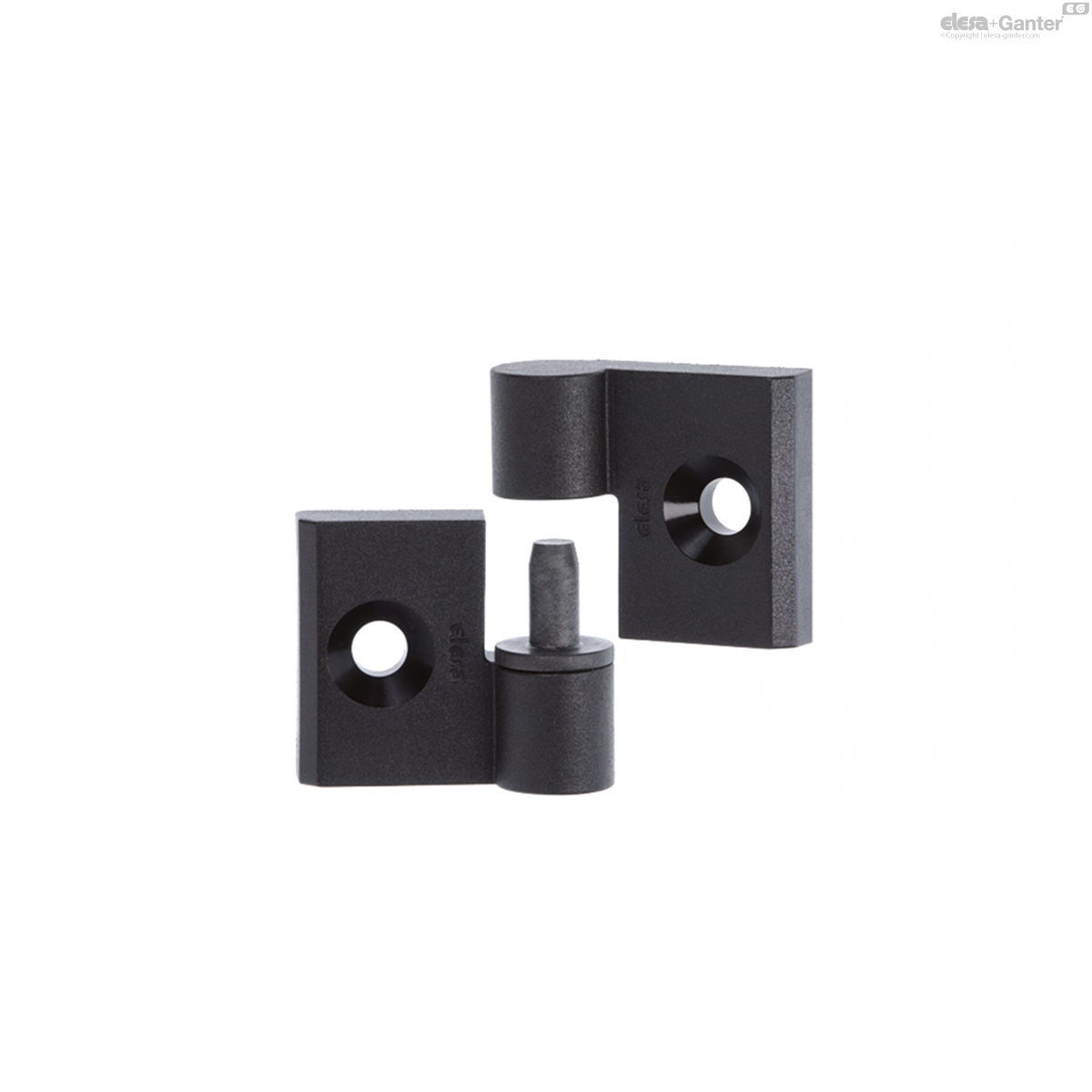

CFGY-S
Lift-off hinges
Pin fixed to the left body
Description
Main specifications
Material

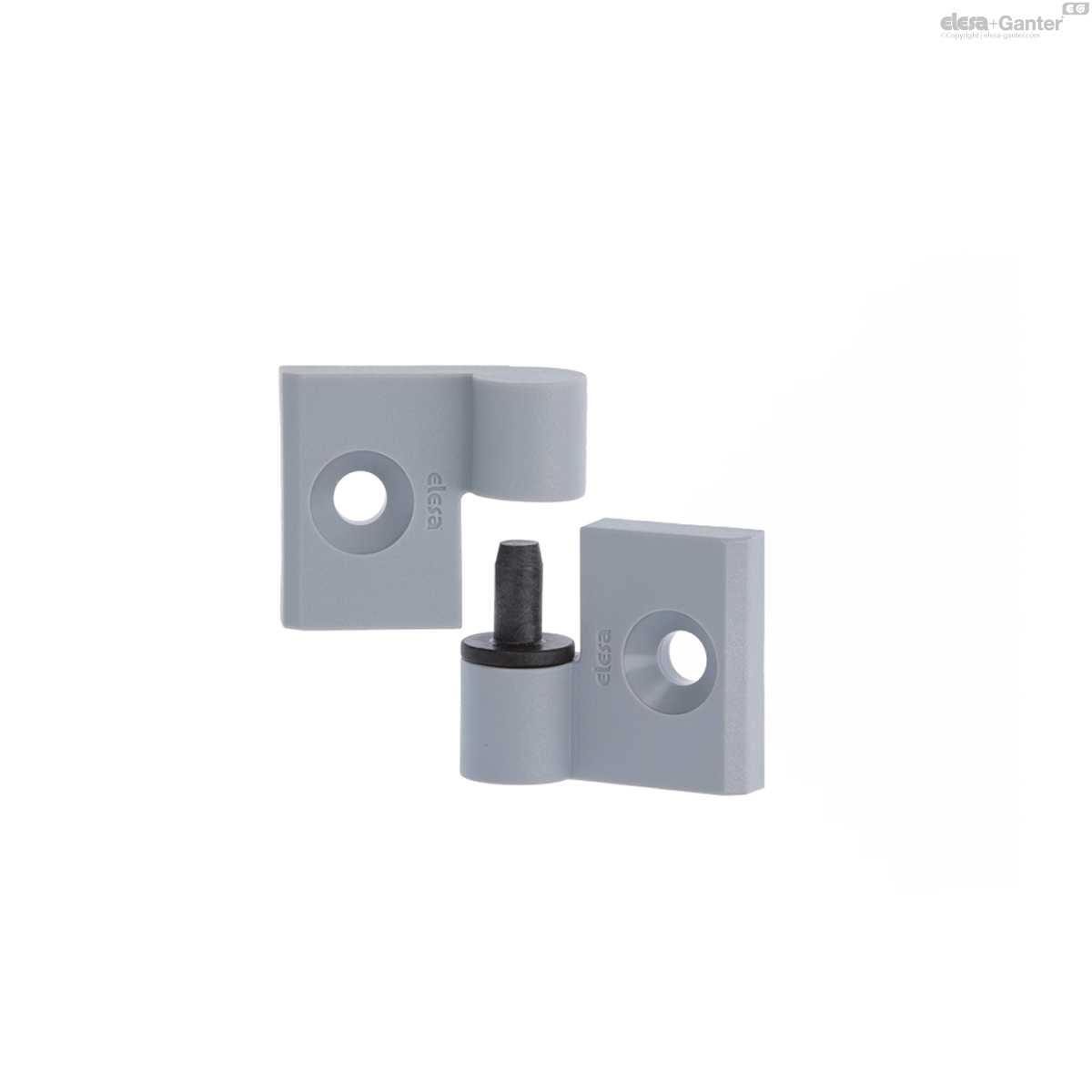

Glass-fibre reinforced polyamide (PA) SUPER-technopolymer, black or grey colour RAL 7040 (C33), matte finish.
Rotating pin
Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour.
Standard execution
Pass-through holes for M6 countersunk head screws.

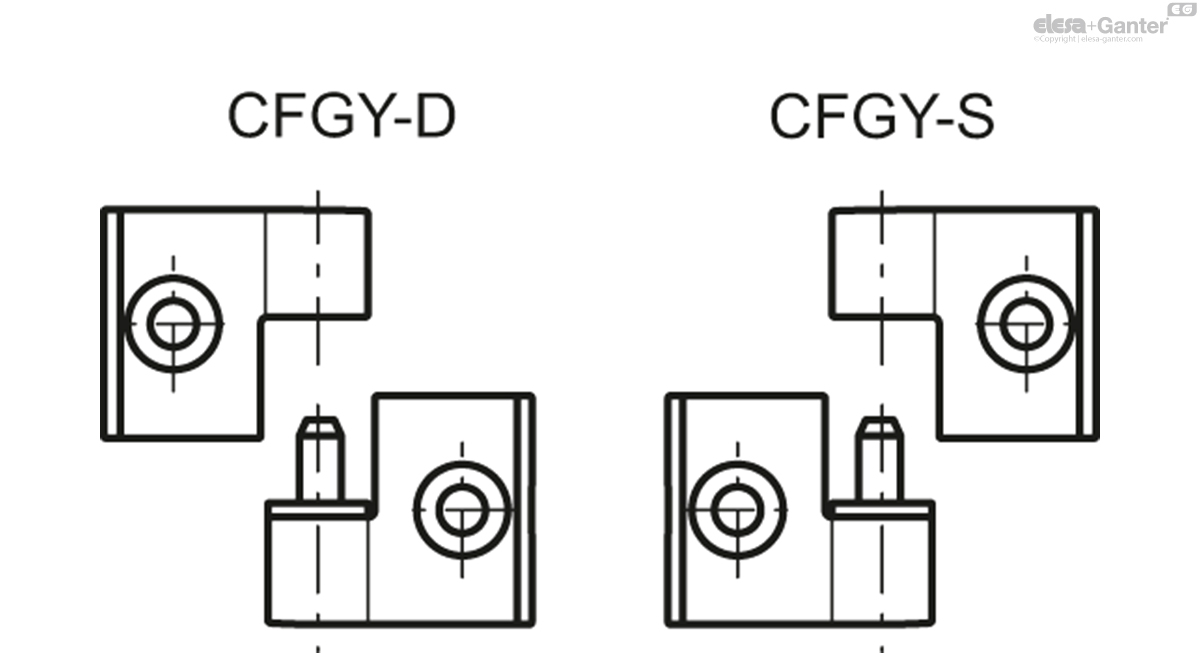

- CFGY-D:Â rotation pin fitted on the right hinge body.
- CFGY-S:Â rotation pin fitted on the left hinge body.
 General information
Features and applications

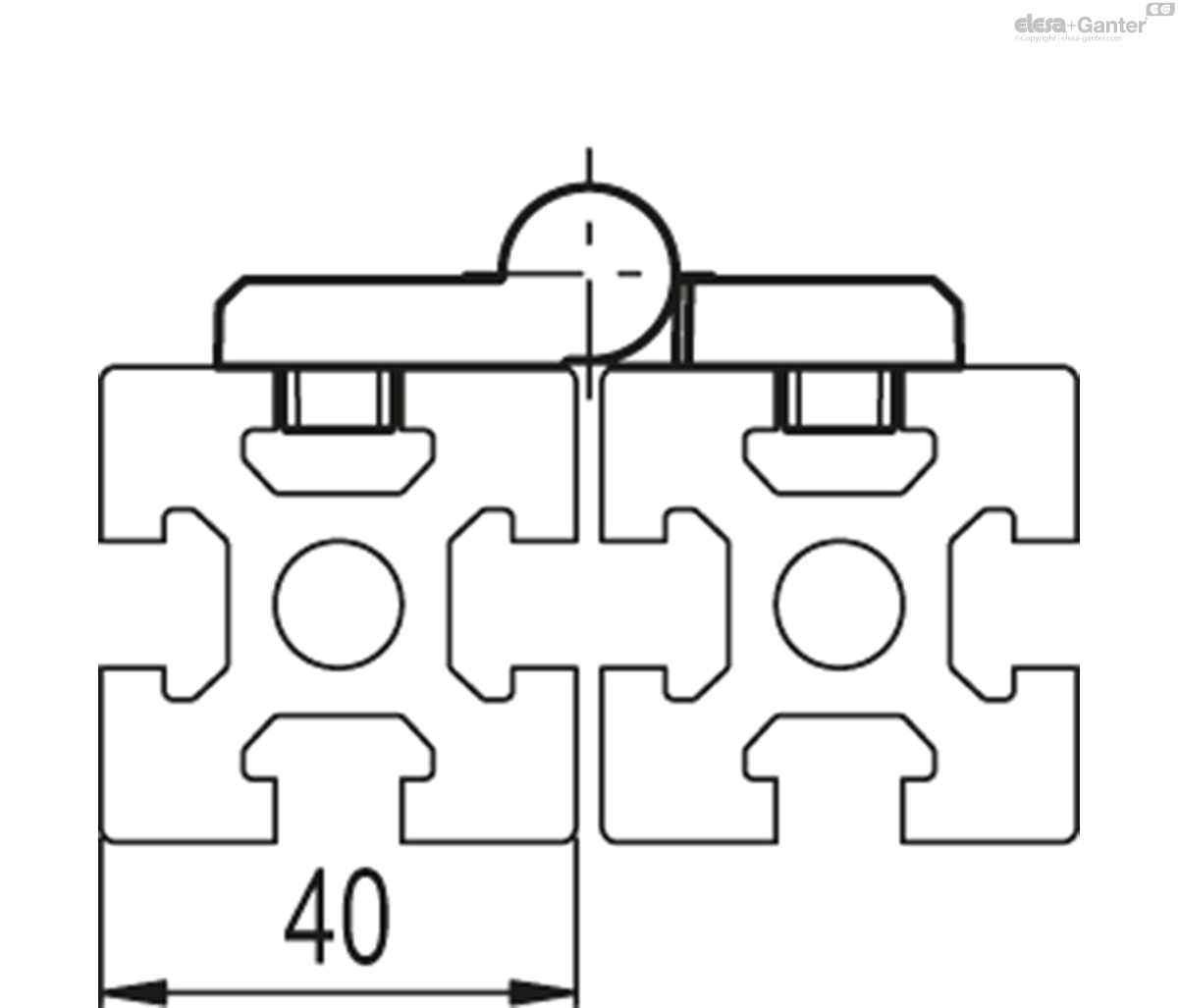

This type of hinge can be used with profiles of 40 mm, with slot dimensions from 8 to 10 mm.

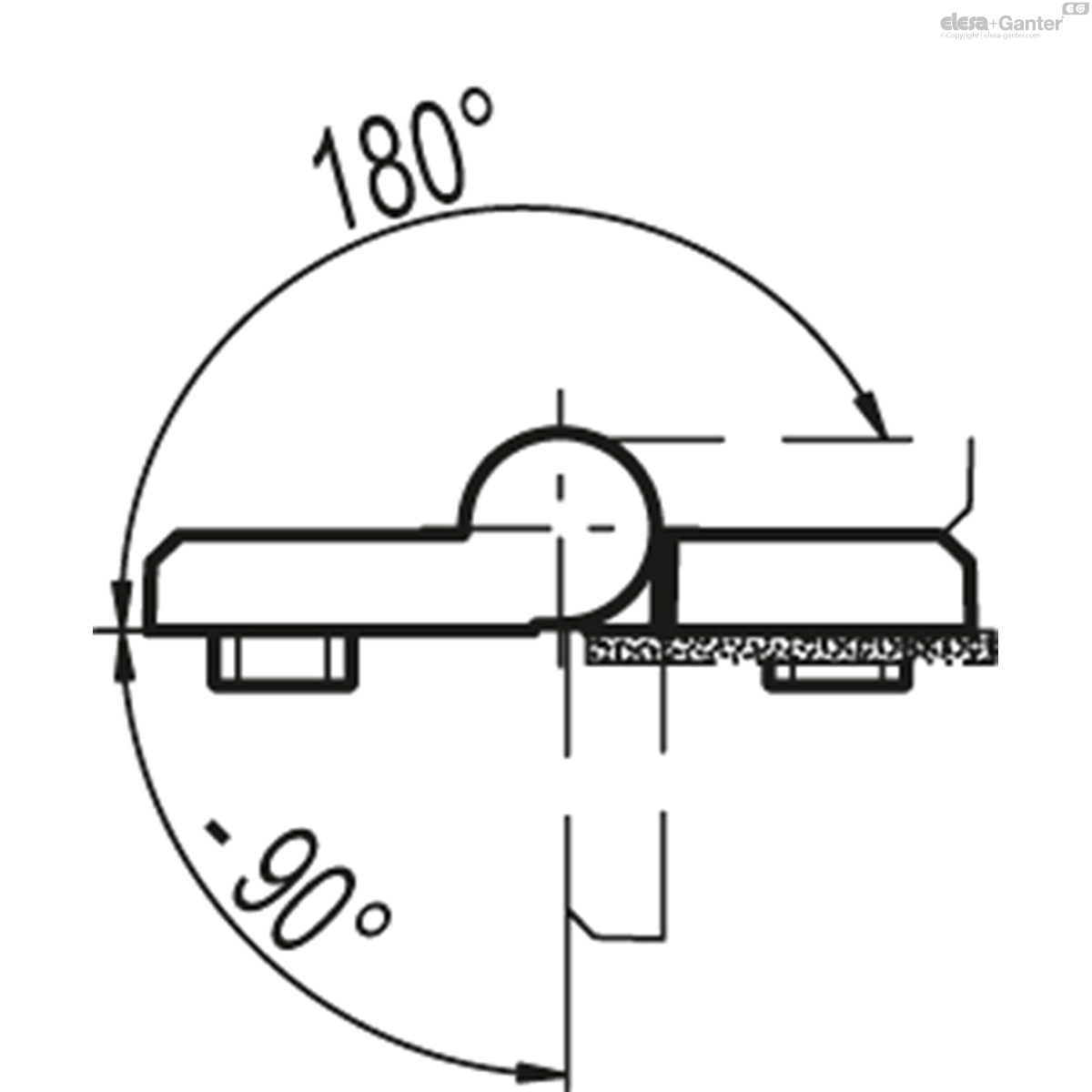

Rotation angle (approximate value)
Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
To choose the convenient type and the right number of hinges for your application, see the Guidelines.

 | Resistance tests | AXIAL STRESS | RADIAL STRESS | 90° ANGLED STRESS | |||
 |  |  | ||||
| Description | Maximum working load Ea [N] | Load at breakage Ra [N] | Maximum working load Er [N] | Load at breakage Rr [N] | Maximum working load E90 [N] | Load at breakage R90 [N] |
| CFGY.40/40 | 190 | 1020 | 190 | 930 | 170 | 830 |
CFGY-D

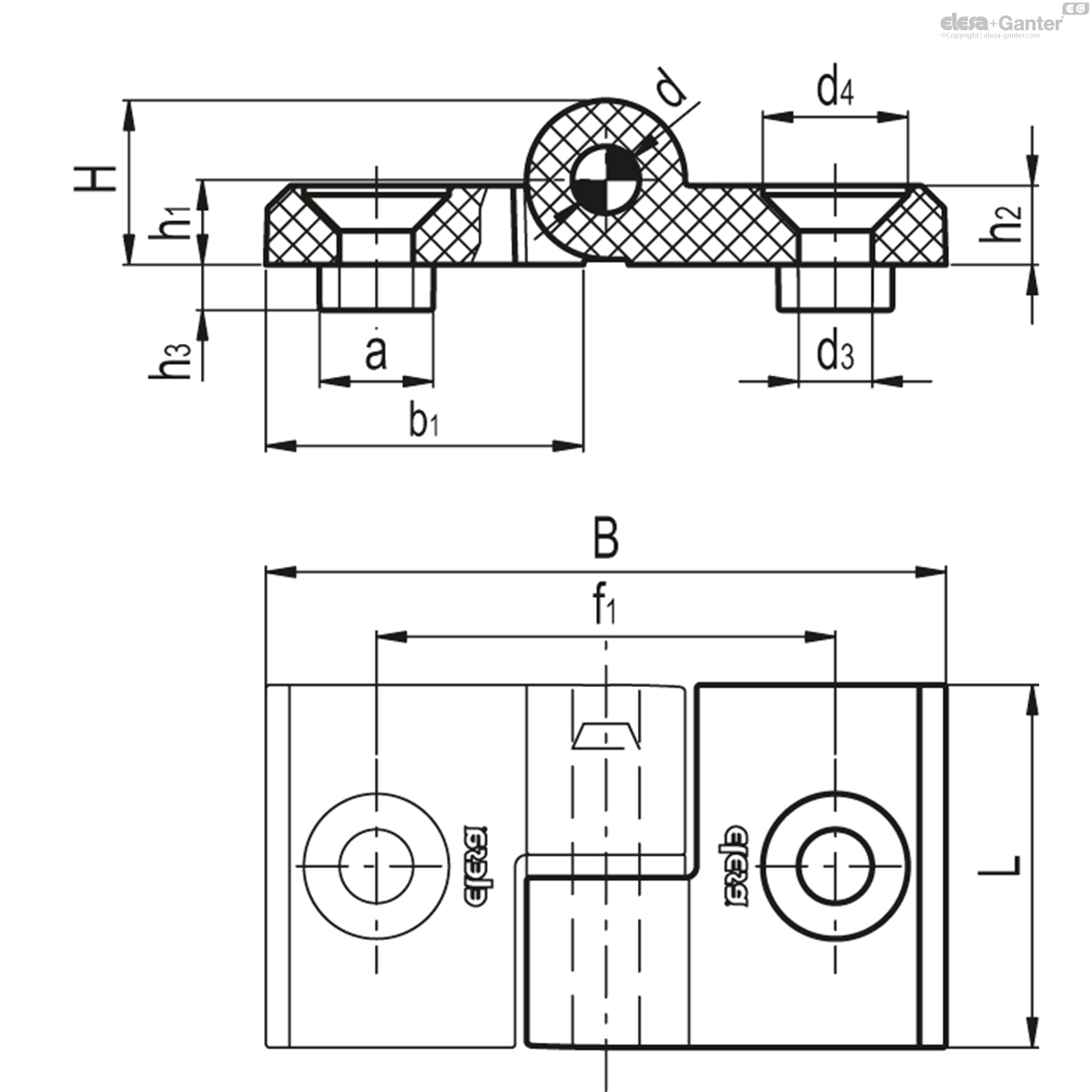

| Color | L | B | f1 ±0.25 | H | h1 | h2 | h3 | a | b1 | d | d3 | d4 | C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||||
| 423981 | CFGY.40/40 SH-6-D-8 | C9 - RAL 9005 | 32 | 60 | 40.5 | 14.5 | 7.5 | 7 | 4 | 8 | 28 | 6 | 6.5 | 12.5 | 5 | 20 |
|
| 423981-C33 | CFGY.40/40 SH-6-D-8-C33 | C33 - RAL 7040 | 32 | 60 | 40.5 | 14.5 | 7.5 | 7 | 4 | 8 | 28 | 6 | 6.5 | 12.5 | 5 | 20 |
|
| 423985 | CFGY.40/40 SH-6-D-10 | C9 - RAL 9005 | 32 | 60 | 40.5 | 14.5 | 7.5 | 7 | 4 | 10 | 28 | 6 | 6.5 | 12.5 | 5 | 20 |
|
| 423985-C33 | CFGY.40/40 SH-6-D-10-C33 | C33 - RAL 7040 | 32 | 60 | 40.5 | 14.5 | 7.5 | 7 | 4 | 10 | 28 | 6 | 6.5 | 12.5 | 5 | 20 |
|
