Home Leveling feet C500 C500 Ø60 Anti-Slip

C500 Ø60 Anti-Slip

C500

Enquire Now

Description

The C500 series is the best choice for industrial environments with critical hygienic level, like dairy, food, chemical and pharmaceutical industries, subjected to daily washing cycles. It offers a complete protection against bacterial proliferation and guarantees reduced washing cycle time as well as self-draining surfaces able to drain external elements easier than traditional systems. The new C500 series with hygienic stainless steel follows actual regulations and is approved by 3A and EHEDG normative. Base, spindle and cover are produced exclusively in AISI 304, with surface finishing lower than 0,8 μm, silicon blue seals are FDA approved and easily detectable by industrial scanner.

Basic features

Design:	Standard
Base material:	Metal
Diameter:	60 mm
Max Load:	0÷9999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

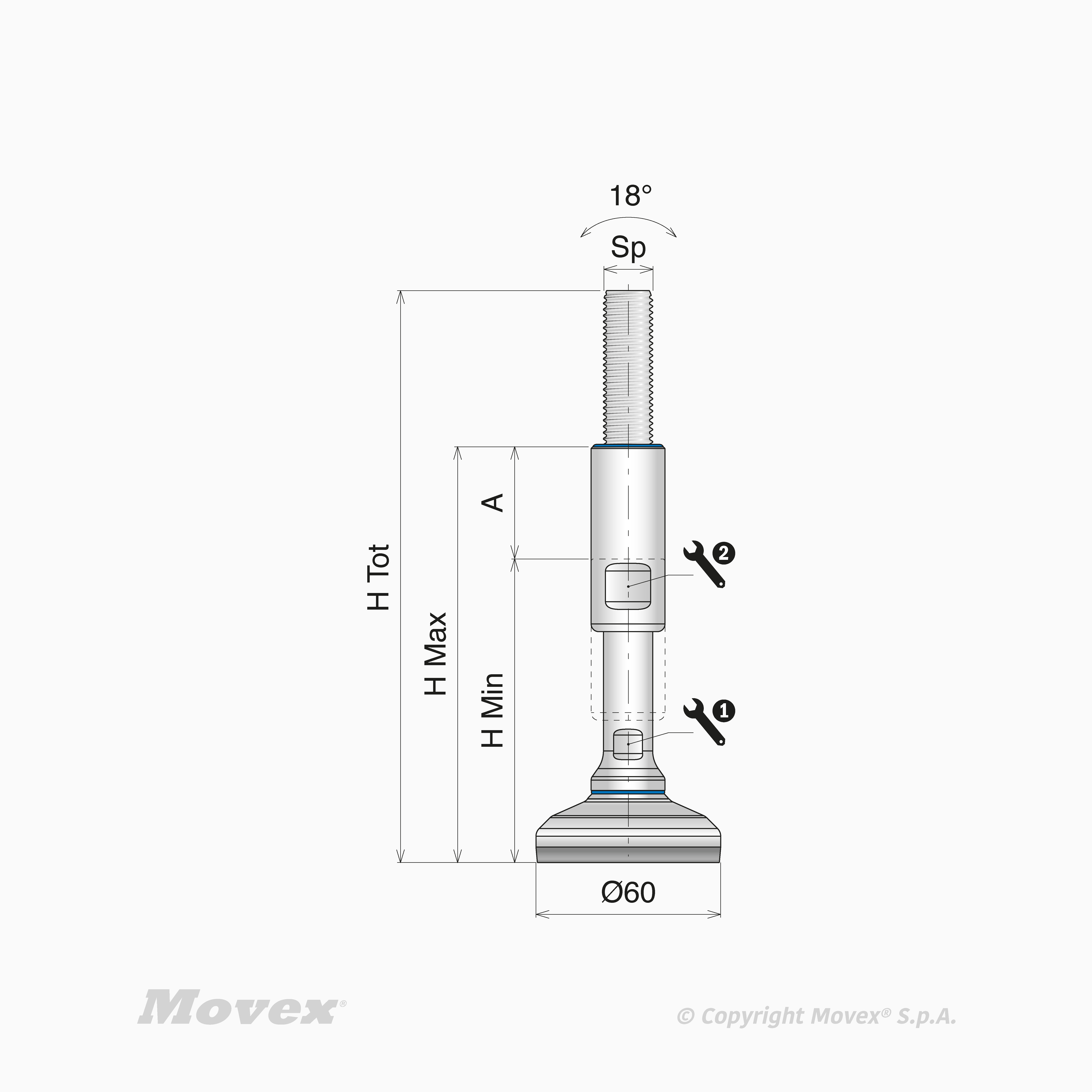

C500 Ø60 Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902823	45 mm	Standard	Stainless steel	M12	185	Standard	105 mm	150 mm	10 mm	17 mm	-25÷100 °C
P902824	65 mm	Standard	Stainless steel	M12	235	Standard	135 mm	200 mm	10 mm	17 mm	-25÷100 °C
P902825	45 mm	Standard	Stainless steel	M16	185	Standard	105 mm	150 mm	13 mm	19 mm	-25÷100 °C
P902826	65 mm	Standard	Stainless steel	M16	235	Standard	135 mm	200 mm	13 mm	19 mm	-25÷100 °C
P902827	45 mm	Standard	Stainless steel	M20	185	Standard	105 mm	150 mm	17 mm	24 mm	-25÷100 °C
P902828	65 mm	Standard	Stainless steel	M20	235	Standard	135 mm	200 mm	17 mm	24 mm	-25÷100 °C
P902829	45 mm	Standard	Stainless steel	M24	185	Standard	105 mm	150 mm	19 mm	30 mm	-25÷100 °C
P902830	65 mm	Standard	Stainless steel	M24	235	Standard	135 mm	200 mm	19 mm	30 mm	-25÷100 °C
P902831	45 mm	Standard	Stainless steel	M30	185	Standard	105 mm	150 mm	24 mm	36 mm	-25÷100 °C
P902832	65 mm	Standard	Stainless steel	M30	235	Standard	135 mm	200 mm	24 mm	36 mm	-25÷100 °C
P902833	65 mm	Standard	Stainless steel	M30	295	Standard	195 mm	260 mm	24 mm	36 mm	-25÷100 °C
P902834	45 mm	Standard	Stainless steel	M36	185	Standard	105 mm	150 mm	30 mm	42 mm	-25÷100 °C
P902835	65 mm	Standard	Stainless steel	M36	235	Standard	135 mm	200 mm	30 mm	42 mm	-25÷100 °C
P902836	65 mm	Standard	Stainless steel	M36	295	Standard	195 mm	260 mm	30 mm	42 mm	-25÷100 °C
