Certified hygienic nut
Fasteners & Tools
Description
Description
Hygienic nut made of AISI 304 stainless steel, ensuring excellent corrosion resistance and long-lasting performance in demanding environments.
Equipped with a blue seal for hermetic closure, it guarantees a secure, leak-proof connection suitable for hygienic applications.
Basic features
| Series: | Hygienic Nut |
|---|---|
| Unit of measure: | Ea |
Certified hygienic nut

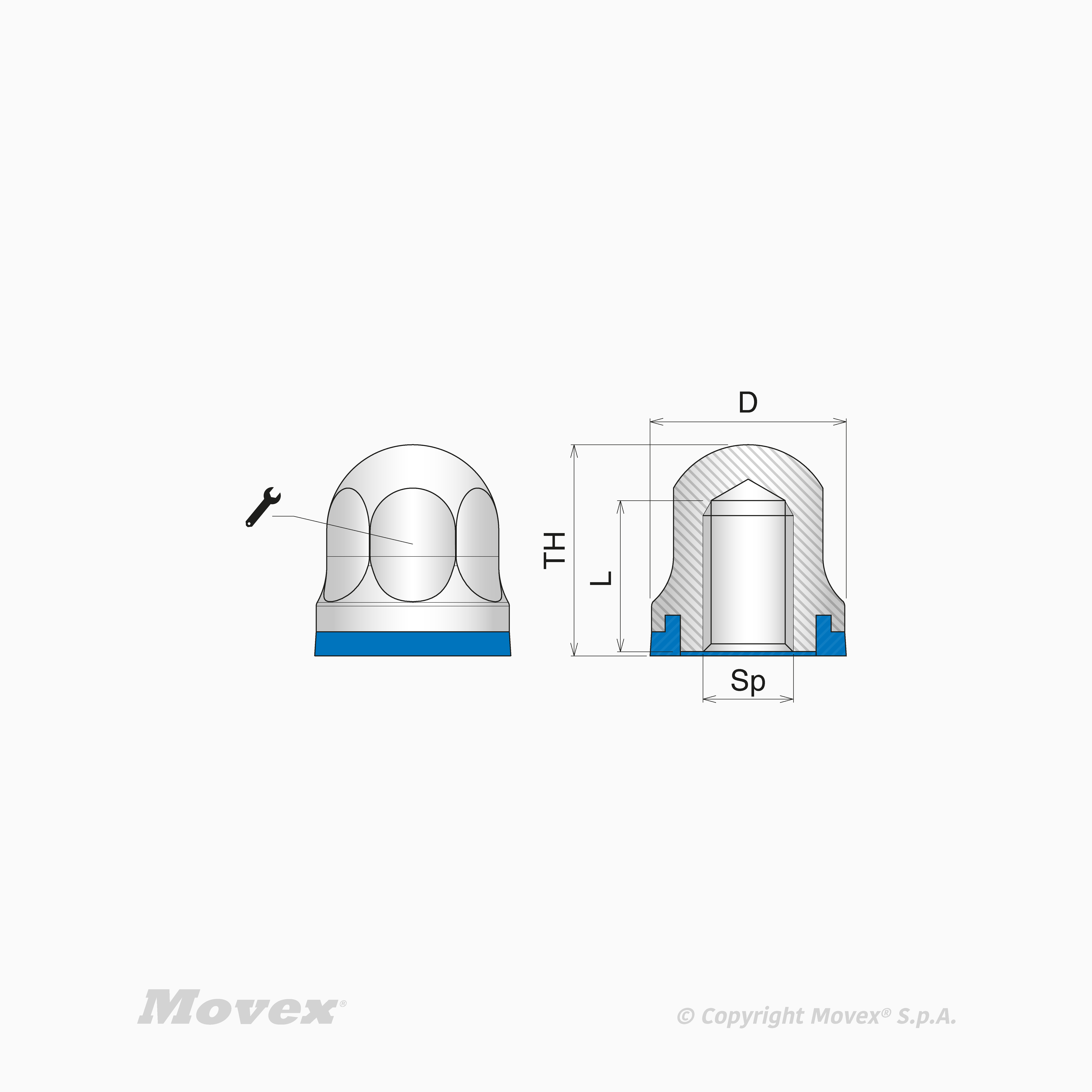

| Part | Box | Material | Sp | D | L | Th | Key slot | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| P903235 | P903 | 10 | AISI 304 | M6 | 13 mm | 10 mm | 14 mm | 10 | -30÷400 °C | -30÷130 °C |
|
| P903236 | P903 | 10 | AISI 304 | M8 | 16 mm | 12 mm | 17 mm | 13 | -30÷400 °C | -30÷130 °C |
|
| P903237 | P903 | 10 | AISI 304 | M10 | 20 mm | 15 mm | 20.5 mm | 16 | -30÷400 °C | -30÷130 °C |
|
| P903238 | P903 | 10 | AISI 304 | M12 | 24.5 mm | 18 mm | 25 mm | 18 | -30÷400 °C | -30÷130 °C |
|
| P903239 | P903 | 10 | AISI 304 | M16 | 32 mm | 23 mm | 32 mm | 24 | -30÷400 °C | -30÷130 °C |
|
| P903240 | P903 | 10 | AISI 304 | M20 | 39 mm | 27 mm | 38 mm | 30 | -30÷400 °C | -30÷130 °C |
|
