Home Clamping Knobs Knurled knobs B.259

B.259

Knurled knobs

Duroplast

__logo__ELE_OD__

__logo__RoHS__

__logo__PF__

__logo__g11020__

Enquire Now

product image

Brass boss, threaded hole

product image

Zinc-plated steel threaded stud

Description

Main specifications

Material

Phenolic based (PF) Duroplast. Black, glossy finish.

Standard executions

B.259-B: brass boss, threaded blind hole.

B.259-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

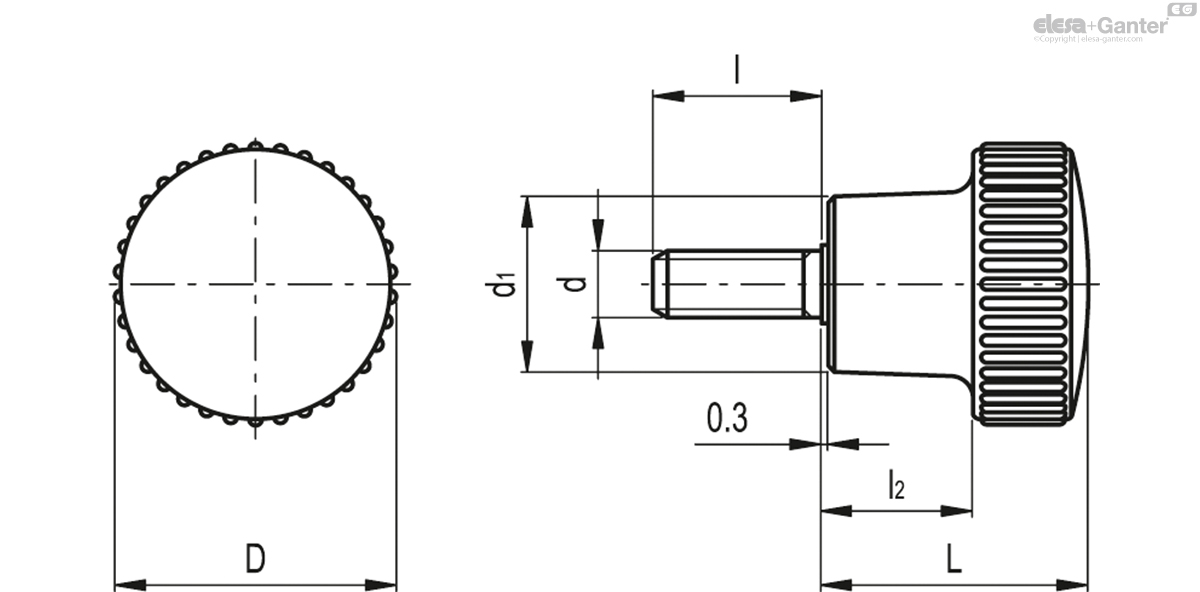

B.259-p

		D	d_6g	L	d₁	l	l₂
Code	Description								Actions
3011	B.259/20 p-M6x16	21	M6	25	13	16	12	14
3121	B.259/25 p-M8x20	26	M8	28	16	20	15	26
3211	B.259/30 p-M8x25	31	M8	32	19	25	17	36
