880 M Flat Top
Plastic chains
Description
Basic features
| Series: | 820-828-831-878-879-880-888 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex MAGNETIC |
| Unit of measure: | Meter |

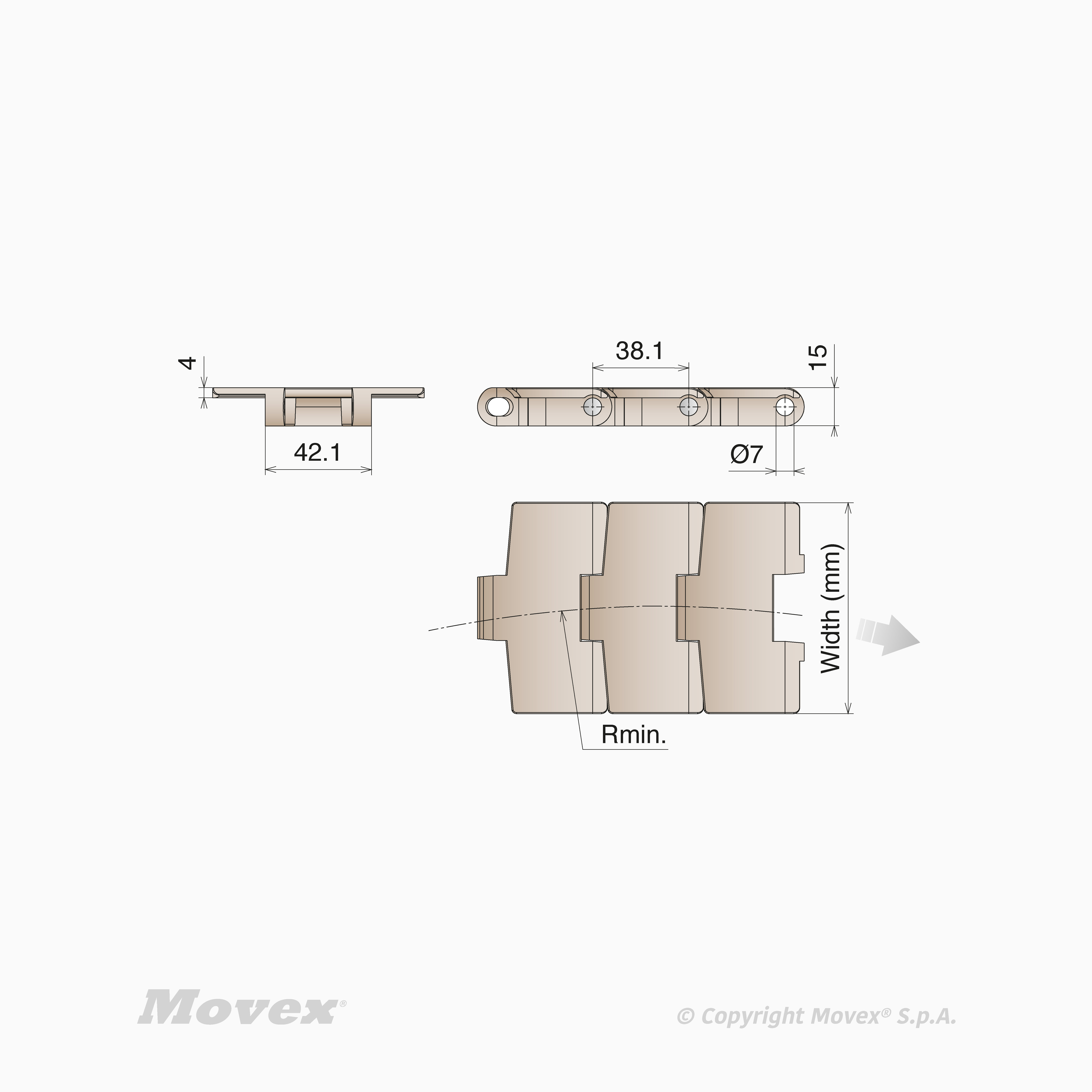

880 M Flat Top
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P11100102 | K 325 - 82,5 mm | LF - Low friction acetal (01) | P1110 | 50 mm | 457 mm | 1.05 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11100103 | K 330 - 83,8 mm | LF - Low friction acetal (01) | P1110 | 50 mm | 457 mm | 1.09 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11100105 | K 450 - 114,3 mm | LF - Low friction acetal (01) | P1110 | 50 mm | 457 mm | 1.15 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11100302 | K 325 - 82,5 mm | MX - Performance PBT (03) | P1110 | 50 mm | 457 mm | 1.05 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1750 N |
|
| P11100303 | K 330 - 83,8 mm | MX - Performance PBT (03) | P1110 | 50 mm | 457 mm | 1.09 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1750 N |
|
| P11100305 | K 450 - 114,3 mm | MX - Performance PBT (03) | P1110 | 50 mm | 457 mm | 1.15 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1750 N |
|
| P11101702 | K 325 - 82,5 mm | MWX - Polyamide Composite (17) | P1110 | 50 mm | 457 mm | 1.05 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11101703 | K 330 - 83,8 mm | MWX - Polyamide Composite (17) | P1110 | 50 mm | 457 mm | 1.09 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11101705 | K 450 - 114,3 mm | MWX - Polyamide Composite (17) | P1110 | 50 mm | 457 mm | 1.15 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11102502 | K 325 - 82,5 mm | MPX - Lubricated acetal (25) | P1110 | 50 mm | 457 mm | 1.05 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11102503 | K 330 - 83,8 mm | MPX - Lubricated acetal (25) | P1110 | 50 mm | 457 mm | 1.09 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11102505 | K 450 - 114,3 mm | MPX - Lubricated acetal (25) | P1110 | 50 mm | 457 mm | 1.15 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 2200 N |
|
| P11103002 | K 325 - 82,5 mm | PFX - Extra Performance PBT (30) | P1110 | 50 mm | 457 mm | 1.05 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1750 N |
|
| P11103003 | K 330 - 83,8 mm | PFX - Extra Performance PBT (30) | P1110 | 50 mm | 457 mm | 1.09 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1750 N |
|
| P11103005 | K 450 - 114,3 mm | PFX - Extra Performance PBT (30) | P1110 | 50 mm | 457 mm | 1.15 kg/m | Ferritic Stainless Steel | 10 ft - 3,048 m | 1750 N |
|
