815 split machined idler wheel

Idler wheels

Enquire Now

Description

Not suitable for TAB chain versions

Basic features

Series:	815-881M-820-831-828-879M-880-880M
Pitch:	38.1 mm
Unit of measure:	Ea

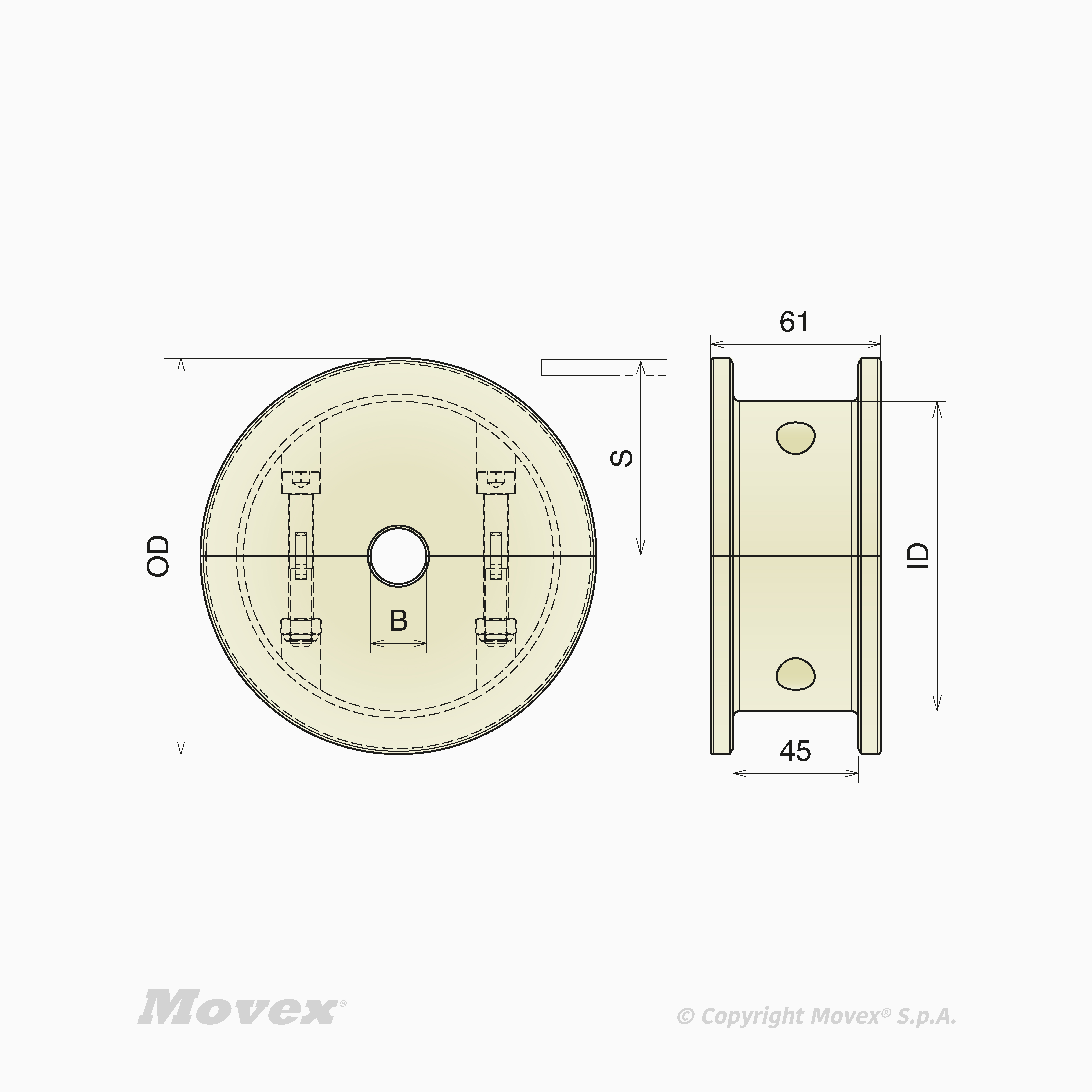

815 split machined idler wheel

	Z-	Bore	Version	Box	Type	Execution	Outer diameter	Inner diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions
P60100	17	○ 20 mm	Idler wheel	2	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60101	17	○ 25 mm	Idler wheel	2	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60102	17	○ 30 mm	Idler wheel	2	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60103	17	○ 35 mm	Idler wheel	2	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60104	17	○ 40 mm	Idler wheel	2	Split	Machined	104 mm	76.2 mm	56.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60200	19	○ 20 mm	Idler wheel	2	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60201	19	○ 25 mm	Idler wheel	2	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60202	19	○ 30 mm	Idler wheel	2	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60203	19	○ 35 mm	Idler wheel	2	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60204	19	○ 40 mm	Idler wheel	2	Split	Machined	117 mm	92.2 mm	62.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60300	21	○ 20 mm	Idler wheel	2	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60301	21	○ 25 mm	Idler wheel	2	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60302	21	○ 30 mm	Idler wheel	2	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60303	21	○ 35 mm	Idler wheel	2	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60304	21	○ 40 mm	Idler wheel	2	Split	Machined	129.8 mm	105 mm	68.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60400	23	○ 20 mm	Idler wheel	2	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60401	23	○ 25 mm	Idler wheel	2	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60402	23	○ 30 mm	Idler wheel	2	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60403	23	○ 35 mm	Idler wheel	2	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60404	23	○ 40 mm	Idler wheel	2	Split	Machined	142.2 mm	111.3 mm	74.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60500	25	○ 20 mm	Idler wheel	2	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60501	25	○ 25 mm	Idler wheel	2	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60502	25	○ 30 mm	Idler wheel	2	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60503	25	○ 35 mm	Idler wheel	2	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60504	25	○ 40 mm	Idler wheel	2	Split	Machined	154.7 mm	124.7 mm	80.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60600	27	○ 20 mm	Idler wheel	2	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60601	27	○ 25 mm	Idler wheel	2	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60602	27	○ 30 mm	Idler wheel	2	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60603	27	○ 35 mm	Idler wheel	2	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60604	27	○ 40 mm	Idler wheel	2	Split	Machined	167.2 mm	135 mm	88.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60700	29	○ 20 mm	Idler wheel	2	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60701	29	○ 25 mm	Idler wheel	2	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60702	29	○ 30 mm	Idler wheel	2	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60703	29	○ 35 mm	Idler wheel	2	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P60704	29	○ 40 mm	Idler wheel	2	Split	Machined	179.3 mm	140 mm	92.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
