815 split molded idler wheel
Idler wheels
Description
Description
Not suitable for TAB chain versions
Basic features
| Series: | 815-881M-820-831-828-879M-880-880M |
|---|---|
| Pitch: | 38.1 mm |
| Unit of measure: | Ea |

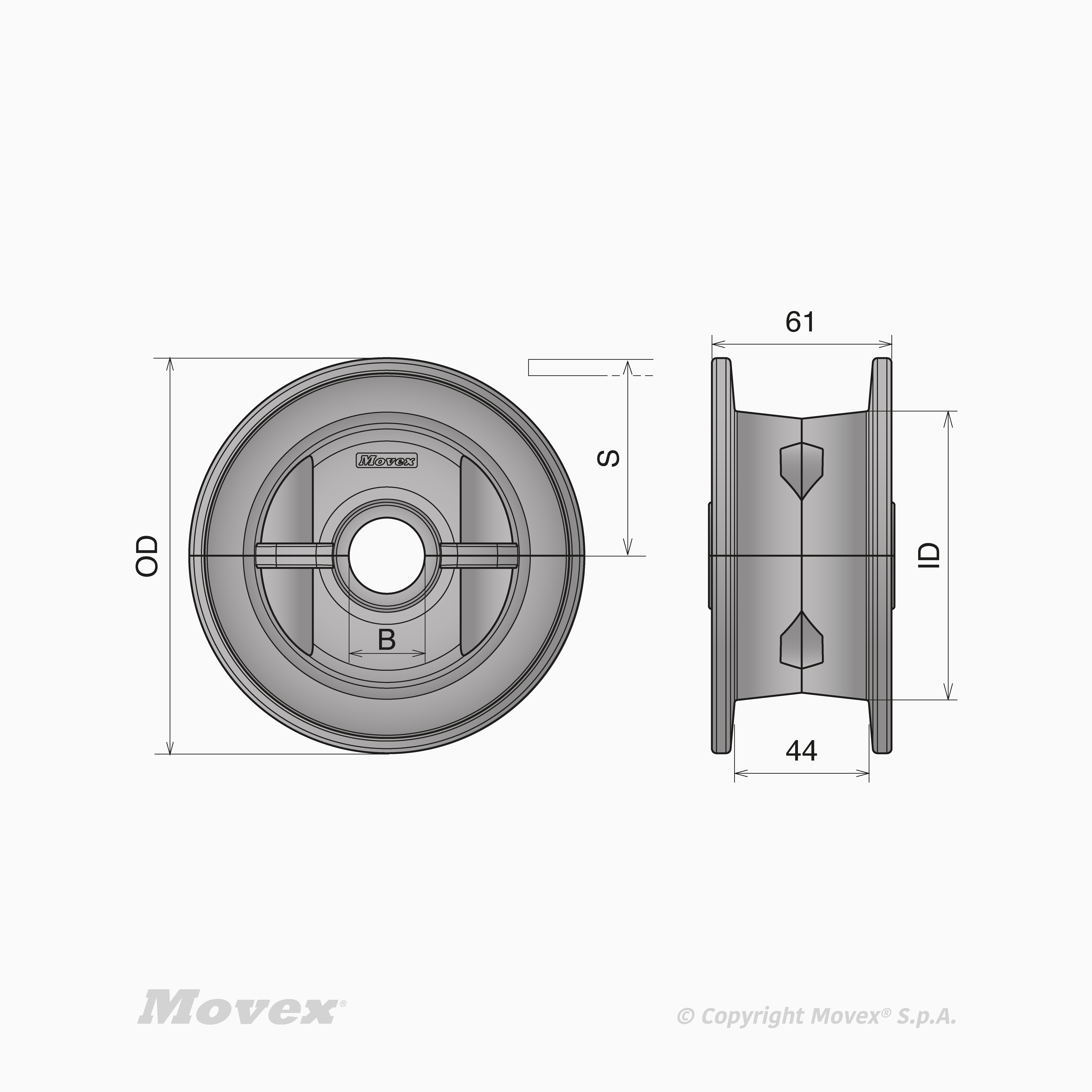

815 split molded idler wheel
| Z- | Bore |
Version | Box | Type | Execution | Outer diameter | Inner diameter | S dimension | Material | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P60801 | 21 | ○ 25 mm | Idler wheel | 2 | Split | Molded | 129.8 mm | 94.8 mm | 68.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60802 | 21 | ○ 30 mm | Idler wheel | 2 | Split | Molded | 129.8 mm | 94.8 mm | 68.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60803 | 21 | ○ 35 mm | Idler wheel | 2 | Split | Molded | 129.8 mm | 94.8 mm | 68.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60804 | 21 | ○ 40 mm | Idler wheel | 2 | Split | Molded | 129.8 mm | 94.8 mm | 68.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60901 | 23 | ○ 25 mm | Idler wheel | 2 | Split | Molded | 142.2 mm | 99.3 mm | 74.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60902 | 23 | ○ 30 mm | Idler wheel | 2 | Split | Molded | 142.2 mm | 99.3 mm | 74.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60903 | 23 | ○ 35 mm | Idler wheel | 2 | Split | Molded | 142.2 mm | 99.3 mm | 74.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P60904 | 23 | ○ 40 mm | Idler wheel | 2 | Split | Molded | 142.2 mm | 99.3 mm | 74.6 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P61001 | 25 | ○ 25 mm | Idler wheel | 2 | Split | Molded | 154.7 mm | 102 mm | 80.5 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P61002 | 25 | ○ 30 mm | Idler wheel | 2 | Split | Molded | 154.7 mm | 102 mm | 80.5 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P61003 | 25 | ○ 35 mm | Idler wheel | 2 | Split | Molded | 154.7 mm | 102 mm | 80.5 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
| P61004 | 25 | ○ 40 mm | Idler wheel | 2 | Split | Molded | 154.7 mm | 102 mm | 80.5 mm | PA - Polyamide reinforced | -20÷120 °C | -20÷120 °C |
|
