831 Flat Top
Plastic chains
Description
Basic features
| Series: | 820-828-831-878-879-880-888 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4.8 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

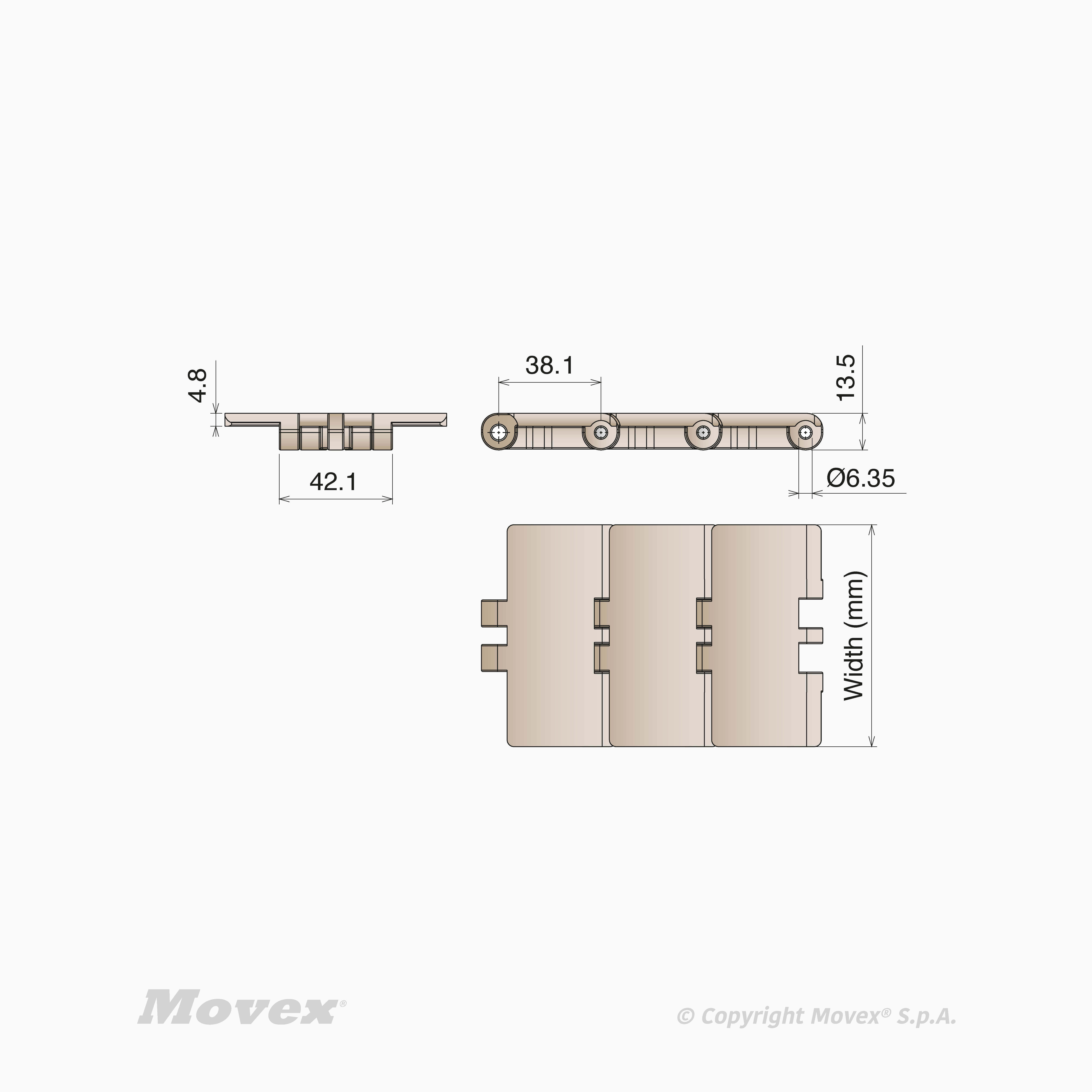

831 Flat Top
| Width | Material | Part | Back flex radius | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P11030102 | K 325 - 82,5 mm | LF - Low friction acetal (01) | P1103 | 50 mm | 1 kg/m | Stainless steel | 10 ft - 3,048 m | 1625 N |
|
| P11030105 | K 450 - 114,3 mm | LF - Low friction acetal (01) | P1103 | 50 mm | 1.28 kg/m | Stainless steel | 10 ft - 3,048 m | 1625 N |
|
| P11030107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1103 | 50 mm | 1.8 kg/m | Stainless steel | 10 ft - 3,048 m | 1625 N |
|
| P11030302 | K 325 - 82,5 mm | MX - Performance PBT (03) | P1103 | 50 mm | 1 kg/m | Stainless steel | 10 ft - 3,048 m | 1260 N |
|
| P11030305 | K 450 - 114,3 mm | MX - Performance PBT (03) | P1103 | 50 mm | 1.28 kg/m | Stainless steel | 10 ft - 3,048 m | 1260 N |
|
| P11030307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1103 | 50 mm | 1.8 kg/m | Stainless steel | 10 ft - 3,048 m | 1260 N |
|
