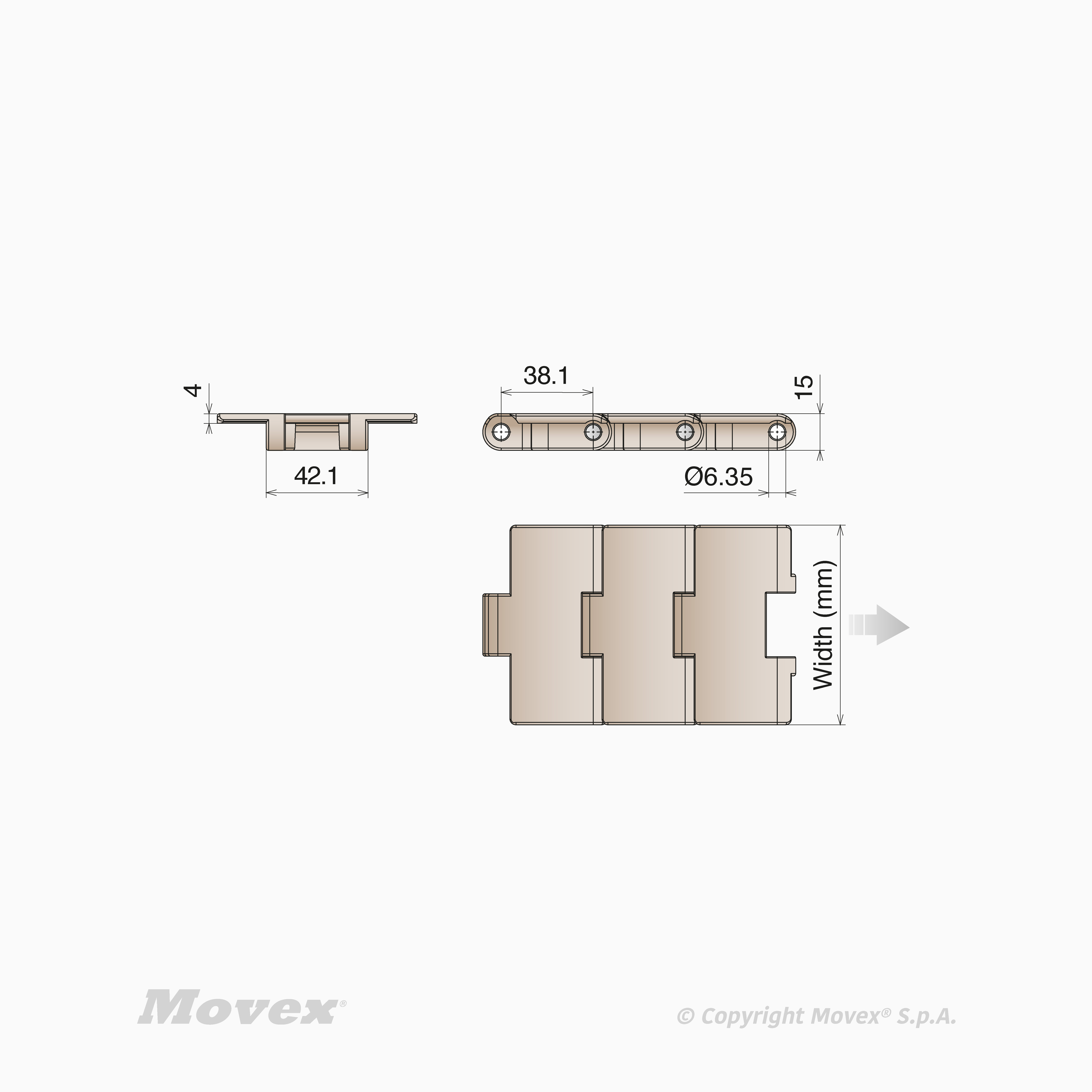

828 Flat Top
Plastic chains
Description
Basic features
| Series: | 820-828-831-878-879-880-888 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
828 Flat Top
| Width | Material | Part | Back flex radius | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P11020102 | K 325 - 82,5 mm | LF - Low friction acetal (01) | P1102 | 50 mm | 1.07 kg/m | Stainless steel | 10 ft - 3,048 m | 2320 N |
|
| P11020103 | K 330 - 83,8 mm | LF - Low friction acetal (01) | P1102 | 50 mm | 1.13 kg/m | Stainless steel | 10 ft - 3,048 m | 2320 N |
|
| P11020302 | K 325 - 82,5 mm | MX - Performance PBT (03) | P1102 | 50 mm | 1.07 kg/m | Stainless steel | 10 ft - 3,048 m | 1860 N |
|
| P11020303 | K 330 - 83,8 mm | MX - Performance PBT (03) | P1102 | 50 mm | 1.13 kg/m | Stainless steel | 10 ft - 3,048 m | 1860 N |
|
| P11022502 | K 325 - 82,5 mm | MPX - Lubricated acetal (25) | P1102 | 50 mm | 1.07 kg/m | Stainless steel | 10 ft - 3,048 m | 2320 N |
|
| P11022503 | K 330 - 83,8 mm | MPX - Lubricated acetal (25) | P1102 | 50 mm | 1.13 kg/m | Stainless steel | 10 ft - 3,048 m | 2320 N |
|
| P11023002 | K 325 - 82,5 mm | PFX - Extra Performance PBT (30) | P1102 | 50 mm | 1.07 kg/m | Stainless steel | 10 ft - 3,048 m | 1860 N |
|
| P11023003 | K 330 - 83,8 mm | PFX - Extra Performance PBT (30) | P1102 | 50 mm | 1.13 kg/m | Stainless steel | 10 ft - 3,048 m | 1860 N |
|
