7870 Flat Top (previous 510)
Modular Belts
Description
Description
Movex 7870 micropitch series (previous 510 series) is ideal for tight and short transfers, expecially for small products.
*Belts wider than standard are available with 3 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -2 mm to 1 mm, and for those wider, from -0.35% to 0%.
Non-Standard belt widths are incremented by 25.4 mm (1”). The minimum width is 50.8 mm (2.0”).

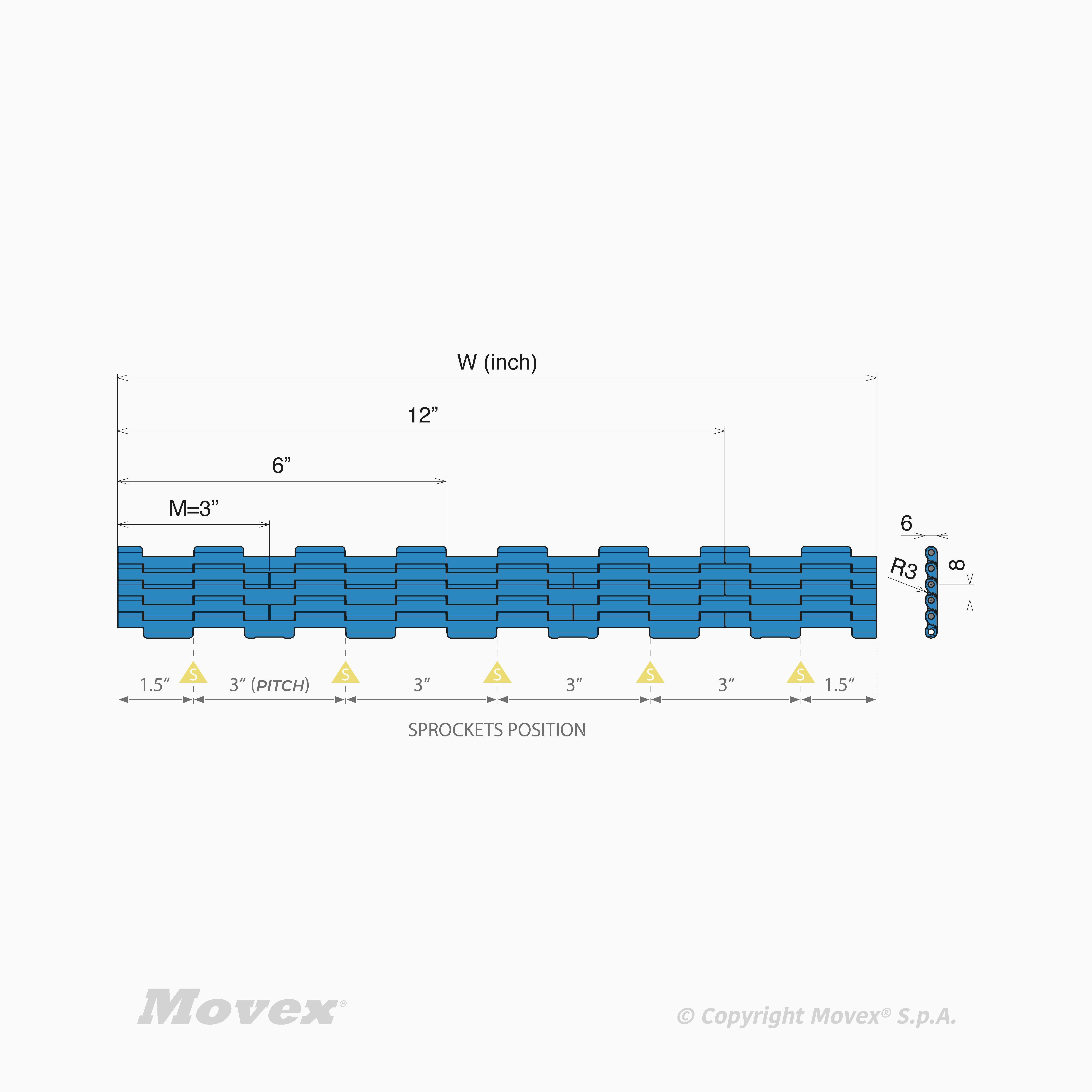

Basic features
| Series: | 7870 |
|---|---|
| Pitch: | 8 mm |
| Thickness: | 6 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Ea (Part F7870) |
7870 Flat Top (previous 510)
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7870FTLFC0003 | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| F7870FTLFC0006 | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| F7870FTLFC0009 | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| F7870FTLFC0012 | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| F7870FTLFC0015 | 15" (381 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| F7870FTLFC0018 | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| F7870FTLFC0021 | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0024 | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0027 | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0030 | 30" (762 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0033 | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0036 | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0039 | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0042 | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0045 | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0048 | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0051 | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFC0054 | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0003 | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0006 | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0009 | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0012 | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0015 | 15" (381 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0018 | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0021 | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0024 | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0027 | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0030 | 30" (762 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0033 | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0036 | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0039 | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0042 | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0045 | 45" (1143 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0048 | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0051 | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| F7870FTLFW0054 | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PBT White | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| P5331010003A | 3" (76,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm Temporary code, to be created specifically on request |
|
| P5331010006A | 6" (152,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010009A | 9" (228,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010012A | 12" (304,8 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010015A | 15" (381 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010018A | 18" (457,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010021A | 21" (533,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010024A | 24" (609,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010027A | 27" (685,8 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010030A | 30" (762 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010033A | 33" (838,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010036A | 36" (914,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | - |
|
| P5331010039A | 39" (990,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331010042A | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331010045A | 45" (1143 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331010048A | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331010051A | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331010054A | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331030003A | 3" (76,2 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030006A | 6" (152,4 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030009A | 9" (228,6 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030012A | 12" (304,8 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030015A | 15" (381 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030018A | 18" (457,2 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030021A | 21" (533,4 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030024A | 24" (609,6 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030027A | 27" (685,8 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030030A | 30" (762 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030033A | 33" (838,2 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030036A | 36" (914,4 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030039A | 39" (990,6 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030042A | 42" (1066,8 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030045A | 45" (1143 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331030048A | 48" (1219,2 mm) | MX - Performance PBT (03) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.5 kg/m^2 | Patented PinSphere | -40÷120 °C | -40÷60 °C | Pin diameter: 3 mm |
|
| P5331230003A | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230006A | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230009A | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230012A | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230015A | 15" (381 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230018A | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230021A | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230024A | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230027A | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230030A | 30" (762 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230033A | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230036A | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230039A | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230042A | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230045A | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230048A | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230051A | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
| P5331230054A | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PBT White | A - No positioners | P5331 | 7.5 mm | 3000 N/m | 5.8 kg/m^2 | Patented PinSphere | -40÷80 °C | -40÷65 °C | Pin diameter: 3 mm |
|
