7870 Diamond Top
Modular Belts
Description
Description
Movex 7870 micropitch series is ideal for tight and short transfers, expecially for small products.
Belts wider than standard are available with 3 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual belt width may differ from the nominal value depending on the material used, with the following percentage tolerances:
For POM belts, the variation ranges from 0% to -0.5%.
For PBT belts, the variation ranges from 0% to -0.5%.
Non-Standard belt widths are incremented by 25.4 mm (1”). The minimum width is 50.8 mm (2.0”).

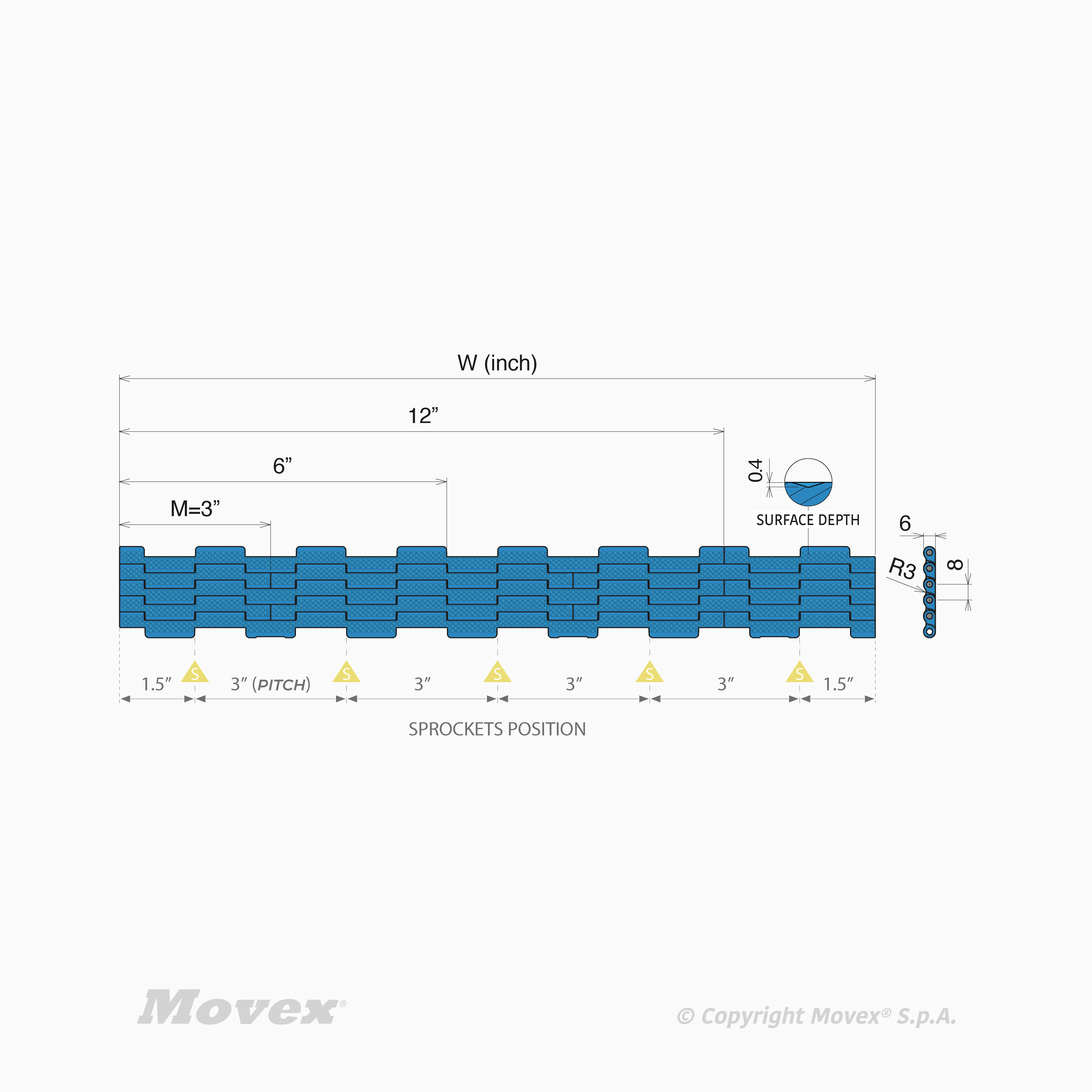

Basic features
| Series: | 7870 |
|---|---|
| Pitch: | 8 mm |
| Thickness: | 6 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | DT - Diamond Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7870 Diamond Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| F7870DTLFA0003 | 3" (76,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0006 | 6" (152,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0009 | 9" (228,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0012 | 12" (304,8 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0015 | 15" (381 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0018 | 18" (457,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0021 | 21" (533,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0024 | 24" (609,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0027 | 27" (685,8 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0030 | 30" (762 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0033 | 33" (838,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0036 | 36" (914,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0039 | 39" (990,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0042 | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0045 | 45" (1143 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0048 | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0051 | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFA0054 | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0003 | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0006 | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0009 | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0012 | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0015 | 15" (381 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0018 | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0021 | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0024 | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0027 | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0030 | 30" (762 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0033 | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0036 | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0039 | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0042 | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0045 | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0048 | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0051 | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFB0054 | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0003 | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0006 | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0009 | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0012 | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0015 | 15" (381 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0018 | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0021 | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0024 | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0027 | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0030 | 30" (762 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0033 | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0036 | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0039 | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0042 | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0045 | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0048 | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0051 | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFC0054 | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0003 | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0006 | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0009 | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0012 | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0015 | 15" (381 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0018 | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0021 | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0024 | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0027 | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0030 | 30" (762 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0033 | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0036 | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0039 | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0042 | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0045 | 45" (1143 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0048 | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0051 | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870DTLFW0054 | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 3000 N/m | 5.4 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
