7870 Flush Grid
Modular Belts
Description
Description
Movex 7870 micropitch series is ideal for tight and short transfers, expecially for small products.
Belts wider than standard are available with 3 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual belt width may differ from the nominal value depending on the material used, with the following percentage tolerances:
For POM belts, the variation ranges from 0% to -0.5%.
For PBT belts, the variation ranges from 0% to -0.5%.
Non-Standard belt widths are incremented by 25.4 mm (1”). The minimum width is 50.8 mm (2.0”).
Basic features
| Series: | 7870 |
|---|---|
| Pitch: | 8 mm |
| Thickness: | 6 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | FG - Flush Grid |
| Functionality: | Straight |
| Unit of measure: | Ea |

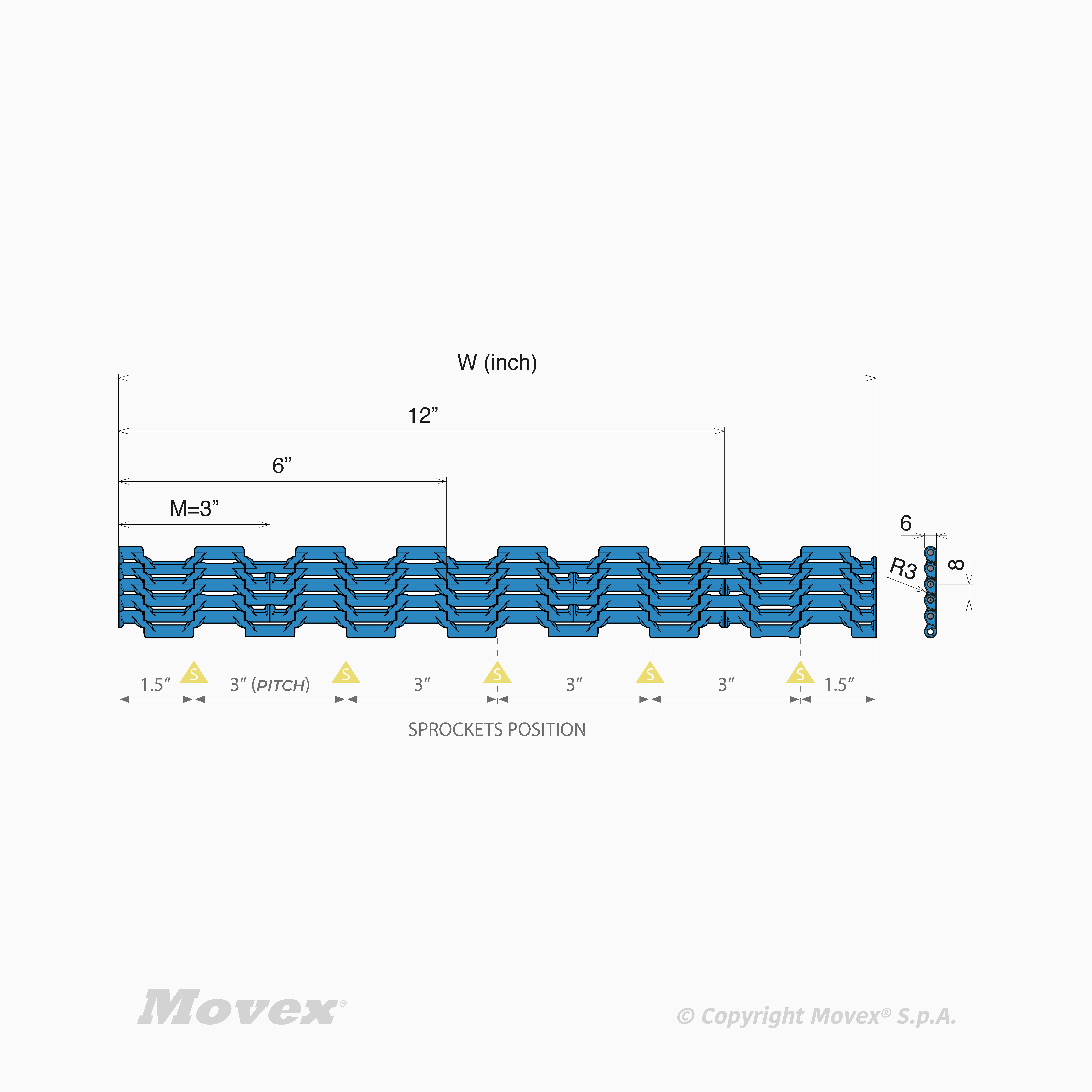

7870 Flush Grid
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| F7870FGLFA0003 | 3" (76,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0006 | 6" (152,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0009 | 9" (228,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0012 | 12" (304,8 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0015 | 15" (381 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0018 | 18" (457,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0021 | 21" (533,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0024 | 24" (609,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0027 | 27" (685,8 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0030 | 30" (762 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0033 | 33" (838,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0036 | 36" (914,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0039 | 39" (990,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0042 | 42" (1066,8 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0045 | 45" (1143 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0048 | 48" (1219,2 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0051 | 51" (1295,4 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFA0054 | 54" (1371,6 mm) | LFA - Low friction acetal (01) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0003 | 3" (76,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0006 | 6" (152,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0009 | 9" (228,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0012 | 12" (304,8 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0015 | 15" (381 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0018 | 18" (457,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0021 | 21" (533,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0024 | 24" (609,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0027 | 27" (685,8 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0030 | 30" (762 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0033 | 33" (838,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0036 | 36" (914,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0039 | 39" (990,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0042 | 42" (1066,8 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0045 | 45" (1143 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0048 | 48" (1219,2 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0051 | 51" (1295,4 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFB0054 | 54" (1371,6 mm) | LFB - Low friction acetal (Blue) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0003 | 3" (76,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0006 | 6" (152,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0009 | 9" (228,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0012 | 12" (304,8 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0015 | 15" (381 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0018 | 18" (457,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0021 | 21" (533,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0024 | 24" (609,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0027 | 27" (685,8 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0030 | 30" (762 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0033 | 33" (838,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0036 | 36" (914,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0039 | 39" (990,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0042 | 42" (1066,8 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0045 | 45" (1143 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0048 | 48" (1219,2 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0051 | 51" (1295,4 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFC0054 | 54" (1371,6 mm) | LFC - Low friction acetal (cyan) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0003 | 3" (76,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0006 | 6" (152,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0009 | 9" (228,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0012 | 12" (304,8 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0015 | 15" (381 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0018 | 18" (457,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0021 | 21" (533,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0024 | 24" (609,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0027 | 27" (685,8 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0030 | 30" (762 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0033 | 33" (838,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0036 | 36" (914,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0039 | 39" (990,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0042 | 42" (1066,8 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0045 | 45" (1143 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0048 | 48" (1219,2 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0051 | 51" (1295,4 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7870FGLFW0054 | 54" (1371,6 mm) | LFW - Low Friction acetal (White) | PBT Pin | A - No positioners | F7870 | 7.5 mm | 2400 N/m | 4.5 kg/m^2 | Patented PinSphere | -40÷93 °C | Temporary code, to be created specifically on request |
|
